Agricultural tractorsSpec sheet
Fendt Farmer 250V
The Fendt Farmer 250V is a compact tractor designed for orchards and vineyards. It's small and nimble, perfect for working between rows of trees or vines. This tractor has a 2-wheel drive system and power steering, making it easy to maneuver in tight spaces. Under the hood, the Farmer 250V has a KHD F3L912 engine. This 3-cylinder diesel engine is air-cooled and naturally aspirated. It produces 49.6 hp, which is below average for tractors but suitable for its size and purpose. The engine's power is managed by a manual transmission with 20 forward gears and 6 reverse gears, giving the operator plenty of options for different tasks. The tractor has a high hitch capacity of 7,716 lb, making it very capable for its size. It also features a ROPS (Roll-Over Protective Structure) for operator safety and an electric starter for easy operation.
Key specifications
- Category
- Agricultural
- Engine power
- 50hp
- Operating weight
- 4,166 lb
- Transmission
- Manual
Category comparison
Farmer 250V compared with its category
vs. Agricultural medianDistribution
Engine Power (hp)
All recorded Agricultural tractors
49.6 hp · 9th
This model
13
Median 110 hp
282
This modelAgricultural tractorsMediann = 1,028
The Farmer 250V ranks at the 9th percentile for engine power among recorded agricultural tractors.
Overview
About the Fendt Farmer 250V
The Fendt Farmer 250V is a compact tractor designed for orchards and vineyards. It's small and nimble, perfect for working between rows of trees or vines. This tractor has a 2-wheel drive system and power steering, making it easy to maneuver in tight spaces. Under the hood, the Farmer 250V has a KHD F3L912 engine. This 3-cylinder diesel engine is air-cooled and naturally aspirated. It produces 49.6 hp, which is below average for tractors but suitable for its size and purpose. The engine's power is managed by a manual transmission with 20 forward gears and 6 reverse gears, giving the operator plenty of options for different tasks. The tractor has a high hitch capacity of 7,716 lb, making it very capable for its size. It also features a ROPS (Roll-Over Protective Structure) for operator safety and an electric starter for easy operation.
Full specifications
Recorded specifications
General
| Manufacturer | Fendt |
|---|---|
| Model | Farmer 250V |
| Category | Agricultural tractor |
| Type | 4x2 2WD |
| Operating weight | 4,166lb(1,890 kg) |
Engine
| Make | KHD |
|---|---|
| Model | F3L912 |
| Power | 49.6hp(36.99 kW) |
| Cylinders | 3 |
| Displacement | 172.5ci(2.83 L) |
| Bore | 3.94in(100 mm) |
| Stroke | 4.72in(119.9 mm) |
Transmission
| Type | Manual |
|---|---|
| Forward gears | 20 |
| Reverse gears | 6 |
Chassis & drive
| Chassis | 4x2 2WD |
|---|---|
| Drive | 2WD |
| Steering | Power |
| Cab | ROPS |
Dimensions
| Length | 133.5in(3,391 mm) |
|---|---|
| Width | 41in(1,041 mm) |
| Height | 81.3in(2,065 mm) |
| Operating weight | 4,166lb(1,890 kg) |
Closest alternatives
Farmer 250V compared with the nearest models by horsepower
Among agricultural tractors, the David Brown 50TD and the Iseki T5020 are closest to the Fendt Farmer 250V in rated horsepower. The David Brown 50TD matches it on rated power and weighs 6,280 lb more, so it carries more weight per horsepower, which helps traction in draft work. The Iseki T5020 matches it on rated power.
| Spec | Fendt Farmer 250V | David Brown 50TD | Iseki T5020 |
|---|---|---|---|
| Engine power | 49.6 hp37 kW | 50 hp37.3 kW | 50 hp37.3 kW |
| Operating weight | 4,166 lb1,890 kg | 10,450 lb4,740 kg | - |
| Weight per hp | 84 lb/hp51 kg/kW | 209 lb/hp127 kg/kW | - |
| Displacement | 172.5 ci2.83 L | 248 ci4.06 L | - |
| Cylinders | 3 | 6 | 4 |
| Transmission | Manual | Gear type with dry disc clutch | Syncromesh |
Calculators
Calculators for the Farmer 250V
PTO power
About 41 to 45 PTO hp
Estimated from the 49.6 hp engine rating. The calculator also estimates drawbar power by surface.
Implement sizing
Implements a 49.6 hp tractor can run
Maximum size is about a 6 ft rotary cutter or a 5 ft tiller. The calculator also sizes discs, plows and balers.
Ballast
98 lb per PTO hp as listed
Heavy draft work calls for 130 to 150 lb/hp. The calculator gives the ballast to add.
Units
49.6 hp is 37.0 kW
The converter gives kW and metric PS values, as used on European spec sheets.
Category medians
Farmer 250V vs. Agricultural median
Fendt Farmer 250V compared with other Agricultural tractors
| Spec | This model | Agricultural median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 49.6 hp | 110 hp | -55% | 9th |
| Engine Displacement | 173 ci | 336 ci | -49% | 11th |
| Cylinders | 3 | 5.5 | -45% | 8th |
| Forward Gears | 20 | 16 | +25% | 74th |
| Operating Weight | 4,166 lb | 10,914 lb | -62% | 6th |
| Length | 134 in | 173 in | -23% | 15th |
| Width | 41 in | 79.5 in | -48% | 3rd |
| Height | 81.3 in | 111 in | -26% | 13th |
| 3-Point Hitch Capacity | 7,716 lb | 12,126 lb | -36% | 28th |
Medians and percentiles are calculated from the agricultural tractors in the database that have a recorded value for each specification (sample size 93–1,130 models).
Same manufacturer
Other Fendt models
Other manufacturers
Models with similar horsepower
Gallery

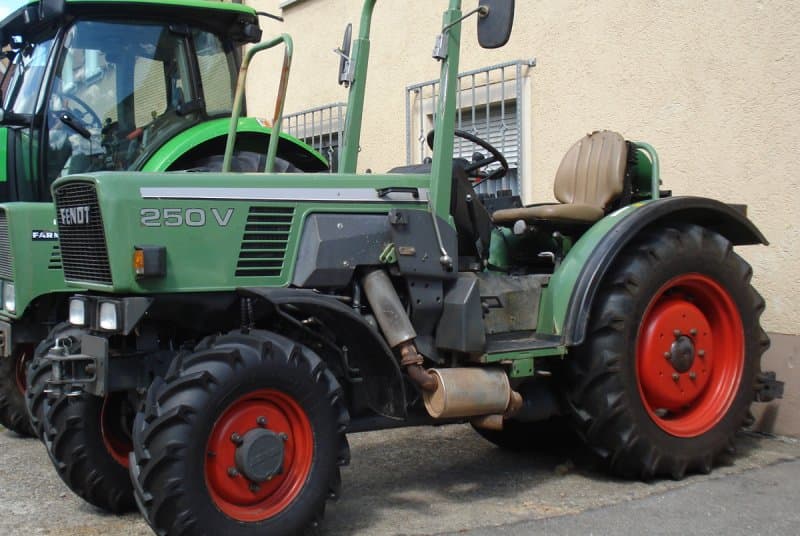

Fendt Farmer 250V photos
FAQ
Frequently asked questions
What is the engine power output of the Fendt Farmer 250V?
Rated engine output for the Fendt Farmer 250V is 49.6 hp, delivered by a 3-cylinder engine. The engine displaces 172.5 ci.
Which transmission does the Fendt Farmer 250V use?
The Fendt Farmer 250V is equipped with a Manual transmission with 20 forward gears.
What hitch category is the Fendt Farmer 250V?
The Fendt Farmer 250V uses a Category Category 3 hitch with a lift capacity of 7,716 lb.
What is the operating weight of the Fendt Farmer 250V?
The Fendt Farmer 250V has an operating weight of about 4,166 lb.
How do I maintain a Fendt Farmer 250V?
Routine service for the Fendt Farmer 250V covers engine oil and filter changes, hydraulic and coolant level checks, air filter cleaning, and scheduled inspections. Refer to the manufacturer's maintenance schedule for exact intervals.
