Utility tractorsSpec sheet
Fendt Farmer 2DE
The Fendt Farmer 2DE is a utility tractor designed for everyday farm work. It has a 2-wheel drive system and a manual steering setup, making it easy to handle in various conditions. The tractor comes with a manual transmission that offers 8 forward gears and 4 reverse gears, giving farmers good control over their speed and power. Under the hood, the Farmer 2DE has a 3-cylinder diesel engine made by MWM. This engine is liquid-cooled and naturally aspirated, which means it doesn't use a turbocharger. It has an average displacement of 136.3 cubic inches and produces 40 horsepower at 2100 RPM. The engine's power output is about average compared to other tractors in its class. The tractor weighs 4013 pounds, which is also average for its size. It measures 128.4 inches long and 84.7 inches tall, making it compact enough for various farm tasks. The Farmer 2DE uses agricultural tires, with different sizes for the front and rear, and features an electric starter for easy operation.
Key specifications
- Category
- Utility
- Engine power
- 40hp
- Operating weight
- 4,013 lb
- Transmission
- Manual
Category comparison
Farmer 2DE compared with its category
vs. Utility medianDistribution
Engine Power (hp)
All recorded Utility tractors
40 hp · 33rd
This model
9
Median 55 hp
177
This modelUtility tractorsMediann = 5,383
The Farmer 2DE ranks at the 33rd percentile for engine power among recorded utility tractors.
Overview
About the Fendt Farmer 2DE
The Fendt Farmer 2DE is a utility tractor designed for everyday farm work. It has a 2-wheel drive system and a manual steering setup, making it easy to handle in various conditions. The tractor comes with a manual transmission that offers 8 forward gears and 4 reverse gears, giving farmers good control over their speed and power. Under the hood, the Farmer 2DE has a 3-cylinder diesel engine made by MWM. This engine is liquid-cooled and naturally aspirated, which means it doesn't use a turbocharger. It has an average displacement of 136.3 cubic inches and produces 40 horsepower at 2100 RPM. The engine's power output is about average compared to other tractors in its class. The tractor weighs 4013 pounds, which is also average for its size. It measures 128.4 inches long and 84.7 inches tall, making it compact enough for various farm tasks. The Farmer 2DE uses agricultural tires, with different sizes for the front and rear, and features an electric starter for easy operation.
Full specifications
Recorded specifications
General
| Manufacturer | Fendt |
|---|---|
| Model | Farmer 2DE |
| Category | Utility tractor |
| Type | 4x2 2WD |
| Operating weight | 4,013lb(1,820 kg) |
Engine
| Make | MWM |
|---|---|
| Model | D208-3 |
| Power | 40hp(29.83 kW) |
| Cylinders | 3 |
| Displacement | 136.3ci(2.23 L) |
| Bore | 3.74in(95 mm) |
| Stroke | 4.13in(105 mm) |
Transmission
| Type | Manual |
|---|---|
| Forward gears | 8 |
| Reverse gears | 4 |
Chassis & drive
| Chassis | 4x2 2WD |
|---|---|
| Drive | 2WD |
| Steering | Manual |
Dimensions
| Length | 128.4in(3,261 mm) |
|---|---|
| Height | 84.7in(2,151 mm) |
| Operating weight | 4,013lb(1,820 kg) |
Closest alternatives
Farmer 2DE compared with the nearest models by horsepower
Among utility tractors, the Fendt Dieselross F40 and the Fendt Farmer 200S are closest to the Fendt Farmer 2DE in rated horsepower. The Fendt Dieselross F40 matches it on rated power and weighs 1,280 lb more, so it carries more weight per horsepower, which helps traction in draft work. The Fendt Farmer 200S matches it on rated power and weighs 420 lb more, at 111 lb per horsepower against 100 lb. Of the 3 models, the Farmer 2DE has the lowest weight per horsepower at 100 lb per hp.
| Spec | Fendt Farmer 2DE | Fendt Dieselross F40 | Fendt Farmer 200S |
|---|---|---|---|
| Engine power | 40 hp29.8 kW | 40 hp29.8 kW | 40 hp29.8 kW |
| Operating weight | 4,013 lb1,820 kg | 5,291 lb2,400 kg | 4,432 lb2,010 kg |
| Weight per hp | 100 lb/hp61 kg/kW | 132 lb/hp80 kg/kW | 111 lb/hp67 kg/kW |
| Displacement | 136.3 ci2.23 L | 215.7 ci3.53 L | 172.4 ci2.83 L |
| Cylinders | 3 | 3 | 3 |
| Transmission | Manual | Gear | Manual |
| Drive | 2WD | - | 2WD |
Calculators
Calculators for the Farmer 2DE
PTO power
About 33 to 36 PTO hp
Estimated from the 40 hp engine rating. The calculator also estimates drawbar power by surface.
Implement sizing
Implements a 40 hp tractor can run
Maximum size is about a 5 ft rotary cutter or a 4 ft tiller. The calculator also sizes discs, plows and balers.
Ballast
117 lb per PTO hp as listed
Heavy draft work calls for 130 to 150 lb/hp. The calculator gives the ballast to add.
Units
40 hp is 29.8 kW
The converter gives kW and metric PS values, as used on European spec sheets.
Category medians
Farmer 2DE vs. Utility median
Fendt Farmer 2DE compared with other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 40 hp | 55 hp | -27% | 33rd |
| Engine Displacement | 136 ci | 183 ci | -26% | 35th |
| Cylinders | 3 | 4 | -25% | 23rd |
| Forward Gears | 8 | 12 | -33% | 23rd |
| Operating Weight | 4,013 lb | 5,303 lb | -24% | 37th |
| Length | 128 in | 137 in | -6% | 39th |
| Height | 84.7 in | 94.1 in | -10% | 32nd |
Medians and percentiles are calculated from the utility tractors in the database that have a recorded value for each specification (sample size 4,321–5,720 models).
Same manufacturer
Other Fendt models
Other manufacturers
Models with similar horsepower
Gallery

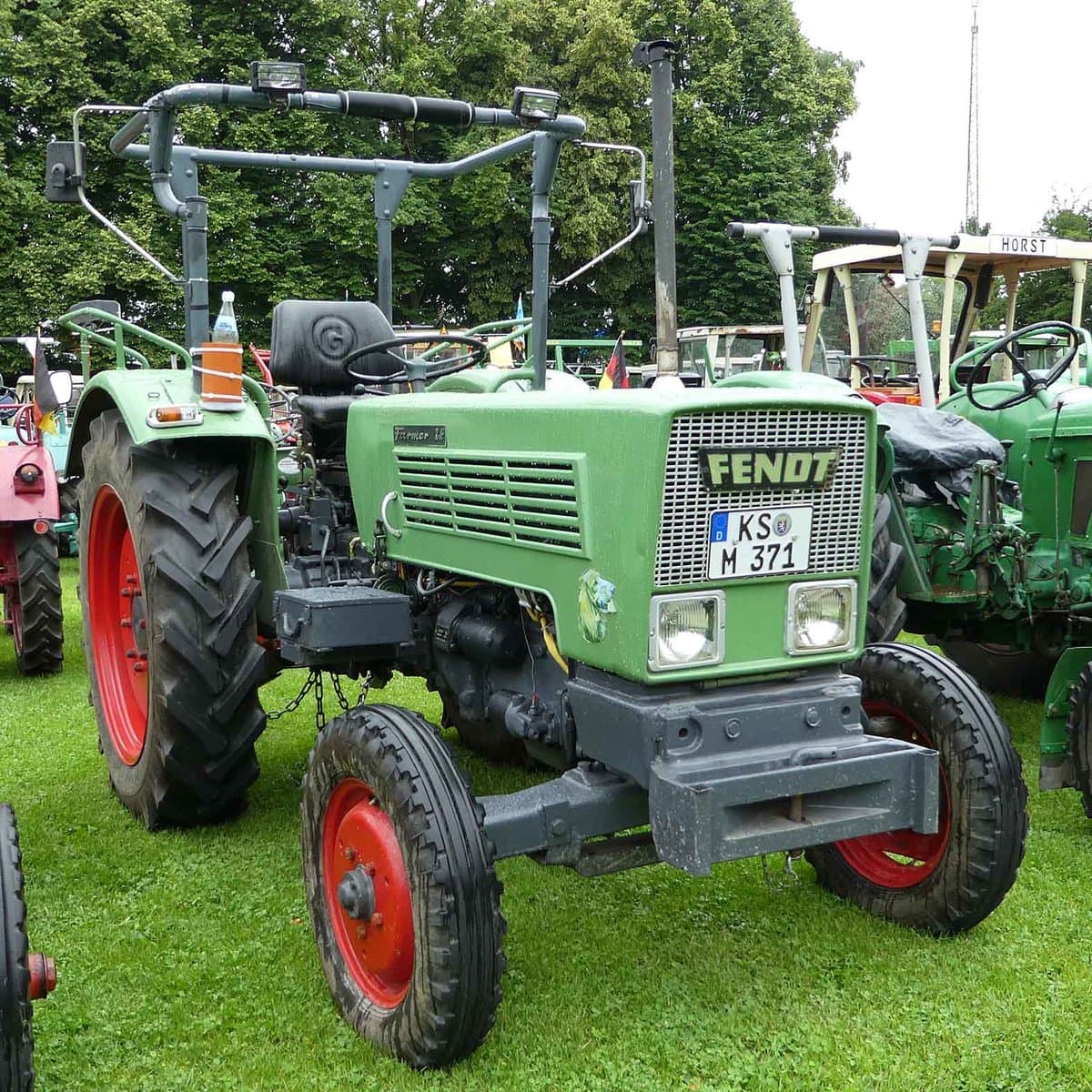

Fendt Farmer 2DE photos
FAQ
Frequently asked questions
What is the engine power output of the Fendt Farmer 2DE?
Rated engine output for the Fendt Farmer 2DE is 40 hp, delivered by a 3-cylinder engine. The engine displaces 136.3 ci.
Which transmission does the Fendt Farmer 2DE use?
The Fendt Farmer 2DE is equipped with a Manual transmission with 8 forward gears.
What is the operating weight of the Fendt Farmer 2DE?
The Fendt Farmer 2DE has an operating weight of about 4,013 lb.
How do I maintain a Fendt Farmer 2DE?
Routine service for the Fendt Farmer 2DE covers engine oil and filter changes, hydraulic and coolant level checks, air filter cleaning, and scheduled inspections. Refer to the manufacturer's maintenance schedule for exact intervals.
