Fiat 1300
The Fiat 1300 is a powerful tractor made from 1973 to 1976. It has a 2WD drive system and power steering, making it easy to handle. The tractor comes with a manual transmission that has 12 forward gears and 4 reverse gears, giving the driver lots of options for different tasks. Under the hood, the Fiat 1300 has a strong 6-cylinder diesel engine made by Fiat. This engine is liquid-cooled and can produce 130 horsepower at 2100 rpm. It has a displacement of 452.28 cubic inches, which is quite large for a tractor of its time. The tractor weighs 11,686 pounds, making it sturdy for heavy farm work. It has big agricultural tires, with 12.4-28 in the front and 18.4-38 in the rear. The Fiat 1300 is built for serious farm work. It has a three-point hitch at the back that can lift up to 7,390 pounds. The tractor also has a versatile PTO system with two speeds: 540 rpm and 1000 rpm. Farmers can choose between an open operator station or a cab for comfort. With its electric starter and wet disc brakes, the Fiat 1300 is both easy to use and safe to operate.
ManufacturerFiatPower130 hpEngine6-cylTransManual
Quick specs
- Category
- Agricultural
- Engine Power Output
- 130hp
- Operating Weight
- 11,686 lb
- Transmission
- Manual
At a glance
How the 1300 compares
vs. Agricultural medianDistribution
Engine Power (hp)
Across all Agricultural tractors
130 hp · 61st
This model
13
Median 110 hp
282
This modelAgricultural tractorsMediann = 1,028
The 1300 ranks at the 61st percentile for engine power among recorded agricultural tractors.
Overview
About the Fiat 1300
The Fiat 1300 is a powerful tractor made from 1973 to 1976. It has a 2WD drive system and power steering, making it easy to handle. The tractor comes with a manual transmission that has 12 forward gears and 4 reverse gears, giving the driver lots of options for different tasks. Under the hood, the Fiat 1300 has a strong 6-cylinder diesel engine made by Fiat. This engine is liquid-cooled and can produce 130 horsepower at 2100 rpm. It has a displacement of 452.28 cubic inches, which is quite large for a tractor of its time. The tractor weighs 11,686 pounds, making it sturdy for heavy farm work. It has big agricultural tires, with 12.4-28 in the front and 18.4-38 in the rear. The Fiat 1300 is built for serious farm work. It has a three-point hitch at the back that can lift up to 7,390 pounds. The tractor also has a versatile PTO system with two speeds: 540 rpm and 1000 rpm. Farmers can choose between an open operator station or a cab for comfort. With its electric starter and wet disc brakes, the Fiat 1300 is both easy to use and safe to operate.
Full specifications
Every recorded spec
General
| Manufacturer | Fiat |
|---|---|
| Model | 1300 |
| Category | Agricultural tractor |
| Type | 4x2 2WD |
| Years built | 1973–1976 |
| Operating weight | 11,686lb |
Engine
| Make | Fiat |
|---|---|
| Model | OM CP3/100 |
| Power | 130hp |
| Cylinders | 6 |
| Displacement | 452.28ci |
| Bore | 4.33in |
| Stroke | 5.12in |
Transmission
| Type | Manual |
|---|---|
| Forward gears | 12 |
| Reverse gears | 4 |
Chassis & drive
| Chassis | 4x2 2WD |
|---|---|
| Drive | 2WD |
| Steering | Power Steering |
| Brakes | Wet disc |
| Cab | Open operator station or Cab |
Power take-off
| Rear PTO | Independent |
|---|---|
| PTO speed | 540rpm |
Dimensions
| Operating weight | 11,686lb |
|---|
Tires
| Front | 12.4-28 |
|---|---|
| Rear | 18.4-38 |
Head to head
1300 vs. Agricultural median
How the Fiat 1300 compares to other Agricultural tractors
| Spec | This model | Agricultural median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 130 hp | 110 hp | +18% | 61st |
| Engine Displacement | 452 ci | 336 ci | +35% | 82nd |
| Cylinders | 6 | 5.5 | +9% | 74th |
| Forward Gears | 12 | 16 | -25% | 33rd |
| Operating Weight | 11,686 lb | 10,914 lb | +7% | 54th |
| 3-Point Hitch Capacity | 7,390 lb | 12,126 lb | -39% | 21st |
Medians and percentiles are computed from the agricultural tractors in our database with a recorded value for each spec (sample sizes 93–1,130 models).
Compare to tractors with similar specs
Commonly compared Fiat tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Fiat 130-90 | 130 hp | 12,766 lb | — | Compare → |
| Fiat 1280 | 123 hp | 12,017 lb | — | Compare → |
| Fiat 115-90 | 115 hp | 11,664 lb | — | Compare → |
| Fiat M115 | 115 hp | 11,616 lb | — | Compare → |
| Fiat 110-90 | 110 hp | 10,297 lb | — | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Allis Chalmers HD11AG | 130 hp | 23,000 lb | — | Compare → |
| Belarus 1221 | 130 hp | 10,230 lb | — | Compare → |
| Belarus 1221 MIG | 130 hp | 11,350 lb | — | Compare → |
| Allis Chalmers 7030 | 131.09 hp | 12,430 lb | 1973–1974 | Compare → |
| AGCO RT100 | 128 hp | 15,055 lb | — | Compare → |
Explore
Fiat siblings
Explore
Similar-spec models
Gallery

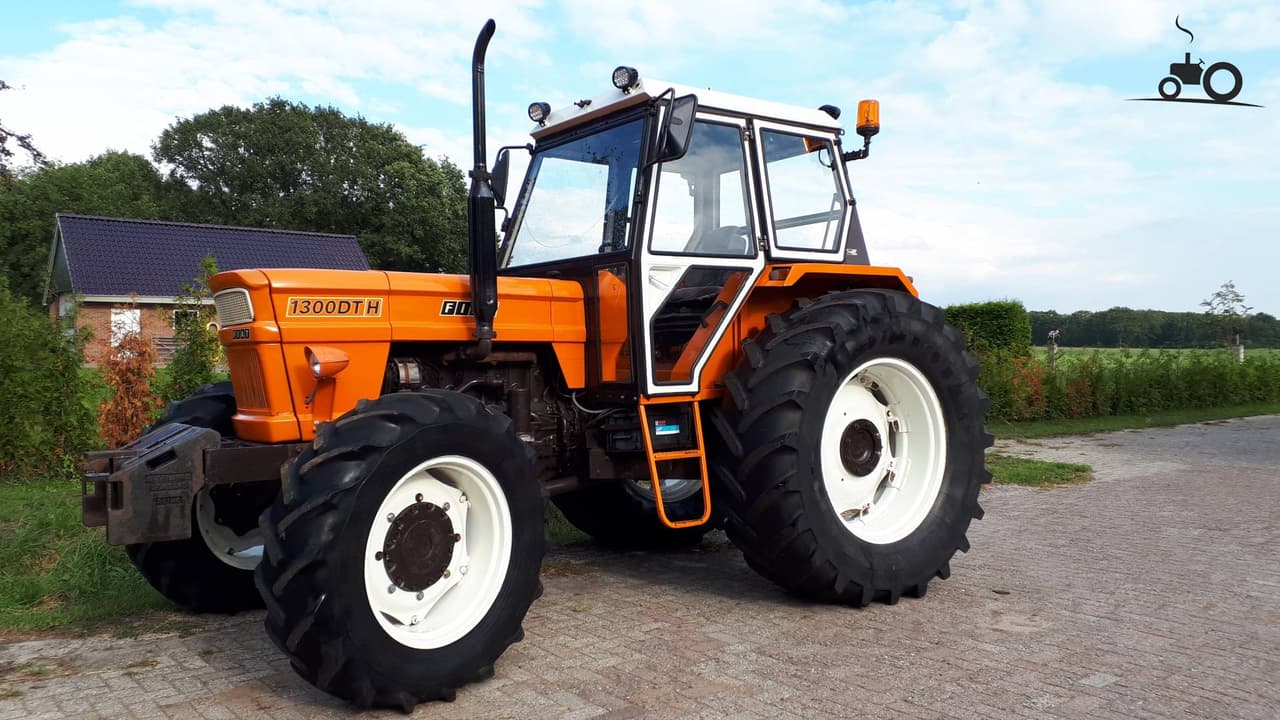

Fiat 1300 photos
FAQ
Common questions
What years was the Fiat 1300 manufactured?
Production of the Fiat 1300 ran from 1973 through 1976.
What size tires does the Fiat 1300 use?
Factory rubber for the Fiat 1300 is 12.4-28 front tires and 18.4-38 rear tires.
What hitch category is the Fiat 1300?
The Fiat 1300 uses a Category Category 3 hitch with a lift capacity of 7,390 lb.
How powerful is the Fiat 1300?
The Fiat 1300 has an engine power output of 130 hp. It is powered by a 6-cylinder engine displacing 452.28 ci.
What is the working weight of the Fiat 1300?
The operating weight of the Fiat 1300 is approximately 11,686 lb.
What type of transmission does the Fiat 1300 have?
The Fiat 1300 uses a Manual transmission offering 12 forward gears.
What routine service does the Fiat 1300 need?
Regular maintenance for the Fiat 1300 includes checking and changing engine oil, hydraulic fluid, and filters, plus routine inspections as recommended in the owner's manual. Always follow the manufacturer's maintenance schedule for specific intervals and procedures.
