Fiat 481R
The Fiat 481R is a utility tractor that's great for high-clearance work. It was first made in 1936 and has a 2WD drive system with manual steering. This tractor is powered by a Fiat diesel engine with 4 cylinders and 40 horsepower. The engine is liquid-cooled and naturally aspirated, which means it doesn't use a turbocharger. The 481R has a gear transmission with 6 forward gears and 2 reverse gears. It's not very big, measuring 126.7 inches long, 67.5 inches wide, and 66.9 inches tall. The tractor weighs 3,616 pounds, which is on the lighter side for tractors. It has good ground clearance at 24.2 inches, making it useful for working in fields with tall crops. The engine size and power are about average compared to other tractors, while its weight is below average. This tractor is a good choice for farmers who need a reliable, compact machine for various farm tasks.

Key specifications
- Category
- Utility
- Engine power
- 40hp
- Operating weight
- 3,616 lb
- Transmission
- Gear
Category comparison
481R compared with its category
vs. Utility medianDistribution
Engine Power (hp)
All recorded Utility tractors
This model
The 481R ranks at the 33rd percentile for engine power among recorded utility tractors.
Overview
About the Fiat 481R
The Fiat 481R is a utility tractor that's great for high-clearance work. It was first made in 1936 and has a 2WD drive system with manual steering. This tractor is powered by a Fiat diesel engine with 4 cylinders and 40 horsepower. The engine is liquid-cooled and naturally aspirated, which means it doesn't use a turbocharger. The 481R has a gear transmission with 6 forward gears and 2 reverse gears. It's not very big, measuring 126.7 inches long, 67.5 inches wide, and 66.9 inches tall. The tractor weighs 3,616 pounds, which is on the lighter side for tractors. It has good ground clearance at 24.2 inches, making it useful for working in fields with tall crops. The engine size and power are about average compared to other tractors, while its weight is below average. This tractor is a good choice for farmers who need a reliable, compact machine for various farm tasks.
Full specifications
Recorded specifications
General
| Manufacturer | Fiat |
|---|---|
| Model | 481R |
| Category | Utility tractor |
| Type | 4x2 2WD |
| Years built | 1936+ |
| Operating weight | 3,616lb(1,640 kg) |
Engine
| Make | Fiat |
|---|---|
| Power | 40hp(29.83 kW) |
| Cylinders | 4 |
| Displacement | 138.5ci(2.27 L) |
| Bore | 3.35in(85.09 mm) |
| Stroke | 3.94in(100.1 mm) |
Transmission
| Type | Gear |
|---|---|
| Forward gears | 6 |
| Reverse gears | 2 |
Chassis & drive
| Chassis | 4x2 2WD |
|---|---|
| Drive | 2WD |
| Steering | Manual |
Dimensions
| Length | 126.7in(3,218 mm) |
|---|---|
| Width | 67.5in(1,715 mm) |
| Height | 66.9in(1,699 mm) |
| Operating weight | 3,616lb(1,640 kg) |
Closest alternatives
481R compared with the nearest models by horsepower
Among utility tractors, the Fiat 411C and the Fiat 411R are closest to the Fiat 481R in rated horsepower. The Fiat 411C matches it on rated power and weighs 1,770 lb more, at 135 lb per horsepower against 90 lb. The Fiat 411R matches it on rated power and weighs 50 lb less.
| Spec | Fiat 481R | Fiat 411C | Fiat 411R |
|---|---|---|---|
| Engine power | 40 hp29.8 kW | 40 hp29.8 kW | 40 hp29.8 kW |
| Operating weight | 3,616 lb1,640 kg | 5,385 lb2,443 kg | 3,565 lb1,617 kg |
| Weight per hp | 90 lb/hp55 kg/kW | 135 lb/hp82 kg/kW | 89 lb/hp54 kg/kW |
| Displacement | 138.5 ci2.27 L | 138.5 ci2.27 L | 138.5 ci2.27 L |
| Cylinders | 4 | 4 | 4 |
| Transmission | Gear | Gear | Gear |
| Drive | 2WD | - | 2WD |
Calculators
Calculators for the 481R
PTO power
About 33 to 36 PTO hp
Estimated from the 40 hp engine rating. The calculator also estimates drawbar power by surface.
Implement sizing
Implements a 40 hp tractor can run
Maximum size is about a 5 ft rotary cutter or a 4 ft tiller. The calculator also sizes discs, plows and balers.
Ballast
105 lb per PTO hp as listed
Heavy draft work calls for 130 to 150 lb/hp. The calculator gives the ballast to add.
Units
40 hp is 29.8 kW
The converter gives kW and metric PS values, as used on European spec sheets.
Parts and manuals
Parts and manuals for the Fiat 481R
Each link opens a retailer search keyed to the fields recorded for this model. Confirm fitment against the serial plate before ordering.
Filters
- Oil filter for the FiatAmazon
Fits the Fiat 4-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
- Air filter for the FiatAmazon
Fits the Fiat 4-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
- Fuel filter for the FiatAmazon
Fits the Fiat 4-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
- Hydraulic filter for the FiatAmazon
Fits the Fiat 4-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
Manuals
- Fiat 481R service and repair manualseManualOnline
Digital manuals. Built from 1936. Check the serial number range on the listing.
- Fiat 481R operator's manualAmazon
Printed and reprint manuals. Built from 1936. Check the serial number range on the listing.
- Fiat 481R service manualAmazon
Shop and repair manuals for this model.
Links in this section go to retailers. A purchase through them earns this site a commission at no extra cost to the buyer. As an Amazon Associate, Heavy Equipment Specs earns from qualifying purchases. Affiliate disclosure
Category medians
481R vs. Utility median
Fiat 481R compared with other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 40 hp | 55 hp | -27% | 33rd |
| Engine Displacement | 139 ci | 183 ci | -24% | 35th |
| Cylinders | 4 | 4 | at median | 50th |
| Forward Gears | 6 | 12 | -50% | 11th |
| Operating Weight | 3,616 lb | 5,303 lb | -32% | 31st |
| Length | 127 in | 137 in | -7% | 37th |
| Width | 67.5 in | 66 in | +2% | 54th |
| Height | 66.9 in | 94.1 in | -29% | 14th |
Medians and percentiles are calculated from the utility tractors in the database that have a recorded value for each specification (sample size 3,933–5,720 models).
Same manufacturer
Other Fiat models
Other manufacturers
Models with similar horsepower
Gallery

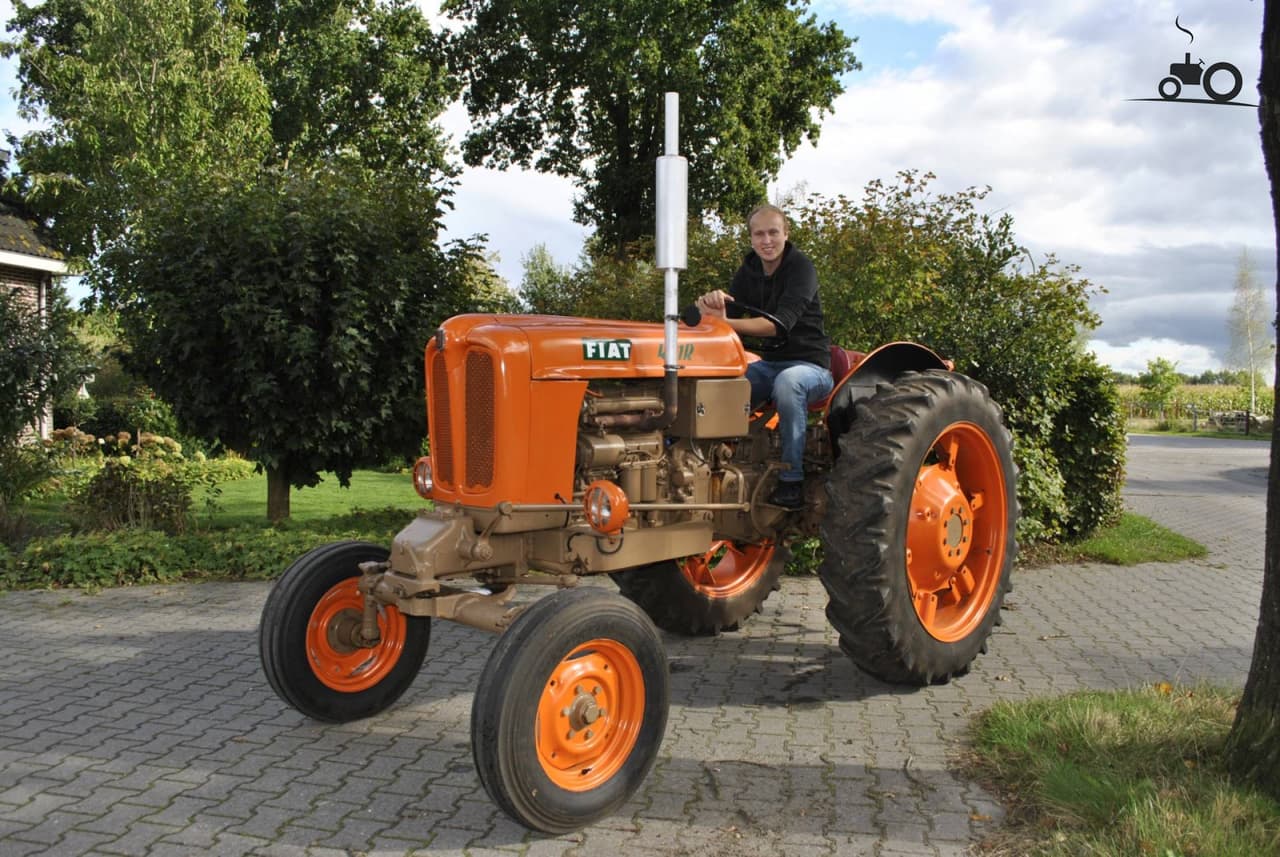

Fiat 481R photos


FAQ
Frequently asked questions
What years was the Fiat 481R manufactured?
Production of the Fiat 481R began in 1936.
What type of transmission does the Fiat 481R have?
The Fiat 481R uses a Gear transmission offering 6 forward gears.
How powerful is the Fiat 481R?
The Fiat 481R has an engine power output of 40 hp. It is powered by a 4-cylinder engine displacing 138.5 ci.
What is the working weight of the Fiat 481R?
The operating weight of the Fiat 481R is approximately 3,616 lb.
What routine service does the Fiat 481R need?
Regular maintenance for the Fiat 481R includes checking and changing engine oil, hydraulic fluid, and filters, plus routine inspections as recommended in the owner's manual. Always follow the manufacturer's maintenance schedule for specific intervals and procedures.
