Fiat 570
The Fiat 570 is a compact tractor designed for orchards and vineyards. It's also great for general farm work. This tractor has a 2-wheel drive system and power steering, making it easy to handle in tight spaces. The Fiat 570 is powered by a 3-cylinder diesel engine made by Fiat. The engine is liquid-cooled and has direct injection. It produces 57.2 hp, which is below average for tractors. The engine runs at a very high 2650 rpm. The tractor has a 16-speed forward and 4-speed reverse transmission. It weighs 4189 lb, which is lighter than many other tractors. The Fiat 570 has standard agricultural tires and a three-point hitch at the rear for attaching tools. It's 115.1 inches long and 54.3 inches tall, perfect for working in orchards with low-hanging branches.
ManufacturerFiatPower57.2 hpEngine3-cylTransPartially synchronized
Quick specs
- Category
- Agricultural
- Engine Power Output
- 57hp
- Operating Weight
- 4,189 lb
- Transmission
- Partially synchronized
At a glance
How the 570 compares
vs. Agricultural medianDistribution
Engine Power (hp)
Across all Agricultural tractors
57.2 hp · 12th
This model
13
Median 110 hp
282
This modelAgricultural tractorsMediann = 1,028
The 570 ranks at the 12th percentile for engine power among recorded agricultural tractors.
Overview
About the Fiat 570
The Fiat 570 is a compact tractor designed for orchards and vineyards. It's also great for general farm work. This tractor has a 2-wheel drive system and power steering, making it easy to handle in tight spaces. The Fiat 570 is powered by a 3-cylinder diesel engine made by Fiat. The engine is liquid-cooled and has direct injection. It produces 57.2 hp, which is below average for tractors. The engine runs at a very high 2650 rpm. The tractor has a 16-speed forward and 4-speed reverse transmission. It weighs 4189 lb, which is lighter than many other tractors. The Fiat 570 has standard agricultural tires and a three-point hitch at the rear for attaching tools. It's 115.1 inches long and 54.3 inches tall, perfect for working in orchards with low-hanging branches.
Full specifications
Every recorded spec
General
| Manufacturer | Fiat |
|---|---|
| Model | 570 |
| Category | Agricultural tractor |
| Type | 4x2 2WD |
| Operating weight | 4,189lb |
Engine
| Make | Fiat |
|---|---|
| Model | 8035 |
| Power | 57.2hp |
| Cylinders | 3 |
| Displacement | 167.8ci |
| Bore | 4.06in |
| Stroke | 4.33in |
Transmission
| Type | Partially synchronized |
|---|---|
| Forward gears | 16 |
| Reverse gears | 4 |
Chassis & drive
| Chassis | 4x2 2WD |
|---|---|
| Drive | 2WD |
| Steering | Power |
Hydraulics
| Type | Open Center |
|---|
Dimensions
| Length | 115.1in |
|---|---|
| Height | 54.3in |
| Operating weight | 4,189lb |
Head to head
570 vs. Agricultural median
How the Fiat 570 compares to other Agricultural tractors
| Spec | This model | Agricultural median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 57.2 hp | 110 hp | -48% | 12th |
| Engine Displacement | 168 ci | 336 ci | -50% | 10th |
| Cylinders | 3 | 5.5 | -45% | 8th |
| Forward Gears | 16 | 16 | at median | 50th |
| Operating Weight | 4,189 lb | 10,914 lb | -62% | 6th |
| Length | 115 in | 173 in | -33% | 5th |
| Height | 54.3 in | 111 in | -51% | 5th |
Medians and percentiles are computed from the agricultural tractors in our database with a recorded value for each spec (sample sizes 795–1,130 models).
Compare to tractors with similar specs
Commonly compared Fiat tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Fiat 505C Super | 58 hp | — | — | Compare → |
| Fiat 60-76 | 59.1 hp | 4,564 lb | — | Compare → |
| Fiat 55-65 | 55 hp | — | — | Compare → |
| Fiat 55-85 | 55 hp | — | — | Compare → |
| Fiat 60-65 | 60 hp | — | — | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Belarus 400A | 57 hp | 6,600 lb | — | Compare → |
| Belarus 405A | 57 hp | 7,650 lb | — | Compare → |
| Belarus 420A | 57 hp | 7,300 lb | — | Compare → |
| Belarus 425A | 57 hp | 8,700 lb | — | Compare → |
| Allis Chalmers 615 | 56.9 hp | — | 1966–1974 | Compare → |
Explore
Fiat siblings
Explore
Similar-spec models

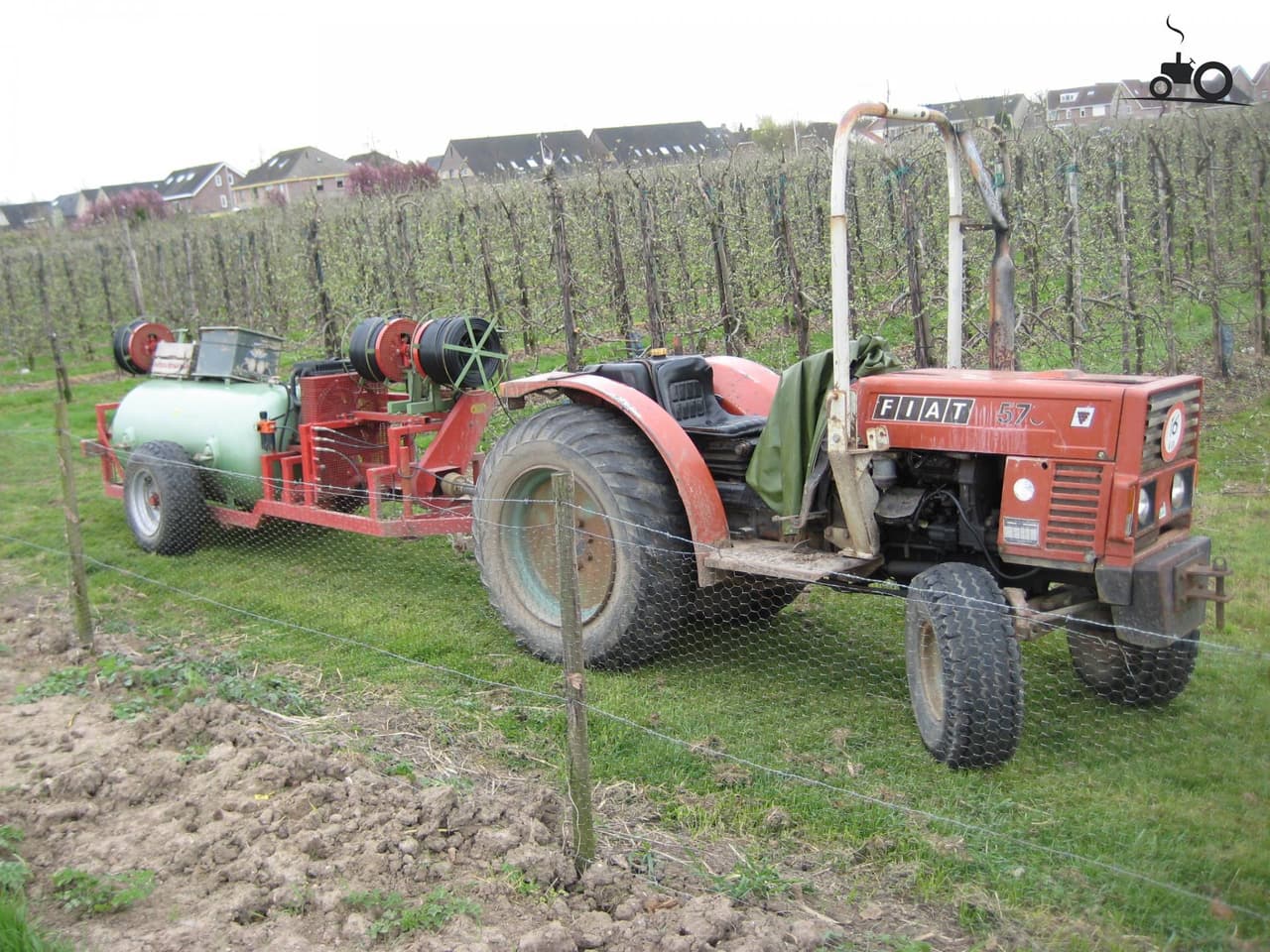

Gallery
Fiat 570 photos
FAQ
Common questions
What is the engine power output of the Fiat 570?
Rated engine output for the Fiat 570 is 57.2 hp, delivered by a 3-cylinder engine. The engine displaces 167.8 ci.
Which transmission does the Fiat 570 use?
The Fiat 570 is equipped with a Partially synchronized transmission with 16 forward gears.
What type of hydraulic system does the Fiat 570 use?
Hydraulics on the Fiat 570 are Open Center.
What hitch category is the Fiat 570?
The Fiat 570 uses a Category II/I hitch.
What is the operating weight of the Fiat 570?
In working trim, the Fiat 570 comes in at roughly 4,189 lb.
How do I maintain a Fiat 570?
Routine service for the Fiat 570 covers engine oil and filter changes, hydraulic and coolant level checks, air filter cleaning, and scheduled inspections. Refer to the manufacturer's maintenance schedule for exact intervals.
