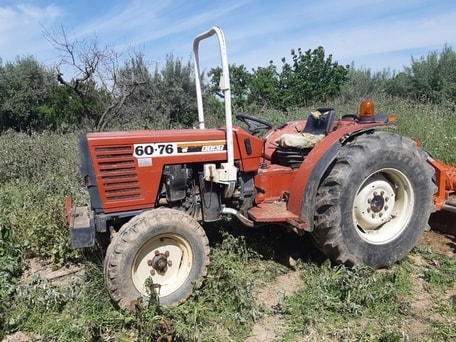

Fiat 60-76
The Fiat 60-76 is a compact tractor designed for orchards and vineyards. It's a 2-wheel drive model with power steering, making it easy to maneuver in tight spaces. The tractor has a 12-forward and 4-reverse gear transmission, giving farmers plenty of options for different tasks. Under the hood, the Fiat 60-76 has a 3-cylinder diesel engine made by Fiat. The engine is liquid-cooled and naturally aspirated, producing 59.1 hp at 2500 rpm. This power output is below average compared to other tractors, but it's suitable for its size and intended use. The engine's displacement is 178.9 cubic inches, which is also below average, making it fuel-efficient for smaller jobs. The tractor weighs 4564 pounds, which is on the lighter side, allowing it to work well in delicate orchard environments without compacting the soil too much. The Fiat 60-76 comes with agricultural tires and a rear hitch for attaching implements. It has an open center hydraulic system and a ROPS (Roll-Over Protective Structure) for operator safety. The tractor's compact size, with a length of 116.1 inches and a height of 96.5 inches, makes it ideal for working between tree rows or in vineyards. Additional features include an adjustable steering wheel height and a low hood height for better visibility.

Quick specs
- Category
- Agricultural
- Engine Power Output
- 59hp
- Operating Weight
- 4,564 lb
- Transmission
- Partially synchronized
At a glance
How the 60-76 compares
vs. Agricultural medianDistribution
Engine Power (hp)
Across all Agricultural tractors
This model
The 60-76 ranks at the 13th percentile for engine power among recorded agricultural tractors.
Overview
About the Fiat 60-76
The Fiat 60-76 is a compact tractor designed for orchards and vineyards. It's a 2-wheel drive model with power steering, making it easy to maneuver in tight spaces. The tractor has a 12-forward and 4-reverse gear transmission, giving farmers plenty of options for different tasks. Under the hood, the Fiat 60-76 has a 3-cylinder diesel engine made by Fiat. The engine is liquid-cooled and naturally aspirated, producing 59.1 hp at 2500 rpm. This power output is below average compared to other tractors, but it's suitable for its size and intended use. The engine's displacement is 178.9 cubic inches, which is also below average, making it fuel-efficient for smaller jobs. The tractor weighs 4564 pounds, which is on the lighter side, allowing it to work well in delicate orchard environments without compacting the soil too much. The Fiat 60-76 comes with agricultural tires and a rear hitch for attaching implements. It has an open center hydraulic system and a ROPS (Roll-Over Protective Structure) for operator safety. The tractor's compact size, with a length of 116.1 inches and a height of 96.5 inches, makes it ideal for working between tree rows or in vineyards. Additional features include an adjustable steering wheel height and a low hood height for better visibility.
Full specifications
Every recorded spec
General
| Manufacturer | Fiat |
|---|---|
| Model | 60-76 |
| Category | Agricultural tractor |
| Type | 4x2 2WD |
| Operating weight | 4,564lb |
Engine
| Make | Fiat |
|---|---|
| Model | 8035.05 |
| Power | 59.1hp |
| Cylinders | 3 |
| Displacement | 178.9ci |
| Bore | 4.09in |
| Stroke | 4.53in |
Transmission
| Type | Partially synchronized |
|---|---|
| Forward gears | 12 |
| Reverse gears | 4 |
Chassis & drive
| Chassis | 4x2 2WD |
|---|---|
| Drive | 2WD |
| Steering | Power |
| Cab | ROPS |
Hydraulics
| Type | Open Center |
|---|
Dimensions
| Length | 116.1in |
|---|---|
| Height | 96.5in |
| Operating weight | 4,564lb |
Head to head
60-76 vs. Agricultural median
How the Fiat 60-76 compares to other Agricultural tractors
| Spec | This model | Agricultural median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 59.1 hp | 110 hp | -46% | 13th |
| Engine Displacement | 179 ci | 336 ci | -47% | 11th |
| Cylinders | 3 | 5.5 | -45% | 8th |
| Forward Gears | 12 | 16 | -25% | 33rd |
| Operating Weight | 4,564 lb | 10,914 lb | -58% | 9th |
| Length | 116 in | 173 in | -33% | 5th |
| Height | 96.5 in | 111 in | -13% | 26th |
Medians and percentiles are computed from the agricultural tractors in our database with a recorded value for each spec (sample sizes 795–1,130 models).
Compare to tractors with similar specs
Commonly compared Fiat tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Fiat 60-65 | 60 hp | — | — | Compare → |
| Fiat 60-85 | 60 hp | — | — | Compare → |
| Fiat 505C Super | 58 hp | — | — | Compare → |
| Fiat 570 | 57.2 hp | 4,189 lb | — | Compare → |
| Fiat 55-65 | 55 hp | — | — | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| AGCO GT55A | 58.89 hp | 6,400 lb | — | Compare → |
| Allis Chalmers 6070 | 58.35 hp | 7,460 lb | — | Compare → |
| Barreiros R-500 B | 60 hp | — | — | Compare → |
| Belarus 406 | 58 hp | 7,056 lb | — | Compare → |
| Belarus 400A | 57 hp | 6,600 lb | — | Compare → |
Explore
Fiat siblings
Explore
Similar-spec models
Gallery
Fiat 60-76 photos




FAQ
Common questions
How powerful is the Fiat 60-76?
The Fiat 60-76 has an engine power output of 59.1 hp. It is powered by a 3-cylinder engine displacing 178.9 ci.
What type of hydraulic system does the Fiat 60-76 use?
Hydraulics on the Fiat 60-76 are Open Center.
What is the working weight of the Fiat 60-76?
The operating weight of the Fiat 60-76 is approximately 4,564 lb.
What type of transmission does the Fiat 60-76 have?
The Fiat 60-76 uses a Partially synchronized transmission offering 12 forward gears.
What routine service does the Fiat 60-76 need?
Regular maintenance for the Fiat 60-76 includes checking and changing engine oil, hydraulic fluid, and filters, plus routine inspections as recommended in the owner's manual. Always follow the manufacturer's maintenance schedule for specific intervals and procedures.
