UtilityPerformance profile
Fiat 605C
The Fiat 605C is a utility tractor built for everyday farm work. It has a diesel engine made by Fiat, with four cylinders and 56 horsepower. This engine power is about average for tractors in its class. The tractor has a gear transmission with 6 forward gears and 2 reverse gears, giving farmers good control over their speed. This tractor is compact but strong. It's about 109.6 inches long, 65.4 inches wide, and 48.4 inches tall. The 605C weighs 6,085 pounds, which is above average for its size. It has an open operator station, meaning there's no cab, and it uses a 12-volt starter. The hydraulic system is open center type, and it has a category II/I hitch for attaching various tools. Some extra features include a ground clearance of 10.625 inches and an exhaust height of 65.2 inches.
ManufacturerFiatPower56 hpEngine4-cylTransGear
Quick specs
- Category
- Utility
- Engine Power Output
- 56hp
- Operating Weight
- 6,085 lb
- Transmission
- Gear
At a glance
How the 605C compares
vs. Utility medianDistribution
Engine Power (hp)
Across all Utility tractors
56 hp · 51st
This model
9
Median 55 hp
177
This modelUtility tractorsMediann = 5,383
The 605C ranks at the 51st percentile for engine power among recorded utility tractors.
Overview
About the Fiat 605C
The Fiat 605C is a utility tractor built for everyday farm work. It has a diesel engine made by Fiat, with four cylinders and 56 horsepower. This engine power is about average for tractors in its class. The tractor has a gear transmission with 6 forward gears and 2 reverse gears, giving farmers good control over their speed. This tractor is compact but strong. It's about 109.6 inches long, 65.4 inches wide, and 48.4 inches tall. The 605C weighs 6,085 pounds, which is above average for its size. It has an open operator station, meaning there's no cab, and it uses a 12-volt starter. The hydraulic system is open center type, and it has a category II/I hitch for attaching various tools. Some extra features include a ground clearance of 10.625 inches and an exhaust height of 65.2 inches.
Full specifications
Every recorded spec
General
| Manufacturer | Fiat |
|---|---|
| Model | 605C |
| Category | Utility tractor |
| Operating weight | 6,085lb |
Engine
| Make | Fiat |
|---|---|
| Model | 8045 |
| Power | 56hp |
| Cylinders | 4 |
| Displacement | 210.9ci |
| Bore | 3.94in |
| Stroke | 4.33in |
Transmission
| Type | Gear |
|---|---|
| Forward gears | 6 |
| Reverse gears | 2 |
Chassis & drive
| Cab | Open |
|---|
Hydraulics
| Type | Open Center |
|---|
Dimensions
| Length | 109.6in |
|---|---|
| Width | 65.4in |
| Height | 48.4in |
| Operating weight | 6,085lb |
Head to head
605C vs. Utility median
How the Fiat 605C compares to other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 56 hp | 55 hp | +2% | 51st |
| Engine Displacement | 211 ci | 183 ci | +15% | 59th |
| Cylinders | 4 | 4 | at median | 50th |
| Forward Gears | 6 | 12 | -50% | 11th |
| Operating Weight | 6,085 lb | 5,303 lb | +15% | 58th |
| Length | 110 in | 137 in | -20% | 16th |
| Width | 65.4 in | 66 in | -1% | 49th |
| Height | 48.4 in | 94.1 in | -49% | 2nd |
Medians and percentiles are computed from the utility tractors in our database with a recorded value for each spec (sample sizes 3,933–5,720 models).
Compare to tractors with similar specs
Commonly compared Fiat tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Fiat 513R | 55 hp | 5,578 lb | — | Compare → |
| Fiat 55-90 | 55 hp | 6,526 lb | — | Compare → |
| Fiat 550 | 55 hp | 4,784 lb | 1936+ | Compare → |
| Fiat 580 | 57.2 hp | 5,149 lb | — | Compare → |
| Fiat 55-66 | 54.3 hp | 6,450 lb | — | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| AGCO GT55 | 56 hp | 6,225 lb | — | Compare → |
| Antonio Carraro Tigrone Jona 6400 | 56 hp | 3,571 lb | — | Compare → |
| Antonio Carraro Tigrone Jona 6400F | 56 hp | 3,858 lb | — | Compare → |
| AGCO ST55 | 55.6 hp | 4,417 lb | — | Compare → |
| Allis Chalmers 615 | 56.9 hp | — | 1966–1974 | Compare → |
Explore
Fiat siblings
Explore
Similar-spec models
Gallery

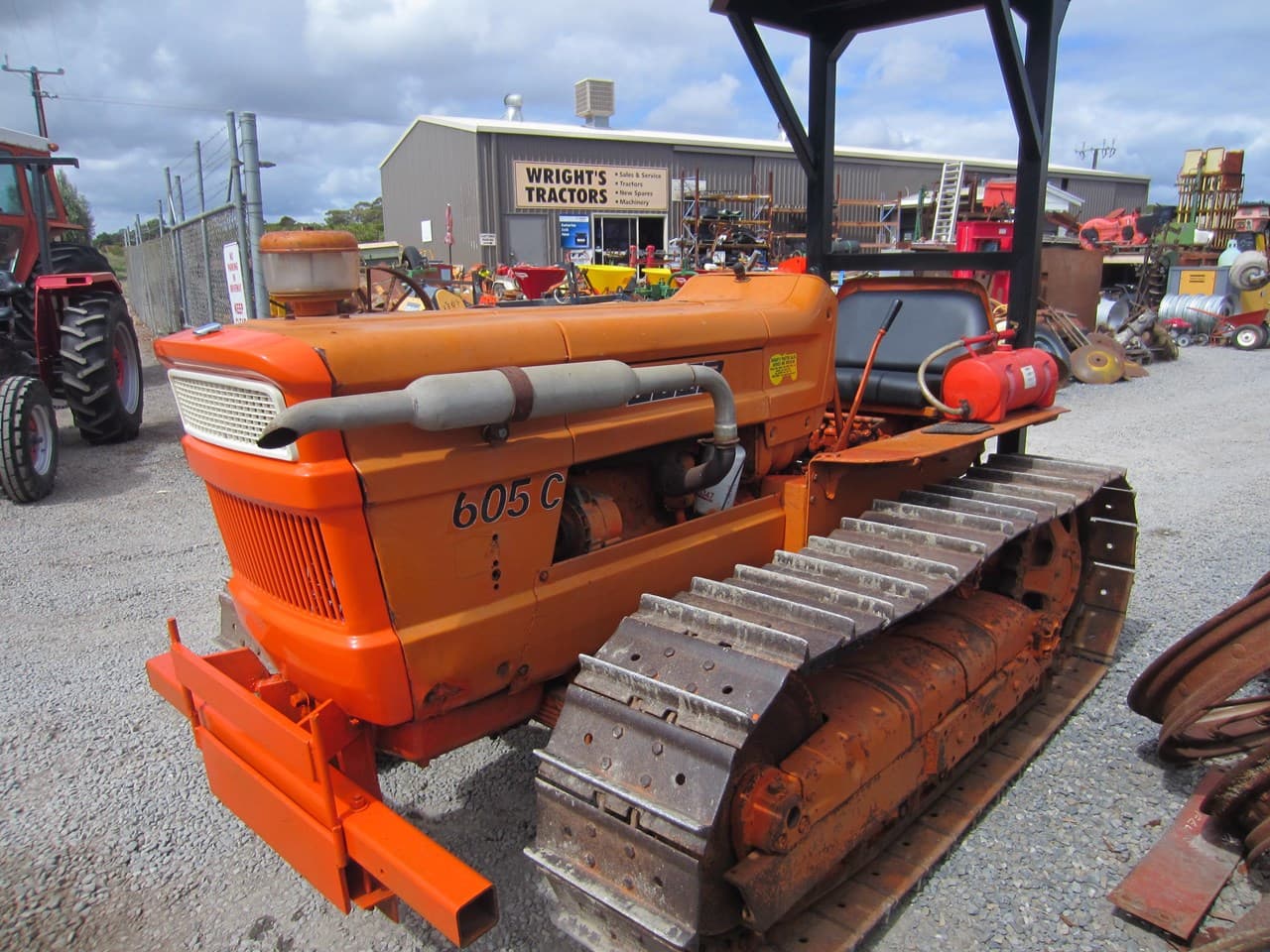

Fiat 605C photos
FAQ
Common questions
What is the engine power output of the Fiat 605C?
Rated engine output for the Fiat 605C is 56 hp, delivered by a 4-cylinder engine. The engine displaces 210.9 ci.
Which transmission does the Fiat 605C use?
The Fiat 605C is equipped with a Gear transmission with 6 forward gears.
What type of hydraulic system does the Fiat 605C use?
Hydraulics on the Fiat 605C are Open Center.
What hitch category is the Fiat 605C?
The Fiat 605C uses a Category II/I hitch.
What is the operating weight of the Fiat 605C?
In working trim, the Fiat 605C comes in at roughly 6,085 lb.
How do I maintain a Fiat 605C?
Routine service for the Fiat 605C covers engine oil and filter changes, hydraulic and coolant level checks, air filter cleaning, and scheduled inspections. Refer to the manufacturer's maintenance schedule for exact intervals.
