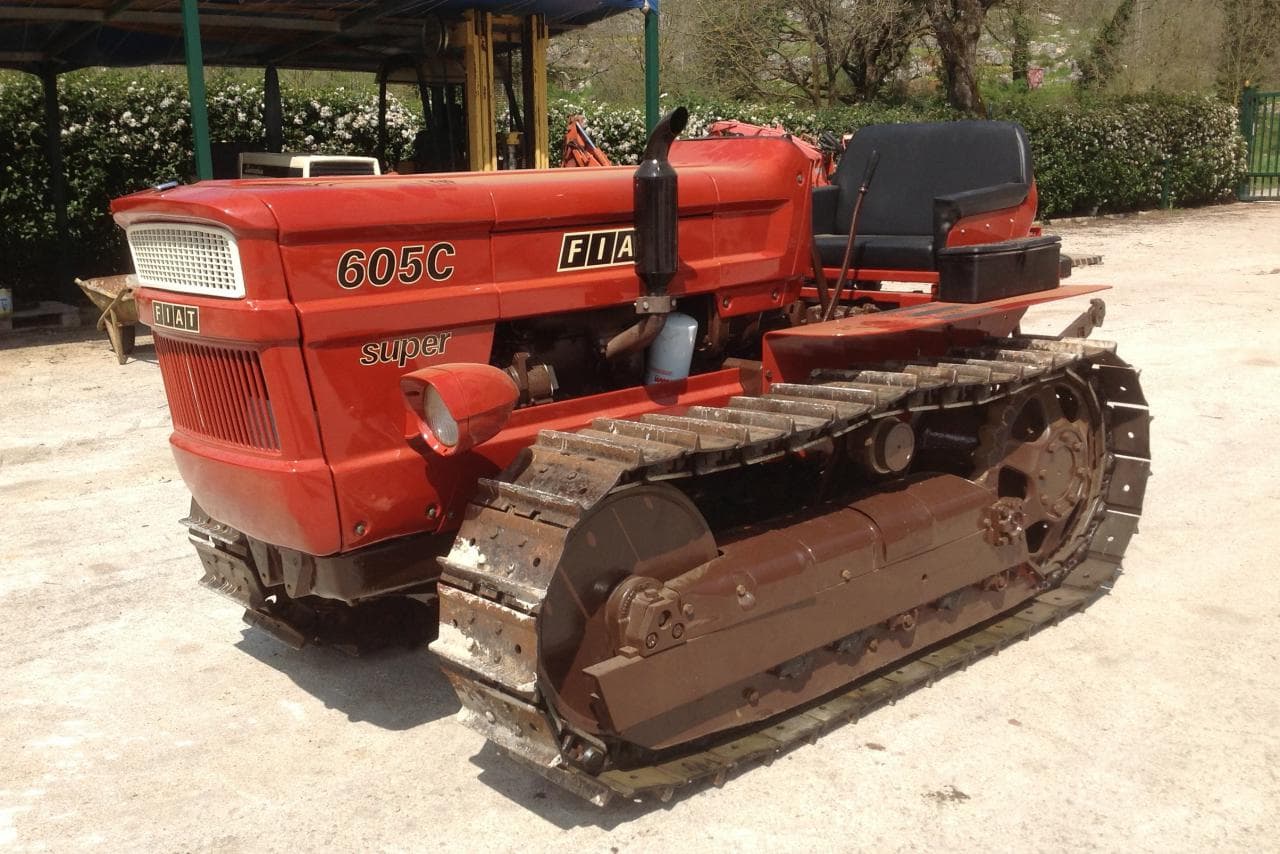

Fiat 605C Super

The Fiat 605C Super is a sturdy tractor built for farm work. It has a diesel engine made by Fiat that uses liquid to stay cool. This engine has 4 cylinders and can produce 66 horsepower at 2400 rpm. The engine size is 210.9 cubic inches, which is about average for tractors like this. This tractor has a gear transmission with 6 forward gears and 2 reverse gears. This gives the driver good control over speed and power. The Fiat 605C Super weighs 7275 pounds, making it a solid machine for tough jobs. It starts up easily with an electric starter. The tractor is 12.2 inches wide, which helps it fit in tight spaces on the farm. Overall, the Fiat 605C Super is a reliable tractor that can handle many different farming tasks.

ManufacturerFiatPower66 hp(49.2 kW)Class60–100 HP tractors →Engine4-cylinderTransmissionGear
Fiat 605C Super

Key specifications

Category
Utility
Engine power
66hp
Operating weight
7,275 lb
Transmission
Gear
Compare this model

Category comparison

605C Super compared with its category

vs. Utility median

Distribution

Engine Power (hp)

All recorded Utility tractors

66 hp · 60th

This model

9
Median 55 hp
177
This modelUtility tractorsMediann = 5,383

The 605C Super ranks at the 60th percentile for engine power among recorded utility tractors.

Overview

About the Fiat 605C Super

The Fiat 605C Super is a sturdy tractor built for farm work. It has a diesel engine made by Fiat that uses liquid to stay cool. This engine has 4 cylinders and can produce 66 horsepower at 2400 rpm. The engine size is 210.9 cubic inches, which is about average for tractors like this. This tractor has a gear transmission with 6 forward gears and 2 reverse gears. This gives the driver good control over speed and power. The Fiat 605C Super weighs 7275 pounds, making it a solid machine for tough jobs. It starts up easily with an electric starter. The tractor is 12.2 inches wide, which helps it fit in tight spaces on the farm. Overall, the Fiat 605C Super is a reliable tractor that can handle many different farming tasks.

Full specifications

Recorded specifications

General

ManufacturerFiat
Model605C Super
CategoryUtility tractor
Operating weight7,275lb(3,300 kg)

Engine

MakeFiat
Power66hp(49.22 kW)
Cylinders4
Displacement210.9ci(3.46 L)
Bore3.94in(100 mm)
Stroke4.33in(110 mm)

Transmission

TypeGear
Forward gears6
Reverse gears2

Dimensions

Width12.2in(309.9 mm)
Operating weight7,275lb(3,300 kg)

Closest alternatives

605C Super compared with the nearest models by horsepower

By engine horsepower, the nearest utility models to the 605C Super are the Fiat 615 and the Fiat 665C. The Fiat 615 matches it on rated power and weighs 310 lb less. The Fiat 665C matches it on rated power and weighs 250 lb more.

Fiat 605C Super compared with Fiat 615 and Fiat 665C
SpecFiat 605C SuperFiat 615Fiat 665C
Engine power66 hp49.2 kW66 hp49.2 kW66 hp49.2 kW
Operating weight7,275 lb3,300 kg6,967 lb3,160 kg7,529 lb3,415 kg
Weight per hp110 lb/hp67 kg/kW106 lb/hp64 kg/kW114 lb/hp69 kg/kW
Displacement210.9 ci3.46 L268.3 ci4.4 L210.9 ci3.46 L
Cylinders444
TransmissionGearGearGear

Calculators

Calculators for the 605C Super

Parts and manuals

Parts and manuals for the Fiat 605C Super

Each link opens a retailer search keyed to the fields recorded for this model. Confirm fitment against the serial plate before ordering.

Filters

  • Oil filter for the FiatAmazon

    Fits the Fiat 4-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.

  • Air filter for the FiatAmazon

    Fits the Fiat 4-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.

  • Fuel filter for the FiatAmazon

    Fits the Fiat 4-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.

  • Hydraulic filter for the FiatAmazon

    Fits the Fiat 4-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.

Manuals

Links in this section go to retailers. A purchase through them earns this site a commission at no extra cost to the buyer. As an Amazon Associate, Heavy Equipment Specs earns from qualifying purchases. Affiliate disclosure

Category medians

605C Super vs. Utility median

Fiat 605C Super compared with other Utility tractors

SpecThis modelUtility medianDifferencePercentile
Engine Power66 hp55 hp+20%60th
Engine Displacement211 ci183 ci+15%59th
Cylinders44at median50th
Forward Gears612-50%11th
Operating Weight7,275 lb5,303 lb+37%69th
Width12.2 in66 in-82%1st

Medians and percentiles are calculated from the utility tractors in the database that have a recorded value for each specification (sample size 3,933–5,720 models).

Same manufacturer

Other Fiat models

All Fiat models →

Other manufacturers

Models with similar horsepower

FAQ

Frequently asked questions

How powerful is the Fiat 605C Super?

The Fiat 605C Super has an engine power output of 66 hp. It is powered by a 4-cylinder engine displacing 210.9 ci.

What type of transmission does the Fiat 605C Super have?

The Fiat 605C Super uses a Gear transmission offering 6 forward gears.

What is the working weight of the Fiat 605C Super?

The operating weight of the Fiat 605C Super is approximately 7,275 lb.

What routine service does the Fiat 605C Super need?

Regular maintenance for the Fiat 605C Super includes checking and changing engine oil, hydraulic fluid, and filters, plus routine inspections as recommended in the owner's manual. Always follow the manufacturer's maintenance schedule for specific intervals and procedures.
