UtilityPerformance profile
Fiat 702
The Fiat 702 is a utility tractor that was made from 1932 to 1951. It has a 2-wheel drive system and a manual transmission with 3 forward gears and 1 reverse gear. This tractor is powered by a 4-cylinder gasoline engine made by Fiat. The engine has a very high displacement of 380 ci and runs at a low speed of 900 rpm. It can produce 30 hp, which is below average for tractors. The Fiat 702 is a medium-sized tractor, measuring 126 inches long, 65 inches wide, and 75 inches tall. It has a wheelbase of 53.1 inches, which helps it turn easily. The tractor weighs 5,954 lb, which is above average for its class. This weight can help it grip the ground well when working in fields. The Fiat 702 was designed to be a versatile machine for various farm tasks, fitting into the utility tractor category.
ManufacturerFiatPower30 hpEngine4-cylTransManual
Quick specs
- Category
- Utility
- Engine Power Output
- 30hp
- Operating Weight
- 5,954 lb
- Transmission
- Manual
At a glance
How the 702 compares
vs. Utility medianDistribution
Engine Power (hp)
Across all Utility tractors
30 hp · 22nd
This model
9
Median 55 hp
177
This modelUtility tractorsMediann = 5,383
The 702 ranks at the 22nd percentile for engine power among recorded utility tractors.
Overview
About the Fiat 702
The Fiat 702 is a utility tractor that was made from 1932 to 1951. It has a 2-wheel drive system and a manual transmission with 3 forward gears and 1 reverse gear. This tractor is powered by a 4-cylinder gasoline engine made by Fiat. The engine has a very high displacement of 380 ci and runs at a low speed of 900 rpm. It can produce 30 hp, which is below average for tractors. The Fiat 702 is a medium-sized tractor, measuring 126 inches long, 65 inches wide, and 75 inches tall. It has a wheelbase of 53.1 inches, which helps it turn easily. The tractor weighs 5,954 lb, which is above average for its class. This weight can help it grip the ground well when working in fields. The Fiat 702 was designed to be a versatile machine for various farm tasks, fitting into the utility tractor category.
Full specifications
Every recorded spec
General
| Manufacturer | Fiat |
|---|---|
| Model | 702 |
| Category | Utility tractor |
| Type | 4x2 2WD |
| Years built | 1932–1951 |
| Operating weight | 5,954lb |
Engine
| Make | Fiat |
|---|---|
| Power | 30hp |
| Cylinders | 4 |
| Displacement | 380ci |
Transmission
| Type | Manual |
|---|---|
| Forward gears | 3 |
| Reverse gears | 1 |
Chassis & drive
| Chassis | 4x2 2WD |
|---|---|
| Drive | 2WD |
Dimensions
| Length | 126in |
|---|---|
| Width | 65in |
| Height | 75in |
| Operating weight | 5,954lb |
Head to head
702 vs. Utility median
How the Fiat 702 compares to other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 30 hp | 55 hp | -45% | 22nd |
| Engine Displacement | 380 ci | 183 ci | +108% | 89th |
| Cylinders | 4 | 4 | at median | 50th |
| Forward Gears | 3 | 12 | -75% | 3rd |
| Operating Weight | 5,954 lb | 5,303 lb | +12% | 56th |
| Length | 126 in | 137 in | -8% | 36th |
| Width | 65 in | 66 in | -2% | 48th |
| Height | 75 in | 94.1 in | -20% | 20th |
Medians and percentiles are computed from the utility tractors in our database with a recorded value for each spec (sample sizes 3,933–5,720 models).
Compare to tractors with similar specs
Commonly compared Fiat tractors
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| AGCO ST30 | 30.3 hp | 2,594 lb | — | Compare → |
| Allis Chalmers UC | 30.93 hp | 5,710 lb | — | Compare → |
| Allis Chalmers 5030 | 31 hp | 2,530 lb | 1979–1985 | Compare → |
| Allis Chalmers D12 | 31 hp | 2,800 lb | 1959–1968 | Compare → |
| Antonio Carraro Tigre 4000 | 31 hp | — | — | Compare → |
Explore
Fiat siblings
Explore
Similar-spec models
Gallery

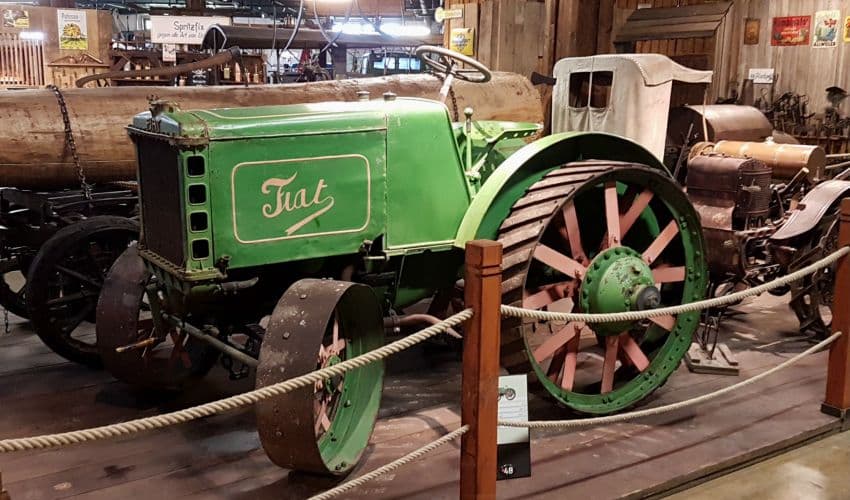

Fiat 702 photos
FAQ
Common questions
When was the Fiat 702 made?
The Fiat 702 was manufactured from 1932 to 1951.
What is the operating weight of the Fiat 702?
In working trim, the Fiat 702 comes in at roughly 5,954 lb.
Which transmission does the Fiat 702 use?
The Fiat 702 is equipped with a Manual transmission with 3 forward gears.
What is the engine power output of the Fiat 702?
Rated engine output for the Fiat 702 is 30 hp, delivered by a 4-cylinder engine. The engine displaces 380 ci.
How do I maintain a Fiat 702?
Routine service for the Fiat 702 covers engine oil and filter changes, hydraulic and coolant level checks, air filter cleaning, and scheduled inspections. Refer to the manufacturer's maintenance schedule for exact intervals.
