Ford 3400
The Ford 3400 is an industrial tractor made from 1965 to 1975. It's a 2-wheel drive machine with a 3-cylinder diesel engine. This engine is liquid-cooled and can produce 46.7 horsepower, which is about average for tractors of its kind. The Ford 3400 has a mechanical transmission and manual steering, making it simple to operate. This tractor is built for work. It has a rear hitch that can lift up to 1700 pounds, which is above average. The tractor itself weighs 3726 pounds, making it lighter than many other tractors. It's 120.5 inches long and 64.2 inches wide, so it can fit in tight spaces. The Ford 3400 has a 540 rpm PTO (power take-off) for running attachments. Farmers can add extras like a loader or backhoe to make the tractor even more useful. It comes with an open operator station, but you can get a safety frame as an option.

Key specifications
- Category
- Industrial
- Engine power
- 47hp
- Operating weight
- 3,726 lb
- Transmission
- Mechanical shuttle with dry disc clutch
Category comparison
3400 compared with its category
vs. Industrial medianDistribution
Engine Displacement (ci)
All recorded Industrial tractors
This model
The 3400 ranks at the 28th percentile for engine displacement among recorded industrial tractors.
Overview
About the Ford 3400
The Ford 3400 is an industrial tractor made from 1965 to 1975. It's a 2-wheel drive machine with a 3-cylinder diesel engine. This engine is liquid-cooled and can produce 46.7 horsepower, which is about average for tractors of its kind. The Ford 3400 has a mechanical transmission and manual steering, making it simple to operate. This tractor is built for work. It has a rear hitch that can lift up to 1700 pounds, which is above average. The tractor itself weighs 3726 pounds, making it lighter than many other tractors. It's 120.5 inches long and 64.2 inches wide, so it can fit in tight spaces. The Ford 3400 has a 540 rpm PTO (power take-off) for running attachments. Farmers can add extras like a loader or backhoe to make the tractor even more useful. It comes with an open operator station, but you can get a safety frame as an option.
Full specifications
Recorded specifications
General
| Manufacturer | Ford |
|---|---|
| Model | 3400 |
| Category | Industrial tractor |
| Type | 4x2 2WD |
| Years built | 1965–1975 |
| Operating weight | 3,726lb(1,690 kg) |
Engine
| Make | Ford |
|---|---|
| Model | Ford |
| Power | 46.7hp(34.82 kW) |
| Cylinders | 3 |
| Displacement | 175ci(2.87 L) |
| Bore | 4.21in(106.9 mm) |
| Stroke | 4.21in(106.9 mm) |
Transmission
| Type | Mechanical shuttle with dry disc clutch |
|---|
Chassis & drive
| Chassis | 4x2 2WD |
|---|---|
| Drive | 2WD |
| Steering | Manual |
| Brakes | Mechanical expanding shoe |
| Cab | Open operator station |
Hydraulics
| Type | Open center |
|---|
Power take-off
| Rear PTO | Transmission |
|---|---|
| PTO speed | 540rpm |
Dimensions
| Length | 120.5in(3,061 mm) |
|---|---|
| Width | 64.2in(1,631 mm) |
| Operating weight | 3,726lb(1,690 kg) |
Capacities
| Cooling system | 3.45gal(13.06 L) |
|---|
Closest alternatives
3400 compared with the nearest models by horsepower
By engine horsepower, the nearest industrial models to the 3400 are the International Harvester 2444 and the Ford 3500. The International Harvester 2444 matches it on rated power. The Ford 3500 is rated 0.7 hp lower and weighs 530 lb more, at 93 lb per horsepower against 80 lb.
| Spec | Ford 3400 | International Harvester 2444 | Ford 3500 |
|---|---|---|---|
| Engine power | 46.7 hp34.8 kW | 47 hp35 kW | 46 hp34.3 kW |
| Operating weight | 3,726 lb1,690 kg | - | 4,255 lb1,930 kg |
| Weight per hp | 80 lb/hp49 kg/kW | - | 93 lb/hp56 kg/kW |
| Displacement | 175 ci2.87 L | 152 ci2.49 L | 175 ci2.87 L |
| Cylinders | 3 | 4 | 3 |
| Transmission | Mechanical shuttle with dry disc clutch | Gear type, Manual shuttle | Gear type with dry disc clutch |
| Drive | 2WD | 2WD | 2WD |
| Years built | 1965-1975 | 1967-1971 | 1965-1972 |
Calculators
Calculators for the 3400
PTO power
About 39 to 42 PTO hp
Estimated from the 46.7 hp engine rating. The calculator also estimates drawbar power by surface.
Implement sizing
Implements a 46.7 hp tractor can run
Maximum size is about a 5.5 ft rotary cutter or a 4.5 ft tiller. The calculator also sizes discs, plows and balers.
Ballast
93 lb per PTO hp as listed
Heavy draft work calls for 130 to 150 lb/hp. The calculator gives the ballast to add.
Units
46.7 hp is 34.8 kW
The converter gives kW and metric PS values, as used on European spec sheets.
Parts and manuals
Parts and manuals for the Ford 3400
Each link opens a retailer search keyed to the fields recorded for this model. Confirm fitment against the serial plate before ordering.
Filters
- Oil filter for the FordAmazon
Fits the Ford 3-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
- Air filter for the FordAmazon
Fits the Ford 3-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
- Fuel filter for the FordAmazon
Fits the Ford 3-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
- Hydraulic filter for the FordAmazon
Fits the Ford 3-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
Manuals
- Ford 3400 service and repair manualseManualOnline
Digital manuals. Built 1965 to 1975. Check the serial number range on the listing.
- Ford 3400 operator's manualAmazon
Printed and reprint manuals. Built 1965 to 1975. Check the serial number range on the listing.
- Ford 3400 service manualAmazon
Shop and repair manuals for this model.
Links in this section go to retailers. A purchase through them earns this site a commission at no extra cost to the buyer. As an Amazon Associate, Heavy Equipment Specs earns from qualifying purchases. Affiliate disclosure
Category medians
3400 vs. Industrial median
Ford 3400 compared with other Industrial tractors
| Spec | This model | Industrial median | Difference | Percentile |
|---|---|---|---|---|
| Engine Displacement | 175 ci | 284 ci | -38% | 28th |
| Cylinders | 3 | 4 | -25% | 21st |
| Operating Weight | 3,726 lb | 9,127 lb | -59% | 15th |
| Length | 121 in | 125 in | -4% | 36th |
| Width | 64.2 in | 70.5 in | -9% | 36th |
Medians and percentiles are calculated from the industrial tractors in the database that have a recorded value for each specification (sample size 39–55 models).
Same manufacturer
Other Ford models
Other manufacturers
Models with similar horsepower
Gallery

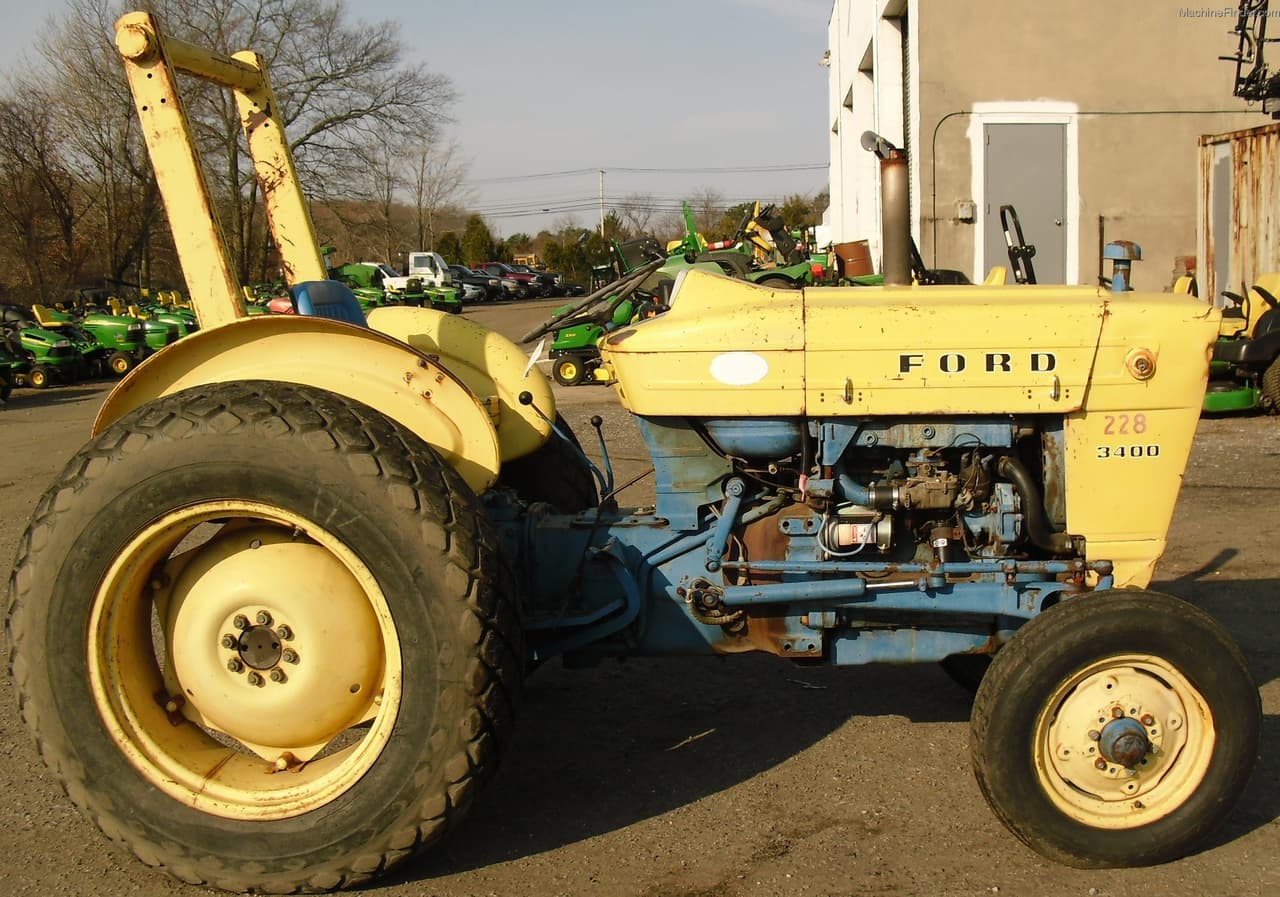

Ford 3400 photos




FAQ
Frequently asked questions
When was the Ford 3400 in production?
Ford 3400 production started in 1965 and ended in 1975.
How much does the Ford 3400 weigh?
The Ford 3400 weighs about 3,726 lb in operating condition.
What transmission is in the Ford 3400?
Transmission on the Ford 3400 is Mechanical shuttle with dry disc clutch.
What type of hydraulic system does the Ford 3400 use?
Hydraulics on the Ford 3400 are Open center.
What hitch category is the Ford 3400?
The Ford 3400 uses a Category I hitch with a lift capacity of 1,700 lb.
How much horsepower does the Ford 3400 have?
The Ford 3400 produces 46.7 hp from its 3-cylinder engine. Engine displacement is 175 ci.
What maintenance does the Ford 3400 require?
The Ford 3400 needs periodic engine oil and filter changes, hydraulic fluid checks, and regular greasing and inspection. The owner's manual lists the manufacturer's recommended service intervals.
