Ford 846
The Ford 846 is a powerful utility tractor built from 1989 to 1993. It's a 4-wheel drive machine with an articulated chassis, making it great for tough jobs. The tractor has a Cummins diesel engine with 6 cylinders and 230 horsepower, which is very high for its class. This engine is liquid-cooled and turbocharged for better performance. The Ford 846 is big and strong, weighing 23,000 pounds. It has a long body at 260 inches. The tractor has a lot of gears - 15 forward and 5 reverse - giving drivers many options for different tasks. It has a three-point hitch at the back for attaching tools. The cab keeps the driver comfortable while working. With its high power and weight, this tractor is built for heavy-duty farm work.
ManufacturerFordPower230 hpEngine6-cylTransPartially synchronized and constant mesh
Quick specs
- Category
- Utility
- Engine Power Output
- 230hp
- Operating Weight
- 23,000 lb
- Transmission
- Partially synchronized and constant mesh
At a glance
How the 846 compares
vs. Utility medianDistribution
Engine Power (hp)
Across all Utility tractors
230 hp · 95th
This model
9
Median 55 hp
177
230
This modelUtility tractorsMediann = 5,383
The 846 ranks at the 95th percentile for engine power among recorded utility tractors.
Overview
About the Ford 846
The Ford 846 is a powerful utility tractor built from 1989 to 1993. It's a 4-wheel drive machine with an articulated chassis, making it great for tough jobs. The tractor has a Cummins diesel engine with 6 cylinders and 230 horsepower, which is very high for its class. This engine is liquid-cooled and turbocharged for better performance. The Ford 846 is big and strong, weighing 23,000 pounds. It has a long body at 260 inches. The tractor has a lot of gears - 15 forward and 5 reverse - giving drivers many options for different tasks. It has a three-point hitch at the back for attaching tools. The cab keeps the driver comfortable while working. With its high power and weight, this tractor is built for heavy-duty farm work.
Full specifications
Every recorded spec
General
| Manufacturer | Ford |
|---|---|
| Model | 846 |
| Category | Utility tractor |
| Type | 4x4 articulated 4WD |
| Years built | 1989–1993 |
| Operating weight | 23,000lb |
Engine
| Make | Cummins |
|---|---|
| Model | L10-A230 |
| Power | 230hp |
| Cylinders | 6 |
| Displacement | 611ci |
| Bore | 4.92in |
| Stroke | 5.35in |
Transmission
| Type | Partially synchronized and constant mesh |
|---|---|
| Forward gears | 15 |
| Reverse gears | 5 |
Chassis & drive
| Chassis | 4x4 articulated 4WD |
|---|---|
| Drive | 4WD |
| Steering | Articulated Power |
| Cab | Cab |
Hydraulics
| Type | Closed center load sensing |
|---|
Dimensions
| Length | 260in |
|---|---|
| Operating weight | 23,000lb |
Capacities
| Cooling system | 13.75gal |
|---|
Head to head
846 vs. Utility median
How the Ford 846 compares to other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 230 hp | 55 hp | +318% | 95th |
| Engine Displacement | 611 ci | 183 ci | +234% | 95th |
| Cylinders | 6 | 4 | +50% | 93rd |
| Forward Gears | 15 | 12 | +25% | 64th |
| Operating Weight | 23,000 lb | 5,303 lb | +334% | 95th |
| Length | 260 in | 137 in | +90% | 97th |
Medians and percentiles are computed from the utility tractors in our database with a recorded value for each spec (sample sizes 4,659–5,720 models).
Compare to tractors with similar specs
Commonly compared Ford tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Ford FW-20 | 210 hp | 29,615 lb | 1977–1982 | Compare → |
| Ford FW-30 | 265 hp | 31,310 lb | 1977–1982 | Compare → |
| Ford FW-35 | 195 hp | 20,503 lb | — | Compare → |
| Ford 8770 | 190 hp | 16,600 lb | 1993–2002 | Compare → |
| Ford FW-40 | 295 hp | 30,630 lb | 1977–1979 | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| AGCO DT200 | 235 hp | 19,700 lb | 2002–2004 | Compare → |
| AGCO DT200A | 235 hp | 19,136 lb | 2005–2008 | Compare → |
| AGCO DT225 | 225 hp | 19,700 lb | 2002–2004 | Compare → |
| Allis Chalmers HD21 | 225 hp | 45,500 lb | — | Compare → |
| Belarus 7010 | 235 hp | — | — | Compare → |
Explore
Ford siblings
Explore
Similar-spec models
Gallery

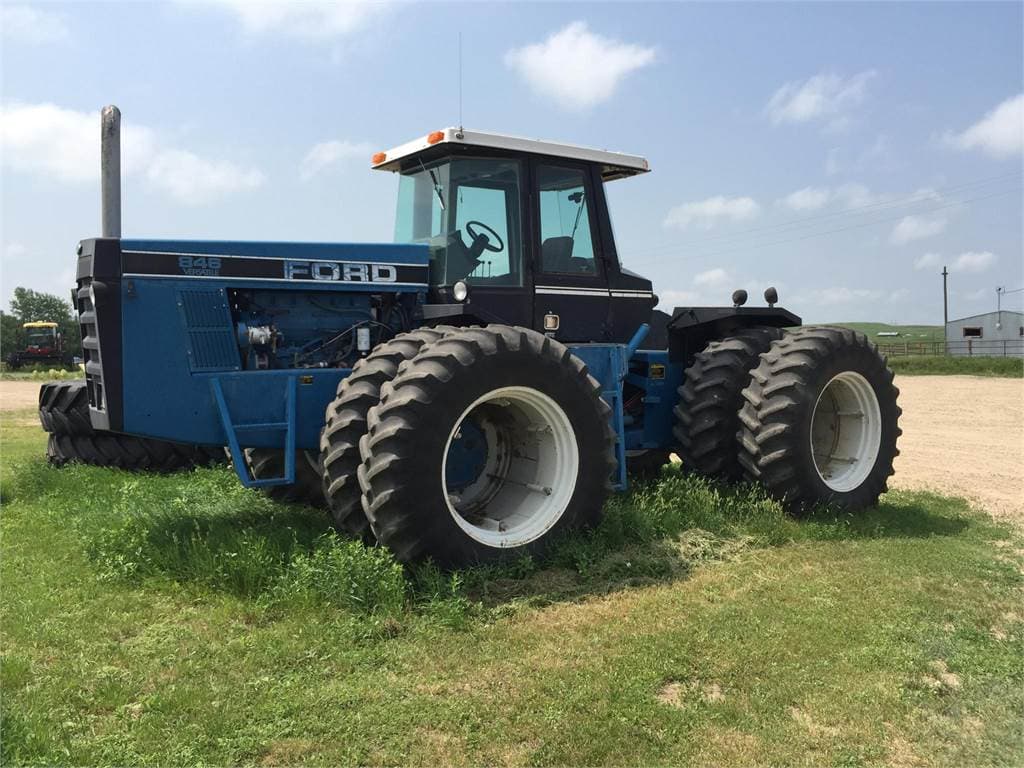

Ford 846 photos
FAQ
Common questions
What years was the Ford 846 manufactured?
Production of the Ford 846 ran from 1989 through 1993.
What type of transmission does the Ford 846 have?
The Ford 846 uses a Partially synchronized and constant mesh transmission offering 15 forward gears.
What hydraulics does the Ford 846 have?
The Ford 846 uses a Closed center load sensing hydraulic system.
What three-point hitch category does the Ford 846 use?
The Ford 846 has a Category III three-point hitch.
How powerful is the Ford 846?
The Ford 846 has an engine power output of 230 hp. It is powered by a 6-cylinder engine displacing 611 ci.
What is the working weight of the Ford 846?
The operating weight of the Ford 846 is approximately 23,000 lb.
What routine service does the Ford 846 need?
Regular maintenance for the Ford 846 includes checking and changing engine oil, hydraulic fluid, and filters, plus routine inspections as recommended in the owner's manual. Always follow the manufacturer's maintenance schedule for specific intervals and procedures.
