Ford FW-20
The Ford FW-20 is a powerful utility tractor made from 1977 to 1982. It has a strong 4-wheel drive system and can turn easily with its special steering. The tractor has a manual transmission with 20 forward gears and 4 reverse gears, giving the driver lots of options. Under the hood, the FW-20 has a big V-8 diesel engine made by Cummins. This engine is very strong, with 210 horsepower, which is much more than most tractors. It has a very large engine size and high power output compared to other tractors. The FW-20 is also quite heavy, weighing 29,615 pounds, which is more than most tractors its size. It has big agricultural tires on both the front and back, helping it work well in fields. The tractor is 267 inches long and 134.3 inches tall, making it a large machine that can handle big jobs on the farm.
ManufacturerFordPower210 hpEngine8-cylTransManual
Quick specs
- Category
- Utility
- Engine Power Output
- 210hp
- Operating Weight
- 29,615 lb
- Transmission
- Manual
At a glance
How the FW-20 compares
vs. Utility medianDistribution
Engine Power (hp)
Across all Utility tractors
210 hp · 95th
This model
9
Median 55 hp
177
This modelUtility tractorsMediann = 5,383
The FW-20 ranks at the 95th percentile for engine power among recorded utility tractors.
Overview
About the Ford FW-20
The Ford FW-20 is a powerful utility tractor made from 1977 to 1982. It has a strong 4-wheel drive system and can turn easily with its special steering. The tractor has a manual transmission with 20 forward gears and 4 reverse gears, giving the driver lots of options. Under the hood, the FW-20 has a big V-8 diesel engine made by Cummins. This engine is very strong, with 210 horsepower, which is much more than most tractors. It has a very large engine size and high power output compared to other tractors. The FW-20 is also quite heavy, weighing 29,615 pounds, which is more than most tractors its size. It has big agricultural tires on both the front and back, helping it work well in fields. The tractor is 267 inches long and 134.3 inches tall, making it a large machine that can handle big jobs on the farm.
Full specifications
Every recorded spec
General
| Manufacturer | Ford |
|---|---|
| Model | FW-20 |
| Category | Utility tractor |
| Type | 4x4 articulated 4WD |
| Years built | 1977–1982 |
| Operating weight | 29,615lb |
Engine
| Make | Cummins |
|---|---|
| Power | 210hp |
| Cylinders | 8 |
| Displacement | 555ci |
| Bore | 4.63in |
| Stroke | 4.13in |
Transmission
| Type | Manual |
|---|---|
| Forward gears | 20 |
| Reverse gears | 4 |
Chassis & drive
| Chassis | 4x4 articulated 4WD |
|---|---|
| Drive | 4WD |
| Steering | Articulated Power |
Hydraulics
| Type | Open Center |
|---|
Dimensions
| Length | 267in |
|---|---|
| Height | 134.3in |
| Operating weight | 29,615lb |
Capacities
| Cooling system | 13.6gal |
|---|
Head to head
FW-20 vs. Utility median
How the Ford FW-20 compares to other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 210 hp | 55 hp | +282% | 95th |
| Engine Displacement | 555 ci | 183 ci | +203% | 94th |
| Cylinders | 8 | 4 | +100% | 99th |
| Forward Gears | 20 | 12 | +67% | 86th |
| Operating Weight | 29,615 lb | 5,303 lb | +458% | 97th |
| Length | 267 in | 137 in | +95% | 98th |
| Height | 134 in | 94.1 in | +43% | 97th |
Medians and percentiles are computed from the utility tractors in our database with a recorded value for each spec (sample sizes 4,321–5,720 models).
Compare to tractors with similar specs
Commonly compared Ford tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Ford FW-35 | 195 hp | 20,503 lb | — | Compare → |
| Ford 846 | 230 hp | 23,000 lb | 1989–1993 | Compare → |
| Ford 8770 | 190 hp | 16,600 lb | 1993–2002 | Compare → |
| Ford FW-25 | 163 hp | 20,283 lb | — | Compare → |
| Ford FW-30 | 265 hp | 31,310 lb | 1977–1982 | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Allis Chalmers 7080 | 210 hp | 13,638 lb | 1975–1981 | Compare → |
| CaseIH 4494 | 213 hp | 20,840 lb | — | Compare → |
| AGCO DT180 | 215 hp | 18,500 lb | 2002–2004 | Compare → |
| AGCO DT180A | 215 hp | 19,136 lb | 2005–2008 | Compare → |
| CaseIH 7150 | 215 hp | 18,587 lb | 1990–1993 | Compare → |
Explore
Ford siblings
Explore
Similar-spec models
Gallery

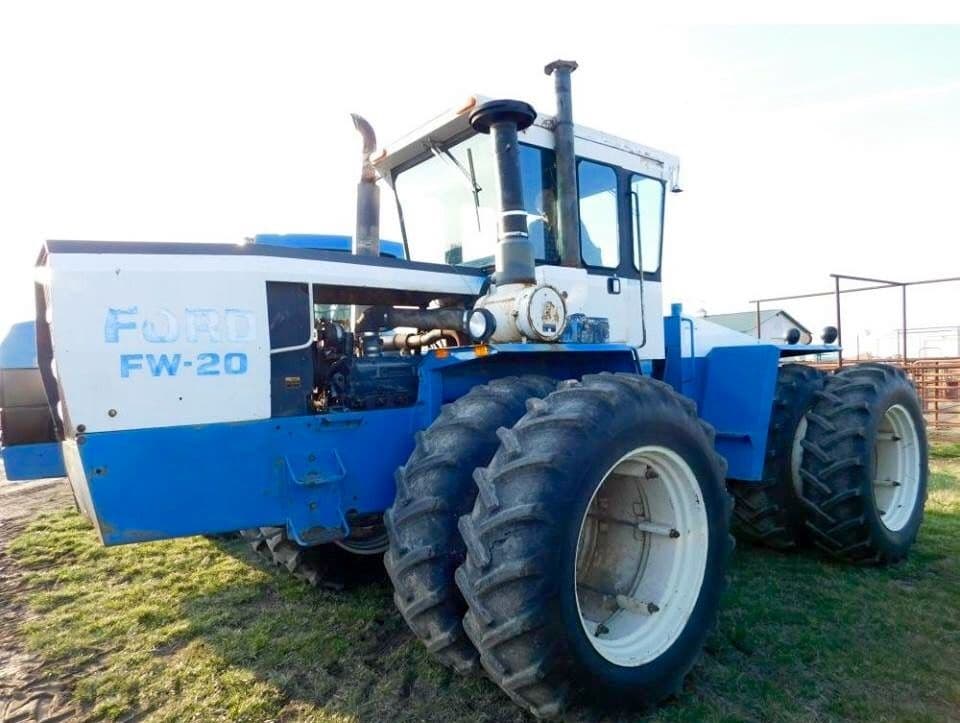

Ford FW-20 photos
FAQ
Common questions
What years was the Ford FW-20 manufactured?
Production of the Ford FW-20 ran from 1977 through 1982.
How powerful is the Ford FW-20?
The Ford FW-20 has an engine power output of 210 hp. It is powered by an 8-cylinder engine displacing 555 ci.
What is the working weight of the Ford FW-20?
The operating weight of the Ford FW-20 is approximately 29,615 lb.
What type of transmission does the Ford FW-20 have?
The Ford FW-20 uses a Manual transmission offering 20 forward gears.
What hydraulics does the Ford FW-20 have?
The Ford FW-20 uses an Open Center hydraulic system.
What three-point hitch category does the Ford FW-20 use?
The Ford FW-20 has a Category Category 3 three-point hitch.
What routine service does the Ford FW-20 need?
Regular maintenance for the Ford FW-20 includes checking and changing engine oil, hydraulic fluid, and filters, plus routine inspections as recommended in the owner's manual. Always follow the manufacturer's maintenance schedule for specific intervals and procedures.
