Utility tractorsSpec sheet
Ford Golden Jubilee NAA
The Ford Golden Jubilee NAA is a utility tractor made by Ford from 1953 to 1954. It's a 2WD tractor with a manual steering system. The tractor has a 4-speed gear transmission with one reverse gear. It's powered by a Ford gasoline engine with 4 cylinders and 134 cubic inches of displacement. This engine size is about average compared to other tractors. The engine produces 20.2 horsepower, which is on the lower end of the power range for tractors. This tractor has a three-point hitch at the rear, which can lift up to 798 pounds. It also has a live hydraulic system and a transmission-driven PTO that spins at 540 rpm. The Golden Jubilee NAA is compact, measuring 118.5 inches long, 64.6 inches wide, and 57.1 inches tall. It weighs 2,814 pounds, which is relatively light for a tractor. The tractor has an open operator station and uses agricultural tires on both front and rear wheels. It comes with an electric starter and differential mechanical drum brakes for safe operation.
ManufacturerFordPower20.2 hp(15.1 kW)ClassUnder 25 HP tractors →Engine4-cylinderTransmissionGear type with dry disc clutch
Key specifications
- Category
- Utility
- Engine power
- 20hp
- Operating weight
- 2,814 lb
- Transmission
- Gear type with dry disc clutch
Category comparison
Golden Jubilee NAA compared with its category
vs. Utility medianDistribution
Engine Power (hp)
All recorded Utility tractors
20.2 hp · 9th
This model
9
Median 55 hp
177
This modelUtility tractorsMediann = 5,383
The Golden Jubilee NAA ranks at the 9th percentile for engine power among recorded utility tractors.
Overview
About the Ford Golden Jubilee NAA
The Ford Golden Jubilee NAA is a utility tractor made by Ford from 1953 to 1954. It's a 2WD tractor with a manual steering system. The tractor has a 4-speed gear transmission with one reverse gear. It's powered by a Ford gasoline engine with 4 cylinders and 134 cubic inches of displacement. This engine size is about average compared to other tractors. The engine produces 20.2 horsepower, which is on the lower end of the power range for tractors. This tractor has a three-point hitch at the rear, which can lift up to 798 pounds. It also has a live hydraulic system and a transmission-driven PTO that spins at 540 rpm. The Golden Jubilee NAA is compact, measuring 118.5 inches long, 64.6 inches wide, and 57.1 inches tall. It weighs 2,814 pounds, which is relatively light for a tractor. The tractor has an open operator station and uses agricultural tires on both front and rear wheels. It comes with an electric starter and differential mechanical drum brakes for safe operation.
Full specifications
Recorded specifications
General
| Manufacturer | Ford |
|---|---|
| Model | Golden Jubilee NAA |
| Category | Utility tractor |
| Type | 4x2 2WD |
| Years built | 1953–1954 |
| Operating weight | 2,814lb(1,276 kg) |
Engine
| Make | Ford |
|---|---|
| Power | 20.2hp(15.06 kW) |
| Cylinders | 4 |
| Displacement | 134ci(2.2 L) |
| Bore | 3.44in(87.33 mm) |
| Stroke | 3.6in(91.44 mm) |
Transmission
| Type | Gear type with dry disc clutch |
|---|---|
| Forward gears | 4 |
| Reverse gears | 1 |
Chassis & drive
| Chassis | 4x2 2WD |
|---|---|
| Drive | 2WD |
| Steering | Manual |
| Brakes | Differential mechanical drum |
| Cab | Open |
Hydraulics
| Type | Live |
|---|
Power take-off
| Rear PTO | Transmission |
|---|---|
| PTO speed | 540rpm |
Dimensions
| Length | 118.5in(3,010 mm) |
|---|---|
| Width | 64.6in(1,641 mm) |
| Height | 57.1in(1,450 mm) |
| Operating weight | 2,814lb(1,276 kg) |
Capacities
| Cooling system | 3.75gal(14.2 L) |
|---|
Closest alternatives
Golden Jubilee NAA compared with the nearest models by horsepower
Among utility tractors, the LS XJ20 and the Kubota KB205 are closest to the Ford Golden Jubilee NAA in rated horsepower. The LS XJ20 matches it on rated power and weighs 980 lb less, so it is lighter for its power, which favors PTO and transport work over heavy draft. The Kubota KB205 matches it on rated power. It entered production in 2008, 55 years after the Golden Jubilee NAA.
| Spec | Ford Golden Jubilee NAA | LS XJ20 | Kubota KB205 |
|---|---|---|---|
| Engine power | 20.2 hp15.1 kW | 20.1 hp15 kW | 20.3 hp15.1 kW |
| Operating weight | 2,814 lb1,276 kg | 1,830 lb830 kg | - |
| Weight per hp | 139 lb/hp85 kg/kW | 91 lb/hp55 kg/kW | - |
| Displacement | 134 ci2.2 L | 68.6 ci1.12 L | 68.5 ci1.12 L |
| Cylinders | 4 | 3 | 3 |
| Transmission | Gear type with dry disc clutch | Gear | Power shift (Glideshift) |
| Drive | 2WD | 4WD | 4WD |
| Years built | 1953-1954 | - | 2008-2009 |
Calculators
Calculators for the Golden Jubilee NAA
PTO power
About 17 to 18 PTO hp
Estimated from the 20.2 hp engine rating. The calculator also estimates drawbar power by surface.
Implement sizing
Implements a 20.2 hp tractor can run
The calculator sizes mowers, tillers, discs, plows and balers for this tractor.
Ballast
162 lb per PTO hp as listed
The calculator gives the target weight and front/rear split for each job.
Units
20.2 hp is 15.1 kW
The converter gives kW and metric PS values, as used on European spec sheets.
Category medians
Golden Jubilee NAA vs. Utility median
Ford Golden Jubilee NAA compared with other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 20.2 hp | 55 hp | -63% | 9th |
| Engine Displacement | 134 ci | 183 ci | -27% | 31st |
| Cylinders | 4 | 4 | at median | 50th |
| Forward Gears | 4 | 12 | -67% | 4th |
| Operating Weight | 2,814 lb | 5,303 lb | -47% | 20th |
| Length | 119 in | 137 in | -13% | 25th |
| Width | 64.6 in | 66 in | -2% | 47th |
| Height | 57.1 in | 94.1 in | -39% | 8th |
| 3-Point Hitch Capacity | 798 lb | 3,197 lb | -75% | 3rd |
Medians and percentiles are calculated from the utility tractors in the database that have a recorded value for each specification (sample size 1,083–5,720 models).
Same manufacturer
Other Ford models
Other manufacturers
Models with similar horsepower
Gallery

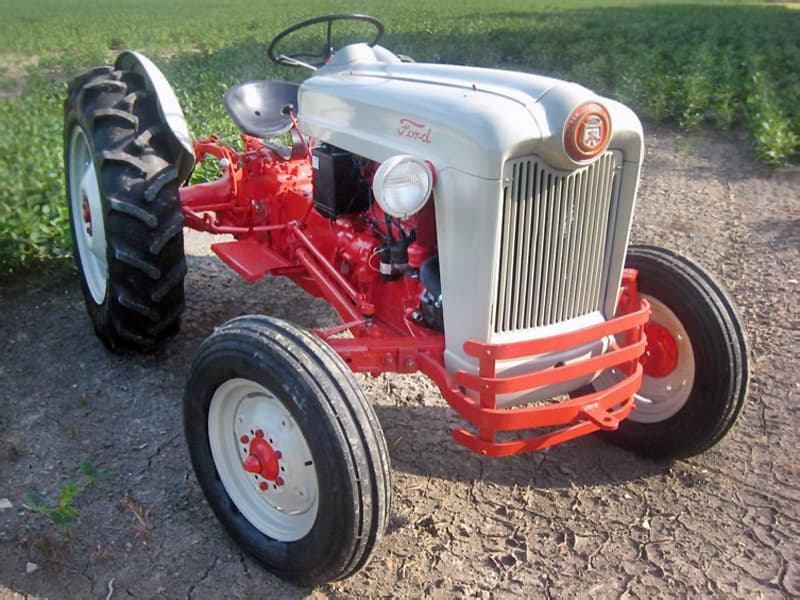

Ford Golden Jubilee NAA photos
FAQ
Frequently asked questions
What years was the Ford Golden Jubilee NAA manufactured?
Production of the Ford Golden Jubilee NAA ran from 1953 through 1954.
What hitch category is the Ford Golden Jubilee NAA?
The Ford Golden Jubilee NAA uses a Category I hitch with a lift capacity of 798 lb.
How powerful is the Ford Golden Jubilee NAA?
The Ford Golden Jubilee NAA has an engine power output of 20.2 hp. It is powered by a 4-cylinder engine displacing 134 ci.
What is the working weight of the Ford Golden Jubilee NAA?
The operating weight of the Ford Golden Jubilee NAA is approximately 2,814 lb.
What type of transmission does the Ford Golden Jubilee NAA have?
The Ford Golden Jubilee NAA uses a Gear type with dry disc clutch transmission offering 4 forward gears.
What type of hydraulic system does the Ford Golden Jubilee NAA use?
Hydraulics on the Ford Golden Jubilee NAA are Live.
What routine service does the Ford Golden Jubilee NAA need?
Regular maintenance for the Ford Golden Jubilee NAA includes checking and changing engine oil, hydraulic fluid, and filters, plus routine inspections as recommended in the owner's manual. Always follow the manufacturer's maintenance schedule for specific intervals and procedures.
