Sub-CompactPerformance profile
Foton 254
The Foton 254 is a compact tractor designed for small farms and light work. It has a diesel engine made by Foton, with two cylinders and 24.6 horsepower. The engine is liquid-cooled and naturally aspirated, which means it doesn't use a turbocharger. It has a displacement of 100.1 cubic inches, which is average for tractors of this size. This tractor has eight forward gears and two reverse gears, giving the driver good control over speed and power. It's equipped with agricultural tires on both the front and rear, making it suitable for various farm tasks. The Foton 254 is quite small, measuring 106.6 inches long, 49.2 inches wide, and 53.8 inches tall. It has a Category 0 hitch at the rear, which is typical for compact tractors. The coolant capacity is 10.6 quarts, helping to keep the engine running smoothly in different conditions.
ManufacturerFotonPower24.6 hpEngine2-cyl
Quick specs
- Category
- Sub-Compact
- Engine Power Output
- 25hp
At a glance
How the 254 compares
vs. Sub-Compact medianDistribution
Engine Power (hp)
Across all Sub-Compact tractors
24.6 hp · 43rd
This model
4
Median 26.85 hp
49
This modelSub-Compact tractorsMediann = 816
The 254 ranks at the 43rd percentile for engine power among recorded sub-compact tractors.
Overview
About the Foton 254
The Foton 254 is a compact tractor designed for small farms and light work. It has a diesel engine made by Foton, with two cylinders and 24.6 horsepower. The engine is liquid-cooled and naturally aspirated, which means it doesn't use a turbocharger. It has a displacement of 100.1 cubic inches, which is average for tractors of this size. This tractor has eight forward gears and two reverse gears, giving the driver good control over speed and power. It's equipped with agricultural tires on both the front and rear, making it suitable for various farm tasks. The Foton 254 is quite small, measuring 106.6 inches long, 49.2 inches wide, and 53.8 inches tall. It has a Category 0 hitch at the rear, which is typical for compact tractors. The coolant capacity is 10.6 quarts, helping to keep the engine running smoothly in different conditions.
Full specifications
Every recorded spec
General
| Manufacturer | Foton |
|---|---|
| Model | 254 |
| Category | Sub-Compact tractor |
Engine
| Make | Foton |
|---|---|
| Model | TY295I |
| Power | 24.6hp |
| Cylinders | 2 |
| Displacement | 100.1ci |
| Bore | 3.94in |
| Stroke | 4.13in |
Transmission
| Forward gears | 8 |
|---|---|
| Reverse gears | 2 |
Dimensions
| Length | 106.6in |
|---|---|
| Width | 49.2in |
| Height | 53.8in |
Capacities
| Cooling system | 2.65gal |
|---|
Head to head
254 vs. Sub-Compact median
How the Foton 254 compares to other Sub-Compact tractors
| Spec | This model | Sub-Compact median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 24.6 hp | 26.9 hp | -8% | 43rd |
| Engine Displacement | 100 ci | 91.4 ci | +10% | 56th |
| Cylinders | 2 | 3 | -33% | 11th |
| Forward Gears | 8 | 9 | -11% | 40th |
| Length | 107 in | 113 in | -6% | 42nd |
| Width | 49.2 in | 50.7 in | -3% | 47th |
| Height | 53.8 in | 78.4 in | -31% | 15th |
Medians and percentiles are computed from the sub-compact tractors in our database with a recorded value for each spec (sample sizes 584–816 models).
Compare to tractors with similar specs
Commonly compared Foton tractors
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Bobcat CT1025 | 24.5 hp | 1,488 lb | — | Compare → |
| AGCO ST25 | 24.3 hp | 1,588 lb | — | Compare → |
| Allis Chalmers 5020 | 25 hp | 2,060 lb | 1977–1985 | Compare → |
| Allis Chalmers FD3 | 25 hp | 3,150 lb | — | Compare → |
| Apollo 254 | 25 hp | — | — | Compare → |
Explore
Foton siblings
Explore
Similar-spec models
Gallery

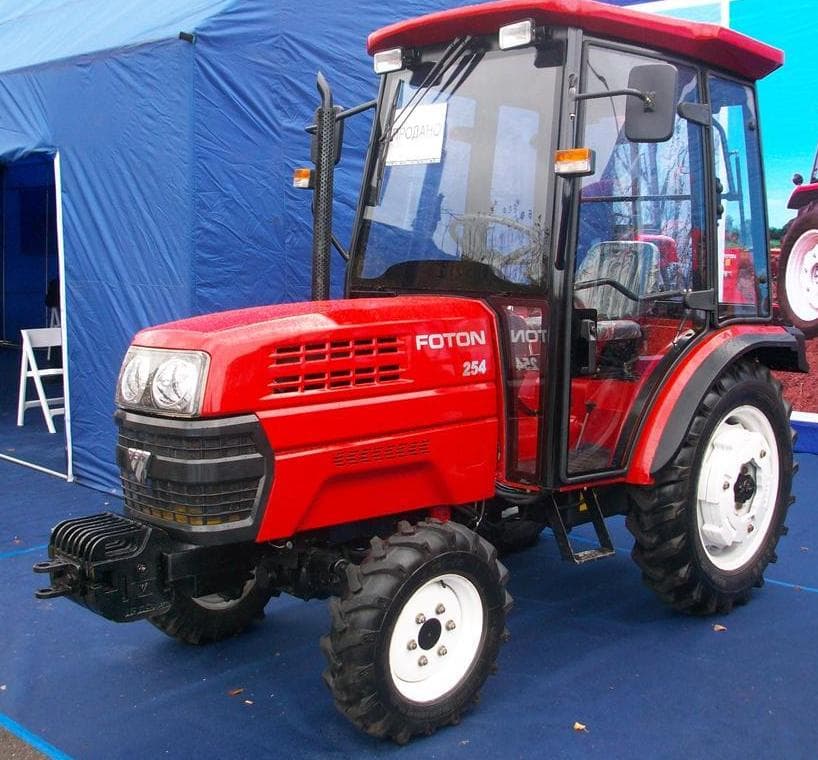

Foton 254 photos
FAQ
Common questions
How much horsepower does the Foton 254 have?
The Foton 254 produces 24.6 hp from its 2-cylinder engine. Engine displacement is 100.1 ci.
What three-point hitch category does the Foton 254 use?
The Foton 254 has a Category Category 0 three-point hitch.
What maintenance does the Foton 254 require?
Like any tractor, the Foton 254 needs periodic engine oil and filter changes, hydraulic fluid checks, and regular greasing and inspection. The owner's manual lists the manufacturer's recommended service intervals.
