Brand siblingSub-CompactPerformance profile
Foton 224
The Foton 224 is a compact and versatile tractor designed for small-scale farming and property maintenance. This 4-wheel drive tractor features a manual steering system and an 8-forward, 2-reverse gear transmission, giving operators good control in various working conditions. Under the hood, the Foton 224 is powered by a Foton TY295I engine. This 2-cylinder diesel engine is liquid-cooled and naturally aspirated, with a displacement of 93.4 cubic inches. It produces 21.5 horsepower at 2200 RPM, making it suitable for light to medium-duty tasks. The tractor's dimensions are compact, measuring 106.6 inches long, 49.2 inches wide, and 53.8 inches tall. It comes equipped with agricultural tires and a Category 0 rear hitch, ideal for attaching small implements. The 12-volt electric starter ensures easy and reliable starting in various weather conditions.
ManufacturerFotonPower21.5 hpEngine2-cylTransManual
Quick specs
- Category
- Sub-Compact
- Engine Power Output
- 22hp
- Transmission
- Manual
At a glance
How the 224 compares
vs. Sub-Compact medianDistribution
Engine Power (hp)
Across all Sub-Compact tractors
21.5 hp · 30th
This model
4
Median 26.85 hp
49
This modelSub-Compact tractorsMediann = 816
The 224 ranks at the 30th percentile for engine power among recorded sub-compact tractors.
Overview
About the Foton 224
The Foton 224 is a compact and versatile tractor designed for small-scale farming and property maintenance. This 4-wheel drive tractor features a manual steering system and an 8-forward, 2-reverse gear transmission, giving operators good control in various working conditions. Under the hood, the Foton 224 is powered by a Foton TY295I engine. This 2-cylinder diesel engine is liquid-cooled and naturally aspirated, with a displacement of 93.4 cubic inches. It produces 21.5 horsepower at 2200 RPM, making it suitable for light to medium-duty tasks. The tractor's dimensions are compact, measuring 106.6 inches long, 49.2 inches wide, and 53.8 inches tall. It comes equipped with agricultural tires and a Category 0 rear hitch, ideal for attaching small implements. The 12-volt electric starter ensures easy and reliable starting in various weather conditions.
Full specifications
Every recorded spec
General
| Manufacturer | Foton |
|---|---|
| Model | 224 |
| Category | Sub-Compact tractor |
| Type | 4x4 MFWD 4WD |
Engine
| Make | Foton |
|---|---|
| Model | TY295I |
| Power | 21.5hp |
| Cylinders | 2 |
| Displacement | 93.4ci |
| Bore | 3.74in |
| Stroke | 4.13in |
Transmission
| Type | Manual |
|---|---|
| Forward gears | 8 |
| Reverse gears | 2 |
Chassis & drive
| Chassis | 4x4 MFWD 4WD |
|---|---|
| Drive | 4WD |
| Steering | Manual |
Dimensions
| Length | 106.6in |
|---|---|
| Width | 49.2in |
| Height | 53.8in |
Capacities
| Cooling system | 2.65gal |
|---|
Head to head
224 vs. Sub-Compact median
How the Foton 224 compares to other Sub-Compact tractors
| Spec | This model | Sub-Compact median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 21.5 hp | 26.9 hp | -20% | 30th |
| Engine Displacement | 93.4 ci | 91.4 ci | +2% | 53rd |
| Cylinders | 2 | 3 | -33% | 11th |
| Forward Gears | 8 | 9 | -11% | 40th |
| Length | 107 in | 113 in | -6% | 42nd |
| Width | 49.2 in | 50.7 in | -3% | 47th |
| Height | 53.8 in | 78.4 in | -31% | 15th |
Medians and percentiles are computed from the sub-compact tractors in our database with a recorded value for each spec (sample sizes 584–816 models).
Compare to tractors with similar specs
Commonly compared Foton tractors
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Branson 2205h | 21.5 hp | 1,433 lb | — | Compare → |
| Bobcat CT1021 | 21.1 hp | 1,488 lb | — | Compare → |
| Allis Chalmers D270 | 22 hp | 2,500 lb | — | Compare → |
| Belarus 200 | 22 hp | 2,600 lb | — | Compare → |
| Belarus 2011 | 22 hp | 2,602 lb | — | Compare → |
Explore
Foton siblings
Explore
Similar-spec models
Gallery

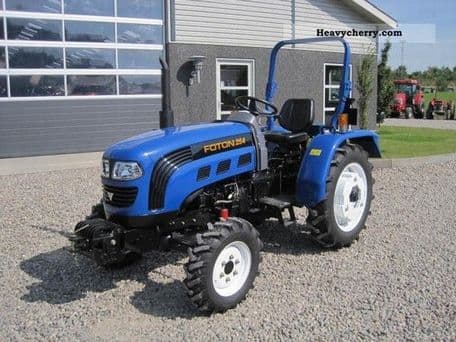

Foton 224 photos
FAQ
Common questions
How much horsepower does the Foton 224 have?
The Foton 224 produces 21.5 hp from its 2-cylinder engine. Engine displacement is 93.4 ci.
What hitch category is the Foton 224?
The Foton 224 uses a Category Category 0 hitch.
What transmission is in the Foton 224?
Transmission on the Foton 224 is Manual, with 8 forward speeds.
What maintenance does the Foton 224 require?
Like any tractor, the Foton 224 needs periodic engine oil and filter changes, hydraulic fluid checks, and regular greasing and inspection. The owner's manual lists the manufacturer's recommended service intervals.
