Foton 820
The Foton 820 is a sturdy 2WD tractor built for farm work. It has a 4-cylinder diesel engine that makes 81.4 horsepower. This engine is liquid-cooled and has a displacement of 264.2 cubic inches. The tractor uses a manual transmission with 8 forward gears and 4 reverse gears, giving the driver good control over speed and power. This tractor is designed for comfort and ease of use. It has power steering to make turning easier. The open operator station lets the driver see all around while working. The Foton 820 is a good size for many farm jobs. It's 167.1 inches long, 76.9 inches wide, and 110.6 inches tall. It weighs 7,915 pounds, which helps it stay stable during work. The tractor has agricultural tires in front and back, with a wide wheelbase of 93.2 inches for good balance. It also has 18.7 inches of ground clearance, which helps it move over rough ground.
ManufacturerFotonPower81.4 hpEngine4-cylTransManual
Quick specs
- Category
- Agricultural
- Engine Power Output
- 81hp
- Operating Weight
- 7,915 lb
- Transmission
- Manual
At a glance
How the 820 compares
vs. Agricultural medianDistribution
Engine Power (hp)
Across all Agricultural tractors
81.4 hp · 29th
This model
13
Median 110 hp
282
This modelAgricultural tractorsMediann = 1,028
The 820 ranks at the 29th percentile for engine power among recorded agricultural tractors.
Overview
About the Foton 820
The Foton 820 is a sturdy 2WD tractor built for farm work. It has a 4-cylinder diesel engine that makes 81.4 horsepower. This engine is liquid-cooled and has a displacement of 264.2 cubic inches. The tractor uses a manual transmission with 8 forward gears and 4 reverse gears, giving the driver good control over speed and power. This tractor is designed for comfort and ease of use. It has power steering to make turning easier. The open operator station lets the driver see all around while working. The Foton 820 is a good size for many farm jobs. It's 167.1 inches long, 76.9 inches wide, and 110.6 inches tall. It weighs 7,915 pounds, which helps it stay stable during work. The tractor has agricultural tires in front and back, with a wide wheelbase of 93.2 inches for good balance. It also has 18.7 inches of ground clearance, which helps it move over rough ground.
Full specifications
Every recorded spec
General
| Manufacturer | Foton |
|---|---|
| Model | 820 |
| Category | Agricultural tractor |
| Type | 4x2 2WD |
| Operating weight | 7,915lb |
Engine
| Make | Foton |
|---|---|
| Power | 81.4hp |
| Cylinders | 4 |
| Displacement | 264.2ci |
| Bore | 4.13in |
| Stroke | 4.92in |
Transmission
| Type | Manual |
|---|---|
| Forward gears | 8 |
| Reverse gears | 4 |
Chassis & drive
| Chassis | 4x2 2WD |
|---|---|
| Drive | 2WD |
| Steering | Power |
| Cab | Open |
Dimensions
| Length | 167.1in |
|---|---|
| Width | 76.9in |
| Height | 110.6in |
| Operating weight | 7,915lb |
Capacities
| Cooling system | 3.7gal |
|---|
Head to head
820 vs. Agricultural median
How the Foton 820 compares to other Agricultural tractors
| Spec | This model | Agricultural median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 81.4 hp | 110 hp | -26% | 29th |
| Engine Displacement | 264 ci | 336 ci | -21% | 36th |
| Cylinders | 4 | 5.5 | -27% | 31st |
| Forward Gears | 8 | 16 | -50% | 16th |
| Operating Weight | 7,915 lb | 10,914 lb | -27% | 31st |
| Length | 167 in | 173 in | -3% | 46th |
| Width | 76.9 in | 79.5 in | -3% | 43rd |
| Height | 111 in | 111 in | at median | 50th |
Medians and percentiles are computed from the agricultural tractors in our database with a recorded value for each spec (sample sizes 497–1,130 models).
Compare to tractors with similar specs
Commonly compared Foton tractors
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Agrinar T-85 | 80.9 hp | 3,000 lb | — | Compare → |
| AGCO GT75 | 83 hp | 5,511 lb | 2004–2007 | Compare → |
| Agco GT75A | 83 hp | 6,040.7 lb | — | Compare → |
| AGCO LT75 | 78.98 hp | 9,600 lb | — | Compare → |
| Agco LT90 | 85 hp | 8,980 lb | — | Compare → |
Explore
Foton siblings
Explore
Similar-spec models
Gallery

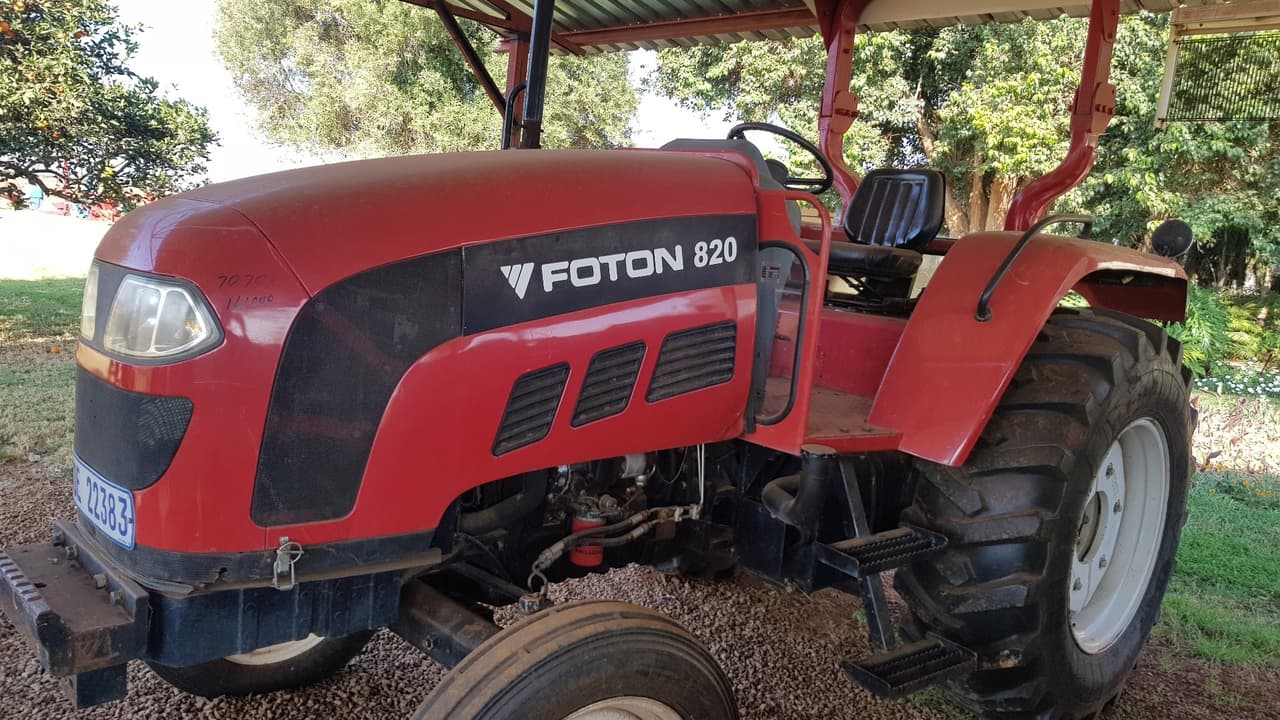

Foton 820 photos
FAQ
Common questions
What is the engine power output of the Foton 820?
Rated engine output for the Foton 820 is 81.4 hp, delivered by a 4-cylinder engine. The engine displaces 264.2 ci.
Which transmission does the Foton 820 use?
The Foton 820 is equipped with a Manual transmission with 8 forward gears.
What is the operating weight of the Foton 820?
In working trim, the Foton 820 comes in at roughly 7,915 lb.
How do I maintain a Foton 820?
Routine service for the Foton 820 covers engine oil and filter changes, hydraulic and coolant level checks, air filter cleaning, and scheduled inspections. Refer to the manufacturer's maintenance schedule for exact intervals.
