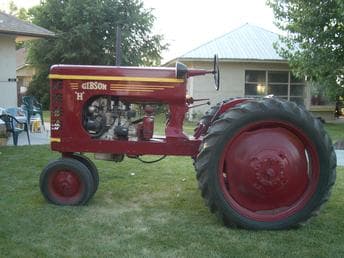

Gibson H
The Gibson H is a classic 2-wheel drive tractor built for farm work. It has a 4x2 chassis and manual steering, making it easy to handle in fields. The tractor uses a gear transmission with 4 forward gears and 1 reverse gear, giving farmers 5 gears to choose from when working. Under the hood, the Gibson H has a Hercules IXB3 engine. This engine runs on gasoline and is liquid-cooled to keep it running smoothly. It has 4 cylinders and a displacement of 133 cubic inches, which is average for tractors of its time. The engine's rated speed is 1800 rpm, providing steady power for various tasks. The tractor weighs 4079 pounds and measures 127.25 inches long and 67 inches tall. It rides on agricultural tires, with larger rear tires for better traction. The Gibson H also features an electric starter, making it easy to get going in the morning.
ManufacturerGibsonEngine4-cylTransGear
Quick specs
- Category
- Standard Tread
- Operating Weight
- 4,079 lb
- Transmission
- Gear
Overview
About the Gibson H
The Gibson H is a classic 2-wheel drive tractor built for farm work. It has a 4x2 chassis and manual steering, making it easy to handle in fields. The tractor uses a gear transmission with 4 forward gears and 1 reverse gear, giving farmers 5 gears to choose from when working. Under the hood, the Gibson H has a Hercules IXB3 engine. This engine runs on gasoline and is liquid-cooled to keep it running smoothly. It has 4 cylinders and a displacement of 133 cubic inches, which is average for tractors of its time. The engine's rated speed is 1800 rpm, providing steady power for various tasks. The tractor weighs 4079 pounds and measures 127.25 inches long and 67 inches tall. It rides on agricultural tires, with larger rear tires for better traction. The Gibson H also features an electric starter, making it easy to get going in the morning.
Full specifications
Every recorded spec
General
| Manufacturer | Gibson |
|---|---|
| Model | H |
| Category | Standard Tread tractor |
| Type | 4x2 2WD |
| Operating weight | 4,079lb |
Engine
| Make | Hercules |
|---|---|
| Model | IXB3 |
| Cylinders | 4 |
| Displacement | 133ci |
| Bore | 3.25in |
| Stroke | 4in |
Transmission
| Type | Gear |
|---|---|
| Forward gears | 4 |
| Reverse gears | 1 |
Chassis & drive
| Chassis | 4x2 2WD |
|---|---|
| Drive | 2WD |
| Steering | Manual |
Dimensions
| Length | 127.25in |
|---|---|
| Height | 67in |
| Operating weight | 4,079lb |
Capacities
| Cooling system | 3.5gal |
|---|
Head to head
H vs. Standard Tread median
How the Gibson H compares to other Standard Tread tractors
| Spec | This model | Standard Tread median | Difference | Percentile |
|---|---|---|---|---|
| Engine Displacement | 133 ci | 382 ci | -65% | 4th |
| Cylinders | 4 | 4 | at median | 50th |
| Forward Gears | 4 | 4 | at median | 50th |
| Operating Weight | 4,079 lb | 6,834 lb | -40% | 15th |
| Length | 127 in | 137 in | -7% | 27th |
| Height | 67 in | 72.3 in | -7% | 34th |
Medians and percentiles are computed from the standard tread tractors in our database with a recorded value for each spec (sample sizes 234–367 models).
Compare to tractors with similar specs
Commonly compared Gibson tractors
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Advance-Rumely 6A | — | 6,370 lb | — | Compare → |
| Advance-Rumely DoAll | — | 3,702 lb | — | Compare → |
| Advance-Rumely OilPull B 25/45 | — | 25,000 lb | — | Compare → |
| Advance-Rumely OilPull E 30/60 | — | 26,300 lb | — | Compare → |
| Advance-Rumely OilPull F 15/30 | — | 16,500 lb | — | Compare → |
Explore
Gibson siblings
Explore
Similar-spec models
Gallery
Gibson H photos
FAQ
Common questions
How many cylinders does the Gibson H have?
The Gibson H runs a 4-cylinder engine with a displacement of 133 ci.
Which transmission does the Gibson H use?
The Gibson H is equipped with a Gear transmission with 4 forward gears.
What is the operating weight of the Gibson H?
In working trim, the Gibson H comes in at roughly 4,079 lb.
How do I maintain a Gibson H?
Routine service for the Gibson H covers engine oil and filter changes, hydraulic and coolant level checks, air filter cleaning, and scheduled inspections. Refer to the manufacturer's maintenance schedule for exact intervals.
