UtilityPerformance profile
Hesston 130-90DT
The Hesston 130-90DT is a powerful utility tractor made from 1985 to 1990. It has a strong 6-cylinder Fiat diesel engine with 128 hp, which is very high for its class. The engine is turbocharged and liquid-cooled, making it perform well in tough jobs. This tractor has a 4-wheel drive system and hydrostatic steering, which helps it move easily in different terrains. The 130-90DT has a versatile transmission with 24 forward and 16 reverse gears, including shuttle, creeper, and partial power shift options. It has a fully independent PTO with both 540 and 1000 rpm speeds, making it suitable for various farm tasks. The tractor's 3-point hitch can lift up to 16,431 lb, which is extremely high and great for heavy implements. It comes with a comfortable cab that has air conditioning. The tractor weighs 16,380 lb and is quite large, measuring 164.6 inches long and 111.8 inches tall. This Hesston model is a robust and capable machine for farmers who need a strong, reliable tractor for their daily work.
ManufacturerHesstonPower128 hpEngine6-cylTransShuttle, Creeper, Partial Power Shift
Quick specs
- Category
- Utility
- Engine Power Output
- 128hp
- Operating Weight
- 16,380 lb
- Transmission
- Shuttle, Creeper, Partial Power Shift
At a glance
How the 130-90DT compares
vs. Utility medianDistribution
Engine Power (hp)
Across all Utility tractors
128 hp · 91st
This model
9
Median 55 hp
177
This modelUtility tractorsMediann = 5,383
The 130-90DT ranks at the 91st percentile for engine power among recorded utility tractors.
Overview
About the Hesston 130-90DT
The Hesston 130-90DT is a powerful utility tractor made from 1985 to 1990. It has a strong 6-cylinder Fiat diesel engine with 128 hp, which is very high for its class. The engine is turbocharged and liquid-cooled, making it perform well in tough jobs. This tractor has a 4-wheel drive system and hydrostatic steering, which helps it move easily in different terrains. The 130-90DT has a versatile transmission with 24 forward and 16 reverse gears, including shuttle, creeper, and partial power shift options. It has a fully independent PTO with both 540 and 1000 rpm speeds, making it suitable for various farm tasks. The tractor's 3-point hitch can lift up to 16,431 lb, which is extremely high and great for heavy implements. It comes with a comfortable cab that has air conditioning. The tractor weighs 16,380 lb and is quite large, measuring 164.6 inches long and 111.8 inches tall. This Hesston model is a robust and capable machine for farmers who need a strong, reliable tractor for their daily work.
Full specifications
Every recorded spec
General
| Manufacturer | Hesston |
|---|---|
| Model | 130-90DT |
| Category | Utility tractor |
| Type | 4x4 MFWD 4WD |
| Years built | 1985–1990 |
| Operating weight | 16,380lb |
Engine
| Make | Fiat |
|---|---|
| Model | 8065.25 |
| Power | 128hp |
| Cylinders | 6 |
| Displacement | 357.66ci |
| Bore | 4.09in |
| Stroke | 4.53in |
Transmission
| Type | Shuttle, Creeper, Partial Power Shift |
|---|---|
| Forward gears | 24 |
| Reverse gears | 16 |
Chassis & drive
| Chassis | 4x4 MFWD 4WD |
|---|---|
| Drive | 4WD |
| Steering | Hydrostatic |
| Brakes | Disc, Hydraulically Operated |
| Cab | Cab |
Power take-off
| Rear PTO | Fully Independent |
|---|---|
| PTO speed | 540rpm |
Dimensions
| Length | 164.6in |
|---|---|
| Height | 111.8in |
| Operating weight | 16,380lb |
Head to head
130-90DT vs. Utility median
How the Hesston 130-90DT compares to other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 128 hp | 55 hp | +133% | 91st |
| Engine Displacement | 358 ci | 183 ci | +95% | 87th |
| Cylinders | 6 | 4 | +50% | 93rd |
| Forward Gears | 24 | 12 | +100% | 92nd |
| Operating Weight | 16,380 lb | 5,303 lb | +209% | 94th |
| Length | 165 in | 137 in | +20% | 82nd |
| Height | 112 in | 94.1 in | +19% | 90th |
| 3-Point Hitch Capacity | 16,431 lb | 3,197 lb | +414% | 96th |
Medians and percentiles are computed from the utility tractors in our database with a recorded value for each spec (sample sizes 1,083–5,720 models).
Compare to tractors with similar specs
Commonly compared Hesston tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Hesston 480-8 | 86.41 hp | 5,320 lb | 1981+ | Compare → |
| Hesston 80-90 | 80 hp | 6,930 lb | — | Compare → |
| Hesston 70-66 | 70 hp | 5,689 lb | — | Compare → |
| Hesston 70-90 | 70 hp | 7,100 lb | — | Compare → |
| Hesston 65-46 | 65 hp | 4,930 lb | — | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| AGCO RT100 | 128 hp | 15,055 lb | — | Compare → |
| Allis Chalmers HD11AG Series B | 126.5 hp | 25,000 lb | — | Compare → |
| Allis Chalmers HD11AG | 130 hp | 23,000 lb | — | Compare → |
| Belarus 1221 | 130 hp | 10,230 lb | — | Compare → |
| Belarus 1221 MIG | 130 hp | 11,350 lb | — | Compare → |
Explore
Hesston siblings
Explore
Similar-spec models

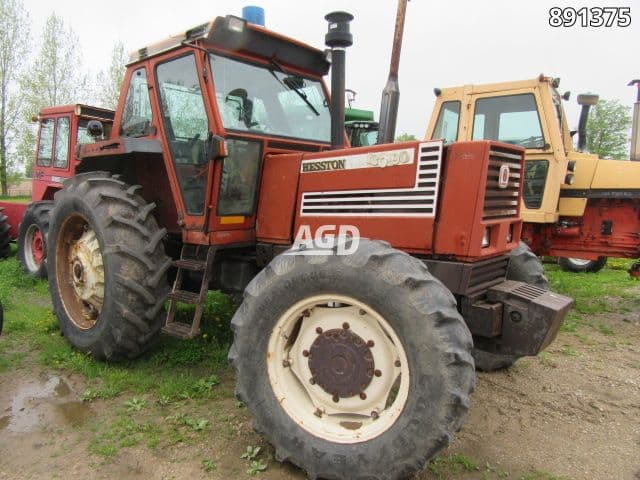

Gallery
Hesston 130-90DT photos
FAQ
Common questions
When was the Hesston 130-90DT made?
The Hesston 130-90DT was manufactured from 1985 to 1990.
What hitch category is the Hesston 130-90DT?
The Hesston 130-90DT uses a Category II/III hitch with a lift capacity of 16,431 lb.
What is the engine power output of the Hesston 130-90DT?
Rated engine output for the Hesston 130-90DT is 128 hp, delivered by a 6-cylinder engine. The engine displaces 357.66 ci.
What is the operating weight of the Hesston 130-90DT?
In working trim, the Hesston 130-90DT comes in at roughly 16,380 lb.
Which transmission does the Hesston 130-90DT use?
The Hesston 130-90DT is equipped with a Shuttle, Creeper, Partial Power Shift transmission with 24 forward gears.
How do I maintain a Hesston 130-90DT?
Routine service for the Hesston 130-90DT covers engine oil and filter changes, hydraulic and coolant level checks, air filter cleaning, and scheduled inspections. Refer to the manufacturer's maintenance schedule for exact intervals.
