Utility
Hesston 566
The Hesston 566 is a versatile utility tractor designed for various farm tasks. It features a 2WD chassis with hydrostatic power steering, making it easy to maneuver in tight spaces. The tractor is equipped with a synchronized transmission offering 20 forward and 8 reverse gears, providing plenty of options for different work speeds. Under the hood, the Hesston 566 boasts a Fiat 8035.4 engine. This liquid-cooled, diesel-powered engine has 3 cylinders and a displacement of 168 ci, which is about average for tractors in its class. The engine uses natural aspiration and is started with an electric starter. The tractor's overall length is 130 inches, and it weighs 4,901 lb, making it a mid-sized option for farmers. It comes with agricultural tires, a three-point hitch (category I/II) at the rear, and an open center hydraulic system. The open operator station allows for easy access and good visibility. With 20 inches of ground clearance, the Hesston 566 can handle rough terrain and various field conditions.
ManufacturerHesstonEngine3-cylTransSynchronized
Quick specs
- Category
- Utility
- Operating Weight
- 4,901 lb
- Transmission
- Synchronized
Overview
About the Hesston 566
The Hesston 566 is a versatile utility tractor designed for various farm tasks. It features a 2WD chassis with hydrostatic power steering, making it easy to maneuver in tight spaces. The tractor is equipped with a synchronized transmission offering 20 forward and 8 reverse gears, providing plenty of options for different work speeds. Under the hood, the Hesston 566 boasts a Fiat 8035.4 engine. This liquid-cooled, diesel-powered engine has 3 cylinders and a displacement of 168 ci, which is about average for tractors in its class. The engine uses natural aspiration and is started with an electric starter. The tractor's overall length is 130 inches, and it weighs 4,901 lb, making it a mid-sized option for farmers. It comes with agricultural tires, a three-point hitch (category I/II) at the rear, and an open center hydraulic system. The open operator station allows for easy access and good visibility. With 20 inches of ground clearance, the Hesston 566 can handle rough terrain and various field conditions.
Full specifications
Every recorded spec
General
| Manufacturer | Hesston |
|---|---|
| Model | 566 |
| Category | Utility tractor |
| Type | 4x2 2WD |
| Operating weight | 4,901lb |
Engine
| Make | Fiat |
|---|---|
| Model | 8035.4 |
| Cylinders | 3 |
| Displacement | 168ci |
| Bore | 4.05in |
| Stroke | 4.33in |
Transmission
| Type | Synchronized |
|---|---|
| Forward gears | 20 |
| Reverse gears | 8 |
Chassis & drive
| Chassis | 4x2 2WD |
|---|---|
| Drive | 2WD |
| Steering | Hydrostatic power |
| Cab | Open |
Hydraulics
| Type | Open Center |
|---|
Dimensions
| Length | 130in |
|---|---|
| Operating weight | 4,901lb |
Head to head
566 vs. Utility median
How the Hesston 566 compares to other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Displacement | 168 ci | 183 ci | -8% | 45th |
| Cylinders | 3 | 4 | -25% | 23rd |
| Forward Gears | 20 | 12 | +67% | 86th |
| Operating Weight | 4,901 lb | 5,303 lb | -8% | 47th |
| Length | 130 in | 137 in | -5% | 41st |
Medians and percentiles are computed from the utility tractors in our database with a recorded value for each spec (sample sizes 4,659–5,720 models).
Compare to tractors with similar specs
Commonly compared Hesston tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Hesston 100 | 360 hp | — | — | Compare → |
| Hesston 130-90DT | 128 hp | 16,380 lb | 1985–1990 | Compare → |
| Hesston 45-66 | 45 hp | 4,450 lb | — | Compare → |
| Hesston 466 | 46 hp | 4,851 lb | 1985–1989 | Compare → |
| Hesston 480-8 | 86.41 hp | 5,320 lb | 1981+ | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Advance-Rumely 6A | — | 6,370 lb | — | Compare → |
| Advance-Rumely DoAll | — | 3,702 lb | — | Compare → |
| Advance-Rumely OilPull B 25/45 | — | 25,000 lb | — | Compare → |
| Advance-Rumely OilPull E 30/60 | — | 26,300 lb | — | Compare → |
| Advance-Rumely OilPull F 15/30 | — | 16,500 lb | — | Compare → |
Explore
Hesston siblings
Explore
Similar-spec models
Gallery

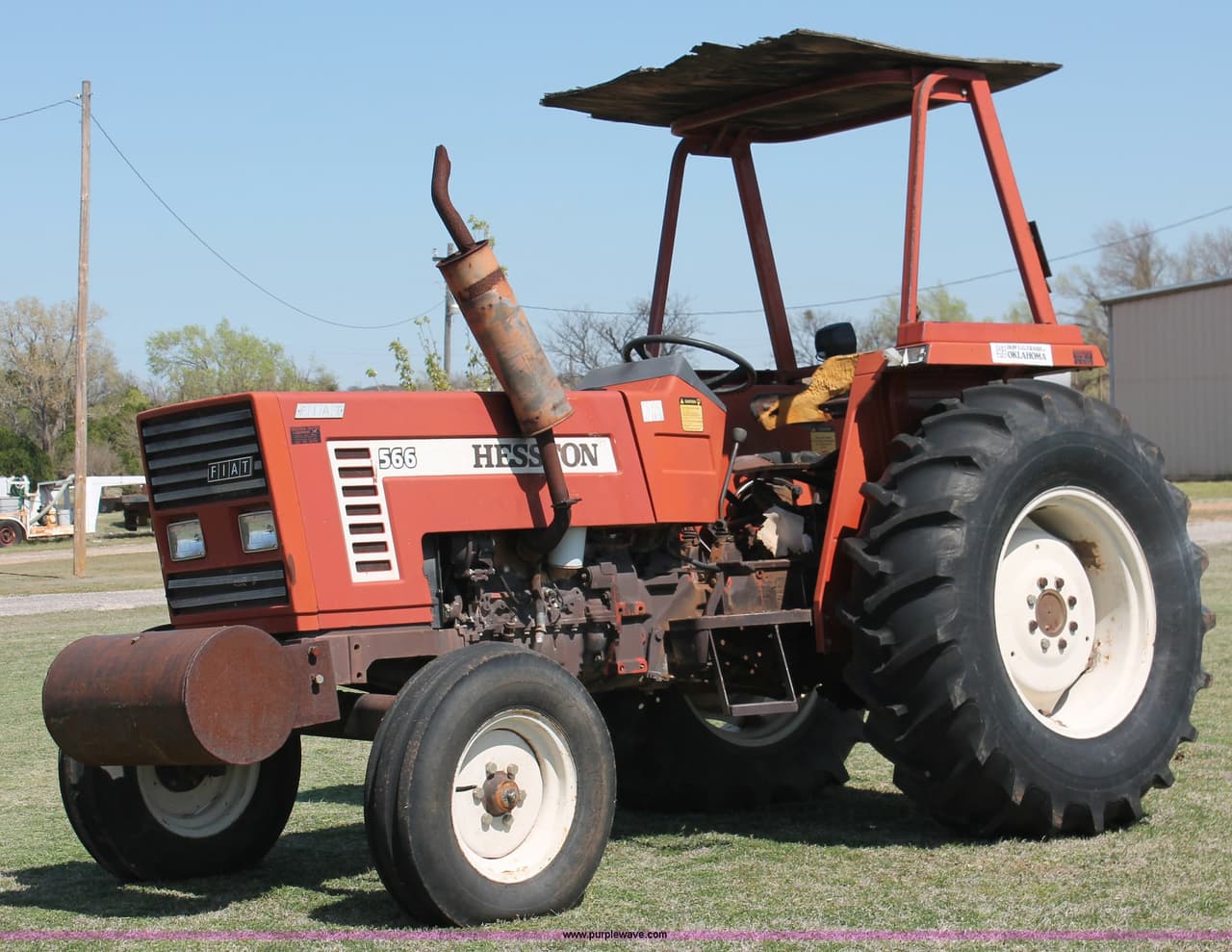

Hesston 566 photos
FAQ
Common questions
What engine configuration does the Hesston 566 use?
The Hesston 566 is equipped with a 3-cylinder engine displacing 168 ci.
What hydraulics does the Hesston 566 have?
The Hesston 566 uses an Open Center hydraulic system.
What three-point hitch category does the Hesston 566 use?
The Hesston 566 has a Category I/II three-point hitch.
What is the operating weight of the Hesston 566?
In working trim, the Hesston 566 comes in at roughly 4,901 lb.
Which transmission does the Hesston 566 use?
The Hesston 566 is equipped with a Synchronized transmission with 20 forward gears.
How do I maintain a Hesston 566?
Routine service for the Hesston 566 covers engine oil and filter changes, hydraulic and coolant level checks, air filter cleaning, and scheduled inspections. Refer to the manufacturer's maintenance schedule for exact intervals.
