IMT 5135
The IMT 5135 is a powerful 4-wheel drive tractor built for tough farm work. It has a strong 6-cylinder diesel engine that makes 136 horsepower. This engine is turbocharged, which means it can work hard even in tough conditions. The tractor has a synchro transmission with 8 forward and 8 reverse gears, giving the driver lots of options for different tasks. This tractor is big and sturdy. It's 202 inches long and 113 inches tall, with a weight of 14,112 pounds. It has large agricultural tires on both the front and back, which help it grip the soil well. The IMT 5135 has hydrostatic power steering, making it easy to control despite its size. It also has a category III hitch, which means it can handle heavy farm equipment. With its strong engine and solid build, this tractor is ready for serious farming jobs.
ManufacturerIMTPower136 hpEngine6-cylTransSynchro
Quick specs
- Category
- Agricultural
- Engine Power Output
- 136hp
- Operating Weight
- 14,112 lb
- Transmission
- Synchro
At a glance
How the 5135 compares
vs. Agricultural medianDistribution
Engine Power (hp)
Across all Agricultural tractors
136 hp · 64th
This model
13
Median 110 hp
282
This modelAgricultural tractorsMediann = 1,028
The 5135 ranks at the 64th percentile for engine power among recorded agricultural tractors.
Overview
About the IMT 5135
The IMT 5135 is a powerful 4-wheel drive tractor built for tough farm work. It has a strong 6-cylinder diesel engine that makes 136 horsepower. This engine is turbocharged, which means it can work hard even in tough conditions. The tractor has a synchro transmission with 8 forward and 8 reverse gears, giving the driver lots of options for different tasks. This tractor is big and sturdy. It's 202 inches long and 113 inches tall, with a weight of 14,112 pounds. It has large agricultural tires on both the front and back, which help it grip the soil well. The IMT 5135 has hydrostatic power steering, making it easy to control despite its size. It also has a category III hitch, which means it can handle heavy farm equipment. With its strong engine and solid build, this tractor is ready for serious farming jobs.
Full specifications
Every recorded spec
General
| Manufacturer | IMT |
|---|---|
| Model | 5135 |
| Category | Agricultural tractor |
| Type | 4x4 MFWD 4WD |
| Operating weight | 14,112lb |
Engine
| Make | IMT |
|---|---|
| Model | 1006-6T |
| Power | 136hp |
| Cylinders | 6 |
| Displacement | 365.3ci |
| Bore | 3.94in |
| Stroke | 5in |
Transmission
| Type | Synchro |
|---|---|
| Forward gears | 8 |
| Reverse gears | 8 |
Chassis & drive
| Chassis | 4x4 MFWD 4WD |
|---|---|
| Drive | 4WD |
| Steering | Hydrostatic power |
Dimensions
| Length | 202in |
|---|---|
| Height | 113in |
| Operating weight | 14,112lb |
Head to head
5135 vs. Agricultural median
How the IMT 5135 compares to other Agricultural tractors
| Spec | This model | Agricultural median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 136 hp | 110 hp | +24% | 64th |
| Engine Displacement | 365 ci | 336 ci | +9% | 57th |
| Cylinders | 6 | 5.5 | +9% | 74th |
| Forward Gears | 8 | 16 | -50% | 16th |
| Operating Weight | 14,112 lb | 10,914 lb | +29% | 66th |
| Length | 202 in | 173 in | +17% | 80th |
| Height | 113 in | 111 in | +2% | 57th |
Medians and percentiles are computed from the agricultural tractors in our database with a recorded value for each spec (sample sizes 795–1,130 models).
Compare to tractors with similar specs
Commonly compared IMT tractors
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Allis Chalmers 210 | 136 hp | 12,425 lb | 1970–1973 | Compare → |
| Allis Chalmers 7045 | 136.65 hp | 14,500 lb | 1978–1981 | Compare → |
| Allis Chalmers T16 | 135 hp | 16,300 lb | — | Compare → |
| Allis Chalmers 7030 | 131.09 hp | 12,430 lb | 1973–1974 | Compare → |
| Allis Chalmers HD11AG | 130 hp | 23,000 lb | — | Compare → |
Explore
IMT siblings
Explore
Similar-spec models
Gallery

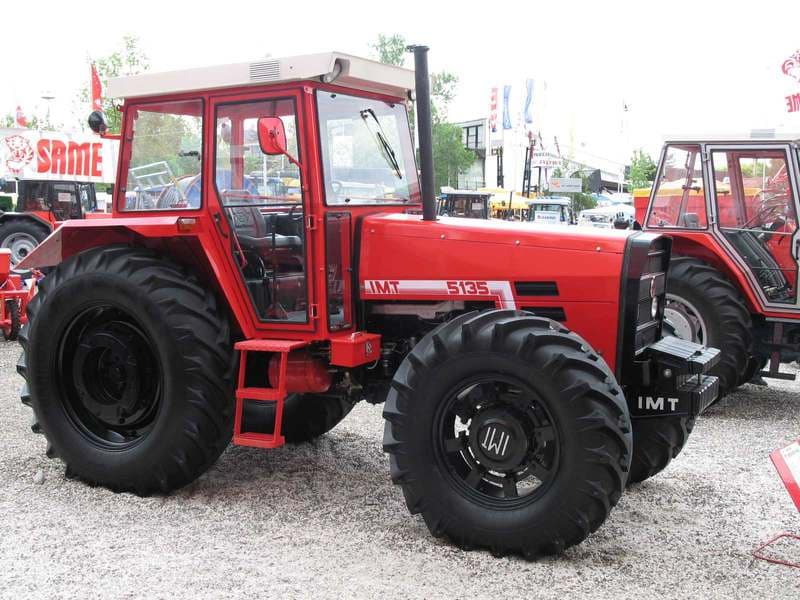

IMT 5135 photos
FAQ
Common questions
What is the engine power output of the IMT 5135?
Rated engine output for the IMT 5135 is 136 hp, delivered by a 6-cylinder engine. The engine displaces 365.3 ci.
Which transmission does the IMT 5135 use?
The IMT 5135 is equipped with a Synchro transmission with 8 forward gears.
What hitch category is the IMT 5135?
The IMT 5135 uses a Category III hitch.
What is the operating weight of the IMT 5135?
In working trim, the IMT 5135 comes in at roughly 14,112 lb.
How do I maintain a IMT 5135?
Routine service for the IMT 5135 covers engine oil and filter changes, hydraulic and coolant level checks, air filter cleaning, and scheduled inspections. Refer to the manufacturer's maintenance schedule for exact intervals.
