International Harvester 484
The International Harvester 484 is a utility tractor made from 1977 to 1982. It's a 2-wheel drive machine with power steering, making it easy to handle. The tractor has a strong 3-cylinder diesel engine that puts out 50 horsepower. This engine power is about average compared to other tractors. The 484 has a syncromesh transmission with 8 forward gears and 4 reverse gears, giving the driver good control over speed. This tractor is built for work. It has a three-point hitch at the back that can lift up to 3,100 pounds, which is very high compared to many other tractors. The 484 also has a PTO (power take-off) that spins at 540 rpm, useful for running farm tools. It weighs 5,200 pounds, about average for its size. The tractor has a fuel tank that holds 20 US gallons, so it can work for a long time without stopping. With its open center hydraulic system and wet disc brakes, the 484 is ready for tough farm jobs.

Key specifications
- Category
- Utility
- Engine power
- 50hp
- Operating weight
- 5,200 lb
- Transmission
- Syncromesh
Category comparison
484 compared with its category
vs. Utility medianDistribution
Engine Power (hp)
All recorded Utility tractors
This model
The 484 ranks at the 45th percentile for engine power among recorded utility tractors.
Overview
About the International Harvester 484
The International Harvester 484 is a utility tractor made from 1977 to 1982. It's a 2-wheel drive machine with power steering, making it easy to handle. The tractor has a strong 3-cylinder diesel engine that puts out 50 horsepower. This engine power is about average compared to other tractors. The 484 has a syncromesh transmission with 8 forward gears and 4 reverse gears, giving the driver good control over speed. This tractor is built for work. It has a three-point hitch at the back that can lift up to 3,100 pounds, which is very high compared to many other tractors. The 484 also has a PTO (power take-off) that spins at 540 rpm, useful for running farm tools. It weighs 5,200 pounds, about average for its size. The tractor has a fuel tank that holds 20 US gallons, so it can work for a long time without stopping. With its open center hydraulic system and wet disc brakes, the 484 is ready for tough farm jobs.
Full specifications
Recorded specifications
General
| Manufacturer | International Harvester |
|---|---|
| Model | 484 |
| Category | Utility tractor |
| Type | 4x2 2WD |
| Years built | 1977–1982 |
| Operating weight | 5,200lb(2,359 kg) |
Engine
| Make | International Harvester |
|---|---|
| Model | D179 |
| Power | 50hp(37.28 kW) |
| Cylinders | 3 |
| Displacement | 179ci(2.93 L) |
| Bore | 3.86in(98.04 mm) |
| Stroke | 5.08in(129 mm) |
Transmission
| Type | Syncromesh |
|---|---|
| Forward gears | 8 |
| Reverse gears | 4 |
Chassis & drive
| Chassis | 4x2 2WD |
|---|---|
| Drive | 2WD |
| Steering | Power |
| Brakes | Independent hydraulic wet disc |
| Cab | Two-post fixed ROPS |
Hydraulics
| Type | Open center |
|---|
Power take-off
| Rear PTO | Independent |
|---|---|
| PTO speed | 540rpm |
Dimensions
| Length | 133.5in(3,391 mm) |
|---|---|
| Width | 70.1in(1,781 mm) |
| Height | 60.6in(1,539 mm) |
| Operating weight | 5,200lb(2,359 kg) |
Capacities
| Cooling system | 3gal(11.36 L) |
|---|
Closest alternatives
484 compared with the nearest models by horsepower
The closest utility models to the International Harvester 484 by rated horsepower are the International Harvester 454 and the International Harvester 606. The International Harvester 454 matches it on rated power and weighs 800 lb less, carrying 88 lb per horsepower against 104 lb. It entered production in 1970, 7 years before the 484. The International Harvester 606 matches it on rated power at almost the same operating weight. It entered production in 1962, 15 years before the 484.
| Spec | International Harvester 484 | International Harvester 454 | International Harvester 606 |
|---|---|---|---|
| Engine power | 50 hp37.3 kW | 50 hp37.3 kW | 50 hp37.3 kW |
| Operating weight | 5,200 lb2,359 kg | 4,400 lb1,996 kg | 5,215 lb2,365 kg |
| Weight per hp | 104 lb/hp63 kg/kW | 88 lb/hp54 kg/kW | 104 lb/hp63 kg/kW |
| Displacement | 179 ci2.93 L | 157 ci2.57 L | 221 ci3.62 L |
| Cylinders | 3 | 4 | 6 |
| Transmission | Syncromesh | Sliding Gear | Partial power shift |
| Drive | 2WD | 2WD | 2WD |
| Years built | 1977-1982 | 1970-1973 | 1962-1967 |
Calculators
Calculators for the 484
PTO power
About 42 to 45 PTO hp
Estimated from the 50 hp engine rating. The calculator also estimates drawbar power by surface.
Implement sizing
Implements a 50 hp tractor can run
Maximum size is about a 6 ft rotary cutter or a 5 ft tiller. The calculator also sizes discs, plows and balers.
Ballast
121 lb per PTO hp as listed
Heavy draft work calls for 130 to 150 lb/hp. The calculator gives the ballast to add.
Units
50 hp is 37.3 kW
The converter gives kW and metric PS values, as used on European spec sheets.
Parts and manuals
Parts and manuals for the International Harvester 484
Each link opens a retailer search keyed to the fields recorded for this model. Confirm fitment against the serial plate before ordering.
Filters
- Oil filter for the International Harvester D179Amazon
Fits the International Harvester D179 3-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
- Air filter for the International Harvester D179Amazon
Fits the International Harvester D179 3-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
- Fuel filter for the International Harvester D179Amazon
Fits the International Harvester D179 3-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
- Hydraulic filter for the International Harvester D179Amazon
Fits the International Harvester D179 3-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
Manuals
- International Harvester 484 service and repair manualseManualOnline
Digital manuals. Built 1977 to 1982. Check the serial number range on the listing.
- International Harvester 484 operator's manualAmazon
Printed and reprint manuals. Built 1977 to 1982. Check the serial number range on the listing.
- International Harvester 484 service manualAmazon
Shop and repair manuals for this model.
Links in this section go to retailers. A purchase through them earns this site a commission at no extra cost to the buyer. As an Amazon Associate, Heavy Equipment Specs earns from qualifying purchases. Affiliate disclosure
Category medians
484 vs. Utility median
International Harvester 484 compared with other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 50 hp | 55 hp | -9% | 45th |
| Engine Displacement | 179 ci | 183 ci | -2% | 48th |
| Cylinders | 3 | 4 | -25% | 23rd |
| Forward Gears | 8 | 12 | -33% | 23rd |
| Operating Weight | 5,200 lb | 5,303 lb | -2% | 49th |
| Length | 134 in | 137 in | -2% | 45th |
| Width | 70.1 in | 66 in | +6% | 61st |
| Height | 60.6 in | 94.1 in | -36% | 10th |
| 3-Point Hitch Capacity | 3,100 lb | 3,197 lb | -3% | 49th |
Medians and percentiles are calculated from the utility tractors in the database that have a recorded value for each specification (sample size 1,083–5,720 models).
Same manufacturer
Other International Harvester models
Other manufacturers
Models with similar horsepower
Gallery

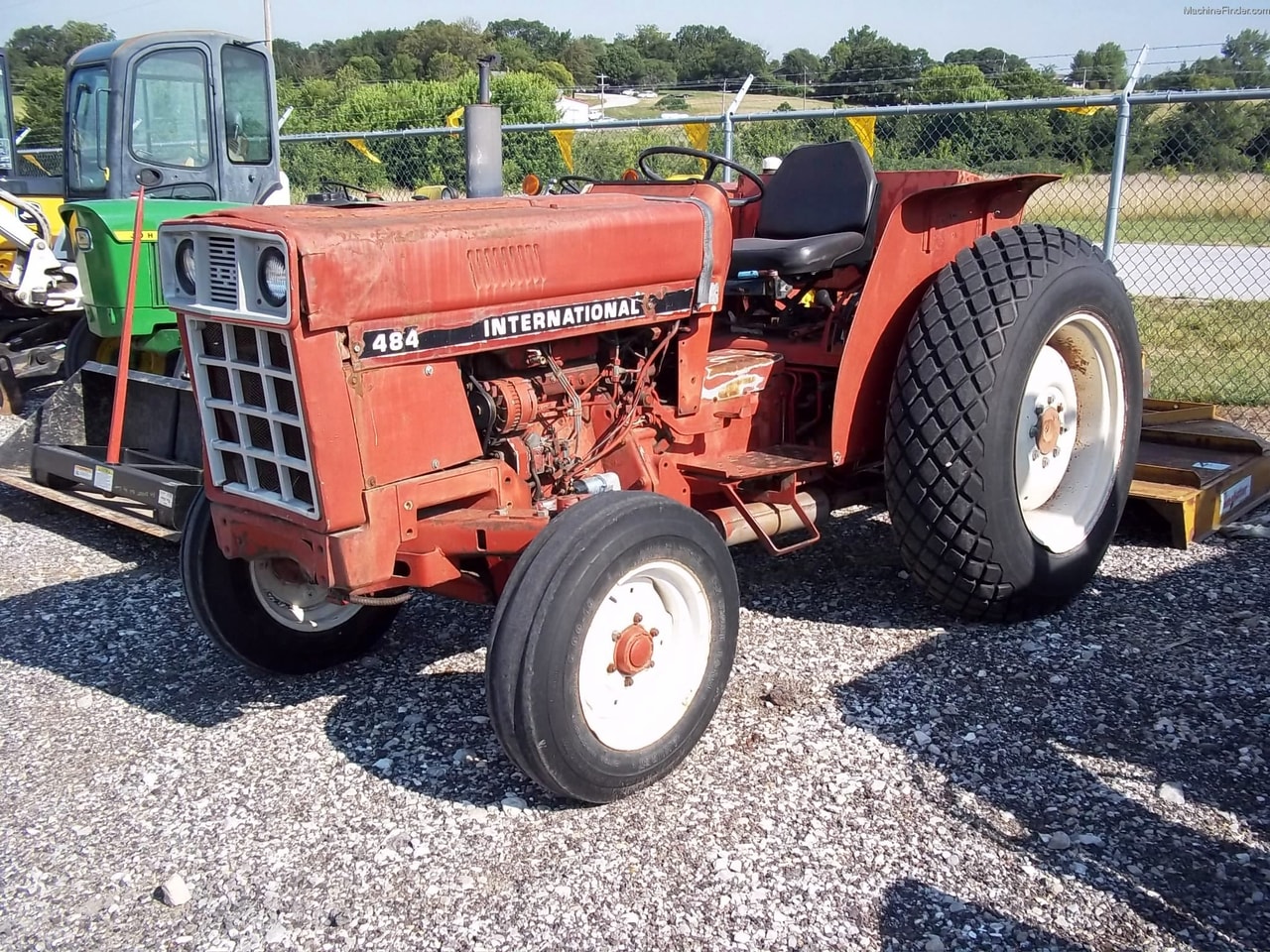

International Harvester 484 photos




FAQ
Frequently asked questions
What years was the International Harvester 484 manufactured?
Production of the International Harvester 484 ran from 1977 through 1982.
What three-point hitch category does the International Harvester 484 use?
The International Harvester 484 has a Category II three-point hitch rated to lift 3,100 lb.
How powerful is the International Harvester 484?
The International Harvester 484 has an engine power output of 50 hp. It is powered by a 3-cylinder engine displacing 179 ci.
What is the working weight of the International Harvester 484?
The operating weight of the International Harvester 484 is approximately 5,200 lb.
What type of transmission does the International Harvester 484 have?
The International Harvester 484 uses a Syncromesh transmission offering 8 forward gears.
What hydraulics does the International Harvester 484 have?
The International Harvester 484 uses an Open center hydraulic system.
What routine service does the International Harvester 484 need?
Regular maintenance for the International Harvester 484 includes checking and changing engine oil, hydraulic fluid, and filters, plus routine inspections as recommended in the owner's manual. Always follow the manufacturer's maintenance schedule for specific intervals and procedures.
