International Harvester 523

International Harvester 523

Complete specifications and technical data for the International Harvester 523. Compare with similar tractors from International Harvester and other manufacturers.

Jump to Full Specifications List

Quick Specs

Category

Utility

Engine Power Output

52hp

Operating Weight

5,380 lb

Transmission

Partial power shift

The International Harvester 523 is a utility tractor built for farm work. It has a 2-wheel drive system and a manual steering setup. The tractor uses a partial power shift transmission with 12 forward...

Photo Gallery

Image Gallery

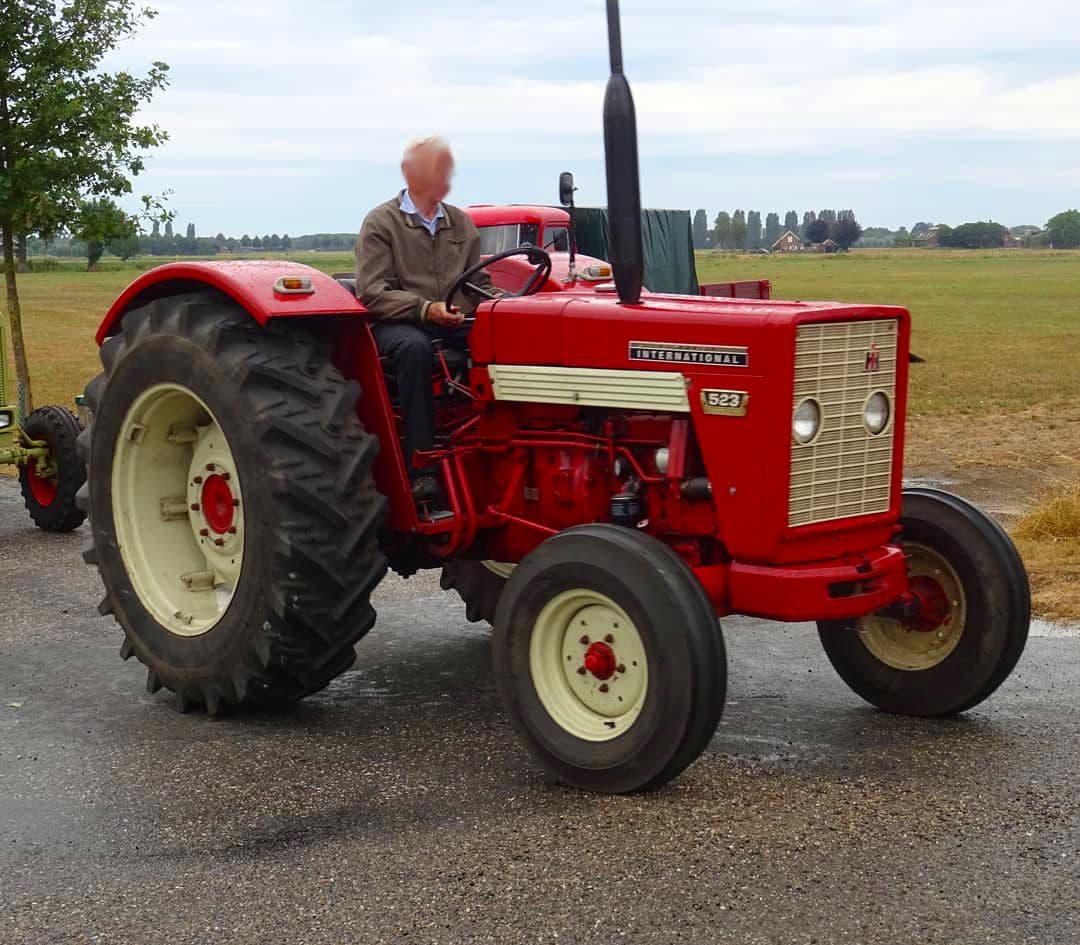

International Harvester 523 Tractor
International Harvester 523 Tractor
International Harvester 523 Tractor
International Harvester 523 Tractor
International Harvester 523 Tractor

Specifications

Manufacturer
International Harvester
Model
523
Category
Utility
Manufacturer
International Harvester
Model
D-179
Power Output
52hp
Rated RPM
2,100RPM
Cylinders
3
Displacement
179ci
Bore
3.88in
Stroke
5.06in

Engine Power Output Comparison of International Harvester 523 vs. Other Utility Tractors

Loading Chart...

Type
Partial power shift
Length
119.8in
Width
63.8in
Height
59.8in
Operating Weight
5,380lb

Operating Weight Comparison of International Harvester 523 vs. Other Utility Tractors

Loading Chart...

Front Tire Size
6.00-16
Rear
11x32
Hitch Type
II/I
Hitch Category
Category 3
Hitch Position
Rear
Chassis Type
4x2 2WD
Drive Type
2WD
Steering Type
Manual
Coolant
16.3qts

Compare to Other Tractors

Frequently Asked Questions

What is the engine power output of the International Harvester 523?

The International Harvester 523 has an engine power output of 52 hp.

How many cylinders does the International Harvester 523 have?

The International Harvester 523 is equipped with a 3-cylinder engine.

What is the operating weight of the International Harvester 523?

The operating weight of the International Harvester 523 is approximately 5,380 lb.

What type of transmission does the International Harvester 523 have?

The International Harvester 523 is equipped with a Partial power shift transmission.

What size tires does the International Harvester 523 use?

The International Harvester 523 comes with 6.00-16 front tires and 11x32 rear tires.

What hitch category is the International Harvester 523?

The International Harvester 523 is a Category Category 3 hitch.

What maintenance does the International Harvester 523 require?

Regular maintenance for the International Harvester 523 includes checking and changing engine oil, hydraulic fluid, filters, and performing routine inspections as recommended in the owner's manual. Always refer to the manufacturer's maintenance schedule for specific intervals and procedures.
