UtilityPerformance profile
International Harvester B-414
The International Harvester B-414 is a utility tractor that was made from 1961 to 1966. It's a 2WD tractor with a manual steering system and an open operator station. The B-414 has a gasoline engine with four cylinders and average power for its class, producing 43.5 hp at 2000 rpm. The engine is naturally aspirated and liquid-cooled, with a coolant capacity of 10 quarts. This tractor features a sliding gear transmission with 8 forward gears and 2 reverse gears. It has a dry disc clutch and independent mechanical disc brakes. The B-414 is equipped with a live PTO that runs at 540 rpm and a Category I rear hitch. It has agricultural tires, with 16-inch front tires and 28-inch rear tires. The tractor measures 116.9 inches long, 89.8 inches wide, and 60.2 inches high, with an operating weight of 4050 lb, which is about average for its class. It also has a fuel tank capacity of 48.1 liters and uses an electric starter.
ManufacturerInternational HarvesterPower43.5 hpEngine4-cylTransSliding gear with dry disc clutch
Quick specs
- Category
- Utility
- Engine Power Output
- 44hp
- Operating Weight
- 4,050 lb
- Transmission
- Sliding gear with dry disc clutch
At a glance
How the B-414 compares
vs. Utility medianDistribution
Engine Power (hp)
Across all Utility tractors
43.5 hp · 37th
This model
9
Median 55 hp
177
This modelUtility tractorsMediann = 5,383
The B-414 ranks at the 37th percentile for engine power among recorded utility tractors.
Overview
About the International Harvester B-414
The International Harvester B-414 is a utility tractor that was made from 1961 to 1966. It's a 2WD tractor with a manual steering system and an open operator station. The B-414 has a gasoline engine with four cylinders and average power for its class, producing 43.5 hp at 2000 rpm. The engine is naturally aspirated and liquid-cooled, with a coolant capacity of 10 quarts. This tractor features a sliding gear transmission with 8 forward gears and 2 reverse gears. It has a dry disc clutch and independent mechanical disc brakes. The B-414 is equipped with a live PTO that runs at 540 rpm and a Category I rear hitch. It has agricultural tires, with 16-inch front tires and 28-inch rear tires. The tractor measures 116.9 inches long, 89.8 inches wide, and 60.2 inches high, with an operating weight of 4050 lb, which is about average for its class. It also has a fuel tank capacity of 48.1 liters and uses an electric starter.
Full specifications
Every recorded spec
General
| Manufacturer | International Harvester |
|---|---|
| Model | B-414 |
| Category | Utility tractor |
| Type | 4x2 2WD |
| Years built | 1961–1966 |
| Operating weight | 4,050lb |
Engine
| Make | International Harvester |
|---|---|
| Model | BC-144 |
| Power | 43.5hp |
| Cylinders | 4 |
| Displacement | 143ci |
| Bore | 3.39in |
| Stroke | 4.02in |
Transmission
| Type | Sliding gear with dry disc clutch |
|---|---|
| Forward gears | 8 |
| Reverse gears | 2 |
Chassis & drive
| Chassis | 4x2 2WD |
|---|---|
| Drive | 2WD |
| Steering | Manual |
| Brakes | Independent mechanical disc |
| Cab | Open operator station |
Power take-off
| Rear PTO | Live |
|---|---|
| PTO speed | 540rpm |
Dimensions
| Length | 116.9in |
|---|---|
| Width | 89.8in |
| Height | 60.2in |
| Operating weight | 4,050lb |
Capacities
| Cooling system | 2.5gal |
|---|
Head to head
B-414 vs. Utility median
How the International Harvester B-414 compares to other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 43.5 hp | 55 hp | -21% | 37th |
| Engine Displacement | 143 ci | 183 ci | -22% | 36th |
| Cylinders | 4 | 4 | at median | 50th |
| Forward Gears | 8 | 12 | -33% | 23rd |
| Operating Weight | 4,050 lb | 5,303 lb | -24% | 37th |
| Length | 117 in | 137 in | -14% | 23rd |
| Width | 89.8 in | 66 in | +36% | 92nd |
| Height | 60.2 in | 94.1 in | -36% | 10th |
Medians and percentiles are computed from the utility tractors in our database with a recorded value for each spec (sample sizes 3,933–5,720 models).
Compare to tractors with similar specs
Commonly compared International Harvester tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| International Harvester 434 | 43 hp | 4,630 lb | — | Compare → |
| International Harvester B-434 | 43 hp | — | — | Compare → |
| International Harvester 444 | 42 hp | — | 1972–1978 | Compare → |
| International Harvester 453 | 45 hp | 5,071 lb | — | Compare → |
| International Harvester 464 | 45 hp | 5,130 lb | 1973–1978 | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Allis Chalmers 5045 | 44 hp | 3,850 lb | 1981–1983 | Compare → |
| AGCO ST45 | 44.2 hp | 4,448 lb | — | Compare → |
| Ag King AK4540 | 45 hp | 4,650 lb | — | Compare → |
| Apollo 454 | 45 hp | 4,365 lb | — | Compare → |
| Ascot Universal 445 | 45 hp | 4,500 lb | — | Compare → |
Explore
International Harvester siblings
Brand sibling
Brand sibling
Brand siblingExplore
Similar-spec models
Gallery

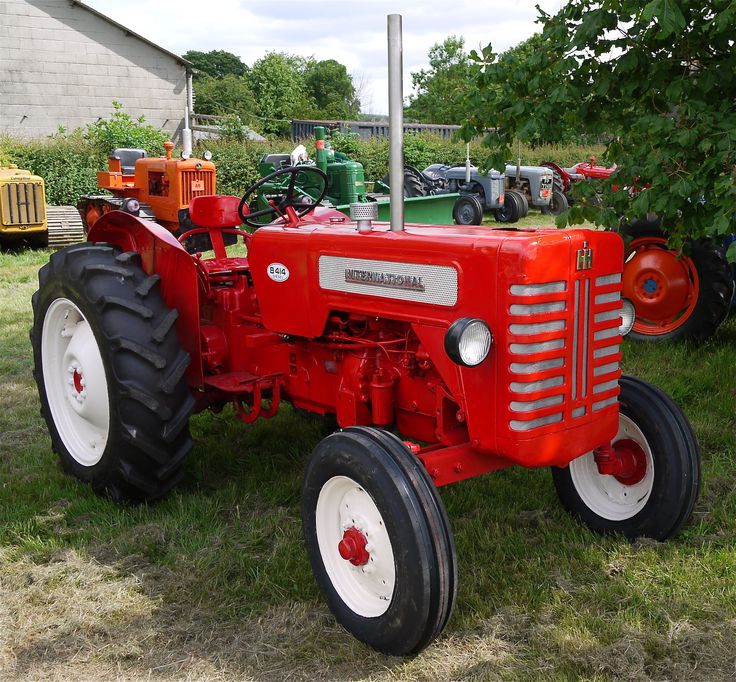

International Harvester B-414 photos
FAQ
Common questions
When was the International Harvester B-414 in production?
International Harvester B-414 production started in 1961 and ended in 1966.
What transmission is in the International Harvester B-414?
Transmission on the International Harvester B-414 is Sliding gear with dry disc clutch, with 8 forward speeds.
What three-point hitch category does the International Harvester B-414 use?
The International Harvester B-414 has a Category I three-point hitch.
How much horsepower does the International Harvester B-414 have?
The International Harvester B-414 produces 43.5 hp from its 4-cylinder engine. Engine displacement is 143 ci.
How much does the International Harvester B-414 weigh?
The International Harvester B-414 weighs about 4,050 lb in operating condition.
What maintenance does the International Harvester B-414 require?
Like any tractor, the International Harvester B-414 needs periodic engine oil and filter changes, hydraulic fluid checks, and regular greasing and inspection. The owner's manual lists the manufacturer's recommended service intervals.
