International Harvester TD-14A
The International Harvester TD-14A is a powerful tracked tractor built for tough jobs. It has a diesel engine with 4 cylinders and runs on tracks instead of wheels. This tractor is big and heavy, weighing 18,300 pounds. It's about 11 feet long, 7.5 feet wide, and 7.5 feet tall. The TD-14A has a strong engine made by International Harvester. It's cooled by liquid and has a displacement of 460.7 cubic inches. The engine runs at 1400 RPM when working hard. This tractor has 6 forward gears and 2 reverse gears, giving the driver good control. It uses a gasoline starter to get the diesel engine going. The TD-14A is good at not sinking into soft ground, with a ground pressure of only 6.36 psi.
ManufacturerInternational HarvesterEngine4-cylTransGear
Quick specs
- Category
- Crawler
- Operating Weight
- 18,300 lb
- Transmission
- Gear
Overview
About the International Harvester TD-14A
The International Harvester TD-14A is a powerful tracked tractor built for tough jobs. It has a diesel engine with 4 cylinders and runs on tracks instead of wheels. This tractor is big and heavy, weighing 18,300 pounds. It's about 11 feet long, 7.5 feet wide, and 7.5 feet tall. The TD-14A has a strong engine made by International Harvester. It's cooled by liquid and has a displacement of 460.7 cubic inches. The engine runs at 1400 RPM when working hard. This tractor has 6 forward gears and 2 reverse gears, giving the driver good control. It uses a gasoline starter to get the diesel engine going. The TD-14A is good at not sinking into soft ground, with a ground pressure of only 6.36 psi.
Full specifications
Every recorded spec
General
| Manufacturer | International Harvester |
|---|---|
| Model | TD-14A |
| Category | Crawler tractor |
| Type | Tracked |
| Operating weight | 18,300lb |
Engine
| Make | International Harvester |
|---|---|
| Cylinders | 4 |
| Displacement | 460.7ci |
| Bore | 4.75in |
| Stroke | 6.5in |
Transmission
| Type | Gear |
|---|---|
| Forward gears | 6 |
| Reverse gears | 2 |
Chassis & drive
| Chassis | Tracked |
|---|---|
| Drive | Track |
Dimensions
| Length | 134.1in |
|---|---|
| Width | 92.1in |
| Height | 90.3in |
| Operating weight | 18,300lb |
Capacities
| Cooling system | 19gal |
|---|
Head to head
TD-14A vs. Crawler median
How the International Harvester TD-14A compares to other Crawler tractors
| Spec | This model | Crawler median | Difference | Percentile |
|---|---|---|---|---|
| Engine Displacement | 461 ci | 468 ci | -2% | 49th |
| Cylinders | 4 | 6 | -33% | 33rd |
| Forward Gears | 6 | 10 | -40% | 34th |
| Operating Weight | 18,300 lb | 23,320 lb | -22% | 45th |
| Length | 134 in | 146 in | -8% | 42nd |
| Width | 92.1 in | 79.5 in | +16% | 57th |
| Height | 90.3 in | 90.6 in | 0% | 50th |
Medians and percentiles are computed from the crawler tractors in our database with a recorded value for each spec (sample sizes 134–192 models).
Compare to tractors with similar specs
Commonly compared International Harvester tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| International Harvester 500C | 44 hp | — | — | Compare → |
| International Harvester BTD-20 | — | 30,300 lb | — | Compare → |
| International Harvester T-340 | 45 hp | 5,750 lb | 1959–1965 | Compare → |
| International Harvester T-4 | — | 5,767 lb | — | Compare → |
| International Harvester TD-20 200 | 134 hp | 32,485 lb | — | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Advance-Rumely 6A | — | 6,370 lb | — | Compare → |
| Advance-Rumely DoAll | — | 3,702 lb | — | Compare → |
| Advance-Rumely OilPull B 25/45 | — | 25,000 lb | — | Compare → |
| Advance-Rumely OilPull E 30/60 | — | 26,300 lb | — | Compare → |
| Advance-Rumely OilPull F 15/30 | — | 16,500 lb | — | Compare → |
Explore
International Harvester siblings
Brand sibling
Brand sibling
Brand sibling
Brand siblingExplore
Similar-spec models
Gallery

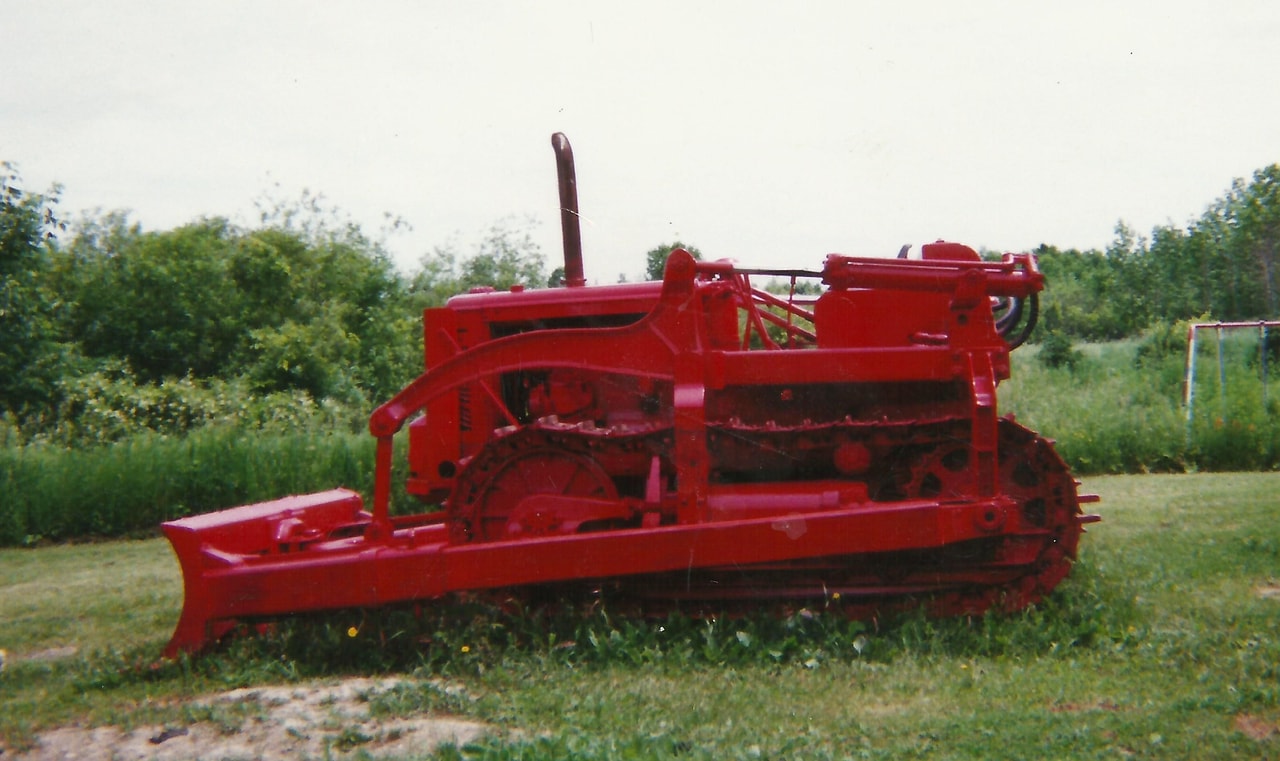

International Harvester TD-14A photos
FAQ
Common questions
How many cylinders does the International Harvester TD-14A have?
The International Harvester TD-14A runs a 4-cylinder engine with a displacement of 460.7 ci.
What transmission is in the International Harvester TD-14A?
Transmission on the International Harvester TD-14A is Gear, with 6 forward speeds.
How much does the International Harvester TD-14A weigh?
The International Harvester TD-14A weighs about 18,300 lb in operating condition.
What maintenance does the International Harvester TD-14A require?
Like any tractor, the International Harvester TD-14A needs periodic engine oil and filter changes, hydraulic fluid checks, and regular greasing and inspection. The owner's manual lists the manufacturer's recommended service intervals.
