International Harvester TD-20 200
The International Harvester TD-20 200 is a powerful tractor built for tough jobs. It has a strong diesel engine made by International Harvester. This engine, called the D-691, has 6 cylinders and can produce 134 horsepower. It's cooled by liquid to keep it running smoothly even during hard work. This tractor is big and heavy, weighing 32,485 pounds. It has a gear transmission with 6 forward gears and 6 reverse gears, giving the driver good control. The engine starts with gasoline, which helps it get going in cold weather. The TD-20 200 is 22 inches wide, making it suitable for various farm tasks. With its strong build and powerful engine, this International Harvester tractor is ready to tackle big jobs on the farm or construction site.
ManufacturerInternational HarvesterPower134 hpEngine6-cylTransGear
Quick specs
- Category
- Crawler
- Engine Power Output
- 134hp
- Operating Weight
- 32,485 lb
- Transmission
- Gear
At a glance
How the TD-20 200 compares
vs. Crawler medianDistribution
Engine Power (hp)
Across all Crawler tractors
134 hp · 48th
This model
18
Median 200 hp
508
This modelCrawler tractorsMediann = 142
The TD-20 200 ranks at the 48th percentile for engine power among recorded crawler tractors.
Overview
About the International Harvester TD-20 200
The International Harvester TD-20 200 is a powerful tractor built for tough jobs. It has a strong diesel engine made by International Harvester. This engine, called the D-691, has 6 cylinders and can produce 134 horsepower. It's cooled by liquid to keep it running smoothly even during hard work. This tractor is big and heavy, weighing 32,485 pounds. It has a gear transmission with 6 forward gears and 6 reverse gears, giving the driver good control. The engine starts with gasoline, which helps it get going in cold weather. The TD-20 200 is 22 inches wide, making it suitable for various farm tasks. With its strong build and powerful engine, this International Harvester tractor is ready to tackle big jobs on the farm or construction site.
Full specifications
Every recorded spec
General
| Manufacturer | International Harvester |
|---|---|
| Model | TD-20 200 |
| Category | Crawler tractor |
| Operating weight | 32,485lb |
Engine
| Make | International Harvester |
|---|---|
| Model | D-691 |
| Power | 134hp |
| Cylinders | 6 |
| Displacement | 691.1ci |
| Bore | 4.75in |
| Stroke | 6.5in |
Transmission
| Type | Gear |
|---|---|
| Forward gears | 6 |
| Reverse gears | 6 |
Dimensions
| Width | 22in |
|---|---|
| Operating weight | 32,485lb |
Head to head
TD-20 200 vs. Crawler median
How the International Harvester TD-20 200 compares to other Crawler tractors
| Spec | This model | Crawler median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 134 hp | 200 hp | -33% | 48th |
| Engine Displacement | 691 ci | 468 ci | +48% | 73rd |
| Cylinders | 6 | 6 | at median | 50th |
| Forward Gears | 6 | 10 | -40% | 34th |
| Operating Weight | 32,485 lb | 23,320 lb | +39% | 67th |
| Width | 22 in | 79.5 in | -72% | 4th |
Medians and percentiles are computed from the crawler tractors in our database with a recorded value for each spec (sample sizes 142–192 models).
Compare to tractors with similar specs
- International Harvester TD-20 200 vs. Allis Chalmers HD11AG Series B →
- International Harvester TD-20 200 vs. Caterpillar D6C SA Special Application →
- International Harvester TD-20 200 vs. Allis Chalmers HD11AG →
- International Harvester TD-20 200 vs. Allis Chalmers HD21 →
- International Harvester TD-20 200 vs. Allis Chalmers HD16A →
Commonly compared International Harvester tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| International Harvester T-340 | 45 hp | 5,750 lb | 1959–1965 | Compare → |
| International Harvester 500C | 44 hp | — | — | Compare → |
| International Harvester BTD-20 | — | 30,300 lb | — | Compare → |
| International Harvester T-4 | — | 5,767 lb | — | Compare → |
| International Harvester TD-14A | — | 18,300 lb | — | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Allis Chalmers T16 | 135 hp | 16,300 lb | — | Compare → |
| Allis Chalmers 210 | 136 hp | 12,425 lb | 1970–1973 | Compare → |
| Allis Chalmers 7045 | 136.65 hp | 14,500 lb | 1978–1981 | Compare → |
| Allis Chalmers 7030 | 131.09 hp | 12,430 lb | 1973–1974 | Compare → |
| Allis Chalmers HD11AG | 130 hp | 23,000 lb | — | Compare → |
Explore
International Harvester siblings
Brand sibling
Brand sibling
Brand sibling
Brand siblingExplore
Similar-spec models

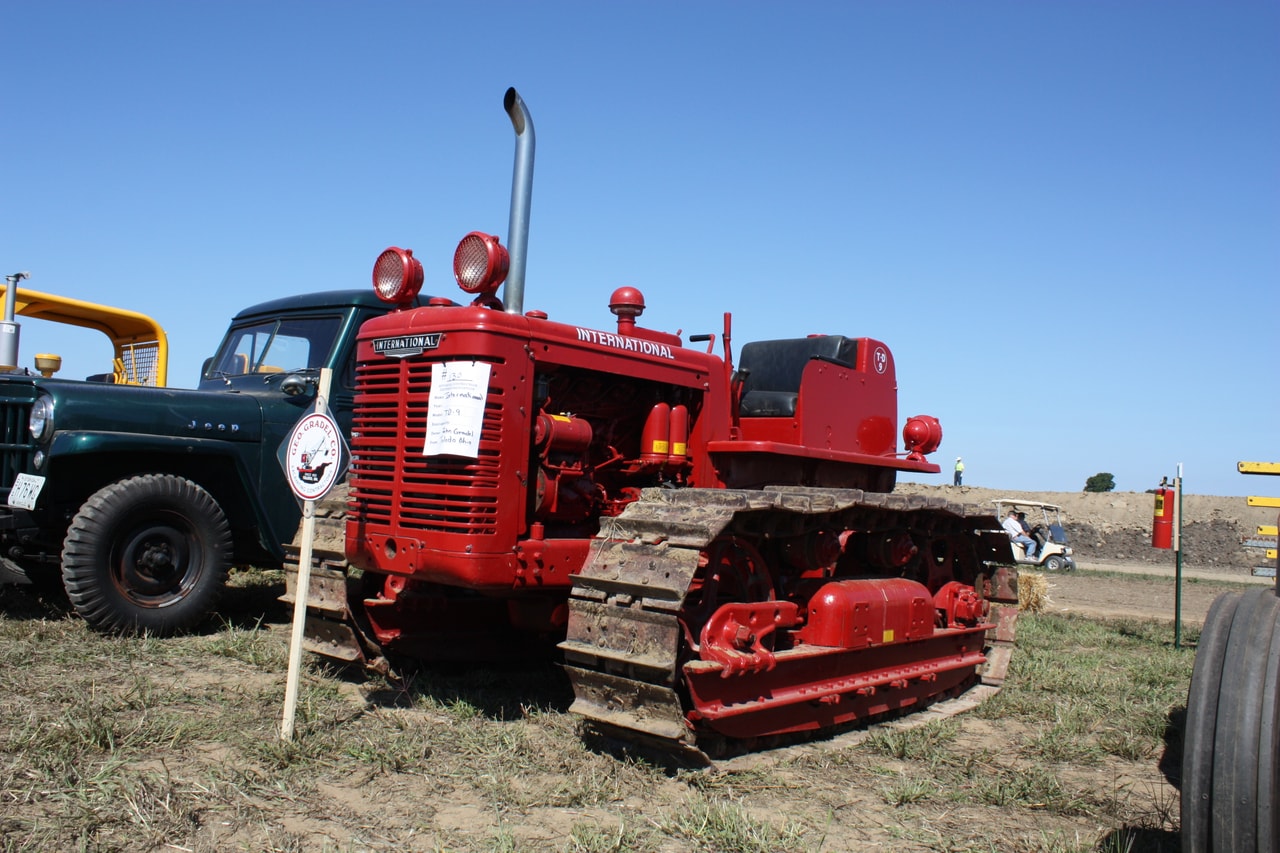

Gallery
International Harvester TD-20 200 photos
FAQ
Common questions
How powerful is the International Harvester TD-20 200?
The International Harvester TD-20 200 has an engine power output of 134 hp. It is powered by a 6-cylinder engine displacing 691.1 ci.
What is the working weight of the International Harvester TD-20 200?
The operating weight of the International Harvester TD-20 200 is approximately 32,485 lb.
What type of transmission does the International Harvester TD-20 200 have?
The International Harvester TD-20 200 uses a Gear transmission offering 6 forward gears.
What routine service does the International Harvester TD-20 200 need?
Regular maintenance for the International Harvester TD-20 200 includes checking and changing engine oil, hydraulic fluid, and filters, plus routine inspections as recommended in the owner's manual. Always follow the manufacturer's maintenance schedule for specific intervals and procedures.
