JCB 3230 XTRA
The JCB 3230 XTRA is a powerful 4-wheel drive tractor built for tough farm work. It has a strong AGCO Power engine with 6 cylinders that can produce 190 horsepower. This tractor uses a special type of transmission called Continuously Variable Transmission (CVT), which makes it easy to drive and control. The 3230 XTRA is big and sturdy. It's about 205 inches long and 95 inches wide, making it suitable for large fields. The tractor has good brakes with ABS on all four wheels, which helps it stop safely. It also has a strong hitch system that can handle heavy farm tools. Some cool features include a 200 Amp alternator for powering electrical equipment and a good ground clearance of 13 inches to help it move over rough terrain.
ManufacturerJCBPower190 hpEngine6-cylTransContinuously Variable Transmission (CVT)
Quick specs
- Category
- Utility
- Engine Power Output
- 190hp
- Transmission
- Continuously Variable Transmission (CVT)
At a glance
How the 3230 XTRA compares
vs. Utility medianDistribution
Engine Power (hp)
Across all Utility tractors
190 hp · 94th
This model
9
Median 55 hp
177
This modelUtility tractorsMediann = 5,383
The 3230 XTRA ranks at the 94th percentile for engine power among recorded utility tractors.
Overview
About the JCB 3230 XTRA
The JCB 3230 XTRA is a powerful 4-wheel drive tractor built for tough farm work. It has a strong AGCO Power engine with 6 cylinders that can produce 190 horsepower. This tractor uses a special type of transmission called Continuously Variable Transmission (CVT), which makes it easy to drive and control. The 3230 XTRA is big and sturdy. It's about 205 inches long and 95 inches wide, making it suitable for large fields. The tractor has good brakes with ABS on all four wheels, which helps it stop safely. It also has a strong hitch system that can handle heavy farm tools. Some cool features include a 200 Amp alternator for powering electrical equipment and a good ground clearance of 13 inches to help it move over rough terrain.
Full specifications
Every recorded spec
General
| Manufacturer | JCB |
|---|---|
| Model | 3230 XTRA |
| Category | Utility tractor |
| Type | 4WD |
Engine
| Make | AGCO Power |
|---|---|
| Model | 74 AWF |
| Power | 190hp |
| Cylinders | 6 |
| Bore | 4.3in |
| Stroke | 5.3in |
Transmission
| Type | Continuously Variable Transmission (CVT) |
|---|
Chassis & drive
| Chassis | 4WD |
|---|---|
| Drive | 4WD |
| Brakes | ABS with twin caliper outboard discs on all four wheels |
Dimensions
| Length | 204.8in |
|---|---|
| Width | 94.5in |
Head to head
3230 XTRA vs. Utility median
How the JCB 3230 XTRA compares to other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 190 hp | 55 hp | +245% | 94th |
| Cylinders | 6 | 4 | +50% | 93rd |
| Length | 205 in | 137 in | +50% | 94th |
| Width | 94.5 in | 66 in | +43% | 94th |
Medians and percentiles are computed from the utility tractors in our database with a recorded value for each spec (sample sizes 3,933–5,720 models).
Compare to tractors with similar specs
Commonly compared JCB tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| JCB Fastrac 4190 | 189 hp | 16,700 lb | — | Compare → |
| JCB Fastrac 185 | 188 hp | 14,332 lb | 1994–1997 | Compare → |
| JCB Fastrac 3185 | 188 hp | 14,916 lb | — | Compare → |
| JCB Fastrac 3170 | 173 hp | 17,570 lb | — | Compare → |
| JCB Fastrac 155 | 168 hp | 14,374 lb | 1993–1997 | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Allis Chalmers 7060 | 192 hp | 13,990 lb | 1974–1981 | Compare → |
| Allis Chalmers 7580 | 186.35 hp | 25,000 lb | 1977–1981 | Compare → |
| Belarus 1770 | 185 hp | 19,585 lb | — | Compare → |
| CaseIH 7140 | 195 hp | 17,850 lb | 1987–1993 | Compare → |
| CaseIH 2394 | 197 hp | 16,240 lb | 1984–1988 | Compare → |
Explore
JCB siblings
Explore
Similar-spec models
Gallery

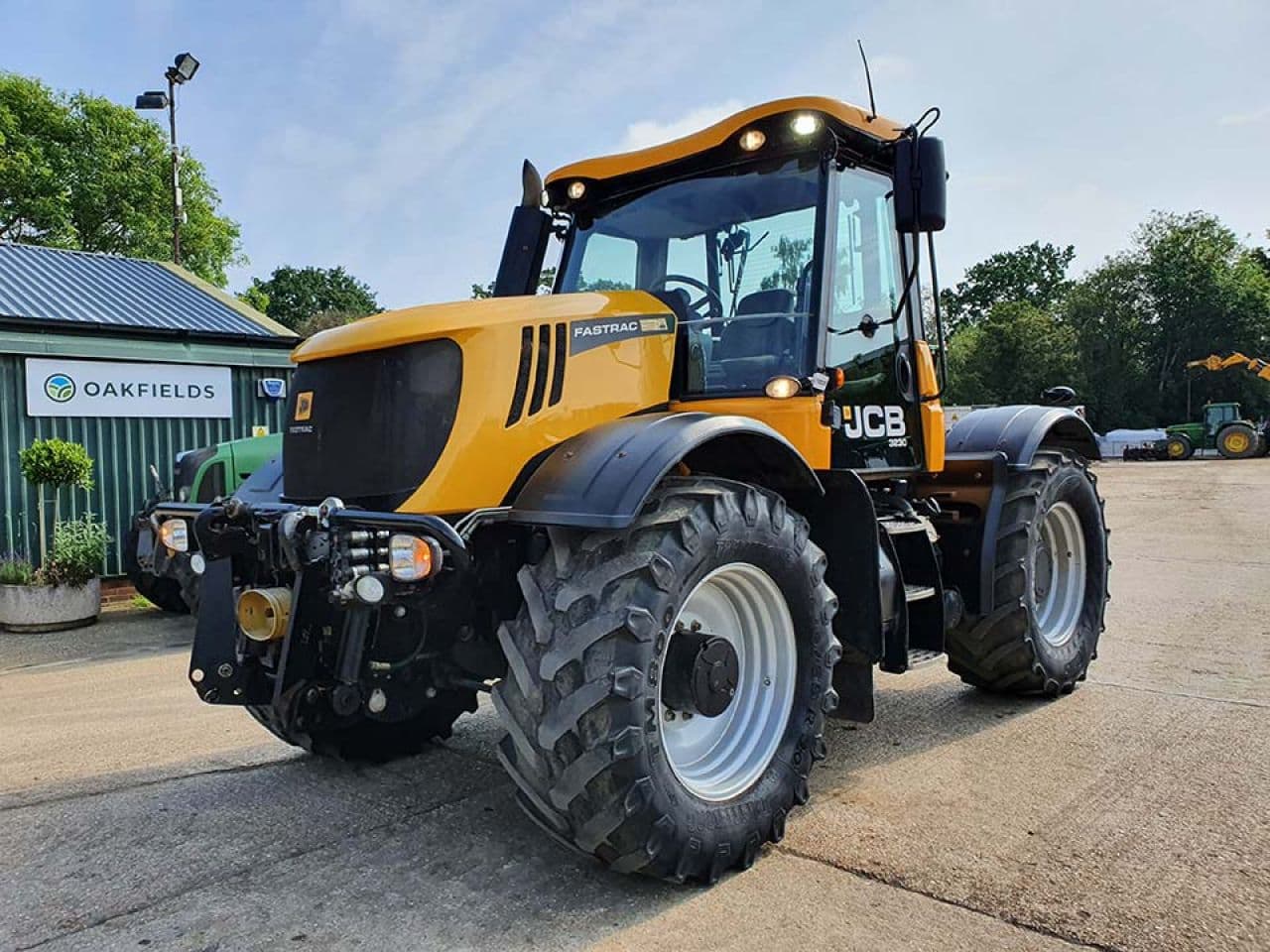

JCB 3230 XTRA photos
FAQ
Common questions
What is the engine power output of the JCB 3230 XTRA?
Rated engine output for the JCB 3230 XTRA is 190 hp, delivered by a 6-cylinder engine.
Which transmission does the JCB 3230 XTRA use?
The JCB 3230 XTRA is equipped with a Continuously Variable Transmission (CVT) transmission.
What three-point hitch category does the JCB 3230 XTRA use?
The JCB 3230 XTRA has a Category Category 3 three-point hitch.
How do I maintain a JCB 3230 XTRA?
Routine service for the JCB 3230 XTRA covers engine oil and filter changes, hydraulic and coolant level checks, air filter cleaning, and scheduled inspections. Refer to the manufacturer's maintenance schedule for exact intervals.
