Sub-CompactPerformance profile
Jinma JM-220
The Jinma JM-220 is a compact 2WD tractor designed for small-scale farming and light agricultural work. It features a 4x2 chassis and a manual transmission with 6 forward gears and 2 reverse gears, giving operators good control over their speed and power. Under the hood, the JM-220 has a Jinma-made diesel engine with 3 cylinders. This liquid-cooled engine has a displacement of 82.8 cubic inches and produces 22 horsepower at 2300 RPM. The tractor's cooling system holds 10.56 quarts of coolant. With agricultural tires on both front and rear, this tractor is ready for field work. It measures 106.1 inches long, 48.6 inches wide, and 84.7 inches tall, making it easy to maneuver in tight spaces. The JM-220 weighs 2479 pounds and comes equipped with a Category I rear hitch for attaching various implements.
ManufacturerJinmaPower22 hpEngine3-cylTransManual
Quick specs
- Category
- Sub-Compact
- Engine Power Output
- 22hp
- Operating Weight
- 2,479 lb
- Transmission
- Manual
At a glance
How the JM-220 compares
vs. Sub-Compact medianDistribution
Engine Power (hp)
Across all Sub-Compact tractors
22 hp · 32nd
This model
4
Median 26.85 hp
49
This modelSub-Compact tractorsMediann = 816
The JM-220 ranks at the 32nd percentile for engine power among recorded sub-compact tractors.
Overview
About the Jinma JM-220
The Jinma JM-220 is a compact 2WD tractor designed for small-scale farming and light agricultural work. It features a 4x2 chassis and a manual transmission with 6 forward gears and 2 reverse gears, giving operators good control over their speed and power. Under the hood, the JM-220 has a Jinma-made diesel engine with 3 cylinders. This liquid-cooled engine has a displacement of 82.8 cubic inches and produces 22 horsepower at 2300 RPM. The tractor's cooling system holds 10.56 quarts of coolant. With agricultural tires on both front and rear, this tractor is ready for field work. It measures 106.1 inches long, 48.6 inches wide, and 84.7 inches tall, making it easy to maneuver in tight spaces. The JM-220 weighs 2479 pounds and comes equipped with a Category I rear hitch for attaching various implements.
Full specifications
Every recorded spec
General
| Manufacturer | Jinma |
|---|---|
| Model | JM-220 |
| Category | Sub-Compact tractor |
| Type | 4x2 |
| Operating weight | 2,479lb |
Engine
| Make | Jinma |
|---|---|
| Power | 22hp |
| Cylinders | 3 |
| Displacement | 82.8ci |
Transmission
| Type | Manual |
|---|---|
| Forward gears | 6 |
| Reverse gears | 2 |
Chassis & drive
| Chassis | 4x2 |
|---|---|
| Drive | 2WD |
Dimensions
| Length | 106.1in |
|---|---|
| Width | 48.6in |
| Height | 84.7in |
| Operating weight | 2,479lb |
Capacities
| Cooling system | 2.64gal |
|---|
Head to head
JM-220 vs. Sub-Compact median
How the Jinma JM-220 compares to other Sub-Compact tractors
| Spec | This model | Sub-Compact median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 22 hp | 26.9 hp | -18% | 32nd |
| Engine Displacement | 82.8 ci | 91.4 ci | -9% | 44th |
| Cylinders | 3 | 3 | at median | 50th |
| Forward Gears | 6 | 9 | -33% | 18th |
| Operating Weight | 2,479 lb | 2,700 lb | -8% | 46th |
| Length | 106 in | 113 in | -6% | 40th |
| Width | 48.6 in | 50.7 in | -4% | 43rd |
| Height | 84.7 in | 78.4 in | +8% | 60th |
Medians and percentiles are computed from the sub-compact tractors in our database with a recorded value for each spec (sample sizes 584–816 models).
Compare to tractors with similar specs
Commonly compared Jinma tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Jinma JM-200 | 20 hp | 2,139 lb | — | Compare → |
| Jinma JM-250 | 25 hp | 2,635 lb | — | Compare → |
| Jinma JM-160 | 16 hp | 2,095 lb | — | Compare → |
| Jinma JM-284 | 28 hp | 3,003 lb | — | Compare → |
| Jinma JM-300 | 30 hp | 3,263 lb | — | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Allis Chalmers D270 | 22 hp | 2,500 lb | — | Compare → |
| Belarus 200 | 22 hp | 2,600 lb | — | Compare → |
| Belarus 2011 | 22 hp | 2,602 lb | — | Compare → |
| Belarus 2045 | 22 hp | 2,712 lb | — | Compare → |
| Belarus 2145 | 22 hp | 2,700 lb | — | Compare → |
Explore
Jinma siblings
Explore
Similar-spec models
Gallery

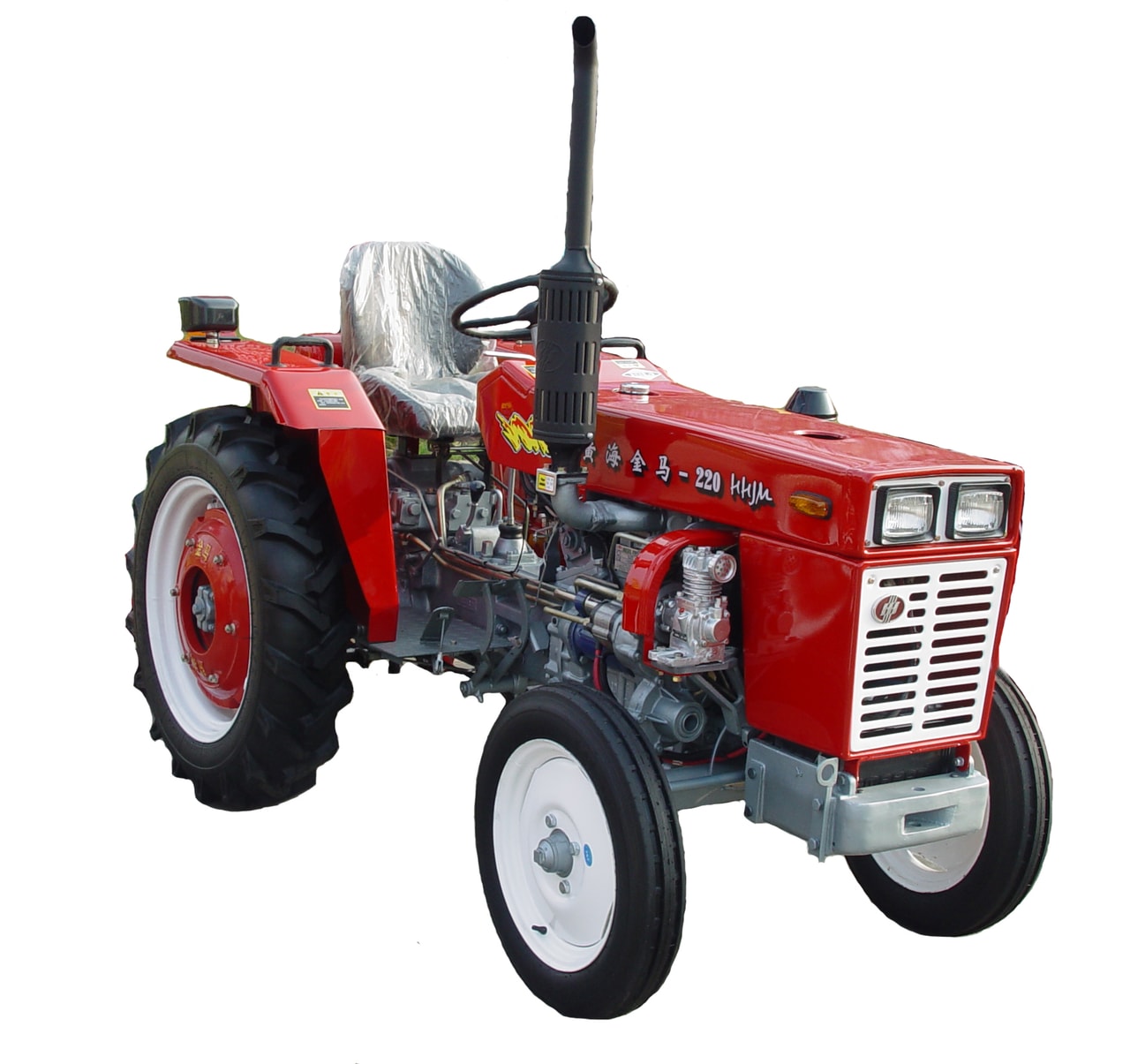

Jinma JM-220 photos
FAQ
Common questions
How much horsepower does the Jinma JM-220 have?
The Jinma JM-220 produces 22 hp from its 3-cylinder engine. Engine displacement is 82.8 ci.
How much does the Jinma JM-220 weigh?
The Jinma JM-220 weighs about 2,479 lb in operating condition.
What transmission is in the Jinma JM-220?
Transmission on the Jinma JM-220 is Manual, with 6 forward speeds.
What three-point hitch category does the Jinma JM-220 use?
The Jinma JM-220 has a Category I three-point hitch.
What maintenance does the Jinma JM-220 require?
Like any tractor, the Jinma JM-220 needs periodic engine oil and filter changes, hydraulic fluid checks, and regular greasing and inspection. The owner's manual lists the manufacturer's recommended service intervals.
