UtilityPerformance profile
John Deere 3025D
The John Deere 3025D is a compact utility tractor built for small farms and light work. It has a 4-wheel drive system and power steering, making it easy to handle in tight spaces. The tractor uses a mechanical shuttle transmission with 8 forward and 8 reverse gears, giving you plenty of options for different tasks. Under the hood, you'll find a Yanmar diesel engine with 3 cylinders. This engine is liquid-cooled and produces 24.4 horsepower, which is below average for tractors in its class. The engine size is also smaller than most, but it runs at an average speed of 2400 RPM. The tractor weighs 2778 pounds, which is on the lighter side for its category. It measures 111.2 inches long, 57.3 inches wide, and 59.4 inches tall, making it compact and easy to store. The 3025D comes with agricultural tires and a rear hitch for attaching tools and implements.
ManufacturerJohn DeerePower24.4 hpEngine3-cylTransMechanical shuttle
Quick specs
- Category
- Utility
- Engine Power Output
- 24hp
- Operating Weight
- 2,778 lb
- Transmission
- Mechanical shuttle
At a glance
How the 3025D compares
vs. Utility medianDistribution
Engine Power (hp)
Across all Utility tractors
24.4 hp · 15th
This model
9
Median 55 hp
177
This modelUtility tractorsMediann = 5,383
The 3025D ranks at the 15th percentile for engine power among recorded utility tractors.
Overview
About the John Deere 3025D
The John Deere 3025D is a compact utility tractor built for small farms and light work. It has a 4-wheel drive system and power steering, making it easy to handle in tight spaces. The tractor uses a mechanical shuttle transmission with 8 forward and 8 reverse gears, giving you plenty of options for different tasks. Under the hood, you'll find a Yanmar diesel engine with 3 cylinders. This engine is liquid-cooled and produces 24.4 horsepower, which is below average for tractors in its class. The engine size is also smaller than most, but it runs at an average speed of 2400 RPM. The tractor weighs 2778 pounds, which is on the lighter side for its category. It measures 111.2 inches long, 57.3 inches wide, and 59.4 inches tall, making it compact and easy to store. The 3025D comes with agricultural tires and a rear hitch for attaching tools and implements.
Full specifications
Every recorded spec
General
| Manufacturer | John Deere |
|---|---|
| Model | 3025D |
| Category | Utility tractor |
| Type | 4x4 MFWD 4WD |
| Operating weight | 2,778lb |
Engine
| Make | Yanmar |
|---|---|
| Model | 3TNV88F-EPJPT |
| Power | 24.4hp |
| Cylinders | 3 |
| Displacement | 100.2ci |
| Bore | 3.46in |
| Stroke | 3.54in |
Transmission
| Type | Mechanical shuttle |
|---|---|
| Forward gears | 8 |
| Reverse gears | 8 |
Chassis & drive
| Chassis | 4x4 MFWD 4WD |
|---|---|
| Drive | 4WD |
| Steering | Power |
Hydraulics
| Type | Open center |
|---|
Dimensions
| Length | 111.2in |
|---|---|
| Width | 57.3in |
| Height | 59.4in |
| Operating weight | 2,778lb |
Capacities
| Cooling system | 1.33gal |
|---|
Head to head
3025D vs. Utility median
How the John Deere 3025D compares to other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 24.4 hp | 55 hp | -56% | 15th |
| Engine Displacement | 100 ci | 183 ci | -45% | 22nd |
| Cylinders | 3 | 4 | -25% | 23rd |
| Forward Gears | 8 | 12 | -33% | 23rd |
| Operating Weight | 2,778 lb | 5,303 lb | -48% | 20th |
| Length | 111 in | 137 in | -19% | 17th |
| Width | 57.3 in | 66 in | -13% | 32nd |
| Height | 59.4 in | 94.1 in | -37% | 9th |
Medians and percentiles are computed from the utility tractors in our database with a recorded value for each spec (sample sizes 3,933–5,720 models).
Compare to tractors with similar specs
Commonly compared John Deere tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| John Deere 3025E | 24.4 hp | 2,266 lb | 2017+ | Compare → |
| John Deere 2305 | 24 hp | 1,865 lb | 2006–2011 | Compare → |
| John Deere 2320 | 24 hp | 1,660 lb | 2006–2012 | Compare → |
| John Deere 4115 | 24 hp | 1,771 lb | 2003–2004 | Compare → |
| John Deere 855 | 24 hp | 1,870 lb | 1986–1998 | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| AGCO ST25 | 24.3 hp | 1,588 lb | — | Compare → |
| Bobcat CT1025 | 24.5 hp | 1,488 lb | — | Compare → |
| Ag King AK2840 | 24 hp | 2,900 lb | — | Compare → |
| Bolens G242 | 24 hp | 1,672 lb | — | Compare → |
| Bolens G244 | 24 hp | 1,903 lb | — | Compare → |
Explore
John Deere siblings
Explore
Similar-spec models
Gallery

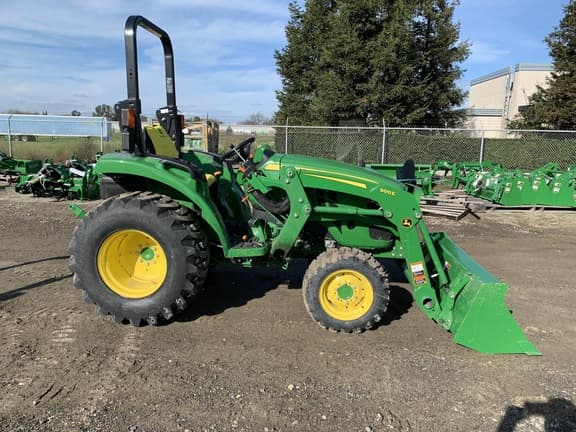

John Deere 3025D photos
FAQ
Common questions
What is the engine power output of the John Deere 3025D?
Rated engine output for the John Deere 3025D is 24.4 hp, delivered by a 3-cylinder engine. The engine displaces 100.2 ci.
What is the operating weight of the John Deere 3025D?
In working trim, the John Deere 3025D comes in at roughly 2,778 lb.
Which transmission does the John Deere 3025D use?
The John Deere 3025D is equipped with a Mechanical shuttle transmission with 8 forward gears.
What hydraulics does the John Deere 3025D have?
The John Deere 3025D uses an Open center hydraulic system.
What three-point hitch category does the John Deere 3025D use?
The John Deere 3025D has a Category I three-point hitch.
How do I maintain a John Deere 3025D?
Routine service for the John Deere 3025D covers engine oil and filter changes, hydraulic and coolant level checks, air filter cleaning, and scheduled inspections. Refer to the manufacturer's maintenance schedule for exact intervals.
