John Deere 1025R
The John Deere 1025R is a small but mighty utility tractor, perfect for light farm work and landscaping. It's a sub-compact 4WD model with a hydrostatic transmission, making it easy to drive. The tractor is powered by a Yanmar diesel engine with 23.9 hp, which is average for its size. It has three cylinders and runs at a very high 3200 rpm. This tractor is compact, measuring 87.6 inches long, 47.2 inches wide, and 86.2 inches tall. It's quite light at 1444 lb, making it easy to move around. The 1025R has a three-point hitch at the back that can lift up to 1177 lb, which is above average for its class. It also has a PTO (Power Take-Off) that can run at 540 or 2100 rpm, useful for various attachments. The open operator station comes with a foldable ROPS (Roll-Over Protective Structure) for safety. John Deere, known for its quality farm equipment, has been making this model since 2013.

Key specifications
- Category
- Utility
- Engine power
- 24hp
- Operating weight
- 1,444 lb
- Transmission
- Hydrostatic
Category comparison
1025R compared with its category
vs. Utility medianDistribution
Engine Power (hp)
All recorded Utility tractors
This model
The 1025R ranks at the 13th percentile for engine power among recorded utility tractors.
Overview
About the John Deere 1025R
The John Deere 1025R is a small but mighty utility tractor, perfect for light farm work and landscaping. It's a sub-compact 4WD model with a hydrostatic transmission, making it easy to drive. The tractor is powered by a Yanmar diesel engine with 23.9 hp, which is average for its size. It has three cylinders and runs at a very high 3200 rpm. This tractor is compact, measuring 87.6 inches long, 47.2 inches wide, and 86.2 inches tall. It's quite light at 1444 lb, making it easy to move around. The 1025R has a three-point hitch at the back that can lift up to 1177 lb, which is above average for its class. It also has a PTO (Power Take-Off) that can run at 540 or 2100 rpm, useful for various attachments. The open operator station comes with a foldable ROPS (Roll-Over Protective Structure) for safety. John Deere, known for its quality farm equipment, has been making this model since 2013.
Full specifications
Recorded specifications
General
| Manufacturer | John Deere |
|---|---|
| Model | 1025R |
| Category | Utility tractor |
| Type | 4x4 MFWD 4WD |
| Years built | 2013+ |
| Operating weight | 1,444lb(655 kg) |
Engine
| Make | Yanmar |
|---|---|
| Model | 3TNV80F-NCJT |
| Power | 23.9hp(17.82 kW) |
| Cylinders | 3 |
| Displacement | 77.3ci(1.27 L) |
| Bore | 3.15in(80.01 mm) |
| Stroke | 3.31in(84.07 mm) |
Transmission
| Type | Hydrostatic |
|---|---|
| Forward gears | 2 |
| Reverse gears | 2 |
Chassis & drive
| Chassis | 4x4 MFWD 4WD |
|---|---|
| Drive | 4WD |
| Steering | Hydrostatic power |
| Brakes | Wet disc |
| Cab | Open Station with Foldable ROPS |
Hydraulics
| Type | Open center |
|---|
Power take-off
| Rear PTO | Independent |
|---|---|
| PTO speed | 540rpm |
Dimensions
| Length | 87.6in(2,225 mm) |
|---|---|
| Width | 47.2in(1,199 mm) |
| Height | 86.2in(2,189 mm) |
| Operating weight | 1,444lb(655 kg) |
Capacities
| Cooling system | 0.98gal(3.71 L) |
|---|
Closest alternatives
1025R compared with the nearest models by horsepower
By engine horsepower, the nearest utility models to the 1025R are the Yanmar 324 and the Yanmar 424. The Yanmar 324 matches it on rated power and weighs 270 lb more, at 72 lb per horsepower against 60 lb. The Yanmar 424 matches it on rated power and weighs 390 lb more, so it carries more weight per horsepower, which helps traction in draft work. Of the 3 models, the 1025R has the lowest weight per horsepower at 60 lb per hp.
| Spec | John Deere 1025R | Yanmar 324 | Yanmar 424 |
|---|---|---|---|
| Engine power | 23.9 hp17.8 kW | 23.9 hp17.8 kW | 23.9 hp17.8 kW |
| Operating weight | 1,444 lb655 kg | 1,715 lb778 kg | 1,830 lb830 kg |
| Weight per hp | 60 lb/hp37 kg/kW | 72 lb/hp44 kg/kW | 77 lb/hp47 kg/kW |
| Displacement | 77.3 ci1.27 L | 77.2 ci1.27 L | 77.2 ci1.27 L |
| Cylinders | 3 | 3 | 3 |
| Transmission | Hydrostatic | Hydrostatic | Hydrostatic |
| Drive | 4WD | 4WD | MFWD |
| Years built | 2013+ | 2014+ | 2014+ |
Calculators
Calculators for the 1025R
PTO power
About 20 to 22 PTO hp
Estimated from the 23.9 hp engine rating. The calculator also estimates drawbar power by surface.
Implement sizing
Implements a 23.9 hp tractor can run
The calculator sizes mowers, tillers, discs, plows and balers for this tractor.
Ballast
70 lb per PTO hp as listed
Heavy draft work calls for 120 to 135 lb/hp. The calculator gives the ballast to add.
Units
23.9 hp is 17.8 kW
The converter gives kW and metric PS values, as used on European spec sheets.
Parts and manuals
Parts and manuals for the John Deere 1025R
Each link opens a retailer search keyed to the fields recorded for this model. Confirm fitment against the serial plate before ordering.
Filters
- Oil filter for the Yanmar 3TNV80F-NCJTAmazon
Fits the Yanmar 3TNV80F-NCJT 3-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
- Air filter for the Yanmar 3TNV80F-NCJTAmazon
Fits the Yanmar 3TNV80F-NCJT 3-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
- Fuel filter for the Yanmar 3TNV80F-NCJTAmazon
Fits the Yanmar 3TNV80F-NCJT 3-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
- Hydraulic filter for the Yanmar 3TNV80F-NCJTAmazon
Fits the Yanmar 3TNV80F-NCJT 3-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
Manuals
- John Deere 1025R service and repair manualseManualOnline
Digital manuals. Built from 2013. Check the serial number range on the listing.
- John Deere 1025R operator's manualAmazon
Printed and reprint manuals. Built from 2013. Check the serial number range on the listing.
- John Deere 1025R service manualAmazon
Shop and repair manuals for this model.
Links in this section go to retailers. A purchase through them earns this site a commission at no extra cost to the buyer. As an Amazon Associate, Heavy Equipment Specs earns from qualifying purchases. Affiliate disclosure
Category medians
1025R vs. Utility median
John Deere 1025R compared with other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 23.9 hp | 55 hp | -57% | 13th |
| Engine Displacement | 77.3 ci | 183 ci | -58% | 11th |
| Cylinders | 3 | 4 | -25% | 23rd |
| Forward Gears | 2 | 12 | -83% | 1st |
| Operating Weight | 1,444 lb | 5,303 lb | -73% | 5th |
| Length | 87.6 in | 137 in | -36% | 4th |
| Width | 47.2 in | 66 in | -28% | 13th |
| Height | 86.2 in | 94.1 in | -8% | 34th |
| 3-Point Hitch Capacity | 1,177 lb | 3,197 lb | -63% | 7th |
Medians and percentiles are calculated from the utility tractors in the database that have a recorded value for each specification (sample size 1,083–5,720 models).
Same manufacturer
Other John Deere models
Other manufacturers
Models with similar horsepower
Gallery

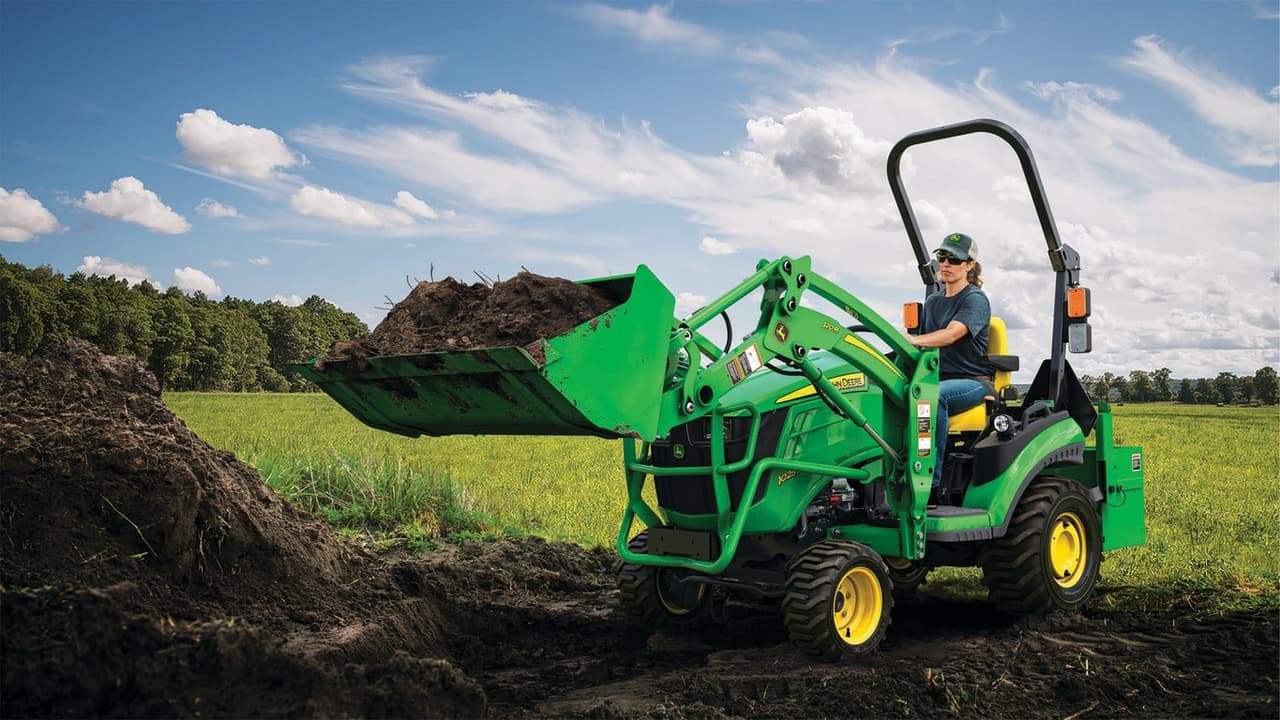

John Deere 1025R photos






FAQ
Frequently asked questions
When was the John Deere 1025R made?
The John Deere 1025R entered production in 2013.
What hydraulics does the John Deere 1025R have?
The John Deere 1025R uses an Open center hydraulic system.
What three-point hitch category does the John Deere 1025R use?
The John Deere 1025R has a Category Category I Limited three-point hitch rated to lift 1,177 lb.
What is the engine power output of the John Deere 1025R?
Rated engine output for the John Deere 1025R is 23.9 hp, delivered by a 3-cylinder engine. The engine displaces 77.3 ci.
What is the operating weight of the John Deere 1025R?
The John Deere 1025R has an operating weight of about 1,444 lb.
Which transmission does the John Deere 1025R use?
The John Deere 1025R is equipped with a Hydrostatic transmission with 2 forward gears.
How do I maintain a John Deere 1025R?
Routine service for the John Deere 1025R covers engine oil and filter changes, hydraulic and coolant level checks, air filter cleaning, and scheduled inspections. Refer to the manufacturer's maintenance schedule for exact intervals.
