UtilityPerformance profile
John Deere 3043D
The John Deere 3043D is a utility tractor built for tough jobs on the farm. It has a strong 4-wheel drive system and power steering, making it easy to handle in various conditions. The tractor is powered by a Yanmar diesel engine with three cylinders and a turbocharger. This engine gives the 3043D 41.6 horsepower, which is about average for its class. The 3043D has a practical 8-speed transmission that lets you shift gears smoothly in both forward and reverse. It's equipped with a Category I hitch at the back for attaching various tools. The tractor's size is compact, measuring 111.2 inches long, 57.3 inches wide, and 59.4 inches tall. It weighs 2,840 pounds, which is on the lighter side for utility tractors. This John Deere model also features an open center hydraulic system and an electric starter for easy operation.
ManufacturerJohn DeerePower41.6 hpEngine3-cylTrans8-speed mechanical shuttle
Quick specs
- Category
- Utility
- Engine Power Output
- 42hp
- Operating Weight
- 2,840 lb
- Transmission
- 8-speed mechanical shuttle
At a glance
How the 3043D compares
vs. Utility medianDistribution
Engine Power (hp)
Across all Utility tractors
41.6 hp · 36th
This model
9
Median 55 hp
177
This modelUtility tractorsMediann = 5,383
The 3043D ranks at the 36th percentile for engine power among recorded utility tractors.
Overview
About the John Deere 3043D
The John Deere 3043D is a utility tractor built for tough jobs on the farm. It has a strong 4-wheel drive system and power steering, making it easy to handle in various conditions. The tractor is powered by a Yanmar diesel engine with three cylinders and a turbocharger. This engine gives the 3043D 41.6 horsepower, which is about average for its class. The 3043D has a practical 8-speed transmission that lets you shift gears smoothly in both forward and reverse. It's equipped with a Category I hitch at the back for attaching various tools. The tractor's size is compact, measuring 111.2 inches long, 57.3 inches wide, and 59.4 inches tall. It weighs 2,840 pounds, which is on the lighter side for utility tractors. This John Deere model also features an open center hydraulic system and an electric starter for easy operation.
Full specifications
Every recorded spec
General
| Manufacturer | John Deere |
|---|---|
| Model | 3043D |
| Category | Utility tractor |
| Type | 4x4 MFWD 4WD |
| Operating weight | 2,840lb |
Engine
| Make | Yanmar |
|---|---|
| Model | 3TNV86CT-KJPT |
| Power | 41.6hp |
| Cylinders | 3 |
| Displacement | 95.8ci |
| Bore | 3.39in |
| Stroke | 3.54in |
Transmission
| Type | 8-speed mechanical shuttle |
|---|---|
| Forward gears | 8 |
| Reverse gears | 8 |
Chassis & drive
| Chassis | 4x4 MFWD 4WD |
|---|---|
| Drive | MFWD 4WD |
| Steering | Power |
Hydraulics
| Type | Open center |
|---|
Dimensions
| Length | 111.2in |
|---|---|
| Width | 57.3in |
| Height | 59.4in |
| Operating weight | 2,840lb |
Capacities
| Cooling system | 1.45gal |
|---|
Head to head
3043D vs. Utility median
How the John Deere 3043D compares to other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 41.6 hp | 55 hp | -24% | 36th |
| Engine Displacement | 95.8 ci | 183 ci | -48% | 22nd |
| Cylinders | 3 | 4 | -25% | 23rd |
| Forward Gears | 8 | 12 | -33% | 23rd |
| Operating Weight | 2,840 lb | 5,303 lb | -46% | 21st |
| Length | 111 in | 137 in | -19% | 17th |
| Width | 57.3 in | 66 in | -13% | 32nd |
| Height | 59.4 in | 94.1 in | -37% | 9th |
Medians and percentiles are computed from the utility tractors in our database with a recorded value for each spec (sample sizes 3,933–5,720 models).
Compare to tractors with similar specs
Commonly compared John Deere tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| John Deere 5042C | 42 hp | 3,814 lb | 2003+ | Compare → |
| John Deere 5042D | 42 hp | 3,990 lb | 2003+ | Compare → |
| John Deere 5103S | 42 hp | 3,990 lb | 2003+ | Compare → |
| John Deere 4105 | 41 hp | 2,987 lb | — | Compare → |
| John Deere 5041C | 41 hp | 3,814 lb | 2003+ | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Allis Chalmers ED40 | 41 hp | 3,527 lb | — | Compare → |
| AGCO ST40 | 40.1 hp | 3,323 lb | — | Compare → |
| AGCO ST41A | 40.1 hp | 3,000 lb | — | Compare → |
| Advance-Rumely OilPull K 12/20 | 40 hp | 6,430 lb | — | Compare → |
| Allis Chalmers 160 | 40 hp | 4,674 lb | 1970–1975 | Compare → |
Explore
John Deere siblings
Explore
Similar-spec models
Gallery

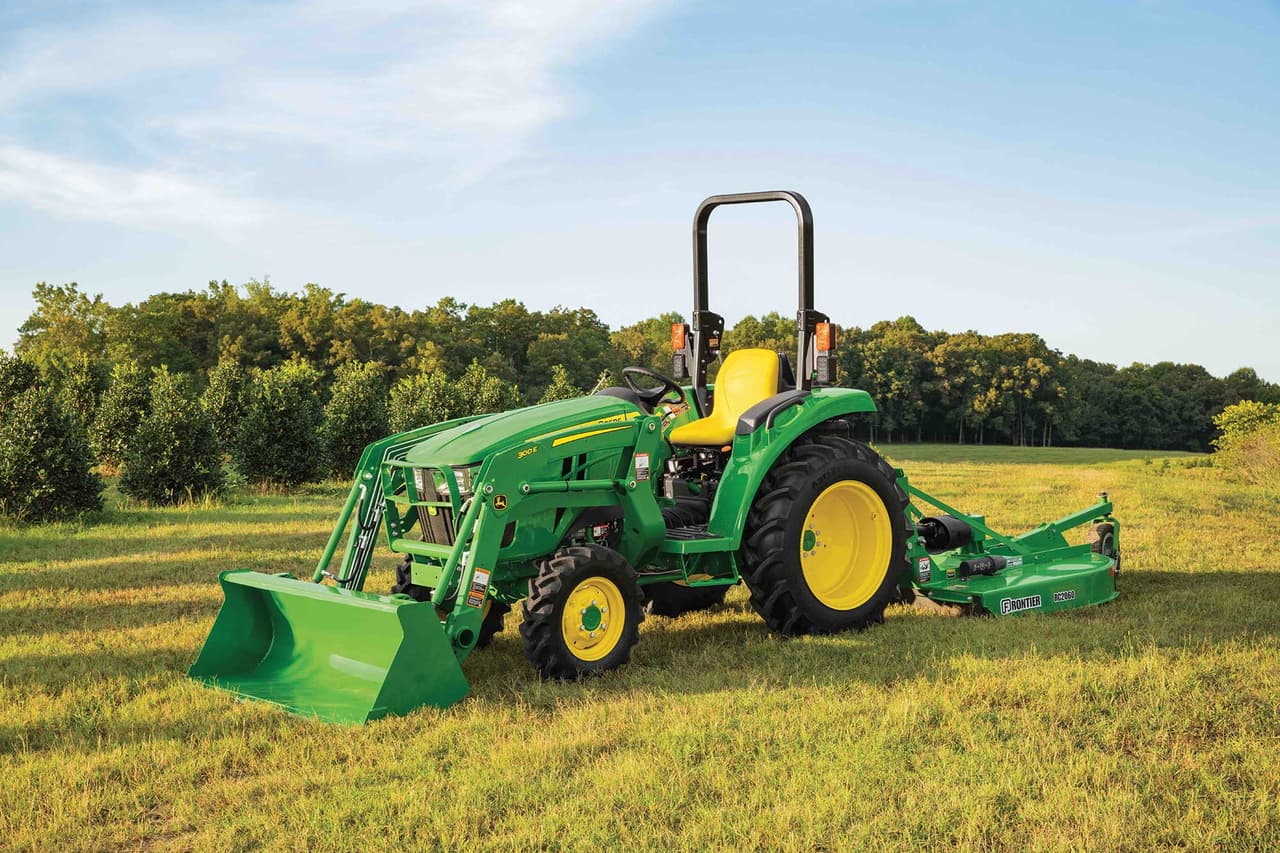

John Deere 3043D photos
FAQ
Common questions
What is the engine power output of the John Deere 3043D?
Rated engine output for the John Deere 3043D is 41.6 hp, delivered by a 3-cylinder engine. The engine displaces 95.8 ci.
What is the operating weight of the John Deere 3043D?
In working trim, the John Deere 3043D comes in at roughly 2,840 lb.
Which transmission does the John Deere 3043D use?
The John Deere 3043D is equipped with an 8-speed mechanical shuttle transmission with 8 forward gears.
What hydraulics does the John Deere 3043D have?
The John Deere 3043D uses an Open center hydraulic system.
What three-point hitch category does the John Deere 3043D use?
The John Deere 3043D has a Category Category 3 three-point hitch.
How do I maintain a John Deere 3043D?
Routine service for the John Deere 3043D covers engine oil and filter changes, hydraulic and coolant level checks, air filter cleaning, and scheduled inspections. Refer to the manufacturer's maintenance schedule for exact intervals.
