UtilityPerformance profile
John Deere 5103S
The John Deere 5103S is a utility tractor built for farm work. It has a 2WD drive system and a manual steering type. The tractor uses a collar shift gear transmission with 8 forward gears and 4 reverse gears, giving farmers good control over their speed. Under the hood, the 5103S has a John Deere diesel engine with 3 cylinders. The engine is liquid-cooled and uses direct injection. It produces 42 hp at 2300 rpm, which is average power for its class. The engine size is also about average compared to other tractors. This tractor weighs 3990 lb and has a length of 131.3 inches and a width of 65 inches. It uses agricultural tires in both front and rear, with sizes of 6.0x16 and 13.6x28 respectively. The 5103S has an open operator station and an electric starter for easy use.
ManufacturerJohn DeerePower42 hpEngine3-cylTransCollar Shift Gear
Quick specs
- Category
- Utility
- Engine Power Output
- 42hp
- Operating Weight
- 3,990 lb
- Transmission
- Collar Shift Gear
At a glance
How the 5103S compares
vs. Utility medianDistribution
Engine Power (hp)
Across all Utility tractors
42 hp · 36th
This model
9
Median 55 hp
177
This modelUtility tractorsMediann = 5,383
The 5103S ranks at the 36th percentile for engine power among recorded utility tractors.
Overview
About the John Deere 5103S
The John Deere 5103S is a utility tractor built for farm work. It has a 2WD drive system and a manual steering type. The tractor uses a collar shift gear transmission with 8 forward gears and 4 reverse gears, giving farmers good control over their speed. Under the hood, the 5103S has a John Deere diesel engine with 3 cylinders. The engine is liquid-cooled and uses direct injection. It produces 42 hp at 2300 rpm, which is average power for its class. The engine size is also about average compared to other tractors. This tractor weighs 3990 lb and has a length of 131.3 inches and a width of 65 inches. It uses agricultural tires in both front and rear, with sizes of 6.0x16 and 13.6x28 respectively. The 5103S has an open operator station and an electric starter for easy use.
Full specifications
Every recorded spec
General
| Manufacturer | John Deere |
|---|---|
| Model | 5103S |
| Category | Utility tractor |
| Type | 4x2 2WD |
| Years built | 2003+ |
| Operating weight | 3,990lb |
Engine
| Make | John Deere |
|---|---|
| Power | 42hp |
| Cylinders | 3 |
| Displacement | 179ci |
| Bore | 4.19in |
| Stroke | 4.33in |
Transmission
| Type | Collar Shift Gear |
|---|---|
| Forward gears | 8 |
| Reverse gears | 4 |
Chassis & drive
| Chassis | 4x2 2WD |
|---|---|
| Drive | 2WD |
| Steering | Manual |
| Cab | Open |
Hydraulics
| Type | Open Center |
|---|
Dimensions
| Length | 131.3in |
|---|---|
| Width | 65in |
| Operating weight | 3,990lb |
Head to head
5103S vs. Utility median
How the John Deere 5103S compares to other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 42 hp | 55 hp | -24% | 36th |
| Engine Displacement | 179 ci | 183 ci | -2% | 48th |
| Cylinders | 3 | 4 | -25% | 23rd |
| Forward Gears | 8 | 12 | -33% | 23rd |
| Operating Weight | 3,990 lb | 5,303 lb | -25% | 36th |
| Length | 131 in | 137 in | -4% | 43rd |
| Width | 65 in | 66 in | -2% | 48th |
Medians and percentiles are computed from the utility tractors in our database with a recorded value for each spec (sample sizes 3,933–5,720 models).
Compare to tractors with similar specs
Commonly compared John Deere tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| John Deere 5042C | 42 hp | 3,814 lb | 2003+ | Compare → |
| John Deere 5042D | 42 hp | 3,990 lb | 2003+ | Compare → |
| John Deere 3043D | 41.6 hp | 2,840 lb | — | Compare → |
| John Deere 4610 | 42.8 hp | 3,450 lb | 2003–2004 | Compare → |
| John Deere 940 | 42.9 hp | 5,004 lb | — | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Allis Chalmers ED40 | 41 hp | 3,527 lb | — | Compare → |
| AGCO ST40 | 40.1 hp | 3,323 lb | — | Compare → |
| AGCO ST41A | 40.1 hp | 3,000 lb | — | Compare → |
| Advance-Rumely OilPull K 12/20 | 40 hp | 6,430 lb | — | Compare → |
| Allis Chalmers 160 | 40 hp | 4,674 lb | 1970–1975 | Compare → |
Explore
John Deere siblings
Explore
Similar-spec models
Gallery

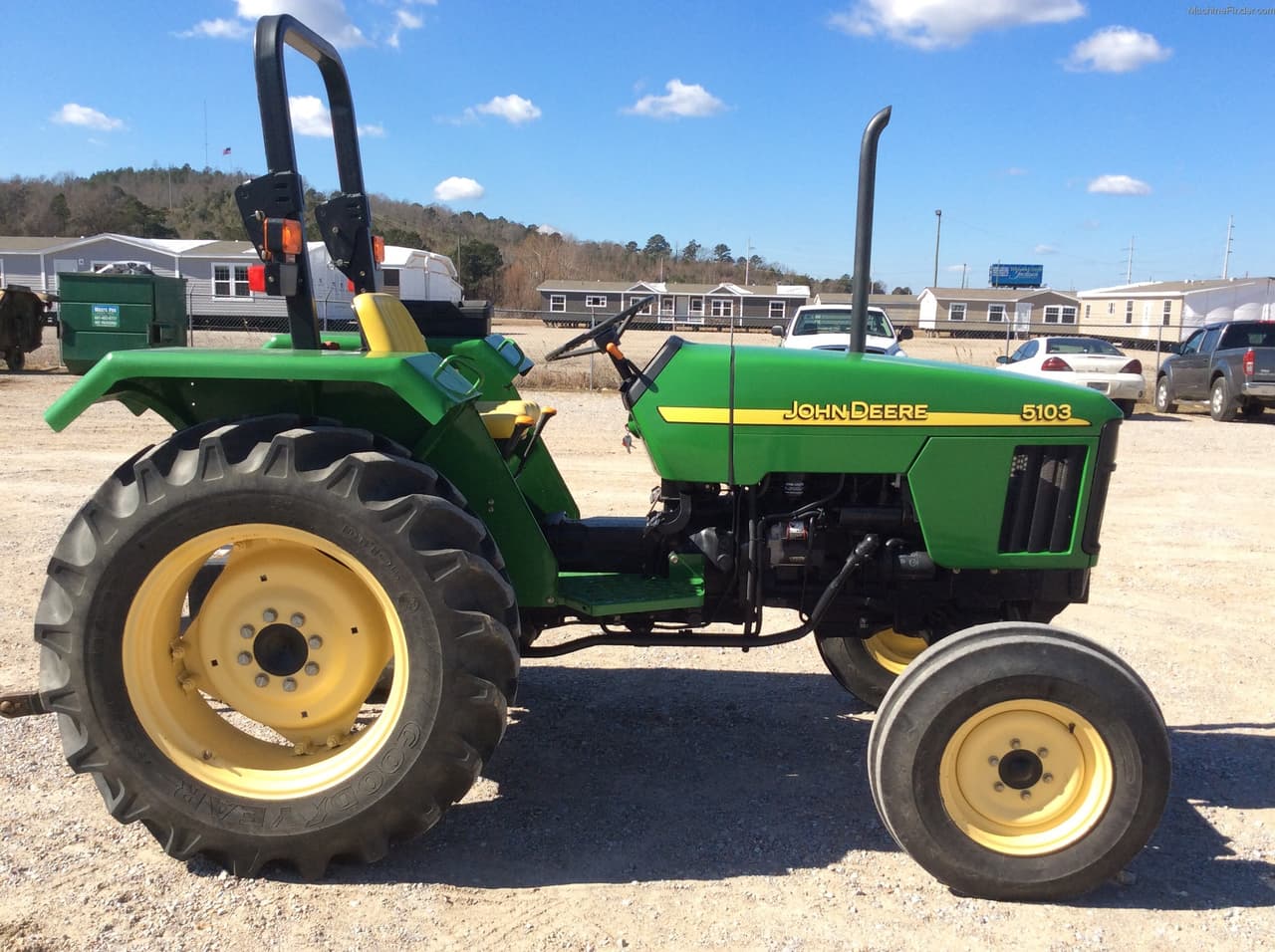

John Deere 5103S photos
FAQ
Common questions
When was the John Deere 5103S in production?
The John Deere 5103S was introduced in 2003.
How much horsepower does the John Deere 5103S have?
The John Deere 5103S produces 42 hp from its 3-cylinder engine. Engine displacement is 179 ci.
How much does the John Deere 5103S weigh?
The John Deere 5103S weighs about 3,990 lb in operating condition.
What transmission is in the John Deere 5103S?
Transmission on the John Deere 5103S is Collar Shift Gear, with 8 forward speeds.
What hydraulics does the John Deere 5103S have?
The John Deere 5103S uses an Open Center hydraulic system.
What three-point hitch category does the John Deere 5103S use?
The John Deere 5103S has a Category II three-point hitch.
What maintenance does the John Deere 5103S require?
Like any tractor, the John Deere 5103S needs periodic engine oil and filter changes, hydraulic fluid checks, and regular greasing and inspection. The owner's manual lists the manufacturer's recommended service intervals.
