John Deere 4010

John Deere 4010

Complete specifications and technical data for the John Deere 4010. Compare with similar tractors from John Deere and other manufacturers.

Jump to Full Specifications List

Quick Specs

Category

Utility

Engine Power Output

19hp

Operating Weight

1,420 lb

Transmission

Hydrostatic

The John Deere 4010 is a compact utility tractor made from 2002 to 2005. It's small but strong, with a 4x4 drive that helps it work well in different places. The tractor has a Yanmar diesel engine wit...

Photo Gallery

Image Gallery

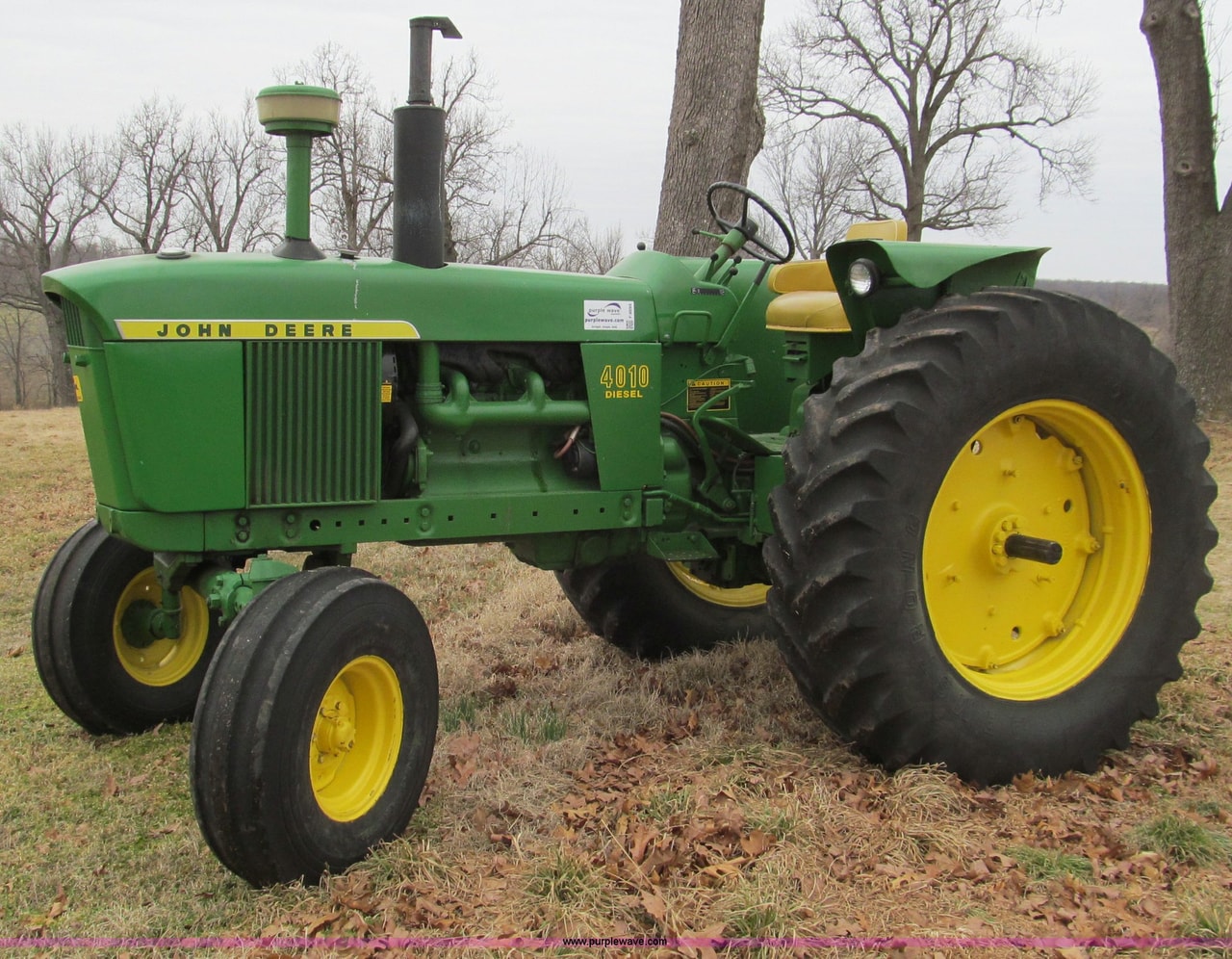

John Deere 4010 Tractor
John Deere 4010 Tractor
John Deere 4010 Tractor

Specifications

Manufacturer
John Deere
Model
4010
Category
Utility
Manufacturing Years
2002 - 2005
Manufacturer
Yanmar
Model
3TNE68
Power Output
18.5hp
Rated RPM
3,000RPM
Cylinders
3
Displacement
47.84ci
Bore
2.68in
Stroke
2.83in

Engine Power Output Comparison of John Deere 4010 vs. Other Utility Tractors

Loading Chart...

Type
Hydrostatic
Length
102in
Width
44.5in
Height
78.3in
Operating Weight
1,420lb

Operating Weight Comparison of John Deere 4010 vs. Other Utility Tractors

Loading Chart...

System Type
Open center
Steering Type
Hydrostatic power
Type
Independent
Speed 1
540rpm
Hitch Type
Three-point hitch
Hitch Category
I
Hitch Position
Rear
Hitch Capacity
860lb
Chassis Type
4x4 MFWD 4WD
Drive Type
MFWD 4WD
Steering Type
Hydrostatic power
Brake Type
Wet disc
Coolant
2.5qts
Type
Open operator station with two-post ROPS

Compare to Other Tractors

Frequently Asked Questions

What years was the John Deere 4010 manufactured?

The John Deere 4010 was manufactured from 2002 - 2005.

What is the engine power output of the John Deere 4010?

The John Deere 4010 has an engine power output of 18.5 hp.

How many cylinders does the John Deere 4010 have?

The John Deere 4010 is equipped with a 3-cylinder engine.

What is the operating weight of the John Deere 4010?

The operating weight of the John Deere 4010 is approximately 1,420 lb.

What type of transmission does the John Deere 4010 have?

The John Deere 4010 is equipped with a Hydrostatic transmission.

What type of hydraulic system does the John Deere 4010 use?

The John Deere 4010 uses a Open center hydraulic system.

What hitch category is the John Deere 4010?

The John Deere 4010 is a Category I hitch.

What maintenance does the John Deere 4010 require?

Regular maintenance for the John Deere 4010 includes checking and changing engine oil, hydraulic fluid, filters, and performing routine inspections as recommended in the owner's manual. Always refer to the manufacturer's maintenance schedule for specific intervals and procedures.
