Utility tractorsSpec sheet
John Deere 4052M
The John Deere 4052M is a versatile utility tractor designed for various farm tasks. It's powered by a Yanmar 4TNV86 diesel engine with four cylinders and a turbocharged induction system. The engine produces 51.5 hp at 2600 rpm, which is average for its class. It has a liquid-cooled system and an inline cylinder arrangement, making it reliable and efficient. This tractor features a 4x4 MFWD (Mechanical Front Wheel Drive) chassis with power steering, making it easy to maneuver. The transmission offers 12 forward and 12 reverse gears, with both power shuttle and hydrostatic options available. The 4052M has a three-point hitch with a Category I rating and a lifting capacity of 3130 lb, which is above average. It also comes with an independent PTO that runs at 540 rpm. The tractor measures 130.3 inches long and 100 inches tall, with an operating weight of 3770 lb. Made in Augusta, Georgia, it offers optional features like cruise control and up to three rear remote valves for added convenience.
ManufacturerJohn DeerePower51.5 hp(38.4 kW)Class40–60 HP tractors →Engine4-cylinderTransmissionPower shuttle / Hydrostatic
Key specifications
- Category
- Utility
- Engine power
- 52hp
- Operating weight
- 3,770 lb
- Transmission
- Power shuttle / Hydrostatic
Category comparison
4052M compared with its category
vs. Utility medianDistribution
Engine Power (hp)
All recorded Utility tractors
51.5 hp · 47th
This model
9
Median 55 hp
177
This modelUtility tractorsMediann = 5,383
The 4052M ranks at the 47th percentile for engine power among recorded utility tractors.
Overview
About the John Deere 4052M
The John Deere 4052M is a versatile utility tractor designed for various farm tasks. It's powered by a Yanmar 4TNV86 diesel engine with four cylinders and a turbocharged induction system. The engine produces 51.5 hp at 2600 rpm, which is average for its class. It has a liquid-cooled system and an inline cylinder arrangement, making it reliable and efficient. This tractor features a 4x4 MFWD (Mechanical Front Wheel Drive) chassis with power steering, making it easy to maneuver. The transmission offers 12 forward and 12 reverse gears, with both power shuttle and hydrostatic options available. The 4052M has a three-point hitch with a Category I rating and a lifting capacity of 3130 lb, which is above average. It also comes with an independent PTO that runs at 540 rpm. The tractor measures 130.3 inches long and 100 inches tall, with an operating weight of 3770 lb. Made in Augusta, Georgia, it offers optional features like cruise control and up to three rear remote valves for added convenience.
Full specifications
Recorded specifications
General
| Manufacturer | John Deere |
|---|---|
| Model | 4052M |
| Category | Utility tractor |
| Type | 4x4 MFWD 4WD |
| Years built | 2014+ |
| Operating weight | 3,770lb(1,710 kg) |
Engine
| Make | Yanmar |
|---|---|
| Model | 4TNV86 |
| Power | 51.5hp(38.4 kW) |
| Cylinders | 4 |
| Displacement | 127.5ci(2.09 L) |
| Bore | 3.39in(86.11 mm) |
| Stroke | 3.54in(89.92 mm) |
Transmission
| Type | Power shuttle / Hydrostatic |
|---|---|
| Forward gears | 12 |
| Reverse gears | 12 |
Chassis & drive
| Chassis | 4x4 MFWD 4WD |
|---|---|
| Drive | MFWD |
| Steering | Power |
| Brakes | Hydraulic wet disc |
| Cab | Two-post folding ROPS |
Hydraulics
| Type | Open center |
|---|
Power take-off
| Rear PTO | Independent |
|---|---|
| PTO speed | 540rpm |
Dimensions
| Length | 130.3in(3,310 mm) |
|---|---|
| Height | 100in(2,540 mm) |
| Operating weight | 3,770lb(1,710 kg) |
Closest alternatives
4052M compared with the nearest models by horsepower
By engine horsepower, the nearest utility models to the 4052M are the John Deere 4052R and the New Holland T2420. The John Deere 4052R matches it on rated power at almost the same operating weight. The New Holland T2420 matches it on rated power and weighs 460 lb more, so it carries more weight per horsepower, which helps traction in draft work. Of the 3 models, the 4052M has the lowest weight per horsepower at 73 lb per hp.
| Spec | John Deere 4052M | John Deere 4052R | New Holland T2420 |
|---|---|---|---|
| Engine power | 51.5 hp38.4 kW | 51.5 hp38.4 kW | 51.6 hp38.5 kW |
| Operating weight | 3,770 lb1,710 kg | 3,770 lb1,710 kg | 4,230 lb1,919 kg |
| Weight per hp | 73 lb/hp45 kg/kW | 73 lb/hp45 kg/kW | 82 lb/hp50 kg/kW |
| Displacement | 127.5 ci2.09 L | 127.5 ci2.09 L | 135.2 ci2.22 L |
| Cylinders | 4 | 4 | 4 |
| Transmission | Power shuttle / Hydrostatic | Power shuttle | Selective gear fixed ratio |
| Drive | MFWD | 4WD | MFWD 4WD |
Calculators
Calculators for the 4052M
PTO power
About 43 to 46 PTO hp
Estimated from the 51.5 hp engine rating. The calculator also estimates drawbar power by surface.
Implement sizing
Implements a 51.5 hp tractor can run
Maximum size is about a 6 ft rotary cutter or a 5 ft tiller. The calculator also sizes discs, plows and balers.
Ballast
85 lb per PTO hp as listed
Heavy draft work calls for 120 to 135 lb/hp. The calculator gives the ballast to add.
Units
51.5 hp is 38.4 kW
The converter gives kW and metric PS values, as used on European spec sheets.
Category medians
4052M vs. Utility median
John Deere 4052M compared with other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 51.5 hp | 55 hp | -6% | 47th |
| Engine Displacement | 128 ci | 183 ci | -30% | 30th |
| Cylinders | 4 | 4 | at median | 50th |
| Forward Gears | 12 | 12 | at median | 50th |
| Operating Weight | 3,770 lb | 5,303 lb | -29% | 33rd |
| Length | 130 in | 137 in | -5% | 41st |
| Height | 100 in | 94.1 in | +6% | 66th |
| 3-Point Hitch Capacity | 3,130 lb | 3,197 lb | -2% | 49th |
Medians and percentiles are calculated from the utility tractors in the database that have a recorded value for each specification (sample size 1,083–5,720 models).
Same manufacturer
Other John Deere models
Other manufacturers
Models with similar horsepower
Gallery

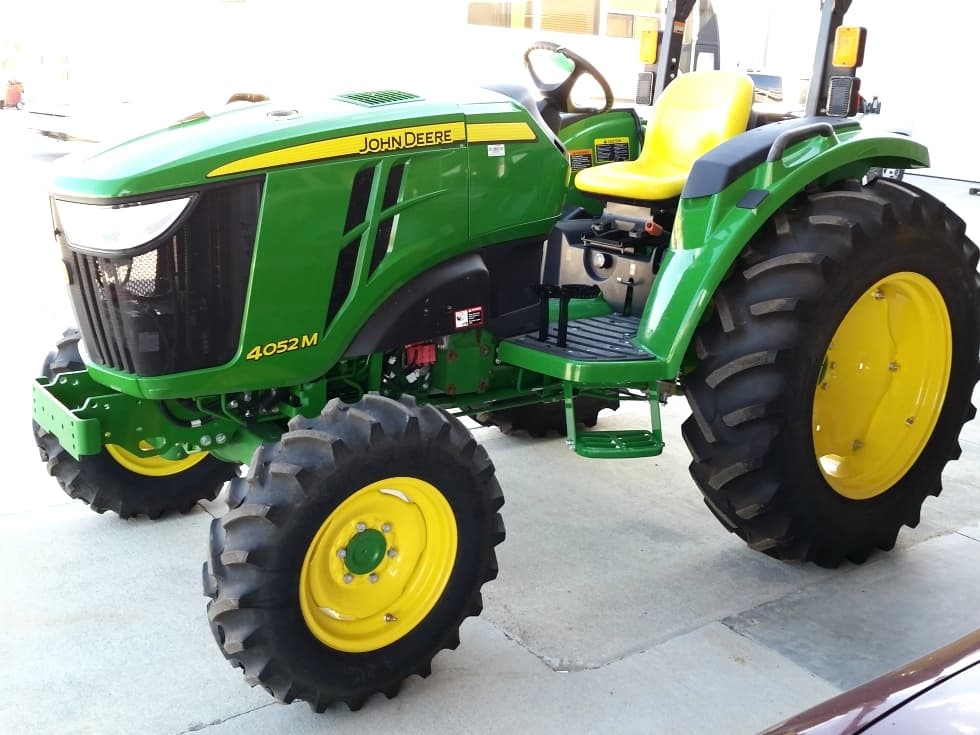

John Deere 4052M photos
FAQ
Frequently asked questions
What years was the John Deere 4052M manufactured?
Production of the John Deere 4052M began in 2014.
What is the working weight of the John Deere 4052M?
The operating weight of the John Deere 4052M is approximately 3,770 lb.
What type of transmission does the John Deere 4052M have?
The John Deere 4052M uses a Power shuttle / Hydrostatic transmission offering 12 forward gears.
What hydraulics does the John Deere 4052M have?
The John Deere 4052M uses an Open center hydraulic system.
What three-point hitch category does the John Deere 4052M use?
The John Deere 4052M has a Category I three-point hitch rated to lift 3,130 lb.
How powerful is the John Deere 4052M?
The John Deere 4052M has an engine power output of 51.5 hp. It is powered by a 4-cylinder engine displacing 127.5 ci.
What routine service does the John Deere 4052M need?
Regular maintenance for the John Deere 4052M includes checking and changing engine oil, hydraulic fluid, and filters, plus routine inspections as recommended in the owner's manual. Always follow the manufacturer's maintenance schedule for specific intervals and procedures.
