John Deere 1120
The John Deere 1120 is a utility tractor that was made from 1967 to 1975. It's a 2WD tractor with a 3-cylinder diesel engine that makes 53 hp. The engine is liquid-cooled and naturally aspirated, which means it doesn't use a turbocharger. The tractor has a partially synchronized transmission with 16 forward gears and 8 reverse gears, giving it a total of 24 gears to choose from. This tractor is built for work on the farm. It has a three-point hitch at the back that can lift up to 3,570 lb, which is very high compared to other tractors. The 1120 also has a PTO that spins at 540 rpm, useful for running farm equipment. It weighs 5,556 lb, which is about average for tractors of its size. The tractor is 135 inches long, 66.1 inches wide, and 90.9 inches tall. It has an open operator station, which means there's no cab, and it uses an electric starter to get the engine going.
ManufacturerJohn DeerePower53 hpEngine3-cylTransPartially synchronized
Quick specs
- Category
- Utility
- Engine Power Output
- 53hp
- Operating Weight
- 5,556 lb
- Transmission
- Partially synchronized
At a glance
How the 1120 compares
vs. Utility medianDistribution
Engine Power (hp)
Across all Utility tractors
53 hp · 48th
This model
9
Median 55 hp
177
This modelUtility tractorsMediann = 5,383
The 1120 ranks at the 48th percentile for engine power among recorded utility tractors.
Overview
About the John Deere 1120
The John Deere 1120 is a utility tractor that was made from 1967 to 1975. It's a 2WD tractor with a 3-cylinder diesel engine that makes 53 hp. The engine is liquid-cooled and naturally aspirated, which means it doesn't use a turbocharger. The tractor has a partially synchronized transmission with 16 forward gears and 8 reverse gears, giving it a total of 24 gears to choose from. This tractor is built for work on the farm. It has a three-point hitch at the back that can lift up to 3,570 lb, which is very high compared to other tractors. The 1120 also has a PTO that spins at 540 rpm, useful for running farm equipment. It weighs 5,556 lb, which is about average for tractors of its size. The tractor is 135 inches long, 66.1 inches wide, and 90.9 inches tall. It has an open operator station, which means there's no cab, and it uses an electric starter to get the engine going.
Full specifications
Every recorded spec
General
| Manufacturer | John Deere |
|---|---|
| Model | 1120 |
| Category | Utility tractor |
| Type | 4x2 2WD |
| Years built | 1967–1975 |
| Operating weight | 5,556lb |
Engine
| Make | John Deere |
|---|---|
| Power | 53hp |
| Cylinders | 3 |
| Displacement | 164.5ci |
| Bore | 4.02in |
| Stroke | 4.33in |
Transmission
| Type | Partially synchronized |
|---|---|
| Forward gears | 16 |
| Reverse gears | 8 |
Chassis & drive
| Chassis | 4x2 2WD |
|---|---|
| Drive | 2WD |
| Steering | Manual |
| Cab | Open |
Hydraulics
| Type | Closed center |
|---|
Power take-off
| PTO speed | 540rpm |
|---|
Dimensions
| Length | 135in |
|---|---|
| Width | 66.1in |
| Height | 90.9in |
| Operating weight | 5,556lb |
Capacities
| Cooling system | 2.75gal |
|---|
Head to head
1120 vs. Utility median
How the John Deere 1120 compares to other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 53 hp | 55 hp | -4% | 48th |
| Engine Displacement | 165 ci | 183 ci | -10% | 43rd |
| Cylinders | 3 | 4 | -25% | 23rd |
| Forward Gears | 16 | 12 | +33% | 73rd |
| Operating Weight | 5,556 lb | 5,303 lb | +5% | 52nd |
| Length | 135 in | 137 in | -1% | 48th |
| Width | 66.1 in | 66 in | 0% | 50th |
| Height | 90.9 in | 94.1 in | -3% | 42nd |
| 3-Point Hitch Capacity | 3,570 lb | 3,197 lb | +12% | 59th |
Medians and percentiles are computed from the utility tractors in our database with a recorded value for each spec (sample sizes 1,083–5,720 models).
Compare to tractors with similar specs
Commonly compared John Deere tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| John Deere 5205 | 53 hp | — | 2000–2007 | Compare → |
| John Deere 5210 | 53 hp | 4,205 lb | 1998–2001 | Compare → |
| John Deere 5220 | 53 hp | 3,576 lb | 2002–2004 | Compare → |
| John Deere 1040 | 53.6 hp | 6,107 lb | — | Compare → |
| John Deere 1130 | 53.6 hp | 4,780 lb | — | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Agco ST52a | 52.1 hp | 3,494.4 lb | — | Compare → |
| AGCO GT45 | 52 hp | 4,806 lb | — | Compare → |
| Agco GT45A | 52 hp | 5,820.3 lb | — | Compare → |
| Barreiros 50.55 | 52 hp | 5,100 lb | — | Compare → |
| Barreiros R-500 | 52 hp | — | — | Compare → |
Explore
John Deere siblings
Explore
Similar-spec models
Gallery

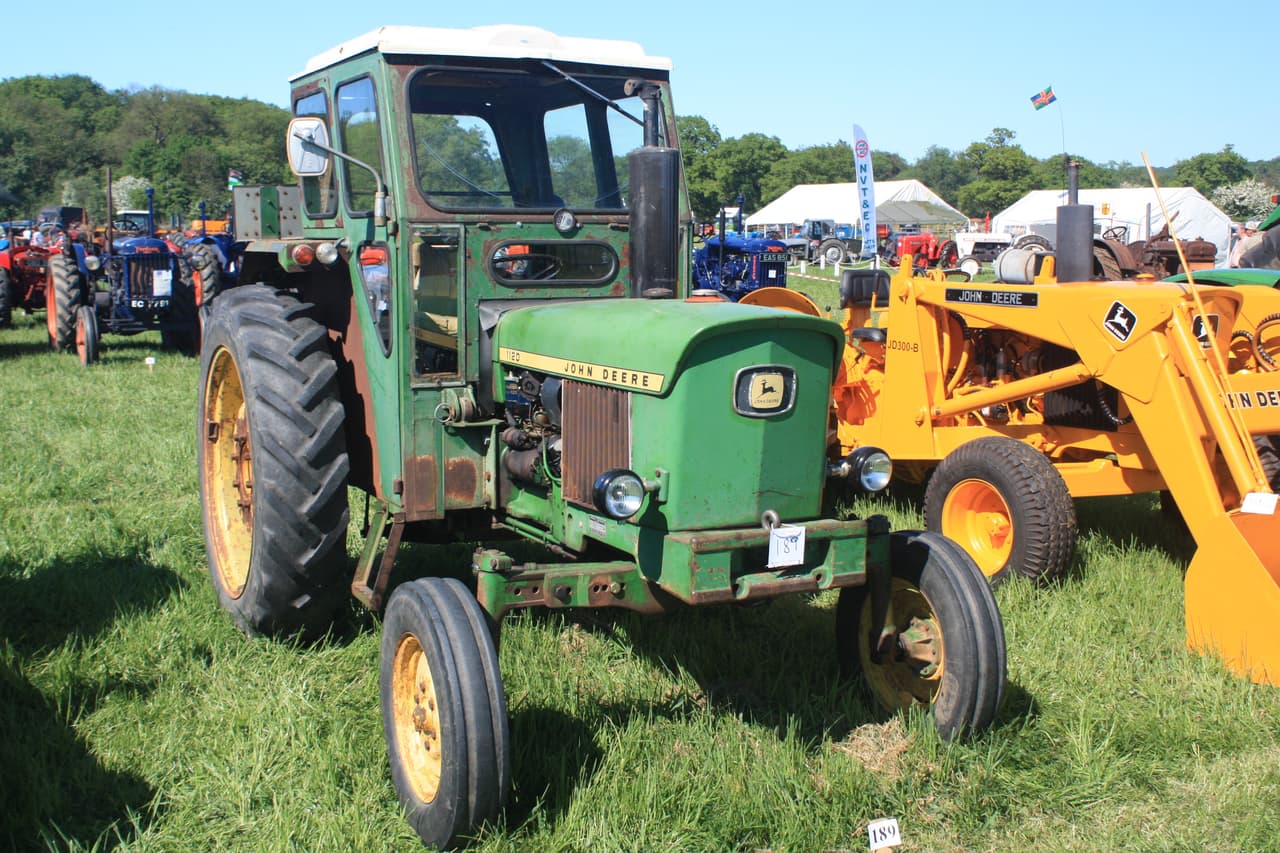

John Deere 1120 photos
FAQ
Common questions
What years was the John Deere 1120 manufactured?
Production of the John Deere 1120 ran from 1967 through 1975.
What is the working weight of the John Deere 1120?
The operating weight of the John Deere 1120 is approximately 5,556 lb.
What type of transmission does the John Deere 1120 have?
The John Deere 1120 uses a Partially synchronized transmission offering 16 forward gears.
What hydraulics does the John Deere 1120 have?
The John Deere 1120 uses a Closed center hydraulic system.
What three-point hitch category does the John Deere 1120 use?
The John Deere 1120 has a Category II/I three-point hitch rated to lift 3,570 lb.
How powerful is the John Deere 1120?
The John Deere 1120 has an engine power output of 53 hp. It is powered by a 3-cylinder engine displacing 164.5 ci.
What routine service does the John Deere 1120 need?
Regular maintenance for the John Deere 1120 includes checking and changing engine oil, hydraulic fluid, and filters, plus routine inspections as recommended in the owner's manual. Always follow the manufacturer's maintenance schedule for specific intervals and procedures.
