John Deere 450C
The John Deere 450C is a powerful industrial crawler tractor that was made from 1973 to 1982. It's built to handle tough jobs on tracks instead of wheels, making it great for working on rough or muddy ground. This tractor has a strong diesel engine made by John Deere. The engine has 4 cylinders and can produce 70 horsepower, which is above average for tractors of its kind. It has a liquid-cooled system to keep the engine running smoothly. The 450C has a special transmission with 8 forward gears and 4 reverse gears, giving the driver good control over speed and power. The 450C is a heavy machine, weighing 14,330 pounds, which is very high compared to other tractors. It's also tall, standing at 95.7 inches. Drivers can operate it from a seat with a roll-over protection system or an optional cab for comfort and safety. This tractor is designed for industrial work and can handle big jobs with its strong engine and sturdy build.

Key specifications
- Category
- Industrial
- Engine power
- 70hp
- Operating weight
- 14,330 lb
- Transmission
- Partial power shift with dry disc clutch
Category comparison
450C compared with its category
vs. Industrial medianDistribution
Engine Displacement (ci)
All recorded Industrial tractors
This model
The 450C ranks at the 38th percentile for engine displacement among recorded industrial tractors.
Overview
About the John Deere 450C
The John Deere 450C is a powerful industrial crawler tractor that was made from 1973 to 1982. It's built to handle tough jobs on tracks instead of wheels, making it great for working on rough or muddy ground. This tractor has a strong diesel engine made by John Deere. The engine has 4 cylinders and can produce 70 horsepower, which is above average for tractors of its kind. It has a liquid-cooled system to keep the engine running smoothly. The 450C has a special transmission with 8 forward gears and 4 reverse gears, giving the driver good control over speed and power. The 450C is a heavy machine, weighing 14,330 pounds, which is very high compared to other tractors. It's also tall, standing at 95.7 inches. Drivers can operate it from a seat with a roll-over protection system or an optional cab for comfort and safety. This tractor is designed for industrial work and can handle big jobs with its strong engine and sturdy build.
Full specifications
Recorded specifications
General
| Manufacturer | John Deere |
|---|---|
| Model | 450C |
| Category | Industrial tractor |
| Type | Crawler |
| Years built | 1973–1982 |
| Operating weight | 14,330lb(6,500 kg) |
Engine
| Make | John Deere |
|---|---|
| Power | 70hp(52.2 kW) |
| Cylinders | 4 |
| Displacement | 219ci(3.59 L) |
| Bore | 4.02in(102.1 mm) |
| Stroke | 4.33in(110 mm) |
Transmission
| Type | Partial power shift with dry disc clutch |
|---|---|
| Forward gears | 8 |
| Reverse gears | 4 |
Chassis & drive
| Chassis | Crawler |
|---|---|
| Drive | Track |
| Cab | Four-post ROPS or Cab (optional) |
Hydraulics
| Type | Open center |
|---|
Power take-off
| PTO speed | 1,000rpm |
|---|
Dimensions
| Height | 95.7in(2,431 mm) |
|---|---|
| Operating weight | 14,330lb(6,500 kg) |
Capacities
| Cooling system | 4gal(15.14 L) |
|---|
Closest alternatives
450C compared with the nearest models by horsepower
The closest industrial models to the John Deere 450C by rated horsepower are the John Deere 401B and the John Deere 210LE. The John Deere 401B is rated 4 hp lower and weighs 9,880 lb less, carrying 67 lb per horsepower against 205 lb. The John Deere 210LE makes 8 hp more and weighs 5,200 lb less, so it is lighter for its power, which favors PTO and transport work over heavy draft. It entered production in 1997, 24 years after the 450C. Of the 3 models, the 450C has the highest weight per horsepower at 205 lb per hp.
| Spec | John Deere 450C | John Deere 401B | John Deere 210LE |
|---|---|---|---|
| Engine power | 70 hp52.2 kW | 66 hp49.2 kW | 78 hp58.2 kW |
| Operating weight | 14,330 lb6,500 kg | 4,451 lb2,019 kg | 9,127 lb4,140 kg |
| Weight per hp | 205 lb/hp125 kg/kW | 67 lb/hp41 kg/kW | 117 lb/hp71 kg/kW |
| Displacement | 219 ci3.59 L | 219 ci3.59 L | 276 ci4.52 L |
| Cylinders | 4 | 4 | 4 |
| Transmission | Partial power shift with dry disc clutch | Power shuttle with hydraulic wet disc clutch | Power shuttle |
| Drive | Track | 2WD | MFWD |
| Years built | 1973-1982 | 1974-1982 | 1997-2007 |
Calculators
Calculators for the 450C
PTO power
About 58 to 63 PTO hp
Estimated from the 70 hp engine rating. The calculator also estimates drawbar power by surface.
Implement sizing
Implements a 70 hp tractor can run
Maximum size is about a 8.5 ft rotary cutter or a 7 ft tiller. The calculator also sizes discs, plows and balers.
Ballast
238 lb per PTO hp as listed
The calculator gives the target weight and front/rear split for each job.
Units
70 hp is 52.2 kW
The converter gives kW and metric PS values, as used on European spec sheets.
Parts and manuals
Parts and manuals for the John Deere 450C
Each link opens a retailer search keyed to the fields recorded for this model. Confirm fitment against the serial plate before ordering.
Filters
- Oil filter for the John DeereAmazon
Fits the John Deere 4-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
- Air filter for the John DeereAmazon
Fits the John Deere 4-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
- Fuel filter for the John DeereAmazon
Fits the John Deere 4-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
- Hydraulic filter for the John DeereAmazon
Fits the John Deere 4-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
Manuals
- John Deere 450C service and repair manualseManualOnline
Digital manuals. Built 1973 to 1982. Check the serial number range on the listing.
- John Deere 450C operator's manualAmazon
Printed and reprint manuals. Built 1973 to 1982. Check the serial number range on the listing.
- John Deere 450C service manualAmazon
Shop and repair manuals for this model.
Links in this section go to retailers. A purchase through them earns this site a commission at no extra cost to the buyer. As an Amazon Associate, Heavy Equipment Specs earns from qualifying purchases. Affiliate disclosure
Category medians
450C vs. Industrial median
John Deere 450C compared with other Industrial tractors
| Spec | This model | Industrial median | Difference | Percentile |
|---|---|---|---|---|
| Engine Displacement | 219 ci | 284 ci | -23% | 38th |
| Cylinders | 4 | 4 | at median | 50th |
| Forward Gears | 8 | 5 | +60% | 85th |
| Operating Weight | 14,330 lb | 9,127 lb | +57% | 60th |
| Height | 95.7 in | 74.9 in | +28% | 81st |
Medians and percentiles are calculated from the industrial tractors in the database that have a recorded value for each specification (sample size 38–55 models).
Same manufacturer
Other John Deere models
Other manufacturers
Models with similar horsepower
Gallery

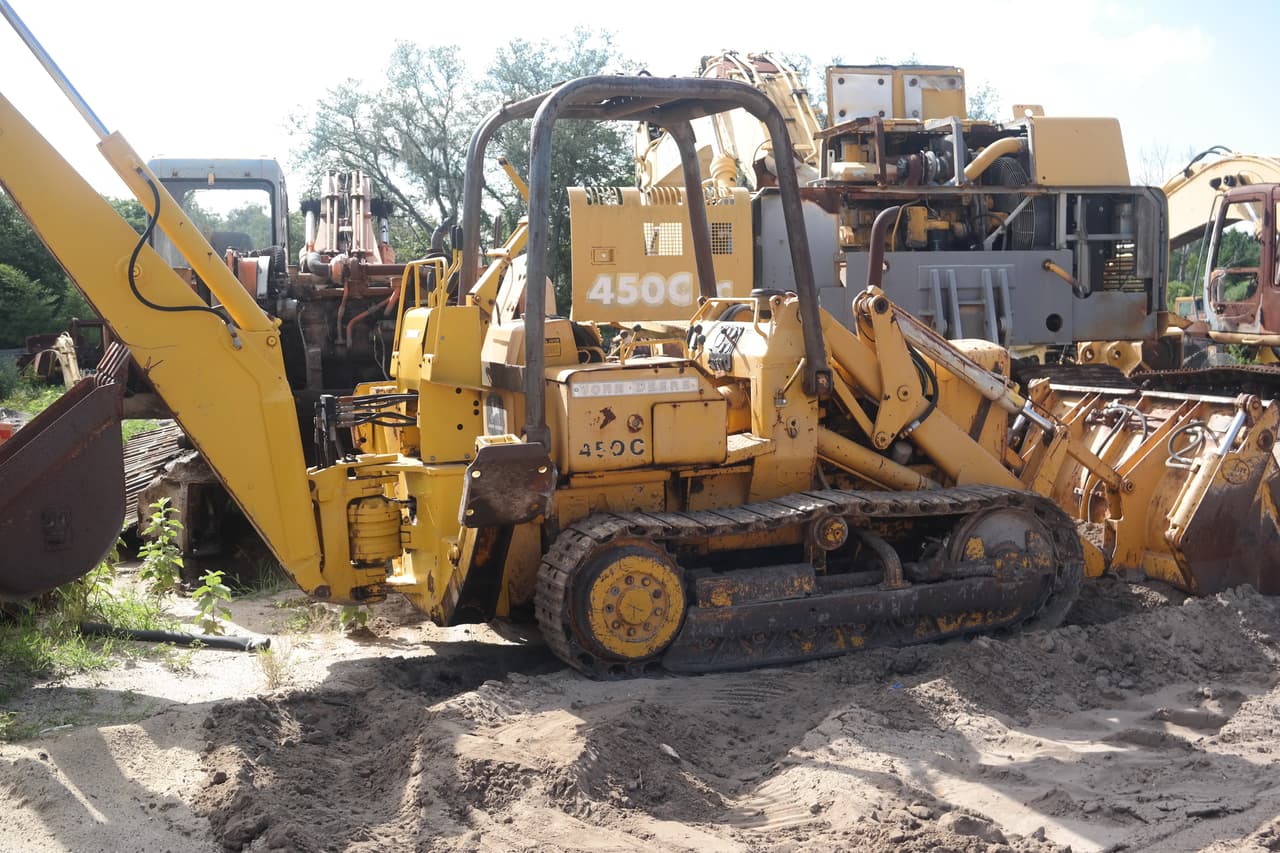

John Deere 450C photos




FAQ
Frequently asked questions
When was the John Deere 450C in production?
John Deere 450C production started in 1973 and ended in 1982.
How much horsepower does the John Deere 450C have?
The John Deere 450C produces 70 hp from its 4-cylinder engine. Engine displacement is 219 ci.
How much does the John Deere 450C weigh?
The John Deere 450C weighs about 14,330 lb in operating condition.
What transmission is in the John Deere 450C?
Transmission on the John Deere 450C is Partial power shift with dry disc clutch, with 8 forward speeds.
What hydraulics does the John Deere 450C have?
The John Deere 450C uses an Open center hydraulic system.
What maintenance does the John Deere 450C require?
The John Deere 450C needs periodic engine oil and filter changes, hydraulic fluid checks, and regular greasing and inspection. The owner's manual lists the manufacturer's recommended service intervals.
