John Deere 4760
The John Deere 4760 is a powerful row crop tractor made from 1992 to 1994. It has a strong diesel engine with 6 cylinders and 175 horsepower. This engine is turbocharged and aftercooled, which helps it work hard in the fields. The tractor's engine size and power are above average compared to other tractors. This tractor is built for tough farm work. It has a three-point hitch at the back that can lift up to 8,290 pounds, which is very high for its class. The 4760 is also quite heavy, weighing 18,703 pounds. This weight helps it handle big jobs. The tractor comes with a comfortable Sound-Gard cab for the driver. It has special features like an independent PTO and a closed center hydraulic system. Farmers can add a John Deere 840 loader if they need one. The 4760 also has electrohydraulic draft sensing, which helps control equipment behind the tractor.
ManufacturerJohn DeerePower175 hpEngine6-cyl
Quick specs
- Category
- Row Crop
- Engine Power Output
- 175hp
- Operating Weight
- 18,703 lb
At a glance
How the 4760 compares
vs. Row Crop medianDistribution
Engine Power (hp)
Across all Row Crop tractors
175 hp · 69th
This model
12
Median 138 hp
283
This modelRow Crop tractorsMediann = 1,206
The 4760 ranks at the 69th percentile for engine power among recorded row crop tractors.
Overview
About the John Deere 4760
The John Deere 4760 is a powerful row crop tractor made from 1992 to 1994. It has a strong diesel engine with 6 cylinders and 175 horsepower. This engine is turbocharged and aftercooled, which helps it work hard in the fields. The tractor's engine size and power are above average compared to other tractors. This tractor is built for tough farm work. It has a three-point hitch at the back that can lift up to 8,290 pounds, which is very high for its class. The 4760 is also quite heavy, weighing 18,703 pounds. This weight helps it handle big jobs. The tractor comes with a comfortable Sound-Gard cab for the driver. It has special features like an independent PTO and a closed center hydraulic system. Farmers can add a John Deere 840 loader if they need one. The 4760 also has electrohydraulic draft sensing, which helps control equipment behind the tractor.
Full specifications
Every recorded spec
General
| Manufacturer | John Deere |
|---|---|
| Model | 4760 |
| Category | Row Crop tractor |
| Years built | 1992–1994 |
| Operating weight | 18,703lb |
Engine
| Make | John Deere |
|---|---|
| Model | John Deere |
| Power | 175hp |
| Cylinders | 6 |
| Displacement | 466ci |
| Bore | 4.57in |
| Stroke | 4.76in |
Chassis & drive
| Steering | Power |
|---|---|
| Brakes | Differential hydraulic wet disc |
| Cab | Sound-Gard cab standard |
Hydraulics
| Type | Closed center |
|---|
Power take-off
| Rear PTO | Independent |
|---|---|
| PTO speed | 1,000rpm |
Dimensions
| Width | 118.1in |
|---|---|
| Height | 118.5in |
| Operating weight | 18,703lb |
Capacities
| Cooling system | 8gal |
|---|
Head to head
4760 vs. Row Crop median
How the John Deere 4760 compares to other Row Crop tractors
| Spec | This model | Row Crop median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 175 hp | 138 hp | +27% | 69th |
| Engine Displacement | 466 ci | 391 ci | +19% | 82nd |
| Cylinders | 6 | 6 | at median | 50th |
| Operating Weight | 18,703 lb | 12,307 lb | +52% | 80th |
| Width | 118 in | 91.2 in | +30% | 97th |
| Height | 119 in | 114 in | +4% | 67th |
| 3-Point Hitch Capacity | 8,290 lb | 11,023 lb | -25% | 31st |
Medians and percentiles are computed from the row crop tractors in our database with a recorded value for each spec (sample sizes 279–1,417 models).
Compare to tractors with similar specs
Commonly compared John Deere tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| John Deere 6030 | 175 hp | 18,180 lb | 1972–1977 | Compare → |
| John Deere 6175R | 175 hp | 18,490 lb | 2015–2021 | Compare → |
| John Deere 7630 | 175 hp | 17,200 lb | 2007–2011 | Compare → |
| John Deere 7810 | 175 hp | 16,365 lb | 1997–2003 | Compare → |
| John Deere 6R 175 | 173 hp | 18,298 lb | — | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Belarus 1500 | 175 hp | 18,600 lb | — | Compare → |
| AGCO RT140A | 179.7 hp | 16,305 lb | — | Compare → |
| AGCO RT140 | 170 hp | — | — | Compare → |
| Allis Chalmers 8070 | 170 hp | 16,850 lb | 1982–1985 | Compare → |
| Ascot Universal A1800A | 180 hp | 21,400 lb | — | Compare → |
Explore
John Deere siblings
Explore
Similar-spec models

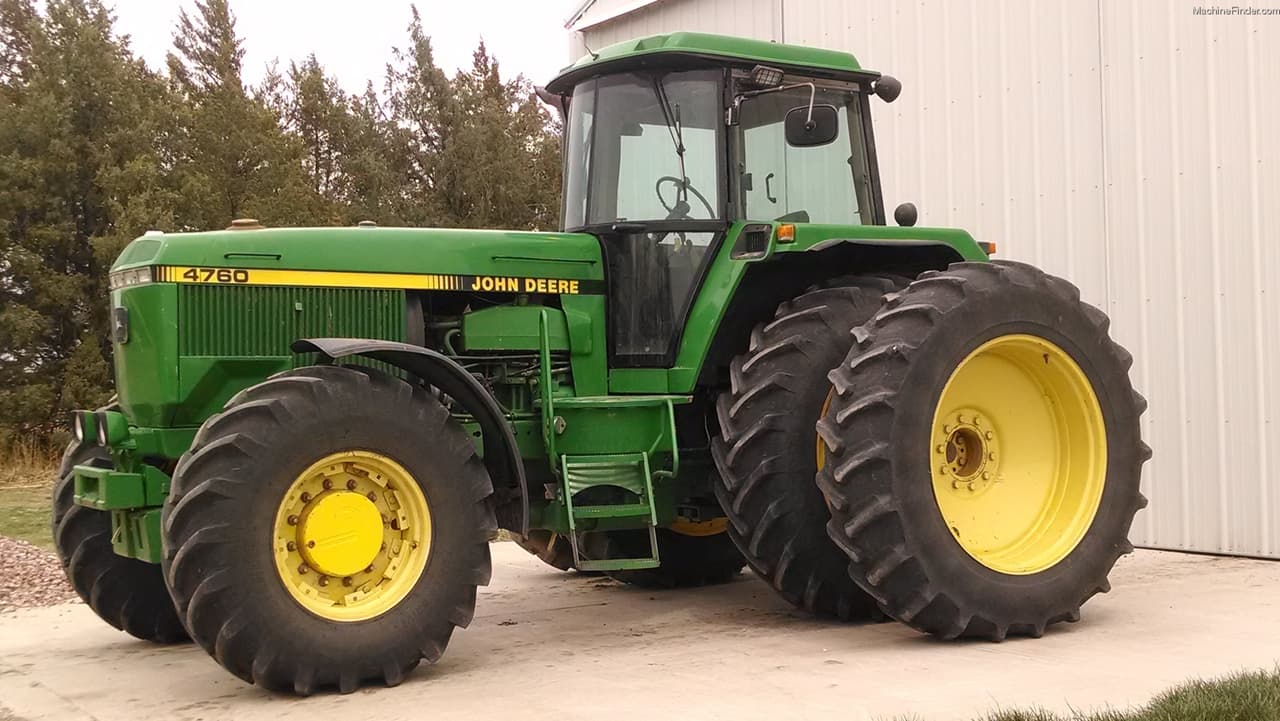

Gallery
John Deere 4760 photos
FAQ
Common questions
When was the John Deere 4760 made?
The John Deere 4760 was manufactured from 1992 to 1994.
What hitch category is the John Deere 4760?
The John Deere 4760 uses a Category III/IIIN hitch with a lift capacity of 8,290 lb.
What is the engine power output of the John Deere 4760?
Rated engine output for the John Deere 4760 is 175 hp, delivered by a 6-cylinder engine. The engine displaces 466 ci.
What is the operating weight of the John Deere 4760?
In working trim, the John Deere 4760 comes in at roughly 18,703 lb.
What type of hydraulic system does the John Deere 4760 use?
Hydraulics on the John Deere 4760 are Closed center.
How do I maintain a John Deere 4760?
Routine service for the John Deere 4760 covers engine oil and filter changes, hydraulic and coolant level checks, air filter cleaning, and scheduled inspections. Refer to the manufacturer's maintenance schedule for exact intervals.
