Row Crop tractorsSpec sheet
John Deere 7630
The John Deere 7630 is a powerful row crop tractor built from 2007 to 2011. It's a 4-wheel drive machine with a strong 175 hp diesel engine. This engine has 6 cylinders and uses a turbocharger to boost its power. The tractor is big, measuring about 19 feet long, 8 feet wide, and 10 feet tall. It weighs a hefty 17,200 pounds, making it sturdy for tough farm work. This tractor is packed with useful features for farmers. It has a partial power shift transmission with 16 forward and 16 reverse gears, giving the driver lots of control. The three-point hitch at the back can lift up to 10,055 pounds of equipment. The tractor also has two PTO speeds - 540 rpm and 1000 rpm - for running different tools. The cab comes with air conditioning for comfort during long work days. With its power steering and hydraulic brakes, the John Deere 7630 is both strong and easy to handle in the fields.
ManufacturerJohn DeerePower175 hp(130.5 kW)Class150–300 HP tractors →Engine6-cylinderTransmissionPartial Power Shift
Key specifications
- Category
- Row Crop
- Engine power
- 175hp
- Operating weight
- 17,200 lb
- Transmission
- Partial Power Shift
Category comparison
7630 compared with its category
vs. Row Crop medianDistribution
Engine Power (hp)
All recorded Row Crop tractors
175 hp · 69th
This model
12
Median 138 hp
283
This modelRow Crop tractorsMediann = 1,206
The 7630 ranks at the 69th percentile for engine power among recorded row crop tractors.
Overview
About the John Deere 7630
The John Deere 7630 is a powerful row crop tractor built from 2007 to 2011. It's a 4-wheel drive machine with a strong 175 hp diesel engine. This engine has 6 cylinders and uses a turbocharger to boost its power. The tractor is big, measuring about 19 feet long, 8 feet wide, and 10 feet tall. It weighs a hefty 17,200 pounds, making it sturdy for tough farm work. This tractor is packed with useful features for farmers. It has a partial power shift transmission with 16 forward and 16 reverse gears, giving the driver lots of control. The three-point hitch at the back can lift up to 10,055 pounds of equipment. The tractor also has two PTO speeds - 540 rpm and 1000 rpm - for running different tools. The cab comes with air conditioning for comfort during long work days. With its power steering and hydraulic brakes, the John Deere 7630 is both strong and easy to handle in the fields.
Full specifications
Recorded specifications
General
| Manufacturer | John Deere |
|---|---|
| Model | 7630 |
| Category | Row Crop tractor |
| Type | 4x4 4WD |
| Years built | 2007–2011 |
| Operating weight | 17,200lb(7,802 kg) |
Engine
| Make | John Deere |
|---|---|
| Power | 175hp(130.5 kW) |
| Cylinders | 6 |
| Displacement | 414ci(6.78 L) |
| Bore | 4.17in(105.9 mm) |
| Stroke | 5in(127 mm) |
Transmission
| Type | Partial Power Shift |
|---|---|
| Forward gears | 16 |
| Reverse gears | 16 |
Chassis & drive
| Chassis | 4x4 4WD |
|---|---|
| Drive | 4WD |
| Steering | Power |
| Brakes | Hydraulic wet disc |
| Cab | Cab standard with air-conditioning |
Hydraulics
| Type | Closed center load-sensing |
|---|
Power take-off
| Rear PTO | Independent with hydraulic wet disc clutch |
|---|---|
| PTO speed | 540rpm |
Dimensions
| Length | 224.8in(5,710 mm) |
|---|---|
| Width | 95.7in(2,431 mm) |
| Height | 120.9in(3,071 mm) |
| Operating weight | 17,200lb(7,802 kg) |
Closest alternatives
7630 compared with the nearest models by horsepower
Among row crop tractors, the John Deere 6175R and the John Deere 7810 are closest to the John Deere 7630 in rated horsepower. The John Deere 6175R matches it on rated power and weighs 1,290 lb more. It entered production in 2015, 8 years after the 7630. The John Deere 7810 matches it on rated power and weighs 840 lb less. It entered production in 1997, 10 years before the 7630.
| Spec | John Deere 7630 | John Deere 6175R | John Deere 7810 |
|---|---|---|---|
| Engine power | 175 hp130.5 kW | 175 hp130.5 kW | 175 hp130.5 kW |
| Operating weight | 17,200 lb7,802 kg | 18,490 lb8,387 kg | 16,365 lb7,423 kg |
| Weight per hp | 98 lb/hp60 kg/kW | 106 lb/hp64 kg/kW | 94 lb/hp57 kg/kW |
| Displacement | 414 ci6.78 L | 414 ci6.78 L | 496 ci8.13 L |
| Cylinders | 6 | 6 | 6 |
| Transmission | Partial Power Shift | - | Partial power shift |
| Drive | 4WD | - | 2WD |
| Years built | 2007-2011 | 2015-2021 | 1997-2003 |
Calculators
Calculators for the 7630
PTO power
About 145 to 158 PTO hp
Estimated from the 175 hp engine rating. The calculator also estimates drawbar power by surface.
Implement sizing
Implements a 175 hp tractor can run
Maximum size is about a 21 ft rotary cutter or a 18 ft tiller. The calculator also sizes discs, plows and balers.
Ballast
114 lb per PTO hp as listed
Heavy draft work calls for 120 to 135 lb/hp. The calculator gives the ballast to add.
Units
175 hp is 130.5 kW
The converter gives kW and metric PS values, as used on European spec sheets.
Parts and manuals
Parts and manuals for the John Deere 7630
Each link opens a retailer search keyed to the fields recorded for this model. Confirm fitment against the serial plate before ordering.
Filters
- Oil filter for the John DeereAmazon
Fits the John Deere 6-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
- Air filter for the John DeereAmazon
Fits the John Deere 6-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
- Fuel filter for the John DeereAmazon
Fits the John Deere 6-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
- Hydraulic filter for the John DeereAmazon
Fits the John Deere 6-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
Manuals
- John Deere 7630 service and repair manualseManualOnline
Digital manuals. Built 2007 to 2011. Check the serial number range on the listing.
- John Deere 7630 operator's manualAmazon
Printed and reprint manuals. Built 2007 to 2011. Check the serial number range on the listing.
- John Deere 7630 service manualAmazon
Shop and repair manuals for this model.
Links in this section go to retailers. A purchase through them earns this site a commission at no extra cost to the buyer. As an Amazon Associate, Heavy Equipment Specs earns from qualifying purchases. Affiliate disclosure
Category medians
7630 vs. Row Crop median
John Deere 7630 compared with other Row Crop tractors
| Spec | This model | Row Crop median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 175 hp | 138 hp | +27% | 69th |
| Engine Displacement | 414 ci | 391 ci | +6% | 66th |
| Cylinders | 6 | 6 | at median | 50th |
| Forward Gears | 16 | 16 | at median | 50th |
| Operating Weight | 17,200 lb | 12,307 lb | +40% | 74th |
| Length | 225 in | 180 in | +25% | 92nd |
| Width | 95.7 in | 91.2 in | +5% | 65th |
| Height | 121 in | 114 in | +7% | 75th |
| 3-Point Hitch Capacity | 10,055 lb | 11,023 lb | -9% | 45th |
Medians and percentiles are calculated from the row crop tractors in the database that have a recorded value for each specification (sample size 279–1,417 models).
Same manufacturer
Other John Deere models
Other manufacturers
Models with similar horsepower
Gallery

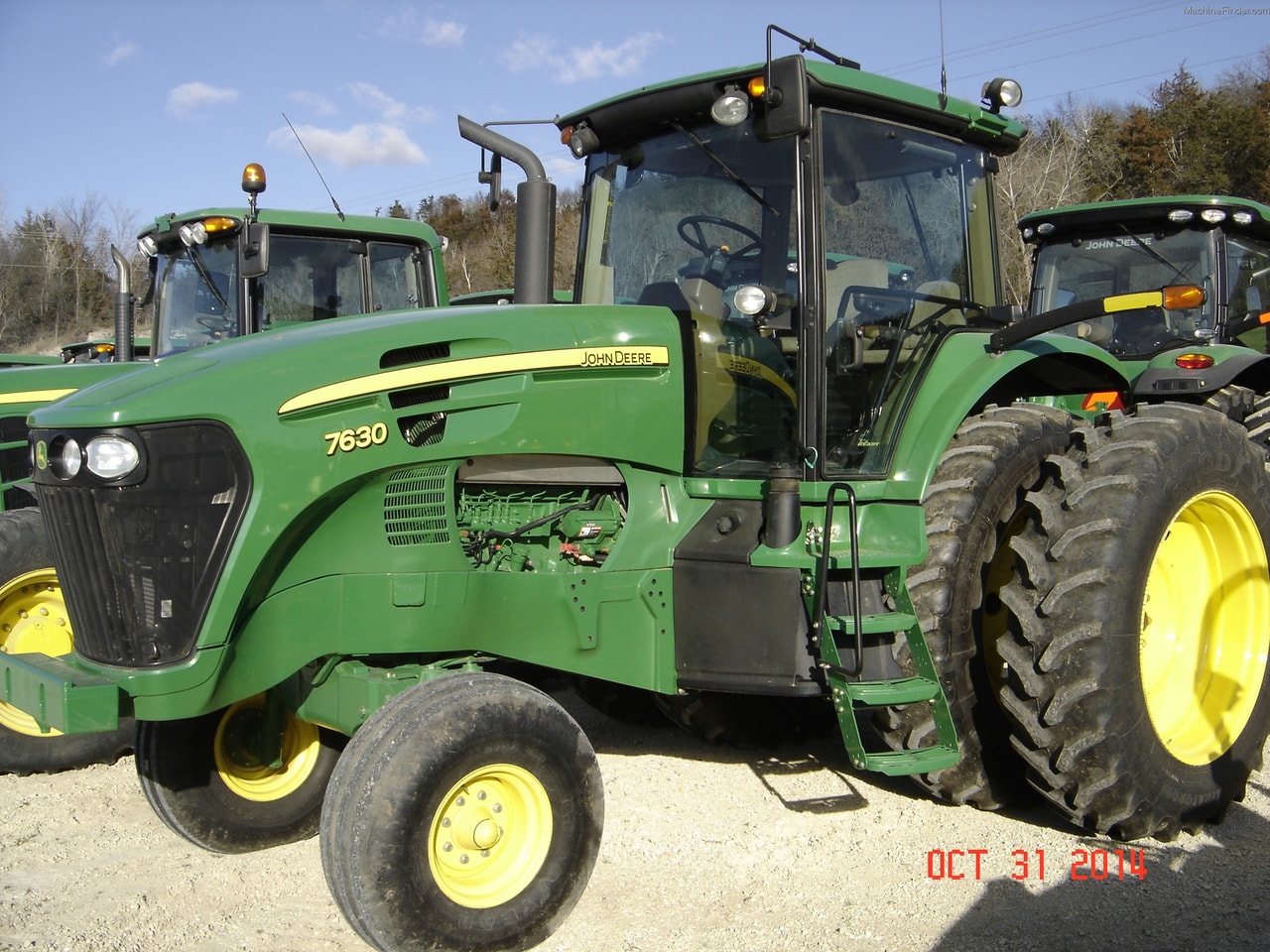

John Deere 7630 photos
FAQ
Frequently asked questions
What years was the John Deere 7630 manufactured?
Production of the John Deere 7630 ran from 2007 through 2011.
How powerful is the John Deere 7630?
The John Deere 7630 has an engine power output of 175 hp. It is powered by a 6-cylinder engine displacing 414 ci.
What is the working weight of the John Deere 7630?
The operating weight of the John Deere 7630 is approximately 17,200 lb.
What type of transmission does the John Deere 7630 have?
The John Deere 7630 uses a Partial Power Shift transmission offering 16 forward gears.
What hydraulics does the John Deere 7630 have?
The John Deere 7630 uses a Closed center load-sensing hydraulic system.
What routine service does the John Deere 7630 need?
Regular maintenance for the John Deere 7630 includes checking and changing engine oil, hydraulic fluid, and filters, plus routine inspections as recommended in the owner's manual. Always follow the manufacturer's maintenance schedule for specific intervals and procedures.
