Row CropPerformance profile
John Deere 505
The John Deere 505 is a 2WD tractor with a manual steering system. It's built on a 4x2 chassis, making it suitable for various farming tasks. This tractor is powered by a John Deere Standard OE 138 engine, which runs on diesel fuel. The engine in the John Deere 505 is liquid-cooled and has 4 cylinders. It has a displacement of 137.9 ci, with a bore of 3.31 inches and a stroke of 4 inches. The engine produces 43.1 hp at 2000 rpm, providing enough power for many farm jobs. The tractor's cooling system has a capacity of 10.6 quarts, helping to keep the engine running smoothly. The John Deere 505 also features a Category III hitch, which allows it to work with a wide range of farm implements.
ManufacturerJohn DeerePower43.1 hpEngine4-cyl
Quick specs
- Category
- Row Crop
- Engine Power Output
- 43hp
At a glance
How the 505 compares
vs. Row Crop medianDistribution
Engine Power (hp)
Across all Row Crop tractors
43.1 hp · 4th
This model
12
Median 138 hp
283
This modelRow Crop tractorsMediann = 1,206
The 505 ranks at the 4th percentile for engine power among recorded row crop tractors.
Overview
About the John Deere 505
The John Deere 505 is a 2WD tractor with a manual steering system. It's built on a 4x2 chassis, making it suitable for various farming tasks. This tractor is powered by a John Deere Standard OE 138 engine, which runs on diesel fuel. The engine in the John Deere 505 is liquid-cooled and has 4 cylinders. It has a displacement of 137.9 ci, with a bore of 3.31 inches and a stroke of 4 inches. The engine produces 43.1 hp at 2000 rpm, providing enough power for many farm jobs. The tractor's cooling system has a capacity of 10.6 quarts, helping to keep the engine running smoothly. The John Deere 505 also features a Category III hitch, which allows it to work with a wide range of farm implements.
Full specifications
Every recorded spec
General
| Manufacturer | John Deere |
|---|---|
| Model | 505 |
| Category | Row Crop tractor |
| Type | 4x2 2WD |
Engine
| Make | John Deere |
|---|---|
| Model | Standard OE 138 |
| Power | 43.1hp |
| Cylinders | 4 |
| Displacement | 137.9ci |
| Bore | 3.31in |
| Stroke | 4in |
Chassis & drive
| Chassis | 4x2 2WD |
|---|---|
| Drive | 2WD |
| Steering | Manual |
Capacities
| Cooling system | 2.65gal |
|---|
Head to head
505 vs. Row Crop median
How the John Deere 505 compares to other Row Crop tractors
| Spec | This model | Row Crop median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 43.1 hp | 138 hp | -69% | 4th |
| Engine Displacement | 138 ci | 391 ci | -65% | 3rd |
| Cylinders | 4 | 6 | -33% | 17th |
Medians and percentiles are computed from the row crop tractors in our database with a recorded value for each spec (sample sizes 1,206–1,417 models).
Compare to tractors with similar specs
Commonly compared John Deere tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| John Deere 530 | 41 hp | 4,960 lb | 1958–1960 | Compare → |
| John Deere 70 | 45.6 hp | 6,538 lb | 1953–1956 | Compare → |
| John Deere 4320 | 48.1 hp | 10,675 lb | — | Compare → |
| John Deere 1750 | 50 hp | 6,000 lb | — | Compare → |
| John Deere 445 | 36 hp | 4,620 lb | — | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Allis Chalmers 5045 | 44 hp | 3,850 lb | 1981–1983 | Compare → |
| AGCO ST45 | 44.2 hp | 4,448 lb | — | Compare → |
| Ag King AK4540 | 45 hp | 4,650 lb | — | Compare → |
| Apollo 454 | 45 hp | 4,365 lb | — | Compare → |
| Ascot Universal 445 | 45 hp | 4,500 lb | — | Compare → |
Explore
John Deere siblings
Explore
Similar-spec models
Gallery

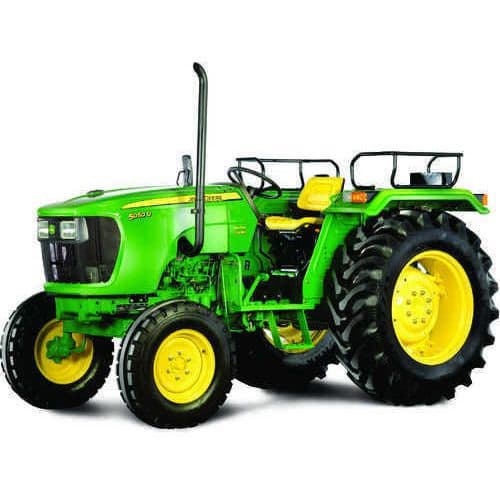

John Deere 505 photos
FAQ
Common questions
What is the engine power output of the John Deere 505?
Rated engine output for the John Deere 505 is 43.1 hp, delivered by a 4-cylinder engine. The engine displaces 137.9 ci.
What three-point hitch category does the John Deere 505 use?
The John Deere 505 has a Category III three-point hitch.
How do I maintain a John Deere 505?
Routine service for the John Deere 505 covers engine oil and filter changes, hydraulic and coolant level checks, air filter cleaning, and scheduled inspections. Refer to the manufacturer's maintenance schedule for exact intervals.
