Utility tractorsSpec sheet
John Deere 5820
The John Deere 5820 is a powerful utility tractor built for tough farm work. It has a strong 4x4 drive system and a comfortable cab for the driver. The tractor is powered by a John Deere diesel engine with four cylinders and a turbocharger. This engine is very big for its class and can produce 88 horsepower, which is more than most similar tractors. The 5820 has a lot of gears - 16 forward and 16 reverse - giving the driver many options for different jobs. It's a heavy tractor, weighing 8,157 pounds, which helps it handle big tasks. The tractor is about 13 feet long, 7 feet wide, and 8.5 feet tall. It has a good hydraulic system for lifting and moving things. The front tires are 24 inches tall, and the back tires are bigger at 34 inches. This tractor is a solid choice for farmers who need a strong, reliable machine for their daily work.
Key specifications
- Category
- Utility
- Engine power
- 88hp
- Operating weight
- 8,157 lb
Category comparison
5820 compared with its category
vs. Utility medianDistribution
Engine Power (hp)
All recorded Utility tractors
88 hp · 76th
This model
9
Median 55 hp
177
This modelUtility tractorsMediann = 5,383
The 5820 ranks at the 76th percentile for engine power among recorded utility tractors.
Overview
About the John Deere 5820
The John Deere 5820 is a powerful utility tractor built for tough farm work. It has a strong 4x4 drive system and a comfortable cab for the driver. The tractor is powered by a John Deere diesel engine with four cylinders and a turbocharger. This engine is very big for its class and can produce 88 horsepower, which is more than most similar tractors. The 5820 has a lot of gears - 16 forward and 16 reverse - giving the driver many options for different jobs. It's a heavy tractor, weighing 8,157 pounds, which helps it handle big tasks. The tractor is about 13 feet long, 7 feet wide, and 8.5 feet tall. It has a good hydraulic system for lifting and moving things. The front tires are 24 inches tall, and the back tires are bigger at 34 inches. This tractor is a solid choice for farmers who need a strong, reliable machine for their daily work.
Full specifications
Recorded specifications
General
| Manufacturer | John Deere |
|---|---|
| Model | 5820 |
| Category | Utility tractor |
| Type | 4x4 MFWD 4WD |
| Operating weight | 8,157lb(3,700 kg) |
Engine
| Make | John Deere |
|---|---|
| Model | 4045TL274 |
| Power | 88hp(65.62 kW) |
| Cylinders | 4 |
| Displacement | 276ci(4.52 L) |
| Bore | 4.19in(106.4 mm) |
| Stroke | 5in(127 mm) |
Transmission
| Forward gears | 16 |
|---|---|
| Reverse gears | 16 |
Chassis & drive
| Chassis | 4x4 MFWD 4WD |
|---|---|
| Drive | 4WD |
| Steering | Hydrostatic power |
| Cab | Cab |
Hydraulics
| Type | Load sensing pressure compensated |
|---|
Dimensions
| Length | 155.5in(3,950 mm) |
|---|---|
| Width | 85.6in(2,174 mm) |
| Height | 102.2in(2,596 mm) |
| Operating weight | 8,157lb(3,700 kg) |
Capacities
| Cooling system | 3.58gal(13.55 L) |
|---|
Closest alternatives
5820 compared with the nearest models by horsepower
The closest utility models to the John Deere 5820 by rated horsepower are the John Deere 2755 and the New Holland TD5040. The John Deere 2755 matches it on rated power and weighs 1,900 lb less, so it is lighter for its power, which favors PTO and transport work over heavy draft. The New Holland TD5040 matches it on rated power and weighs 1,520 lb less, carrying 75 lb per horsepower against 93 lb. Of the 3 models, the 5820 has the highest weight per horsepower at 93 lb per hp.
| Spec | John Deere 5820 | John Deere 2755 | New Holland TD5040 |
|---|---|---|---|
| Engine power | 88 hp65.6 kW | 88 hp65.6 kW | 88 hp65.6 kW |
| Operating weight | 8,157 lb3,700 kg | 6,260 lb2,839 kg | 6,636 lb3,010 kg |
| Weight per hp | 93 lb/hp56 kg/kW | 71 lb/hp43 kg/kW | 75 lb/hp46 kg/kW |
| Displacement | 276 ci4.52 L | 239 ci3.92 L | 274.6 ci4.5 L |
| Cylinders | 4 | 4 | 4 |
| Transmission | - | Partially synchronized | Partially synchronized mechanical shuttle |
| Drive | 4WD | 2WD | 2WD |
| Years built | - | 1984-1992 | 2009-2019 |
Calculators
Calculators for the 5820
PTO power
About 73 to 79 PTO hp
Estimated from the 88 hp engine rating. The calculator also estimates drawbar power by surface.
Implement sizing
Implements a 88 hp tractor can run
Maximum size is about a 10.5 ft rotary cutter or a 9 ft tiller. The calculator also sizes discs, plows and balers.
Ballast
108 lb per PTO hp as listed
Heavy draft work calls for 120 to 135 lb/hp. The calculator gives the ballast to add.
Units
88 hp is 65.6 kW
The converter gives kW and metric PS values, as used on European spec sheets.
Category medians
5820 vs. Utility median
John Deere 5820 compared with other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 88 hp | 55 hp | +60% | 76th |
| Engine Displacement | 276 ci | 183 ci | +51% | 81st |
| Cylinders | 4 | 4 | at median | 50th |
| Forward Gears | 16 | 12 | +33% | 73rd |
| Operating Weight | 8,157 lb | 5,303 lb | +54% | 77th |
| Length | 156 in | 137 in | +14% | 72nd |
| Width | 85.6 in | 66 in | +30% | 89th |
| Height | 102 in | 94.1 in | +9% | 71st |
Medians and percentiles are calculated from the utility tractors in the database that have a recorded value for each specification (sample size 3,933–5,720 models).
Same manufacturer
Other John Deere models
Other manufacturers
Models with similar horsepower
Gallery

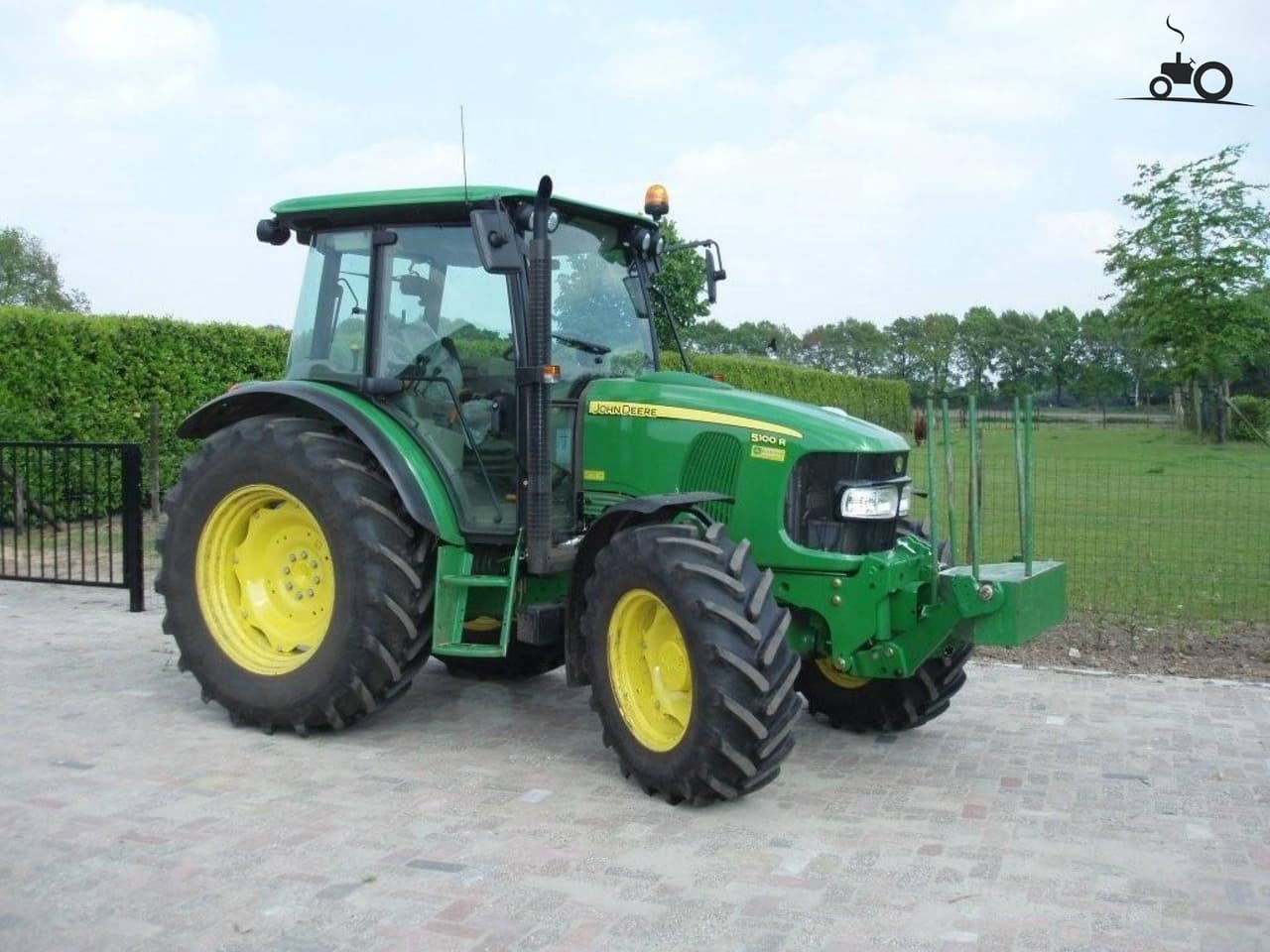

John Deere 5820 photos
FAQ
Frequently asked questions
How much horsepower does the John Deere 5820 have?
The John Deere 5820 produces 88 hp from its 4-cylinder engine. Engine displacement is 276 ci.
How much does the John Deere 5820 weigh?
The John Deere 5820 weighs about 8,157 lb in operating condition.
What type of hydraulic system does the John Deere 5820 use?
Hydraulics on the John Deere 5820 are Load sensing pressure compensated.
What hitch category is the John Deere 5820?
The John Deere 5820 uses a Category II hitch.
What maintenance does the John Deere 5820 require?
The John Deere 5820 needs periodic engine oil and filter changes, hydraulic fluid checks, and regular greasing and inspection. The owner's manual lists the manufacturer's recommended service intervals.
