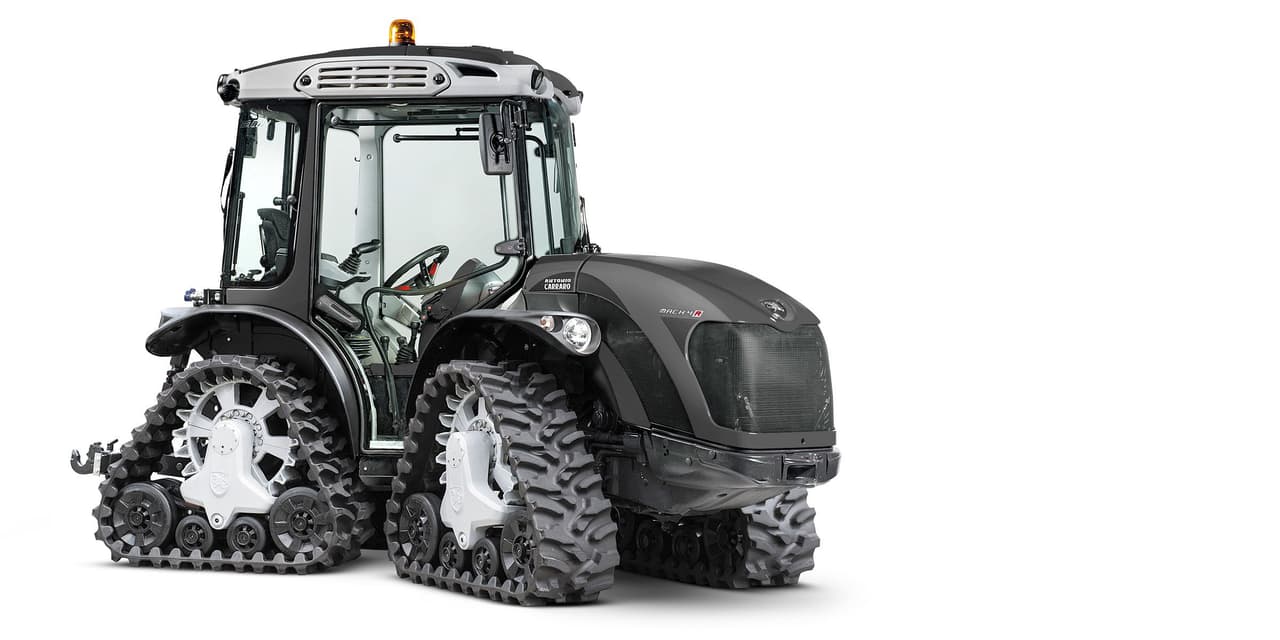

Antonio Carraro Mach 4
The Antonio Carraro Mach 4 is a powerful and versatile tractor designed for various farming tasks. It features a strong Yanmar engine with 87 horsepower, making it suitable for both small and medium-sized farms. The engine has 4 cylinders and uses diesel fuel, which is common for tractors of this size. With 16 forward and 16 reverse gears, the Mach 4 offers plenty of options for different work speeds. This tractor is built to be compact yet capable. It measures 138.7 inches long, 51.5 inches wide, and 93.1 inches tall, allowing it to work in tight spaces. The Mach 4 weighs 6,725 pounds, giving it good stability for tough jobs. It has a Type II hitch at the rear for attaching various tools and equipment. The tractor also features hydraulic power steering, making it easy to control in the field. For safety, it comes with a ROPS (Roll-Over Protective Structure) to protect the driver.

Key specifications
- Category
- Utility
- Engine power
- 87hp
- Operating weight
- 6,725 lb
Category comparison
Mach 4 compared with its category
vs. Utility medianDistribution
Engine Power (hp)
All recorded Utility tractors
This model
The Mach 4 ranks at the 76th percentile for engine power among recorded utility tractors.
Overview
About the Antonio Carraro Mach 4
The Antonio Carraro Mach 4 is a powerful and versatile tractor designed for various farming tasks. It features a strong Yanmar engine with 87 horsepower, making it suitable for both small and medium-sized farms. The engine has 4 cylinders and uses diesel fuel, which is common for tractors of this size. With 16 forward and 16 reverse gears, the Mach 4 offers plenty of options for different work speeds. This tractor is built to be compact yet capable. It measures 138.7 inches long, 51.5 inches wide, and 93.1 inches tall, allowing it to work in tight spaces. The Mach 4 weighs 6,725 pounds, giving it good stability for tough jobs. It has a Type II hitch at the rear for attaching various tools and equipment. The tractor also features hydraulic power steering, making it easy to control in the field. For safety, it comes with a ROPS (Roll-Over Protective Structure) to protect the driver.
Full specifications
Recorded specifications
General
| Manufacturer | Antonio Carraro |
|---|---|
| Model | Mach 4 |
| Category | Utility tractor |
| Operating weight | 6,725lb(3,050 kg) |
Engine
| Make | Yanmar |
|---|---|
| Power | 87hp(64.88 kW) |
| Cylinders | 4 |
| Displacement | 202.5ci(3.32 L) |
| Bore | 3.86in(98.04 mm) |
| Stroke | 4.33in(110 mm) |
Transmission
| Forward gears | 16 |
|---|---|
| Reverse gears | 16 |
Chassis & drive
| Steering | Hydraulic Power |
|---|---|
| Cab | ROPS |
Dimensions
| Length | 138.7in(3,523 mm) |
|---|---|
| Width | 51.5in(1,308 mm) |
| Height | 93.1in(2,365 mm) |
| Operating weight | 6,725lb(3,050 kg) |
Closest alternatives
Mach 4 compared with the nearest models by horsepower
Among utility tractors, the Antonio Carraro SRH 9800 Infinity and the Antonio Carraro SX 9400S are closest to the Antonio Carraro Mach 4 in rated horsepower. The Antonio Carraro SRH 9800 Infinity matches it on rated power. The Antonio Carraro SX 9400S matches it on rated power and weighs 2,020 lb less, so it is lighter for its power, which favors PTO and transport work over heavy draft.
| Spec | Antonio Carraro Mach 4 | Antonio Carraro SRH 9800 Infinity | Antonio Carraro SX 9400S |
|---|---|---|---|
| Engine power | 87 hp64.9 kW | 87 hp64.9 kW | 87 hp64.9 kW |
| Operating weight | 6,725 lb3,050 kg | - | 4,707 lb2,135 kg |
| Weight per hp | 77 lb/hp47 kg/kW | - | 54 lb/hp33 kg/kW |
| Displacement | 202.5 ci3.32 L | 202.5 ci3.32 L | 181.2 ci2.97 L |
| Cylinders | 4 | 4 | 4 |
| Transmission | - | Hydrostatic | Manual |
| Drive | - | 4WD | 4WD |
Calculators
Calculators for the Mach 4
PTO power
About 72 to 78 PTO hp
Estimated from the 87 hp engine rating. The calculator also estimates drawbar power by surface.
Implement sizing
Implements a 87 hp tractor can run
Maximum size is about a 10.5 ft rotary cutter or a 9 ft tiller. The calculator also sizes discs, plows and balers.
Ballast
90 lb per PTO hp as listed
Heavy draft work calls for 120 to 135 lb/hp. The calculator gives the ballast to add.
Units
87 hp is 64.9 kW
The converter gives kW and metric PS values, as used on European spec sheets.
Parts and manuals
Parts and manuals for the Antonio Carraro Mach 4
Each link opens a retailer search keyed to the fields recorded for this model. Confirm fitment against the serial plate before ordering.
Filters
- Oil filter for the YanmarAmazon
Fits the Yanmar 4-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
- Air filter for the YanmarAmazon
Fits the Yanmar 4-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
- Fuel filter for the YanmarAmazon
Fits the Yanmar 4-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
- Hydraulic filter for the YanmarAmazon
Fits the Yanmar 4-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
Manuals
- Antonio Carraro Mach 4 service and repair manualseManualOnline
Digital manuals. Check the serial number range on the listing.
- Antonio Carraro Mach 4 operator's manualAmazon
Printed and reprint manuals. Check the serial number range on the listing.
- Antonio Carraro Mach 4 service manualAmazon
Shop and repair manuals for this model.
Links in this section go to retailers. A purchase through them earns this site a commission at no extra cost to the buyer. As an Amazon Associate, Heavy Equipment Specs earns from qualifying purchases. Affiliate disclosure
Category medians
Mach 4 vs. Utility median
Antonio Carraro Mach 4 compared with other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 87 hp | 55 hp | +58% | 76th |
| Engine Displacement | 203 ci | 183 ci | +11% | 55th |
| Cylinders | 4 | 4 | at median | 50th |
| Forward Gears | 16 | 12 | +33% | 73rd |
| Operating Weight | 6,725 lb | 5,303 lb | +27% | 64th |
| Length | 139 in | 137 in | +2% | 53rd |
| Width | 51.5 in | 66 in | -22% | 20th |
| Height | 93.1 in | 94.1 in | -1% | 48th |
Medians and percentiles are calculated from the utility tractors in the database that have a recorded value for each specification (sample size 3,933–5,720 models).
Same manufacturer
Other Antonio Carraro models
Other manufacturers
Models with similar horsepower
Gallery
Antonio Carraro Mach 4 photos




FAQ
Frequently asked questions
What is the engine power output of the Antonio Carraro Mach 4?
Rated engine output for the Antonio Carraro Mach 4 is 87 hp, delivered by a 4-cylinder engine. The engine displaces 202.5 ci.
What is the operating weight of the Antonio Carraro Mach 4?
The Antonio Carraro Mach 4 has an operating weight of about 6,725 lb.
How do I maintain a Antonio Carraro Mach 4?
Routine service for the Antonio Carraro Mach 4 covers engine oil and filter changes, hydraulic and coolant level checks, air filter cleaning, and scheduled inspections. Refer to the manufacturer's maintenance schedule for exact intervals.
