UtilityPerformance profile
John Deere 6510
The John Deere 6510 is a powerful tractor built for tough farm work. It has a strong diesel engine made by John Deere with 6 cylinders. This engine can produce 105 horsepower, which is plenty for most farming tasks. The tractor uses a PowrQuad transmission, giving it 24 forward and 24 reverse gears. This means the driver can easily find the right speed for any job. This tractor is big and sturdy. It's 178.5 inches long, 91.3 inches wide, and 110.6 inches tall. It weighs 10,360 pounds, making it stable for heavy work. The 6510 has hydrostatic power steering, which makes it easy to control. It also has a closed-center load sensing hydraulic system, which helps it lift heavy equipment. The hitch is Category 3, good for attaching large implements. The tractor has big tires, with 16.9R24 in front and 18.4R38 in back, helping it move well in different field conditions.
ManufacturerJohn DeerePower105 hpEngine6-cylTransPowrQuad
Quick specs
- Category
- Utility
- Engine Power Output
- 105hp
- Operating Weight
- 10,360 lb
- Transmission
- PowrQuad
At a glance
How the 6510 compares
vs. Utility medianDistribution
Engine Power (hp)
Across all Utility tractors
105 hp · 85th
This model
9
Median 55 hp
177
This modelUtility tractorsMediann = 5,383
The 6510 ranks at the 85th percentile for engine power among recorded utility tractors.
Overview
About the John Deere 6510
The John Deere 6510 is a powerful tractor built for tough farm work. It has a strong diesel engine made by John Deere with 6 cylinders. This engine can produce 105 horsepower, which is plenty for most farming tasks. The tractor uses a PowrQuad transmission, giving it 24 forward and 24 reverse gears. This means the driver can easily find the right speed for any job. This tractor is big and sturdy. It's 178.5 inches long, 91.3 inches wide, and 110.6 inches tall. It weighs 10,360 pounds, making it stable for heavy work. The 6510 has hydrostatic power steering, which makes it easy to control. It also has a closed-center load sensing hydraulic system, which helps it lift heavy equipment. The hitch is Category 3, good for attaching large implements. The tractor has big tires, with 16.9R24 in front and 18.4R38 in back, helping it move well in different field conditions.
Full specifications
Every recorded spec
General
| Manufacturer | John Deere |
|---|---|
| Model | 6510 |
| Category | Utility tractor |
| Operating weight | 10,360lb |
Engine
| Make | John Deere |
|---|---|
| Power | 105hp |
| Cylinders | 6 |
| Displacement | 414ci |
| Bore | 4.19in |
| Stroke | 5in |
Transmission
| Type | PowrQuad |
|---|---|
| Forward gears | 24 |
| Reverse gears | 24 |
Chassis & drive
| Steering | hydrostatic power |
|---|
Hydraulics
| Type | closed-center load sensing |
|---|
Dimensions
| Length | 178.5in |
|---|---|
| Width | 91.3in |
| Height | 110.6in |
| Operating weight | 10,360lb |
Capacities
| Cooling system | 3.4gal |
|---|
Head to head
6510 vs. Utility median
How the John Deere 6510 compares to other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 105 hp | 55 hp | +91% | 85th |
| Engine Displacement | 414 ci | 183 ci | +126% | 91st |
| Cylinders | 6 | 4 | +50% | 93rd |
| Forward Gears | 24 | 12 | +100% | 92nd |
| Operating Weight | 10,360 lb | 5,303 lb | +95% | 87th |
| Length | 179 in | 137 in | +31% | 90th |
| Width | 91.3 in | 66 in | +38% | 93rd |
| Height | 111 in | 94.1 in | +18% | 88th |
Medians and percentiles are computed from the utility tractors in our database with a recorded value for each spec (sample sizes 3,933–5,720 models).
Compare to tractors with similar specs
Commonly compared John Deere tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| John Deere 5105M | 105 hp | 7,300 lb | 2008–2011 | Compare → |
| John Deere 6105D | 105 hp | 9,935 lb | 2013–2016 | Compare → |
| John Deere 6325 | 105 hp | 8,333 lb | — | Compare → |
| John Deere 6410SE | 105 hp | 8,990 lb | — | Compare → |
| John Deere 6615 | 105.3 hp | 10,670 lb | 2003–2007 | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Belarus 1052 | 105 hp | 7,209 lb | — | Compare → |
| Allis Chalmers 7010 | 105.77 hp | 11,260 lb | 1980–1981 | Compare → |
| Allis Chalmers D21 Series I | 103 hp | 9,500 lb | 1963–1965 | Compare → |
| AGCO LT75A | 100 hp | 8,820 lb | — | Compare → |
| AGCO LT90A | 110 hp | 8,820 lb | — | Compare → |
Explore
John Deere siblings
Explore
Similar-spec models
Gallery

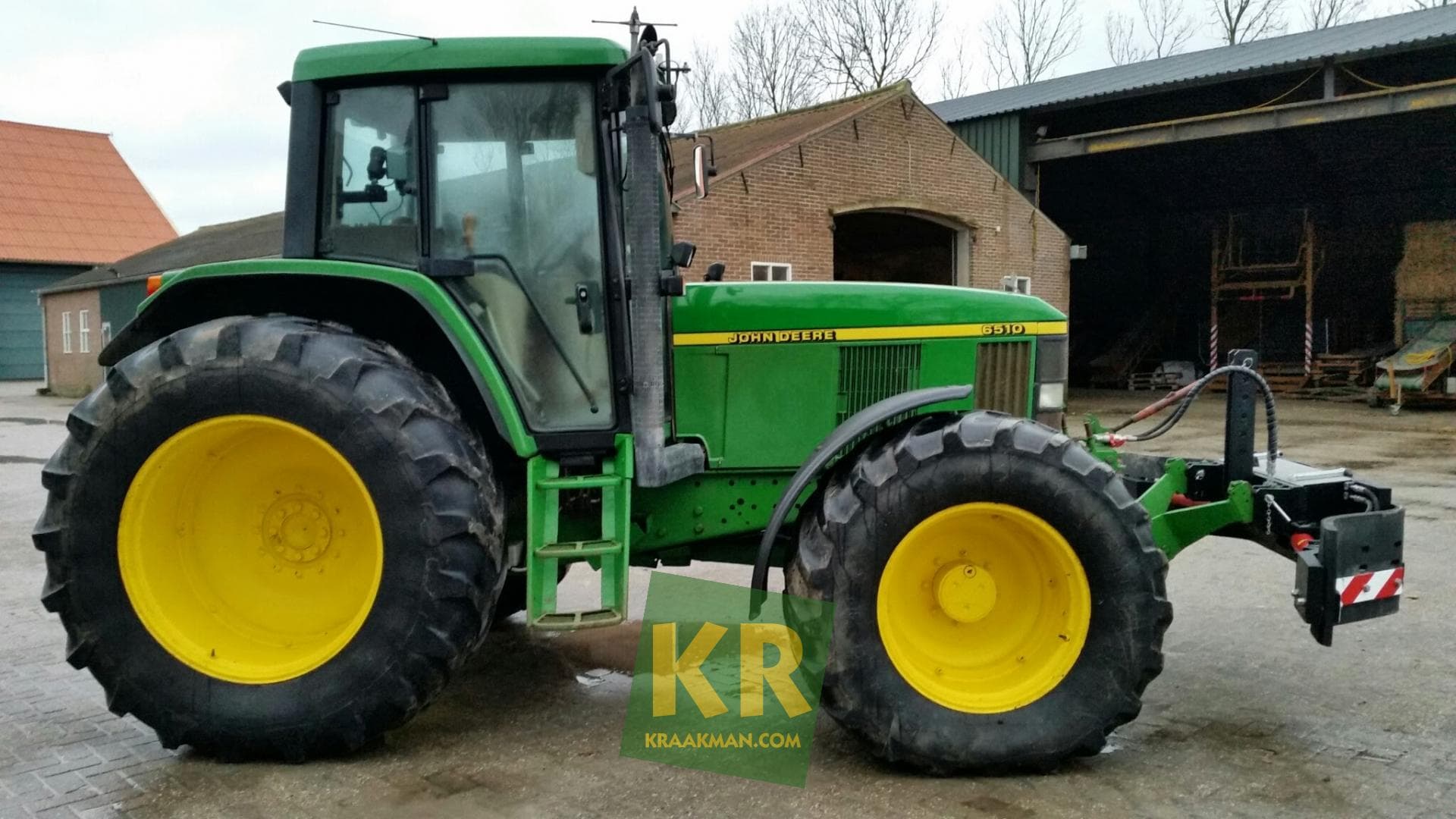

John Deere 6510 photos
FAQ
Common questions
How much horsepower does the John Deere 6510 have?
The John Deere 6510 produces 105 hp from its 6-cylinder engine. Engine displacement is 414 ci.
What hydraulics does the John Deere 6510 have?
The John Deere 6510 uses a closed-center load sensing hydraulic system.
What three-point hitch category does the John Deere 6510 use?
The John Deere 6510 has a Category Category 3 three-point hitch.
How much does the John Deere 6510 weigh?
The John Deere 6510 weighs about 10,360 lb in operating condition.
What transmission is in the John Deere 6510?
Transmission on the John Deere 6510 is PowrQuad, with 24 forward speeds.
What maintenance does the John Deere 6510 require?
Like any tractor, the John Deere 6510 needs periodic engine oil and filter changes, hydraulic fluid checks, and regular greasing and inspection. The owner's manual lists the manufacturer's recommended service intervals.
