Allis Chalmers 7010

Allis Chalmers 7010

Complete specifications and technical data for the Allis Chalmers 7010. Compare with similar tractors from Allis Chalmers and other manufacturers.

Jump to Full Specifications List

Quick Specs

Category

Row Crop

Engine Power Output

106hp

Operating Weight

11,260 lb

Transmission

Power Director

The Allis Chalmers 7010 is a row crop tractor made in 1980 and 1981. It has a 2-wheel drive system and a powerful 6-cylinder diesel engine. The engine is turbocharged and can produce 105.77 horsepower...

Photo Gallery

Image Gallery

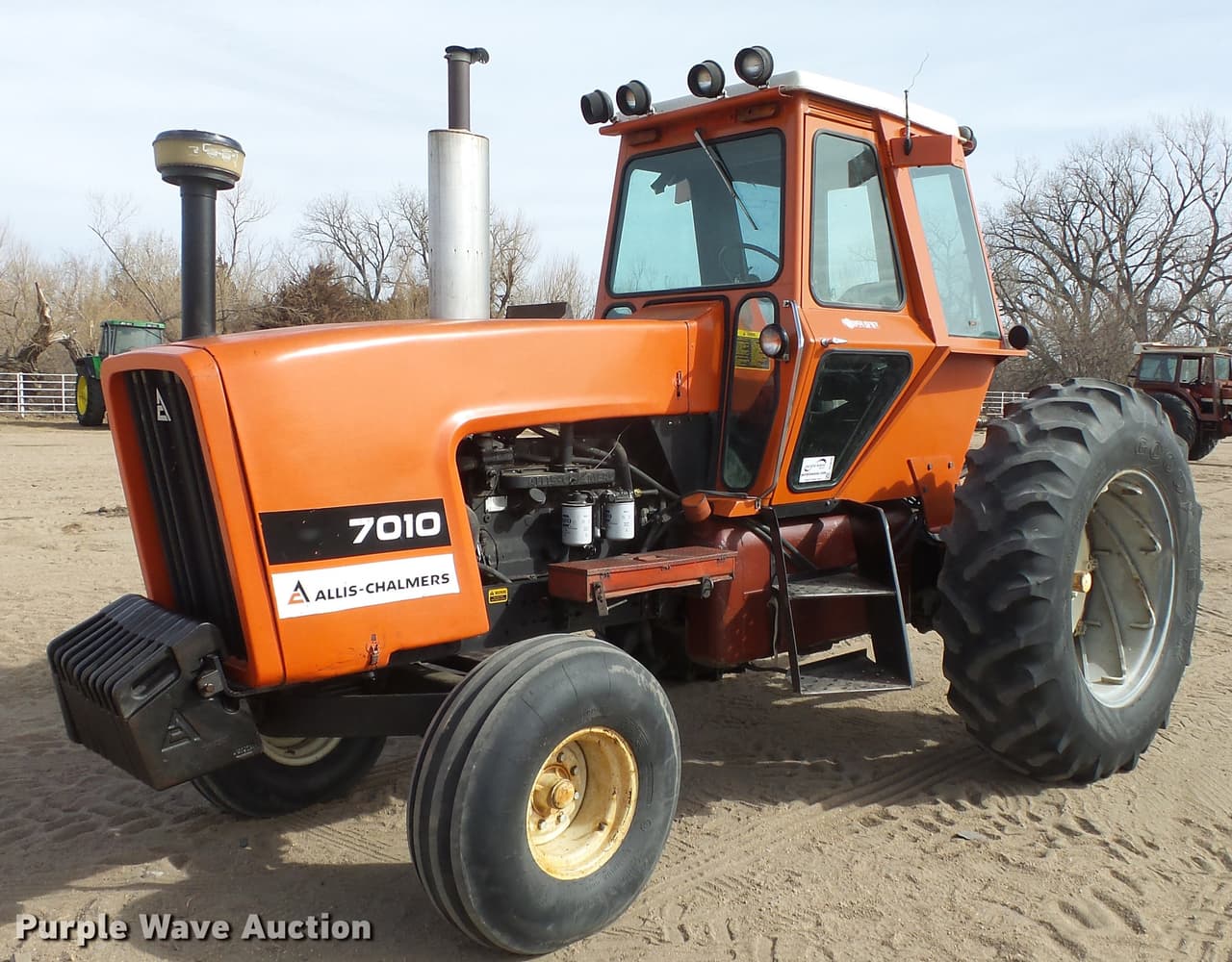

Allis Chalmers 7010 Tractor
Allis Chalmers 7010 Tractor
Allis Chalmers 7010 Tractor
Allis Chalmers 7010 Tractor
Allis Chalmers 7010 Tractor

Specifications

Manufacturer
Allis Chalmers
Model
7010
Category
Row Crop
Manufacturing Years
1980 - 1981
Manufacturer
Allis Chalmers
Model
649T
Power Output
105.77hp
Rated RPM
2,200RPM
Cylinders
6
Displacement
301ci
Bore
3.87in
Stroke
4.25in

Engine Power Output Comparison of Allis Chalmers 7010 vs. Other Row Crop Tractors

Loading Chart...

Type
Power Director
Width
92.6in
Height
116in
Operating Weight
11,260lb

Operating Weight Comparison of Allis Chalmers 7010 vs. Other Row Crop Tractors

Loading Chart...

System Type
Closed Center
Steering Type
Hydrostatic Power
Type
Independent
Speed 1
540rpm
PTO Speed (2nd)
1,000rpm
Speed 2
1,000rpm
Hitch Type
Three-Point Hitch
Hitch Category
III/II
Hitch Position
Rear
Hitch Capacity
8,200lb
Chassis Type
4x2 2WD
Drive Type
2WD
Steering Type
Hydrostatic Power
Brake Type
Differential Hydraulic Wet Disc
Coolant
26qts
Type
Acousta-Cab (with heat) or Four-post ROPS (optional)

Compare to Other Tractors

Frequently Asked Questions

What years was the Allis Chalmers 7010 manufactured?

The Allis Chalmers 7010 was manufactured from 1980 - 1981.

What is the engine power output of the Allis Chalmers 7010?

The Allis Chalmers 7010 has an engine power output of 105.77 hp.

How many cylinders does the Allis Chalmers 7010 have?

The Allis Chalmers 7010 is equipped with a 6-cylinder engine.

What is the operating weight of the Allis Chalmers 7010?

The operating weight of the Allis Chalmers 7010 is approximately 11,260 lb.

What type of transmission does the Allis Chalmers 7010 have?

The Allis Chalmers 7010 is equipped with a Power Director transmission.

What type of hydraulic system does the Allis Chalmers 7010 use?

The Allis Chalmers 7010 uses a Closed Center hydraulic system.

What hitch category is the Allis Chalmers 7010?

The Allis Chalmers 7010 is a Category III/II hitch.

What maintenance does the Allis Chalmers 7010 require?

Regular maintenance for the Allis Chalmers 7010 includes checking and changing engine oil, hydraulic fluid, filters, and performing routine inspections as recommended in the owner's manual. Always refer to the manufacturer's maintenance schedule for specific intervals and procedures.
