Row CropPerformance profile

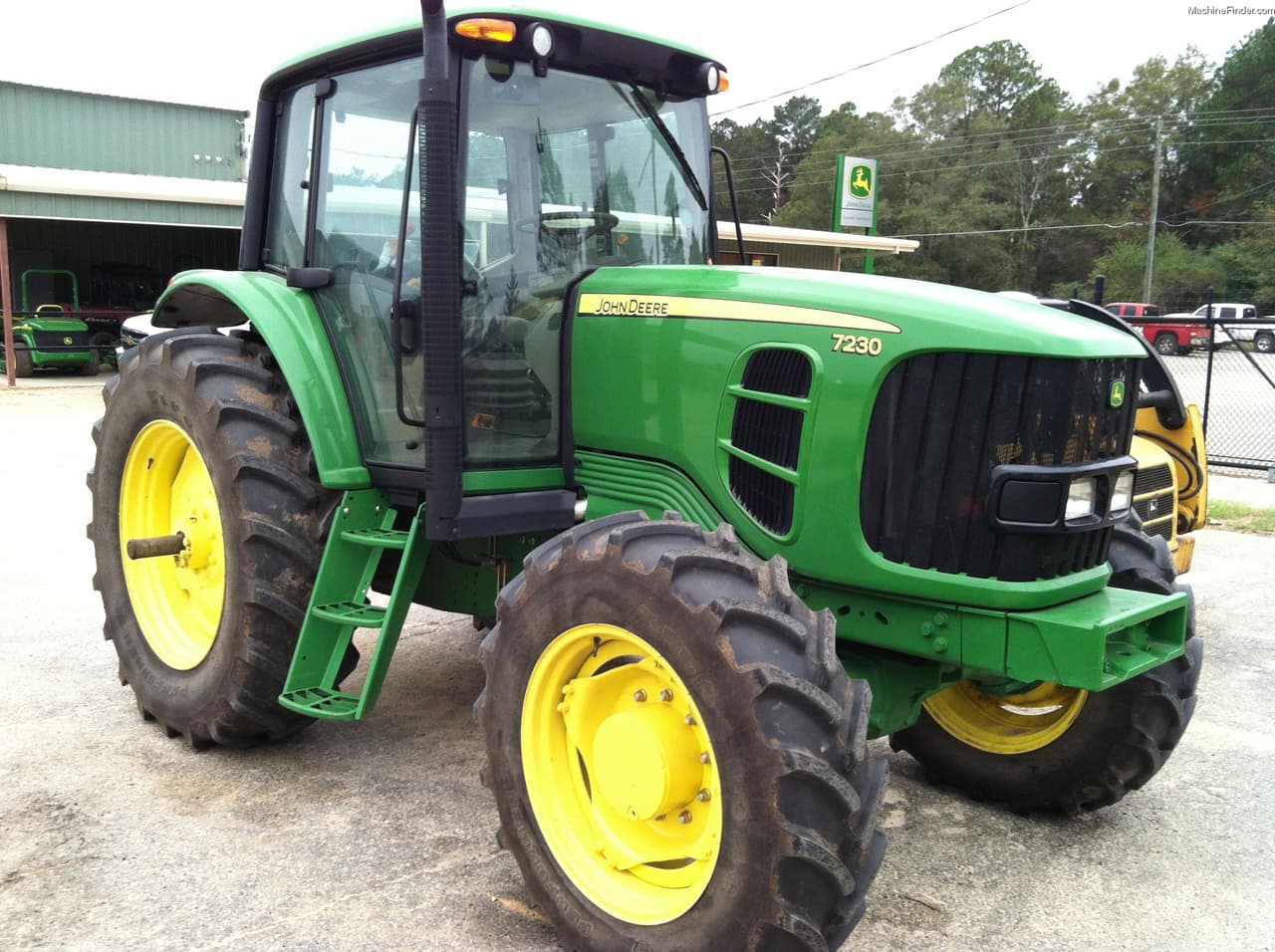

John Deere 7230

The John Deere 7230 is a powerful row crop tractor built from 2007 to 2017. It features a 2WD chassis with hydrostatic power steering, making it easy to control in the fields. The tractor is powered by a John Deere 6068HL280 diesel engine with 6 cylinders and a displacement of 414.4 ci. This turbocharged engine produces 126.93 hp at 2300 rpm, offering above-average power for its class. The 7230 comes with a versatile transmission, offering 24 forward and 24 reverse gears for a total of 48 gears. It has a Category II rear hitch with a very high lifting capacity of 18,196 lb, making it suitable for heavy implements. The tractor features both 540 and 1000 rpm PTO speeds, allowing for use with various attachments. With its constant flow load sensing hydraulic system and wet disc brakes, the John Deere 7230 provides reliable performance for demanding farm tasks. The tractor's operating weight of 12,930 lb and its compact size (187 in long, 65.4 in wide, and 115 in tall) make it well-suited for a range of agricultural applications.

ManufacturerJohn DeerePower126.93 hpEngine6-cylTransSelective gear fixed ratio with partial (4) range operator controlled power shift (AutoQuad-Plus)
Jump to specs ↓Compare →
John Deere 7230
Jump to Full Specifications List

Quick specs

Category
Row Crop
Engine Power Output
127hp
Operating Weight
12,930 lb
Transmission
Selective gear fixed ratio with partial (4) range operator controlled power shift (AutoQuad-Plus)
Compare this model

At a glance

How the 7230 compares

vs. Row Crop median

Distribution

Engine Power (hp)

Across all Row Crop tractors

126.93 hp · 44th

This model

12
Median 138 hp
283
This modelRow Crop tractorsMediann = 1,206

The 7230 ranks at the 44th percentile for engine power among recorded row crop tractors.

Overview

About the John Deere 7230

The John Deere 7230 is a powerful row crop tractor built from 2007 to 2017. It features a 2WD chassis with hydrostatic power steering, making it easy to control in the fields. The tractor is powered by a John Deere 6068HL280 diesel engine with 6 cylinders and a displacement of 414.4 ci. This turbocharged engine produces 126.93 hp at 2300 rpm, offering above-average power for its class. The 7230 comes with a versatile transmission, offering 24 forward and 24 reverse gears for a total of 48 gears. It has a Category II rear hitch with a very high lifting capacity of 18,196 lb, making it suitable for heavy implements. The tractor features both 540 and 1000 rpm PTO speeds, allowing for use with various attachments. With its constant flow load sensing hydraulic system and wet disc brakes, the John Deere 7230 provides reliable performance for demanding farm tasks. The tractor's operating weight of 12,930 lb and its compact size (187 in long, 65.4 in wide, and 115 in tall) make it well-suited for a range of agricultural applications.

Full specifications

Every recorded spec

General

ManufacturerJohn Deere
Model7230
CategoryRow Crop tractor
Type4x2 2WD
Years built2007–2017
Operating weight12,930lb

Engine

MakeJohn Deere
Model6068HL280
Power126.93hp
Cylinders6
Displacement414.4ci
Bore4.19in
Stroke5in

Transmission

TypeSelective gear fixed ratio with partial (4) range operator controlled power shift (AutoQuad-Plus)
Forward gears24
Reverse gears24

Chassis & drive

Chassis4x2 2WD
Drive2WD
SteeringHydrostatic power
BrakesDifferential hydraulic wet disc
CabTwo-post Roll-Gard ROPS

Hydraulics

TypeConstant flow load sensing

Power take-off

Rear PTOIndependent
PTO speed540rpm

Dimensions

Length187in
Width65.4in
Height115in
Operating weight12,930lb

Tires

Front380/85R30
Rear480/80R42

Capacities

Cooling system8.2gal

Head to head

7230 vs. Row Crop median

How the John Deere 7230 compares to other Row Crop tractors

SpecThis modelRow Crop medianDifferencePercentile
Engine Power127 hp138 hp-8%44th
Engine Displacement414 ci391 ci+6%69th
Cylinders66at median50th
Forward Gears2416+50%81st
Operating Weight12,930 lb12,307 lb+5%55th
Length187 in180 in+4%58th
Width65.4 in91.2 in-28%4th
Height115 in114 in+1%56th
3-Point Hitch Capacity18,196 lb11,023 lb+65%80th

Medians and percentiles are computed from the row crop tractors in our database with a recorded value for each spec (sample sizes 279–1,417 models).

Explore

John Deere siblings

All John Deere models →

Explore

Similar-spec models

FAQ

Common questions

When was the John Deere 7230 in production?

John Deere 7230 production started in 2007 and ended in 2017.

How much horsepower does the John Deere 7230 have?

The John Deere 7230 produces 126.93 hp from its 6-cylinder engine. Engine displacement is 414.4 ci.

How much does the John Deere 7230 weigh?

The John Deere 7230 weighs about 12,930 lb in operating condition.

What transmission is in the John Deere 7230?

Transmission on the John Deere 7230 is Selective gear fixed ratio with partial (4) range operator controlled power shift (AutoQuad-Plus), with 24 forward speeds.

What hydraulics does the John Deere 7230 have?

The John Deere 7230 uses a Constant flow load sensing hydraulic system.

What are the factory tire sizes for the John Deere 7230?

The John Deere 7230 comes with 380/85R30 front tires and 480/80R42 rear tires.

What three-point hitch category does the John Deere 7230 use?

The John Deere 7230 has a Category Category 2 three-point hitch rated to lift 18,196 lb.

What maintenance does the John Deere 7230 require?

Like any tractor, the John Deere 7230 needs periodic engine oil and filter changes, hydraulic fluid checks, and regular greasing and inspection. The owner's manual lists the manufacturer's recommended service intervals.
