Brand siblingUtilityPerformance profile

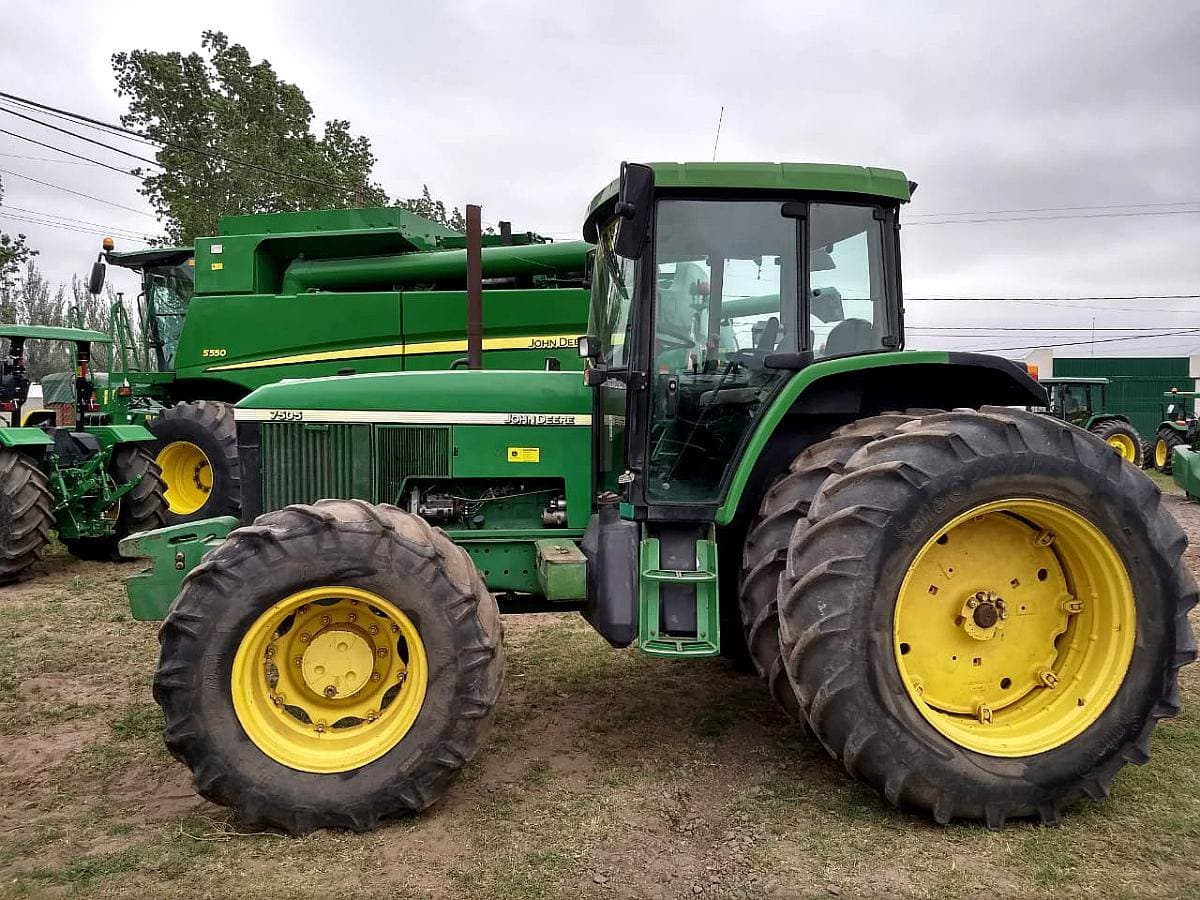

John Deere 7505
The John Deere 7505 is a powerful utility tractor built for tough farm work. It has a strong 6-cylinder diesel engine that makes 140 horsepower. This engine is very big for its class, with a displacement of 414.4 cubic inches. The tractor has four-wheel drive, which helps it move well in different conditions. This tractor is big and heavy, weighing 11,660 pounds. It has a partial power shift transmission with 16 forward and 16 reverse gears, giving the driver lots of options. The 7505 has a very strong rear hitch that can lift up to 17,640 pounds, which is much more than most tractors its size. It also has a good hydraulic system for running attachments. Farmers can choose to get a cab for comfort while working long hours. With its mix of power and features, the John Deere 7505 is a great choice for many farm tasks.
ManufacturerJohn DeerePower140 hpEngine6-cylTransPartial power shift
Quick specs
- Category
- Utility
- Engine Power Output
- 140hp
- Operating Weight
- 11,660 lb
- Transmission
- Partial power shift
At a glance
How the 7505 compares
vs. Utility medianDistribution
Engine Power (hp)
Across all Utility tractors
140 hp · 92nd
This model
9
Median 55 hp
177
This modelUtility tractorsMediann = 5,383
The 7505 ranks at the 92nd percentile for engine power among recorded utility tractors.
Overview
About the John Deere 7505
The John Deere 7505 is a powerful utility tractor built for tough farm work. It has a strong 6-cylinder diesel engine that makes 140 horsepower. This engine is very big for its class, with a displacement of 414.4 cubic inches. The tractor has four-wheel drive, which helps it move well in different conditions. This tractor is big and heavy, weighing 11,660 pounds. It has a partial power shift transmission with 16 forward and 16 reverse gears, giving the driver lots of options. The 7505 has a very strong rear hitch that can lift up to 17,640 pounds, which is much more than most tractors its size. It also has a good hydraulic system for running attachments. Farmers can choose to get a cab for comfort while working long hours. With its mix of power and features, the John Deere 7505 is a great choice for many farm tasks.
Full specifications
Every recorded spec
General
| Manufacturer | John Deere |
|---|---|
| Model | 7505 |
| Category | Utility tractor |
| Type | 4x4 MFWD 4WD |
| Operating weight | 11,660lb |
Engine
| Make | John Deere |
|---|---|
| Model | 6068T Series 350 |
| Power | 140hp |
| Cylinders | 6 |
| Displacement | 414.4ci |
| Bore | 4.19in |
| Stroke | 5in |
Transmission
| Type | Partial power shift |
|---|---|
| Forward gears | 16 |
| Reverse gears | 16 |
Chassis & drive
| Chassis | 4x4 MFWD 4WD |
|---|---|
| Drive | 4WD |
| Steering | Hydrostatic power |
| Cab | Optional cab |
Hydraulics
| Type | Closed-center flow-compensated |
|---|
Dimensions
| Length | 184.9in |
|---|---|
| Height | 112in |
| Operating weight | 11,660lb |
Tires
| Front | 18.4-24 |
|---|---|
| Rear | 24.5-32 |
Capacities
| Cooling system | 5.03gal |
|---|
Head to head
7505 vs. Utility median
How the John Deere 7505 compares to other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 140 hp | 55 hp | +155% | 92nd |
| Engine Displacement | 414 ci | 183 ci | +126% | 92nd |
| Cylinders | 6 | 4 | +50% | 93rd |
| Forward Gears | 16 | 12 | +33% | 73rd |
| Operating Weight | 11,660 lb | 5,303 lb | +120% | 89th |
| Length | 185 in | 137 in | +35% | 92nd |
| Height | 112 in | 94.1 in | +19% | 90th |
| 3-Point Hitch Capacity | 17,640 lb | 3,197 lb | +452% | 97th |
Medians and percentiles are computed from the utility tractors in our database with a recorded value for each spec (sample sizes 1,083–5,720 models).
Compare to tractors with similar specs
Commonly compared John Deere tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| John Deere 6830 | 140 hp | 12,420 lb | — | Compare → |
| John Deere 7515 | 140 hp | 17,640 lb | — | Compare → |
| John Deere 5020 | 141.29 hp | 17,350 lb | 1965–1972 | Compare → |
| John Deere 6R 140 | 138.1 hp | 13,668 lb | — | Compare → |
| John Deere 6135R | 135.4 hp | 14,110 lb | — | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Allis Chalmers 7045 | 136.65 hp | 14,500 lb | 1978–1981 | Compare → |
| AGCO RT135 | 143.94 hp | 15,525 lb | — | Compare → |
| Allis Chalmers 210 | 136 hp | 12,425 lb | 1970–1973 | Compare → |
| Allis Chalmers T16 | 135 hp | 16,300 lb | — | Compare → |
| CaseIH 1455 XL | 145 hp | 11,499 lb | — | Compare → |
Explore
John Deere siblings
Explore
Similar-spec models
Gallery
John Deere 7505 photos
FAQ
Common questions
What is the engine power output of the John Deere 7505?
Rated engine output for the John Deere 7505 is 140 hp, delivered by a 6-cylinder engine. The engine displaces 414.4 ci.
What size tires does the John Deere 7505 use?
Factory rubber for the John Deere 7505 is 18.4-24 front tires and 24.5-32 rear tires.
What hitch category is the John Deere 7505?
The John Deere 7505 uses a Category II hitch with a lift capacity of 17,640 lb.
What is the operating weight of the John Deere 7505?
In working trim, the John Deere 7505 comes in at roughly 11,660 lb.
Which transmission does the John Deere 7505 use?
The John Deere 7505 is equipped with a Partial power shift transmission with 16 forward gears.
What type of hydraulic system does the John Deere 7505 use?
Hydraulics on the John Deere 7505 are Closed-center flow-compensated.
How do I maintain a John Deere 7505?
Routine service for the John Deere 7505 covers engine oil and filter changes, hydraulic and coolant level checks, air filter cleaning, and scheduled inspections. Refer to the manufacturer's maintenance schedule for exact intervals.
