Utility tractorsSpec sheet

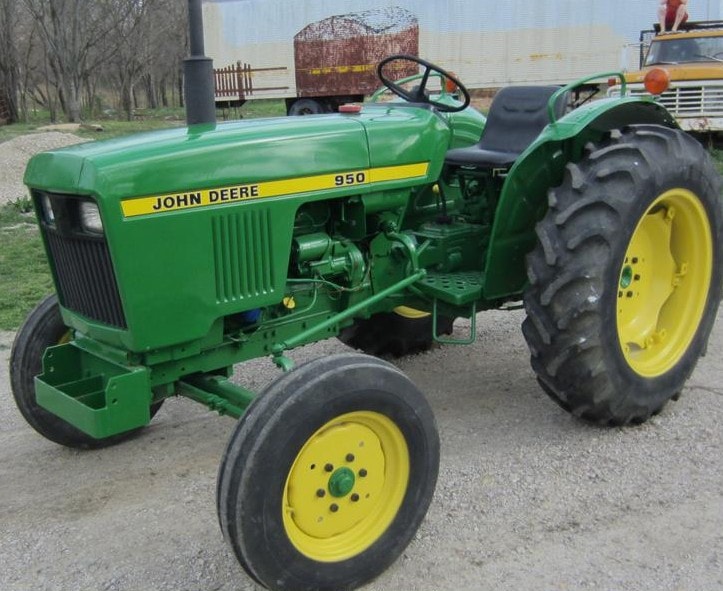

John Deere 950
The John Deere 950 is a utility tractor that was made from 1978 to 1989. It's a small, sturdy machine with a 2WD chassis and manual steering. The tractor is powered by a Yanmar 3T90-J diesel engine with 3 cylinders. This engine is liquid-cooled and naturally aspirated, producing 31 hp at 2400 rpm. The engine's power and size are below average compared to other tractors. This tractor has a gear-type transmission with 8 forward gears and 2 reverse gears. It features a three-point hitch at the rear, which is useful for attaching various implements. The 950 also has a PTO (Power Take-Off) that can run at 540 rpm, allowing it to power different attachments. With an open operator station and a two-post ROPS (Roll-Over Protective Structure), it provides basic safety for the driver. The tractor's compact size, measuring 122 inches long, 53.3 inches wide, and 53.1 inches high, makes it easy to maneuver in tight spaces. Its operating weight of 2700 lb is relatively light compared to other tractors.
ManufacturerJohn DeerePower31 hp(23.1 kW)Class25–40 HP tractors →Engine3-cylinderTransmissionGear type with dry disc clutch
Key specifications
- Category
- Utility
- Engine power
- 31hp
- Operating weight
- 2,700 lb
- Transmission
- Gear type with dry disc clutch
Category comparison
950 compared with its category
vs. Utility medianDistribution
Engine Power (hp)
All recorded Utility tractors
31 hp · 23rd
This model
9
Median 55 hp
177
This modelUtility tractorsMediann = 5,383
The 950 ranks at the 23rd percentile for engine power among recorded utility tractors.
Overview
About the John Deere 950
The John Deere 950 is a utility tractor that was made from 1978 to 1989. It's a small, sturdy machine with a 2WD chassis and manual steering. The tractor is powered by a Yanmar 3T90-J diesel engine with 3 cylinders. This engine is liquid-cooled and naturally aspirated, producing 31 hp at 2400 rpm. The engine's power and size are below average compared to other tractors. This tractor has a gear-type transmission with 8 forward gears and 2 reverse gears. It features a three-point hitch at the rear, which is useful for attaching various implements. The 950 also has a PTO (Power Take-Off) that can run at 540 rpm, allowing it to power different attachments. With an open operator station and a two-post ROPS (Roll-Over Protective Structure), it provides basic safety for the driver. The tractor's compact size, measuring 122 inches long, 53.3 inches wide, and 53.1 inches high, makes it easy to maneuver in tight spaces. Its operating weight of 2700 lb is relatively light compared to other tractors.
Full specifications
Recorded specifications
General
| Manufacturer | John Deere |
|---|---|
| Model | 950 |
| Category | Utility tractor |
| Type | 2WD |
| Years built | 1978–1989 |
| Operating weight | 2,700lb(1,225 kg) |
Engine
| Make | Yanmar |
|---|---|
| Model | 3T90-J |
| Power | 31hp(23.12 kW) |
| Cylinders | 3 |
| Displacement | 105ci(1.72 L) |
| Bore | 3.54in(89.92 mm) |
| Stroke | 3.54in(89.92 mm) |
Transmission
| Type | Gear type with dry disc clutch |
|---|---|
| Forward gears | 8 |
| Reverse gears | 2 |
Chassis & drive
| Chassis | 2WD |
|---|---|
| Drive | 2WD |
| Steering | Manual |
| Brakes | Differential mechanical expanding shoe |
| Cab | Open operator station with two-post ROPS |
Hydraulics
| Type | Open center |
|---|
Power take-off
| Rear PTO | Transmission or live (two-stage clutch) |
|---|---|
| PTO speed | 540rpm |
Dimensions
| Length | 122in(3,099 mm) |
|---|---|
| Width | 53.3in(1,354 mm) |
| Height | 53.1in(1,349 mm) |
| Operating weight | 2,700lb(1,225 kg) |
Capacities
| Cooling system | 1.63gal(6.17 L) |
|---|
Closest alternatives
950 compared with the nearest models by horsepower
By engine horsepower, the nearest utility models to the 950 are the John Deere 3032E and the New Holland TC31DA. The John Deere 3032E matches it on rated power and weighs 530 lb less, carrying 70 lb per horsepower against 87 lb. The New Holland TC31DA matches it on rated power and weighs 230 lb less, so it is lighter for its power, which favors PTO and transport work over heavy draft. It entered production in 2005, 27 years after the 950. Of the 3 models, the 950 has the highest weight per horsepower at 87 lb per hp.
| Spec | John Deere 950 | John Deere 3032E | New Holland TC31DA |
|---|---|---|---|
| Engine power | 31 hp23.1 kW | 31 hp23.1 kW | 31 hp23.1 kW |
| Operating weight | 2,700 lb1,225 kg | 2,175 lb987 kg | 2,474 lb1,122 kg |
| Weight per hp | 87 lb/hp53 kg/kW | 70 lb/hp43 kg/kW | 80 lb/hp49 kg/kW |
| Displacement | 105 ci1.72 L | 100.1 ci1.64 L | 91.3 ci1.5 L |
| Cylinders | 3 | 3 | 3 |
| Transmission | Gear type with dry disc clutch | Hydrostatic | Hydrostatic |
| Drive | 2WD | 4WD | 4WD |
| Years built | 1978-1989 | - | 2005-2008 |
Calculators
Calculators for the 950
PTO power
About 26 to 28 PTO hp
Estimated from the 31 hp engine rating. The calculator also estimates drawbar power by surface.
Implement sizing
Implements a 31 hp tractor can run
The calculator sizes mowers, tillers, discs, plows and balers for this tractor.
Ballast
101 lb per PTO hp as listed
Heavy draft work calls for 130 to 150 lb/hp. The calculator gives the ballast to add.
Units
31 hp is 23.1 kW
The converter gives kW and metric PS values, as used on European spec sheets.
Category medians
950 vs. Utility median
John Deere 950 compared with other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 31 hp | 55 hp | -44% | 23rd |
| Engine Displacement | 105 ci | 183 ci | -43% | 25th |
| Cylinders | 3 | 4 | -25% | 23rd |
| Forward Gears | 8 | 12 | -33% | 23rd |
| Operating Weight | 2,700 lb | 5,303 lb | -49% | 19th |
| Length | 122 in | 137 in | -11% | 30th |
| Width | 53.3 in | 66 in | -19% | 23rd |
| Height | 53.1 in | 94.1 in | -44% | 5th |
Medians and percentiles are calculated from the utility tractors in the database that have a recorded value for each specification (sample size 3,933–5,720 models).
Same manufacturer
Other John Deere models
Other manufacturers
Models with similar horsepower
Gallery
John Deere 950 photos
FAQ
Frequently asked questions
When was the John Deere 950 in production?
John Deere 950 production started in 1978 and ended in 1989.
What hydraulics does the John Deere 950 have?
The John Deere 950 uses an Open center hydraulic system.
What three-point hitch category does the John Deere 950 use?
The John Deere 950 has a Category I three-point hitch.
How much horsepower does the John Deere 950 have?
The John Deere 950 produces 31 hp from its 3-cylinder engine. Engine displacement is 105 ci.
How much does the John Deere 950 weigh?
The John Deere 950 weighs about 2,700 lb in operating condition.
What transmission is in the John Deere 950?
Transmission on the John Deere 950 is Gear type with dry disc clutch, with 8 forward speeds.
What maintenance does the John Deere 950 require?
The John Deere 950 needs periodic engine oil and filter changes, hydraulic fluid checks, and regular greasing and inspection. The owner's manual lists the manufacturer's recommended service intervals.
