Sub-CompactPerformance profile
Kioti CK3520
The Kioti CK3520 is a compact tractor that packs a punch. It's powered by a Daedong diesel engine with 3 cylinders and 34.9 horsepower. This engine is liquid-cooled and naturally aspirated, making it reliable for everyday farm work. The tractor has a 9-forward and 3-reverse gear transmission, giving you plenty of options for different tasks. This Kioti model is built to be versatile. It has a three-point hitch at the rear, which is great for attaching various tools. The tractor also has two PTO speeds - 540 rpm at the rear and 2000 rpm in the middle. This means you can use a wide range of attachments. The CK3520 is 120.9 inches long, 54.5 inches wide, and 92.9 inches tall. It weighs 2679 pounds, making it sturdy but not too heavy. The tractor comes with a ROPS (Roll-Over Protective Structure) for safety and uses an electric starter for easy operation.
ManufacturerKiotiPower34.9 hpEngine3-cylTransGear
Quick specs
- Category
- Sub-Compact
- Engine Power Output
- 35hp
- Operating Weight
- 2,679 lb
- Transmission
- Gear
At a glance
How the CK3520 compares
vs. Sub-Compact medianDistribution
Engine Power (hp)
Across all Sub-Compact tractors
34.9 hp · 64th
This model
4
Median 26.85 hp
49
This modelSub-Compact tractorsMediann = 816
The CK3520 ranks at the 64th percentile for engine power among recorded sub-compact tractors.
Overview
About the Kioti CK3520
The Kioti CK3520 is a compact tractor that packs a punch. It's powered by a Daedong diesel engine with 3 cylinders and 34.9 horsepower. This engine is liquid-cooled and naturally aspirated, making it reliable for everyday farm work. The tractor has a 9-forward and 3-reverse gear transmission, giving you plenty of options for different tasks. This Kioti model is built to be versatile. It has a three-point hitch at the rear, which is great for attaching various tools. The tractor also has two PTO speeds - 540 rpm at the rear and 2000 rpm in the middle. This means you can use a wide range of attachments. The CK3520 is 120.9 inches long, 54.5 inches wide, and 92.9 inches tall. It weighs 2679 pounds, making it sturdy but not too heavy. The tractor comes with a ROPS (Roll-Over Protective Structure) for safety and uses an electric starter for easy operation.
Full specifications
Every recorded spec
General
| Manufacturer | Kioti |
|---|---|
| Model | CK3520 |
| Category | Sub-Compact tractor |
| Operating weight | 2,679lb |
Engine
| Make | Daedong |
|---|---|
| Power | 34.9hp |
| Cylinders | 3 |
| Displacement | 111.4ci |
| Bore | 3.43in |
| Stroke | 4.06in |
Transmission
| Type | Gear |
|---|---|
| Forward gears | 9 |
| Reverse gears | 3 |
Chassis & drive
| Cab | ROPS |
|---|
Hydraulics
| Type | Open Center |
|---|
Power take-off
| Rear PTO | Multiple |
|---|---|
| PTO speed | 540rpm |
Dimensions
| Length | 120.9in |
|---|---|
| Width | 54.5in |
| Height | 92.9in |
| Operating weight | 2,679lb |
Head to head
CK3520 vs. Sub-Compact median
How the Kioti CK3520 compares to other Sub-Compact tractors
| Spec | This model | Sub-Compact median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 34.9 hp | 26.9 hp | +30% | 64th |
| Engine Displacement | 111 ci | 91.4 ci | +22% | 64th |
| Cylinders | 3 | 3 | at median | 50th |
| Forward Gears | 9 | 9 | at median | 50th |
| Operating Weight | 2,679 lb | 2,700 lb | -1% | 50th |
| Length | 121 in | 113 in | +7% | 60th |
| Width | 54.5 in | 50.7 in | +7% | 60th |
| Height | 92.9 in | 78.4 in | +18% | 80th |
Medians and percentiles are computed from the sub-compact tractors in our database with a recorded value for each spec (sample sizes 584–816 models).
Compare to tractors with similar specs
Commonly compared Kioti tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Kioti LK3504 | 35 hp | 3,170 lb | — | Compare → |
| Kioti DK35SE | 38 hp | 3,728.1 lb | — | Compare → |
| Kioti DK35SE HST | 38 hp | 3,666.3 lb | — | Compare → |
| Kioti LK30 | 30 hp | 2,897 lb | — | Compare → |
| Kioti DK40 | 40 hp | 3,836 lb | — | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Ag King AK3540 | 35 hp | 3,895 lb | — | Compare → |
| Apollo 354 | 35 hp | — | — | Compare → |
| Barreiros R-335 S | 35 hp | — | — | Compare → |
| Allis Chalmers WD | 34.63 hp | — | 1948–1953 | Compare → |
| Allis Chalmers U | 34.12 hp | 5,030 lb | — | Compare → |
Explore
Kioti siblings
Explore
Similar-spec models
Gallery

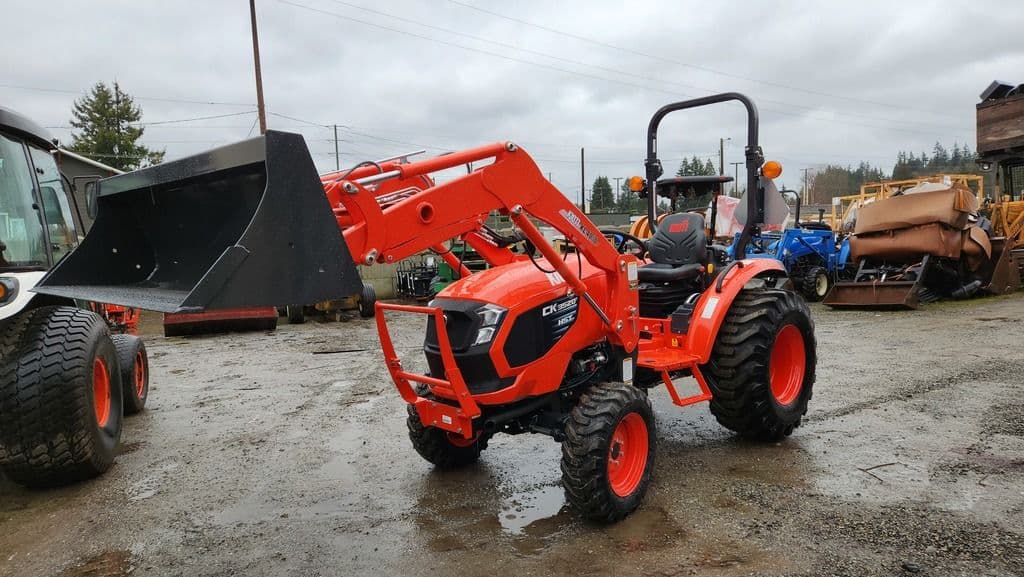

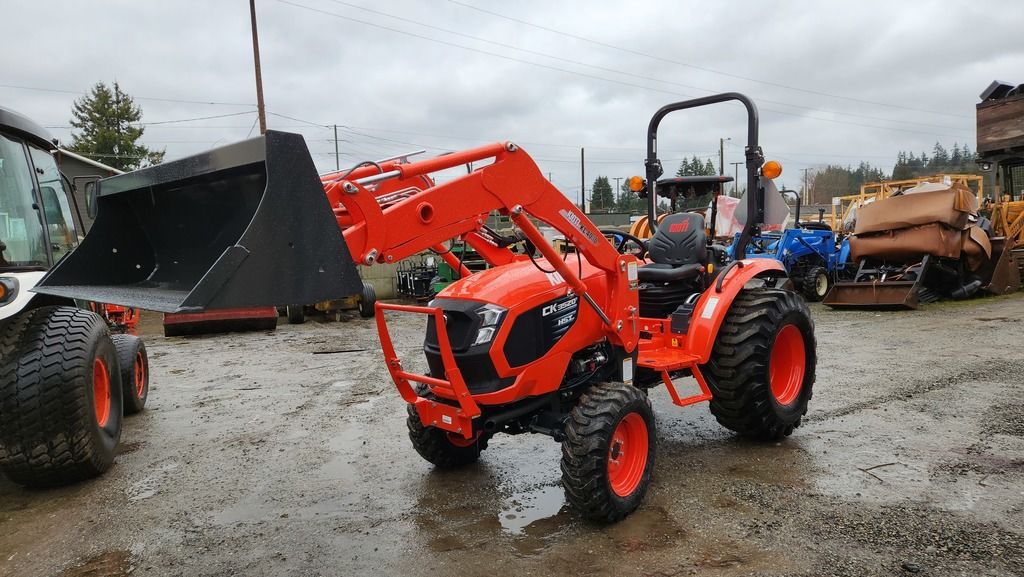

Kioti CK3520 photos
FAQ
Common questions
How much horsepower does the Kioti CK3520 have?
The Kioti CK3520 produces 34.9 hp from its 3-cylinder engine. Engine displacement is 111.4 ci.
What transmission is in the Kioti CK3520?
Transmission on the Kioti CK3520 is Gear, with 9 forward speeds.
What type of hydraulic system does the Kioti CK3520 use?
Hydraulics on the Kioti CK3520 are Open Center.
What hitch category is the Kioti CK3520?
The Kioti CK3520 uses a Category I hitch.
How much does the Kioti CK3520 weigh?
The Kioti CK3520 weighs about 2,679 lb in operating condition.
What maintenance does the Kioti CK3520 require?
Like any tractor, the Kioti CK3520 needs periodic engine oil and filter changes, hydraulic fluid checks, and regular greasing and inspection. The owner's manual lists the manufacturer's recommended service intervals.
