UtilityPerformance profile

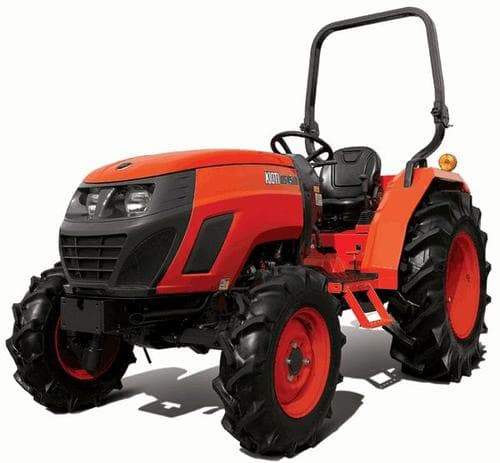

Kioti DS4110
The Kioti DS4110 is a utility tractor built for tough farm work. It has a strong 4-wheel drive system and power steering, making it easy to handle in various conditions. The tractor uses a shuttle transmission with 8 forward and 8 reverse gears, giving the driver plenty of options for different tasks. Under the hood, the DS4110 has a Daedong diesel engine with 4 cylinders. The engine is naturally aspirated and liquid-cooled, producing 41 horsepower at 2600 RPM. This power output is about average for tractors in its class. The tractor's size is compact, measuring 123 inches long, 69.5 inches wide, and 101.6 inches tall. It weighs 3527 pounds, which is on the lighter side for utility tractors. The DS4110 comes with a Category 1 rear hitch and an open center hydraulic system, making it versatile for various attachments and implements.
ManufacturerKiotiPower41 hpEngine4-cylTransShuttle
Quick specs
- Category
- Utility
- Engine Power Output
- 41hp
- Operating Weight
- 3,527 lb
- Transmission
- Shuttle
At a glance
How the DS4110 compares
vs. Utility medianDistribution
Engine Power (hp)
Across all Utility tractors
41 hp · 35th
This model
9
Median 55 hp
177
This modelUtility tractorsMediann = 5,383
The DS4110 ranks at the 35th percentile for engine power among recorded utility tractors.
Overview
About the Kioti DS4110
The Kioti DS4110 is a utility tractor built for tough farm work. It has a strong 4-wheel drive system and power steering, making it easy to handle in various conditions. The tractor uses a shuttle transmission with 8 forward and 8 reverse gears, giving the driver plenty of options for different tasks. Under the hood, the DS4110 has a Daedong diesel engine with 4 cylinders. The engine is naturally aspirated and liquid-cooled, producing 41 horsepower at 2600 RPM. This power output is about average for tractors in its class. The tractor's size is compact, measuring 123 inches long, 69.5 inches wide, and 101.6 inches tall. It weighs 3527 pounds, which is on the lighter side for utility tractors. The DS4110 comes with a Category 1 rear hitch and an open center hydraulic system, making it versatile for various attachments and implements.
Full specifications
Every recorded spec
General
| Manufacturer | Kioti |
|---|---|
| Model | DS4110 |
| Category | Utility tractor |
| Type | 4x4 MFWD 4WD |
| Operating weight | 3,527lb |
Engine
| Make | Daedong |
|---|---|
| Model | 4A200LWM |
| Power | 41hp |
| Cylinders | 4 |
| Displacement | 122ci |
| Bore | 3.27in |
| Stroke | 3.64in |
Transmission
| Type | Shuttle |
|---|---|
| Forward gears | 8 |
| Reverse gears | 8 |
Chassis & drive
| Chassis | 4x4 MFWD 4WD |
|---|---|
| Drive | 4WD |
| Steering | Power |
| Cab | ROPS |
Hydraulics
| Type | Open Center |
|---|
Dimensions
| Length | 123in |
|---|---|
| Width | 69.5in |
| Height | 101.6in |
| Operating weight | 3,527lb |
Head to head
DS4110 vs. Utility median
How the Kioti DS4110 compares to other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 41 hp | 55 hp | -25% | 35th |
| Engine Displacement | 122 ci | 183 ci | -33% | 29th |
| Cylinders | 4 | 4 | at median | 50th |
| Forward Gears | 8 | 12 | -33% | 23rd |
| Operating Weight | 3,527 lb | 5,303 lb | -33% | 30th |
| Length | 123 in | 137 in | -10% | 32nd |
| Width | 69.5 in | 66 in | +5% | 59th |
| Height | 102 in | 94.1 in | +8% | 69th |
Medians and percentiles are computed from the utility tractors in our database with a recorded value for each spec (sample sizes 3,933–5,720 models).
Compare to tractors with similar specs
Commonly compared Kioti tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Kioti DK40SE HST | 41 hp | 3,851.5 lb | — | Compare → |
| Kioti EX40 | 41 hp | — | — | Compare → |
| Kioti CK4010 | 39.6 hp | 3,307 lb | 2015+ | Compare → |
| Kioti CK4020 | 39.6 hp | 2,679 lb | — | Compare → |
| Kioti CK4020SE | 39.6 hp | 2,906 lb | — | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Allis Chalmers ED40 | 41 hp | 3,527 lb | — | Compare → |
| AGCO ST40 | 40.1 hp | 3,323 lb | — | Compare → |
| AGCO ST41A | 40.1 hp | 3,000 lb | — | Compare → |
| Advance-Rumely OilPull K 12/20 | 40 hp | 6,430 lb | — | Compare → |
| Allis Chalmers 160 | 40 hp | 4,674 lb | 1970–1975 | Compare → |
Explore
Kioti siblings
Explore
Similar-spec models
Gallery
Kioti DS4110 photos
FAQ
Common questions
What is the engine power output of the Kioti DS4110?
Rated engine output for the Kioti DS4110 is 41 hp, delivered by a 4-cylinder engine. The engine displaces 122 ci.
Which transmission does the Kioti DS4110 use?
The Kioti DS4110 is equipped with a Shuttle transmission with 8 forward gears.
What hydraulics does the Kioti DS4110 have?
The Kioti DS4110 uses an Open Center hydraulic system.
What is the operating weight of the Kioti DS4110?
In working trim, the Kioti DS4110 comes in at roughly 3,527 lb.
How do I maintain a Kioti DS4110?
Routine service for the Kioti DS4110 covers engine oil and filter changes, hydraulic and coolant level checks, air filter cleaning, and scheduled inspections. Refer to the manufacturer's maintenance schedule for exact intervals.
