Kioti RX7320
The Kioti RX7320 is a tough utility tractor built for hard work on the farm. It has a strong 73 hp diesel engine made by Daedong. This engine is turbocharged and has four cylinders. The tractor uses a 4-wheel drive system, which helps it move well in tough conditions. This tractor is big and strong. It's about 12 feet long, 6.5 feet wide, and 9 feet tall. It weighs 5,600 pounds, which is average for its class. The RX7320 has a powerful three-point hitch at the back that can lift up to 3,900 pounds. This is very high compared to other tractors like it. It also has a PTO (power take-off) system that can run at 540 rpm, which is great for using different tools. The tractor has a big fuel tank that can hold 22.5 gallons of diesel, or 25 gallons if it has a cab. It uses big agricultural tires, with 24-inch ones in front and 30-inch ones in the back.

Key specifications
- Category
- Utility
- Engine power
- 73hp
- Operating weight
- 5,600 lb
- Transmission
- Synchro shuttle
Category comparison
RX7320 compared with its category
vs. Utility medianDistribution
Engine Power (hp)
All recorded Utility tractors
This model
The RX7320 ranks at the 66th percentile for engine power among recorded utility tractors.
Overview
About the Kioti RX7320
The Kioti RX7320 is a tough utility tractor built for hard work on the farm. It has a strong 73 hp diesel engine made by Daedong. This engine is turbocharged and has four cylinders. The tractor uses a 4-wheel drive system, which helps it move well in tough conditions. This tractor is big and strong. It's about 12 feet long, 6.5 feet wide, and 9 feet tall. It weighs 5,600 pounds, which is average for its class. The RX7320 has a powerful three-point hitch at the back that can lift up to 3,900 pounds. This is very high compared to other tractors like it. It also has a PTO (power take-off) system that can run at 540 rpm, which is great for using different tools. The tractor has a big fuel tank that can hold 22.5 gallons of diesel, or 25 gallons if it has a cab. It uses big agricultural tires, with 24-inch ones in front and 30-inch ones in the back.
Full specifications
Recorded specifications
General
| Manufacturer | Kioti |
|---|---|
| Model | RX7320 |
| Category | Utility tractor |
| Type | 4x4 MFWD 4WD |
| Years built | 2014+ |
| Operating weight | 5,600lb(2,540 kg) |
Engine
| Make | Daedong |
|---|---|
| Model | 4F243T |
| Power | 73hp(54.44 kW) |
| Cylinders | 4 |
| Displacement | 148.6ci(2.44 L) |
| Bore | 3.43in(87.12 mm) |
| Stroke | 4.02in(102.1 mm) |
Transmission
| Type | Synchro shuttle |
|---|
Chassis & drive
| Chassis | 4x4 MFWD 4WD |
|---|---|
| Drive | MFWD |
| Steering | Hydrostatic power |
| Brakes | Wet discs |
| Cab | ROPS |
Hydraulics
| Type | Open center gear pump |
|---|
Power take-off
| Rear PTO | Independent |
|---|---|
| PTO speed | 540rpm |
Dimensions
| Length | 146.1in(3,711 mm) |
|---|---|
| Width | 77.2in(1,961 mm) |
| Height | 107.5in(2,731 mm) |
| Operating weight | 5,600lb(2,540 kg) |
Closest alternatives
RX7320 compared with the nearest models by horsepower
Among utility tractors, the John Deere 5075E (2015-2020) and the Massey Ferguson 2230 are closest to the Kioti RX7320 in rated horsepower. The John Deere 5075E (2015-2020) matches it on rated power. The Massey Ferguson 2230 matches it on rated power and weighs 1,570 lb more, at 98 lb per horsepower against 77 lb. It entered production in 1999, 15 years before the RX7320.
| Spec | Kioti RX7320 | John Deere 5075E (2015-2020) | Massey Ferguson 2230 |
|---|---|---|---|
| Engine power | 73 hp54.4 kW | 73 hp54.4 kW | 73 hp54.4 kW |
| Operating weight | 5,600 lb2,540 kg | - | 7,165 lb3,250 kg |
| Weight per hp | 77 lb/hp47 kg/kW | - | 98 lb/hp60 kg/kW |
| Displacement | 148.6 ci2.44 L | 179 ci2.93 L | 258.3 ci4.23 L |
| Cylinders | 4 | 3 | 4 |
| Transmission | Synchro shuttle | - | Sync Shuttle / Two-speed power shift |
| Drive | MFWD | - | 4WD |
| Years built | 2014+ | 2015-2020 | 1999-2001 |
Calculators
Calculators for the RX7320
PTO power
About 61 to 66 PTO hp
Estimated from the 73 hp engine rating. The calculator also estimates drawbar power by surface.
Implement sizing
Implements a 73 hp tractor can run
Maximum size is about a 8.5 ft rotary cutter or a 7.5 ft tiller. The calculator also sizes discs, plows and balers.
Ballast
89 lb per PTO hp as listed
Heavy draft work calls for 120 to 135 lb/hp. The calculator gives the ballast to add.
Units
73 hp is 54.4 kW
The converter gives kW and metric PS values, as used on European spec sheets.
Parts and manuals
Parts and manuals for the Kioti RX7320
Each link opens a retailer search keyed to the fields recorded for this model. Confirm fitment against the serial plate before ordering.
Filters
- Oil filter for the Daedong 4F243TAmazon
Fits the Daedong 4F243T 4-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
- Air filter for the Daedong 4F243TAmazon
Fits the Daedong 4F243T 4-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
- Fuel filter for the Daedong 4F243TAmazon
Fits the Daedong 4F243T 4-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
- Hydraulic filter for the Daedong 4F243TAmazon
Fits the Daedong 4F243T 4-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
Manuals
- Kioti RX7320 service and repair manualseManualOnline
Digital manuals. Built from 2014. Check the serial number range on the listing.
- Kioti RX7320 operator's manualAmazon
Printed and reprint manuals. Built from 2014. Check the serial number range on the listing.
- Kioti RX7320 service manualAmazon
Shop and repair manuals for this model.
Links in this section go to retailers. A purchase through them earns this site a commission at no extra cost to the buyer. As an Amazon Associate, Heavy Equipment Specs earns from qualifying purchases. Affiliate disclosure
Category medians
RX7320 vs. Utility median
Kioti RX7320 compared with other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 73 hp | 55 hp | +33% | 66th |
| Engine Displacement | 149 ci | 183 ci | -19% | 38th |
| Cylinders | 4 | 4 | at median | 50th |
| Operating Weight | 5,600 lb | 5,303 lb | +6% | 52nd |
| Length | 146 in | 137 in | +7% | 62nd |
| Width | 77.2 in | 66 in | +17% | 76th |
| Height | 108 in | 94.1 in | +14% | 83rd |
| 3-Point Hitch Capacity | 3,900 lb | 3,197 lb | +22% | 63rd |
Medians and percentiles are calculated from the utility tractors in the database that have a recorded value for each specification (sample size 1,083–5,720 models).
Same manufacturer
Other Kioti models
Other manufacturers
Models with similar horsepower
Gallery

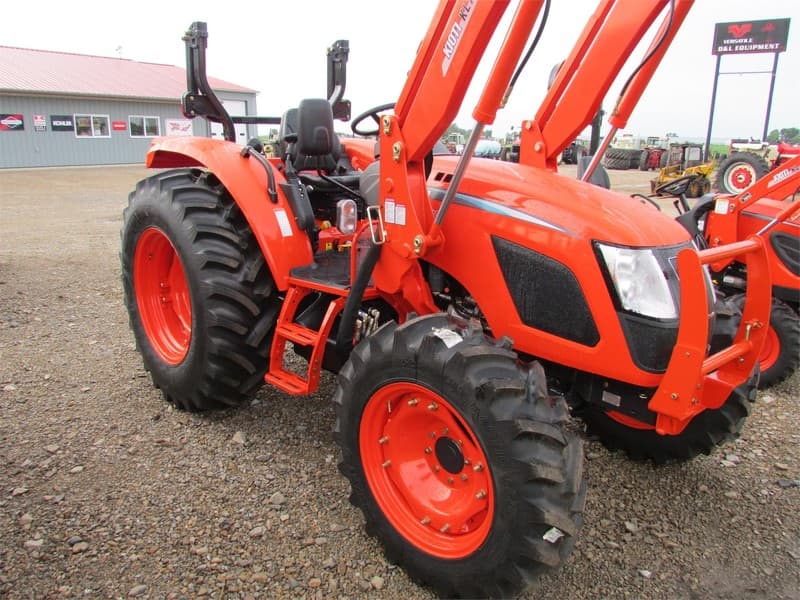

Kioti RX7320 photos



FAQ
Frequently asked questions
When was the Kioti RX7320 in production?
The Kioti RX7320 was introduced in 2014.
How much horsepower does the Kioti RX7320 have?
The Kioti RX7320 produces 73 hp from its 4-cylinder engine. Engine displacement is 148.6 ci.
How much does the Kioti RX7320 weigh?
The Kioti RX7320 weighs about 5,600 lb in operating condition.
What transmission is in the Kioti RX7320?
Transmission on the Kioti RX7320 is Synchro shuttle.
What type of hydraulic system does the Kioti RX7320 use?
Hydraulics on the Kioti RX7320 are Open center gear pump.
What hitch category is the Kioti RX7320?
The Kioti RX7320 uses a Category II hitch with a lift capacity of 3,900 lb.
What maintenance does the Kioti RX7320 require?
The Kioti RX7320 needs periodic engine oil and filter changes, hydraulic fluid checks, and regular greasing and inspection. The owner's manual lists the manufacturer's recommended service intervals.
