Kubota B1-17
The Kubota B1-17 is a small utility tractor made from 1985 to 1988. It's a 2WD model with a manual steering system. This tractor is great for light work on small farms or in big gardens. The B1-17 has a Kubota D950 diesel engine with 3 cylinders. It's liquid-cooled and puts out 17 horsepower at 2600 rpm. The engine size is smaller than average, but its rpm is quite high. It has a 12-speed forward and 4-speed reverse transmission. The tractor is compact, measuring 92.1 inches long, 45.3 inches wide, and 49.2 inches tall. It's very light, weighing only 1433 pounds. The B1-17 uses ag tires, with 4.00-12 in front and 8.3-22 in back. It has an electric starter and a category 0 hitch for attaching tools.
ManufacturerKubotaPower17 hpEngine3-cylTransUnsynchronized Gear
Quick specs
- Category
- Utility
- Engine Power Output
- 17hp
- Operating Weight
- 1,433 lb
- Transmission
- Unsynchronized Gear
At a glance
How the B1-17 compares
vs. Utility medianDistribution
Engine Power (hp)
Across all Utility tractors
17 hp · 5th
This model
9
Median 55 hp
177
This modelUtility tractorsMediann = 5,383
The B1-17 ranks at the 5th percentile for engine power among recorded utility tractors.
Overview
About the Kubota B1-17
The Kubota B1-17 is a small utility tractor made from 1985 to 1988. It's a 2WD model with a manual steering system. This tractor is great for light work on small farms or in big gardens. The B1-17 has a Kubota D950 diesel engine with 3 cylinders. It's liquid-cooled and puts out 17 horsepower at 2600 rpm. The engine size is smaller than average, but its rpm is quite high. It has a 12-speed forward and 4-speed reverse transmission. The tractor is compact, measuring 92.1 inches long, 45.3 inches wide, and 49.2 inches tall. It's very light, weighing only 1433 pounds. The B1-17 uses ag tires, with 4.00-12 in front and 8.3-22 in back. It has an electric starter and a category 0 hitch for attaching tools.
Full specifications
Every recorded spec
General
| Manufacturer | Kubota |
|---|---|
| Model | B1-17 |
| Category | Utility tractor |
| Type | 4x2 2WD |
| Years built | 1985–1988 |
| Operating weight | 1,433lb |
Engine
| Make | Kubota |
|---|---|
| Model | D950 |
| Power | 17hp |
| Cylinders | 3 |
| Displacement | 56.57ci |
| Bore | 2.95in |
| Stroke | 2.76in |
Transmission
| Type | Unsynchronized Gear |
|---|---|
| Forward gears | 12 |
| Reverse gears | 4 |
Chassis & drive
| Chassis | 4x2 2WD |
|---|---|
| Drive | 2WD |
| Steering | Manual |
Dimensions
| Length | 92.1in |
|---|---|
| Width | 45.3in |
| Height | 49.2in |
| Operating weight | 1,433lb |
Tires
| Front | 4.00-12 |
|---|---|
| Rear | 8.3-22 |
Head to head
B1-17 vs. Utility median
How the Kubota B1-17 compares to other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 17 hp | 55 hp | -69% | 5th |
| Engine Displacement | 56.6 ci | 183 ci | -69% | 4th |
| Cylinders | 3 | 4 | -25% | 23rd |
| Forward Gears | 12 | 12 | at median | 50th |
| Operating Weight | 1,433 lb | 5,303 lb | -73% | 5th |
| Length | 92.1 in | 137 in | -33% | 5th |
| Width | 45.3 in | 66 in | -31% | 10th |
| Height | 49.2 in | 94.1 in | -48% | 3rd |
Medians and percentiles are computed from the utility tractors in our database with a recorded value for each spec (sample sizes 3,933–5,720 models).
Compare to tractors with similar specs
Commonly compared Kubota tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Kubota B1550 | 17 hp | 1,224 lb | 1988–1997 | Compare → |
| Kubota B1550 HST | 17 hp | 1,378 lb | 1988–1997 | Compare → |
| Kubota B1700 | 17 hp | 1,400 lb | 1995–1999 | Compare → |
| Kubota B7200 | 17 hp | 1,113 lb | 1983–1990 | Compare → |
| Kubota B7200 HST | 17 hp | 1,235 lb | 1983–1990 | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Ariens GT17 | 17 hp | 926 lb | 1979–1987 | Compare → |
| Bolens G172 | 17 hp | 1,056 lb | — | Compare → |
| Bolens G174 | 17 hp | 1,144 lb | — | Compare → |
| Bolens H1704 | 17 hp | 1,268 lb | — | Compare → |
| Allis Chalmers 616 | 16.5 hp | 1,499 lb | 1972–1973 | Compare → |
Explore
Kubota siblings
Explore
Similar-spec models
Gallery

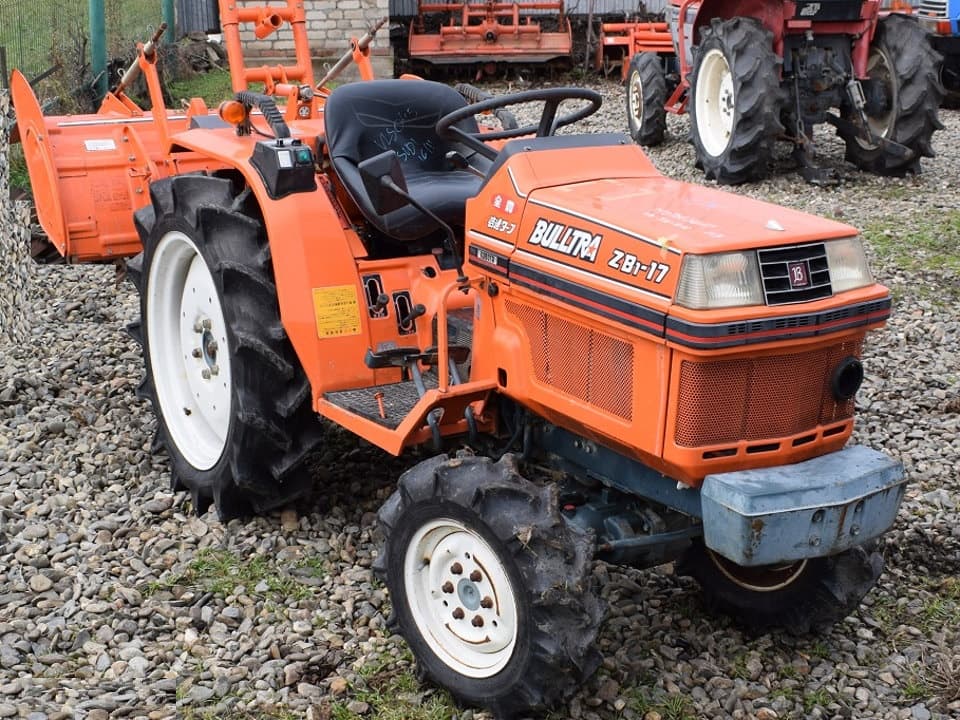

Kubota B1-17 photos
FAQ
Common questions
When was the Kubota B1-17 in production?
Kubota B1-17 production started in 1985 and ended in 1988.
How much does the Kubota B1-17 weigh?
The Kubota B1-17 weighs about 1,433 lb in operating condition.
What transmission is in the Kubota B1-17?
Transmission on the Kubota B1-17 is Unsynchronized Gear, with 12 forward speeds.
What size tires does the Kubota B1-17 use?
Factory rubber for the Kubota B1-17 is 4.00-12 front tires and 8.3-22 rear tires.
What hitch category is the Kubota B1-17?
The Kubota B1-17 uses a Category 0 hitch.
How much horsepower does the Kubota B1-17 have?
The Kubota B1-17 produces 17 hp from its 3-cylinder engine. Engine displacement is 56.57 ci.
What maintenance does the Kubota B1-17 require?
Like any tractor, the Kubota B1-17 needs periodic engine oil and filter changes, hydraulic fluid checks, and regular greasing and inspection. The owner's manual lists the manufacturer's recommended service intervals.
