Utility tractorsSpec sheet

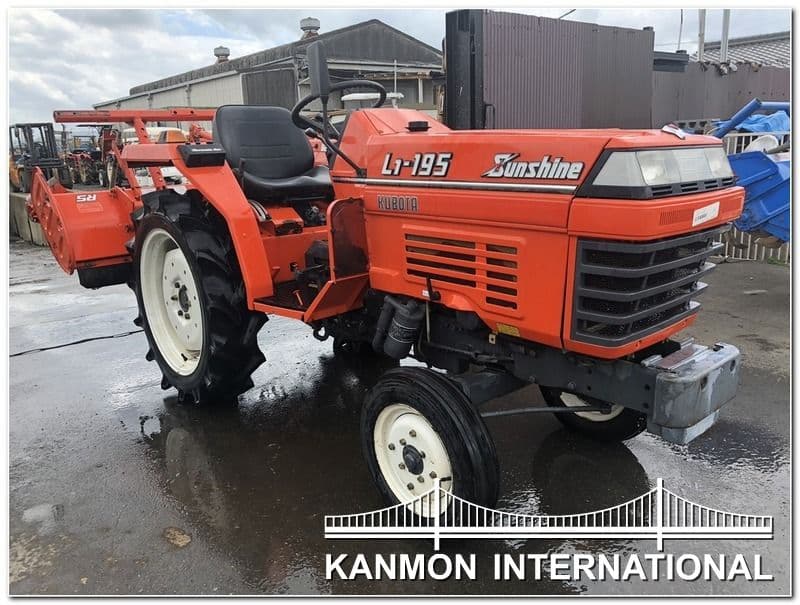

Kubota L1-195
The Kubota L1-195 is a utility tractor made from 1988 to 1991. It's a small, lightweight tractor that's good for basic farm work. The tractor has a 2WD drive system and a shuttle transmission with 16 forward and 16 reverse gears, giving the driver lots of speed options. This tractor is powered by a Kubota D1302 engine. It's a 3-cylinder diesel engine that's cooled by liquid. The engine is naturally aspirated, which means it doesn't use a turbocharger. It has a small engine size of 79.3 ci and produces 18.7 hp at 2500 rpm. The engine power is below average compared to other tractors. The L1-195 has agricultural tires on both front and rear wheels. It's quite compact, measuring 113.8 inches long, 46.9 inches wide, and 54.1 inches tall. The tractor weighs 1962 lb, which is on the lighter side for tractors.
ManufacturerKubotaPower18.7 hp(13.9 kW)ClassUnder 25 HP tractors →Engine3-cylinderTransmissionShuttle
Key specifications
- Category
- Utility
- Engine power
- 19hp
- Operating weight
- 1,962 lb
- Transmission
- Shuttle
Category comparison
L1-195 compared with its category
vs. Utility medianDistribution
Engine Power (hp)
All recorded Utility tractors
18.7 hp · 7th
This model
9
Median 55 hp
177
This modelUtility tractorsMediann = 5,383
The L1-195 ranks at the 7th percentile for engine power among recorded utility tractors.
Overview
About the Kubota L1-195
The Kubota L1-195 is a utility tractor made from 1988 to 1991. It's a small, lightweight tractor that's good for basic farm work. The tractor has a 2WD drive system and a shuttle transmission with 16 forward and 16 reverse gears, giving the driver lots of speed options. This tractor is powered by a Kubota D1302 engine. It's a 3-cylinder diesel engine that's cooled by liquid. The engine is naturally aspirated, which means it doesn't use a turbocharger. It has a small engine size of 79.3 ci and produces 18.7 hp at 2500 rpm. The engine power is below average compared to other tractors. The L1-195 has agricultural tires on both front and rear wheels. It's quite compact, measuring 113.8 inches long, 46.9 inches wide, and 54.1 inches tall. The tractor weighs 1962 lb, which is on the lighter side for tractors.
Full specifications
Recorded specifications
General
| Manufacturer | Kubota |
|---|---|
| Model | L1-195 |
| Category | Utility tractor |
| Type | 4x2 2WD |
| Years built | 1988–1991 |
| Operating weight | 1,962lb(889.9 kg) |
Engine
| Make | Kubota |
|---|---|
| Model | D1302 |
| Power | 18.7hp(13.94 kW) |
| Cylinders | 3 |
| Displacement | 79.3ci(1.3 L) |
| Bore | 3.23in(82.04 mm) |
| Stroke | 3.23in(82.04 mm) |
Transmission
| Type | Shuttle |
|---|---|
| Forward gears | 16 |
| Reverse gears | 16 |
Chassis & drive
| Chassis | 4x2 2WD |
|---|---|
| Drive | 2WD |
Dimensions
| Length | 113.8in(2,891 mm) |
|---|---|
| Width | 46.9in(1,191 mm) |
| Height | 54.1in(1,374 mm) |
| Operating weight | 1,962lb(889.9 kg) |
Closest alternatives
L1-195 compared with the nearest models by horsepower
Among utility tractors, the Kubota GL19 and the Kubota B1902 are closest to the Kubota L1-195 in rated horsepower. The Kubota GL19 matches it on rated power and weighs 290 lb more, at 120 lb per horsepower against 105 lb. The Kubota B1902 matches it on rated power and weighs 380 lb less, so it is lighter for its power, which favors PTO and transport work over heavy draft. It entered production in 1981, 7 years before the L1-195.
| Spec | Kubota L1-195 | Kubota GL19 | Kubota B1902 |
|---|---|---|---|
| Engine power | 18.7 hp13.9 kW | 18.7 hp13.9 kW | 18.7 hp13.9 kW |
| Operating weight | 1,962 lb890 kg | 2,249 lb1,020 kg | 1,587 lb720 kg |
| Weight per hp | 105 lb/hp64 kg/kW | 120 lb/hp73 kg/kW | 85 lb/hp52 kg/kW |
| Displacement | 79.3 ci1.3 L | 85 ci1.39 L | 68 ci1.11 L |
| Cylinders | 3 | 3 | 3 |
| Transmission | Shuttle | Gear, Power Shift | Unsynchronized gear |
| Drive | 2WD | 4WD | 4x2 2WD |
| Years built | 1988-1991 | 1990-1992 | 1981-1986 |
Calculators
Calculators for the L1-195
PTO power
About 16 to 17 PTO hp
Estimated from the 18.7 hp engine rating. The calculator also estimates drawbar power by surface.
Implement sizing
Implements a 18.7 hp tractor can run
The calculator sizes mowers, tillers, discs, plows and balers for this tractor.
Ballast
122 lb per PTO hp as listed
Heavy draft work calls for 130 to 150 lb/hp. The calculator gives the ballast to add.
Units
18.7 hp is 13.9 kW
The converter gives kW and metric PS values, as used on European spec sheets.
Category medians
L1-195 vs. Utility median
Kubota L1-195 compared with other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 18.7 hp | 55 hp | -66% | 7th |
| Engine Displacement | 79.3 ci | 183 ci | -57% | 12th |
| Cylinders | 3 | 4 | -25% | 23rd |
| Forward Gears | 16 | 12 | +33% | 73rd |
| Operating Weight | 1,962 lb | 5,303 lb | -63% | 11th |
| Length | 114 in | 137 in | -17% | 19th |
| Width | 46.9 in | 66 in | -29% | 13th |
| Height | 54.1 in | 94.1 in | -43% | 5th |
Medians and percentiles are calculated from the utility tractors in the database that have a recorded value for each specification (sample size 3,933–5,720 models).
Same manufacturer
Other Kubota models
Other manufacturers
Models with similar horsepower
Gallery
Kubota L1-195 photos
FAQ
Frequently asked questions
When was the Kubota L1-195 made?
The Kubota L1-195 was manufactured from 1988 to 1991.
Which transmission does the Kubota L1-195 use?
The Kubota L1-195 is equipped with a Shuttle transmission with 16 forward gears.
What three-point hitch category does the Kubota L1-195 use?
The Kubota L1-195 has a Category I three-point hitch.
What is the engine power output of the Kubota L1-195?
Rated engine output for the Kubota L1-195 is 18.7 hp, delivered by a 3-cylinder engine. The engine displaces 79.3 ci.
What is the operating weight of the Kubota L1-195?
The Kubota L1-195 has an operating weight of about 1,962 lb.
How do I maintain a Kubota L1-195?
Routine service for the Kubota L1-195 covers engine oil and filter changes, hydraulic and coolant level checks, air filter cleaning, and scheduled inspections. Refer to the manufacturer's maintenance schedule for exact intervals.
